This is the 12V variant of the 44 Keys RGB IR Remote Controller for 12V 5050 RGB LED Strip in RGB LED Strips and Drivers. Available at Original price was: ₹148.68.₹126.26Current price is: ₹126.26. (₹107.00 + GST) with free shipping across India.
Product Description:
This is a 44-key RGB IR remote controller for 5050 RGB LED strip lights. It uses infrared signals to wirelessly control 2 LED lights at the same time.
Button use:
R: Color change to Red
G: Color change to Green
B: Color change to Blue
W: Color change to White
Use: 12V 5050 RGB SMD LED strip lights
Features:
- 16 colors, 5 light pattern: Static/Flash/Strobe/Fade-change/RGB Smooth-change.
- 16-classes Static Mode Dim Control
- 16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change.
- Connecting mode: common anode
- Material: plastic
- Output: Three CMOS Drain-open Output
Specification:
| Supply voltage | DC12V |
|---|---|
| Output current | 2A each color |
| Connecting mode | common anode |
| Output | Three CMOS Drain-open Output |
| Number Of buttons | 44 |
| Working temperature | -20℃-60℃ |
| Material | plastic |
| Remote controller size(mm) | 122 * 55 |
| Shipping Weight | 0.059 kg |
| Shipping Dimensions | 13 × 7 × 5 cm |

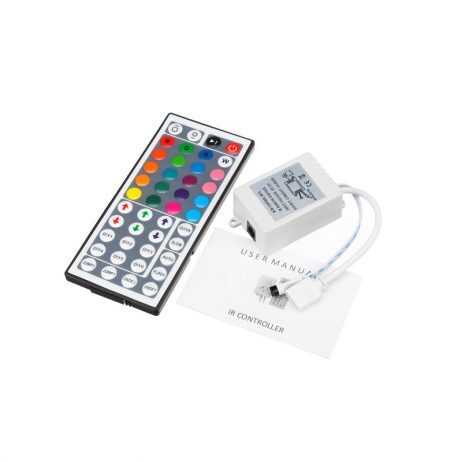

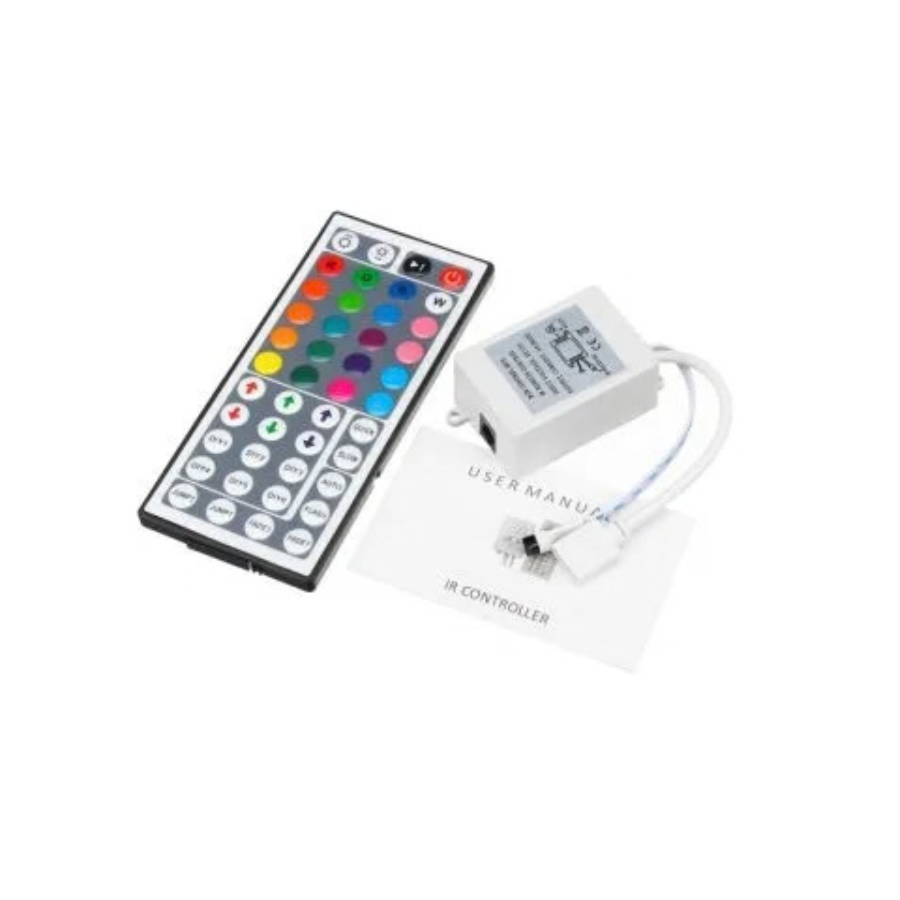

Package Includes:

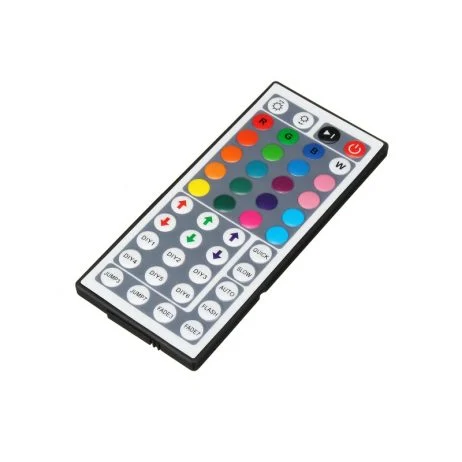

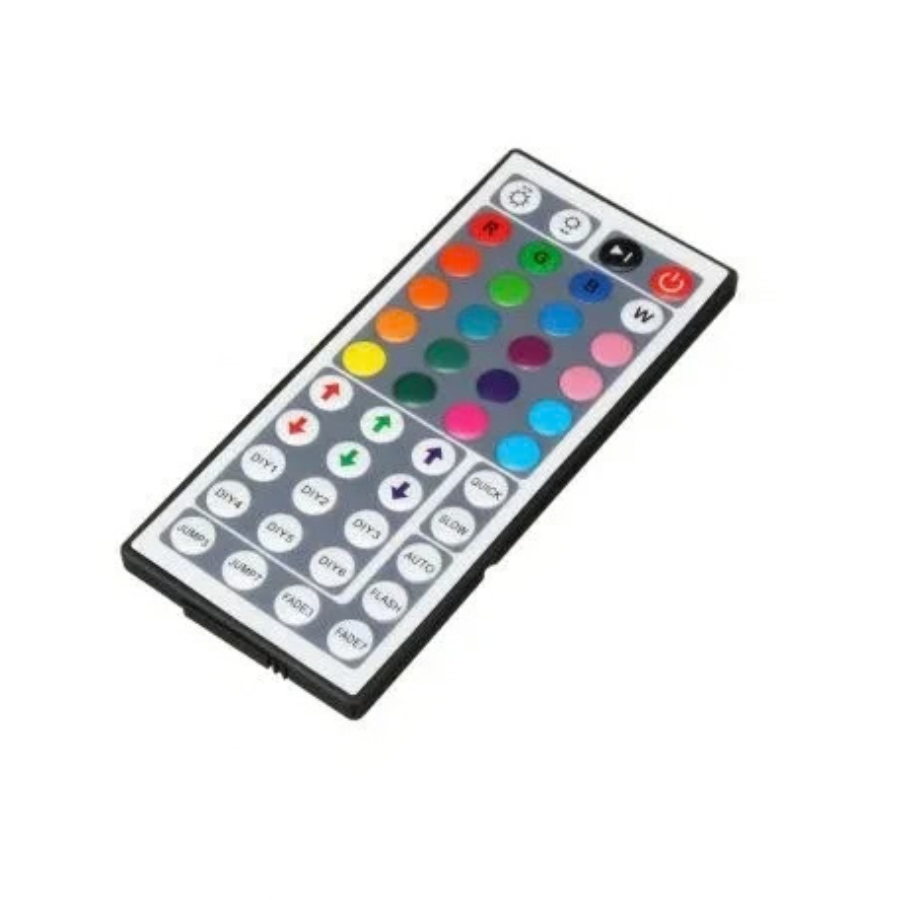

1 X remote controller

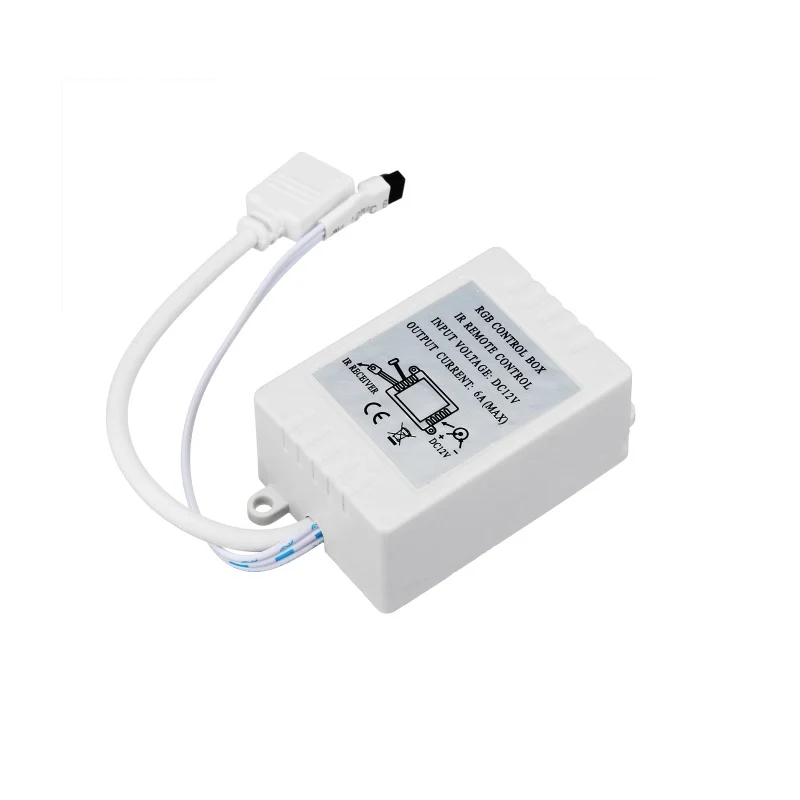

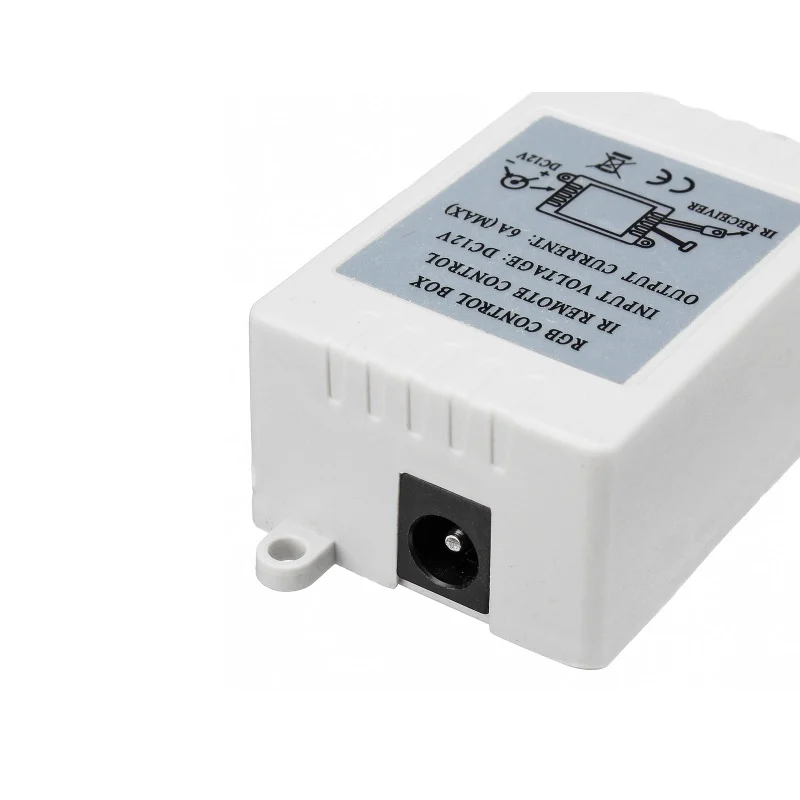

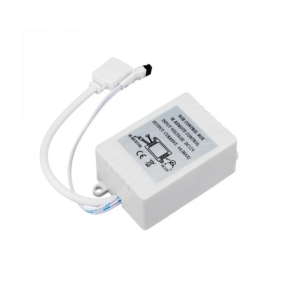

1 X control box
1 X instruction manual
