This is the White variant of the 12mm 12V Ring Light Self-Lock Non-momentary Metal Push-button Switch-White Light in Metal Push Button Switch, Electronic Switches. Available at ₹84.96 (₹72.00 + GST) with free shipping across India.

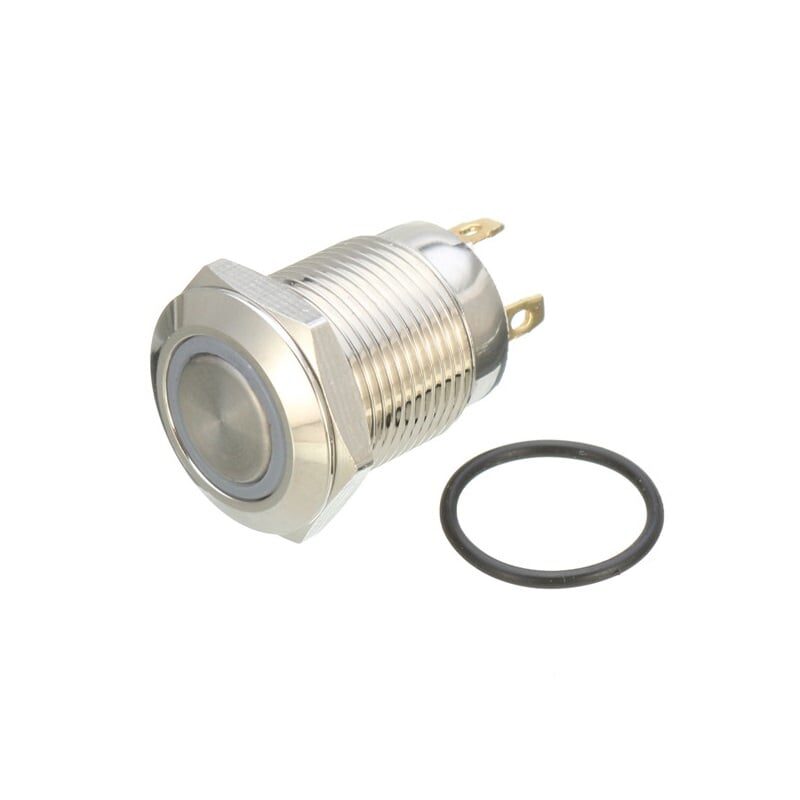

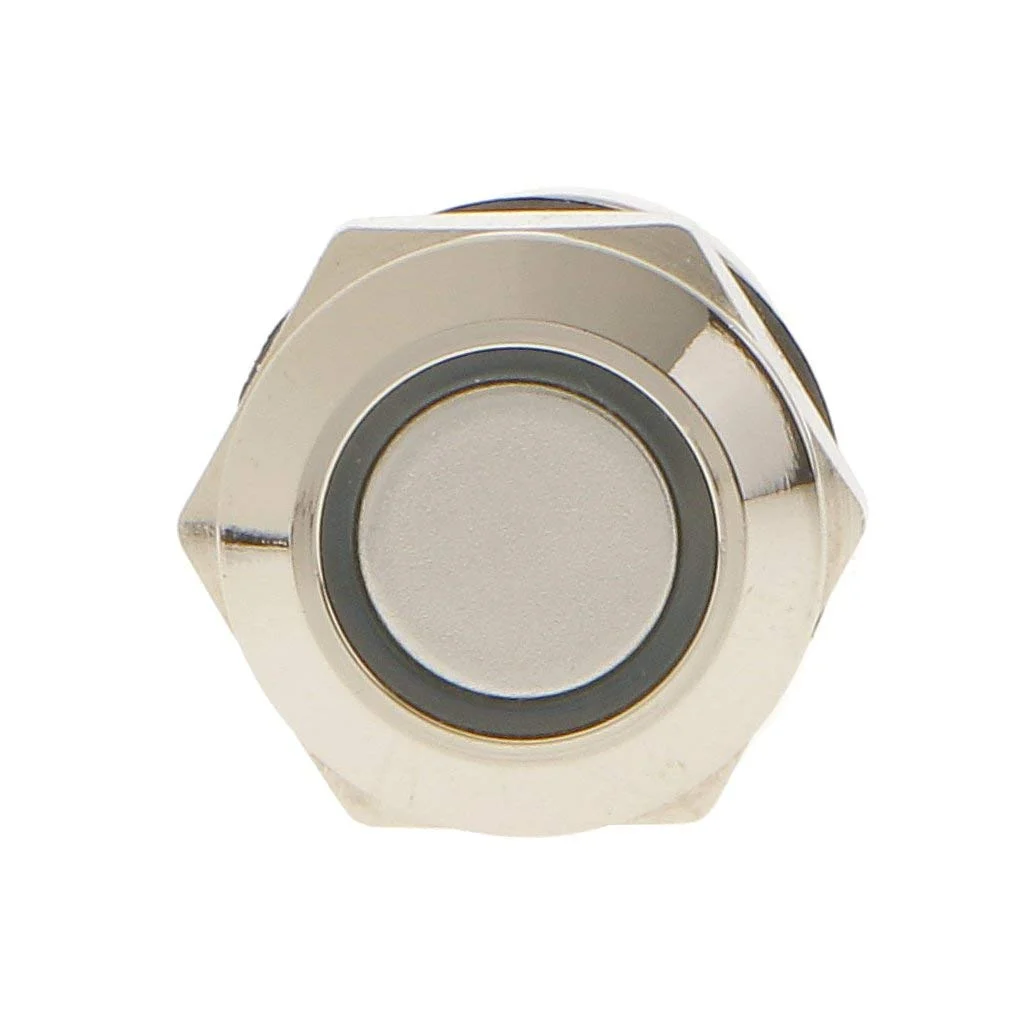

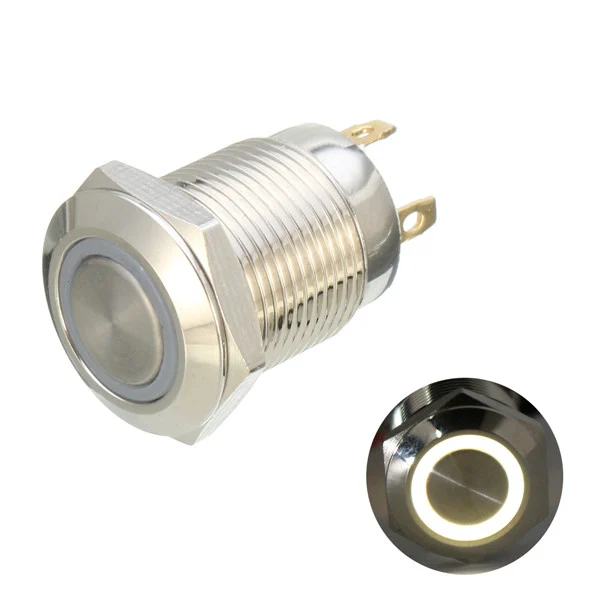

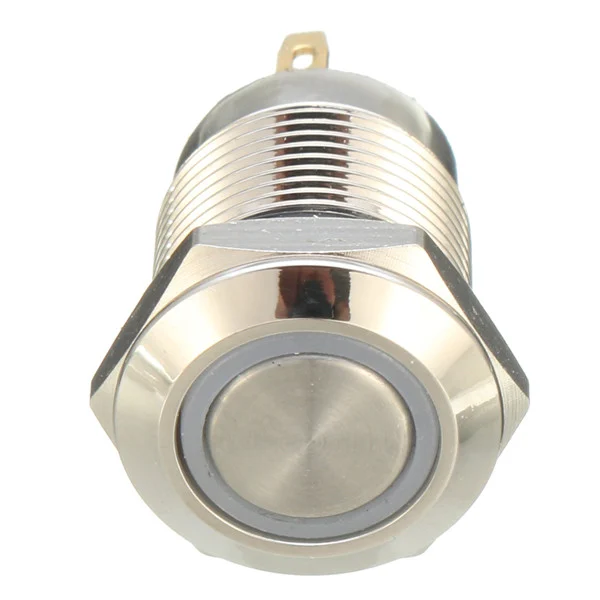

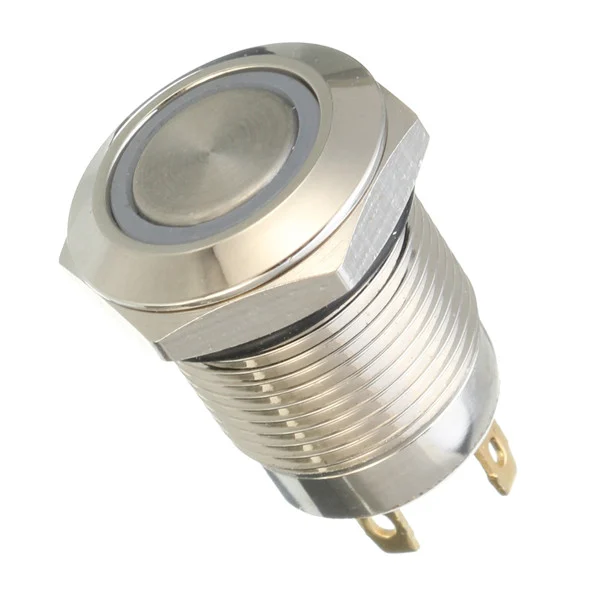

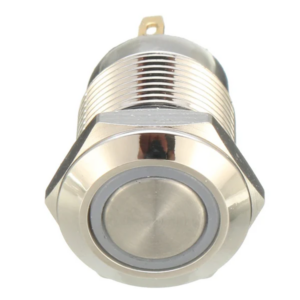

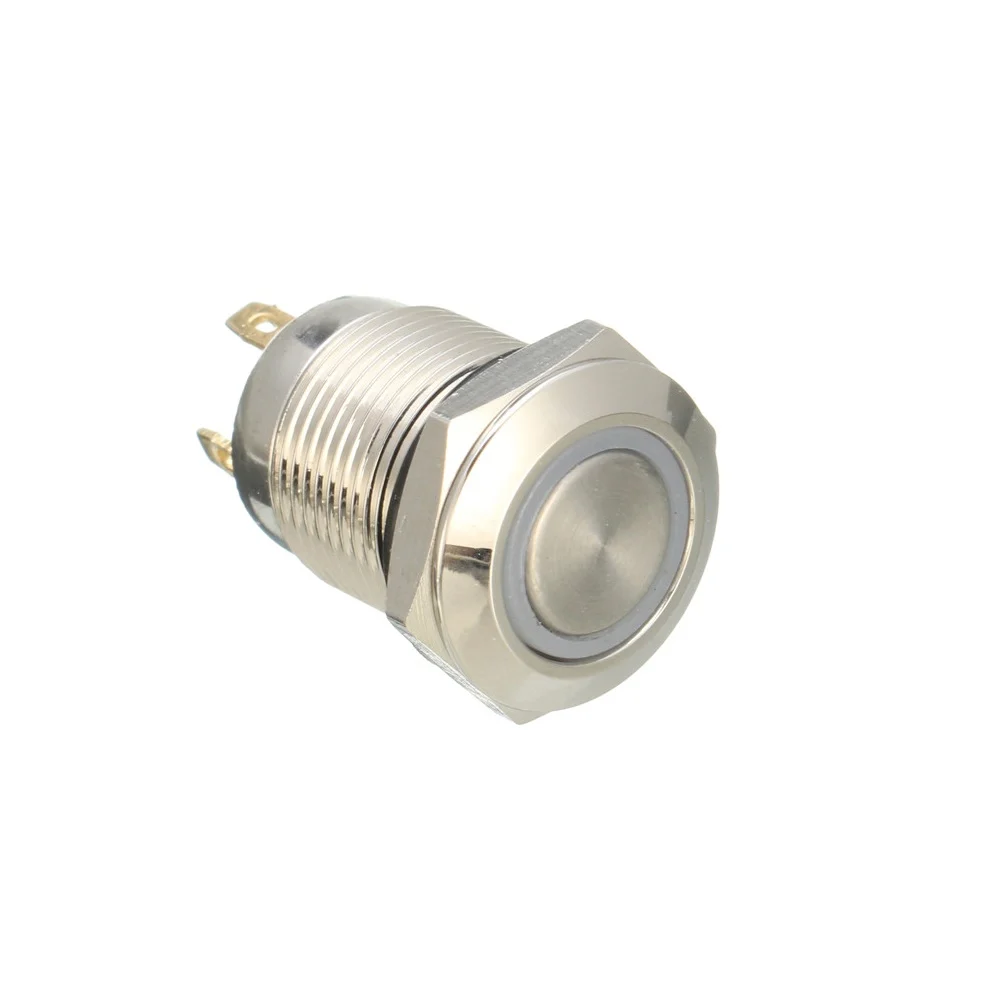

12mm 12V Ring Light Self-Lock Non-momentary Metal Push-button Switch-White Light
This Self-lock Non-Momentary Metal Pushbutton Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated White LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with Led Light ring around push area of switch. These switches are available in various LED light Colours, you can choose for your application purpose
This switch comes with Non-Momentary Self-Lock action which means it holds its physical position with ON/OFF state until you press it again. A threaded head and a nut, which makes it perfect to be mounted and installed which encloses in your project cases showing flat hexagonal ring structure outside. With glowing, your desired colourful light ring itself in switch gives an attractive design and premium look which compliments quality panels and dashboards.

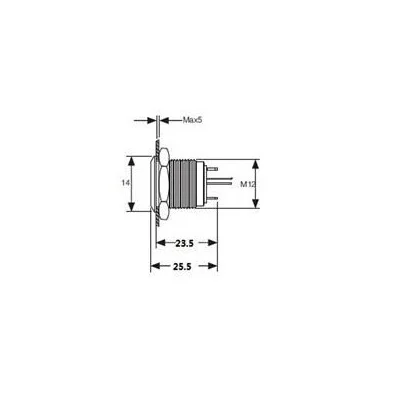

The switch comes Stainless steel body with an IP67 protection rating to provide the best environmental protection and long operational life. This button is perfect for basic On/Off functions. Overall length (including leads) is 26mm and has small solder lugs for connection. These non-momentary Self Lock buttons are rated up to 3A and 12 VDC while the LED is rated for 5V.
Features:
- Stainless steel material for long-term use
- High-end appearance and good to touch
- Inbuilt Colorful Ring illumination LED

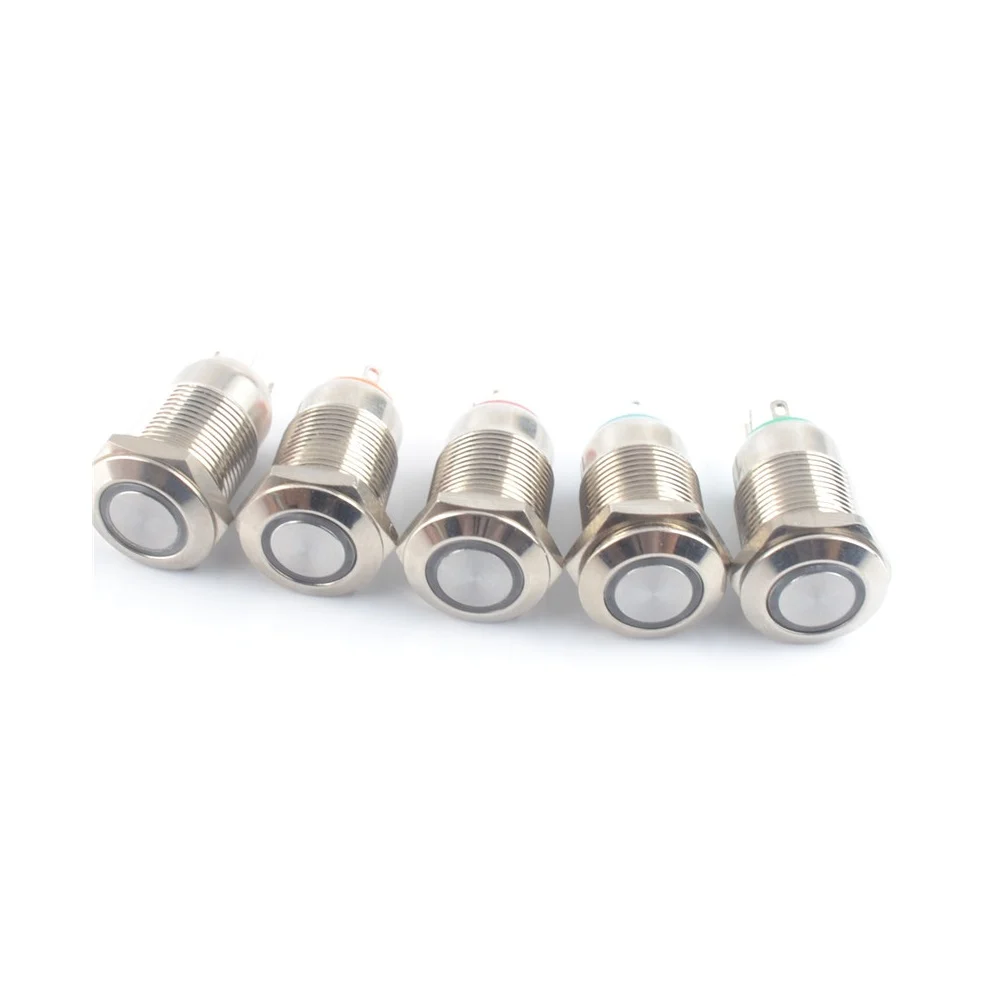

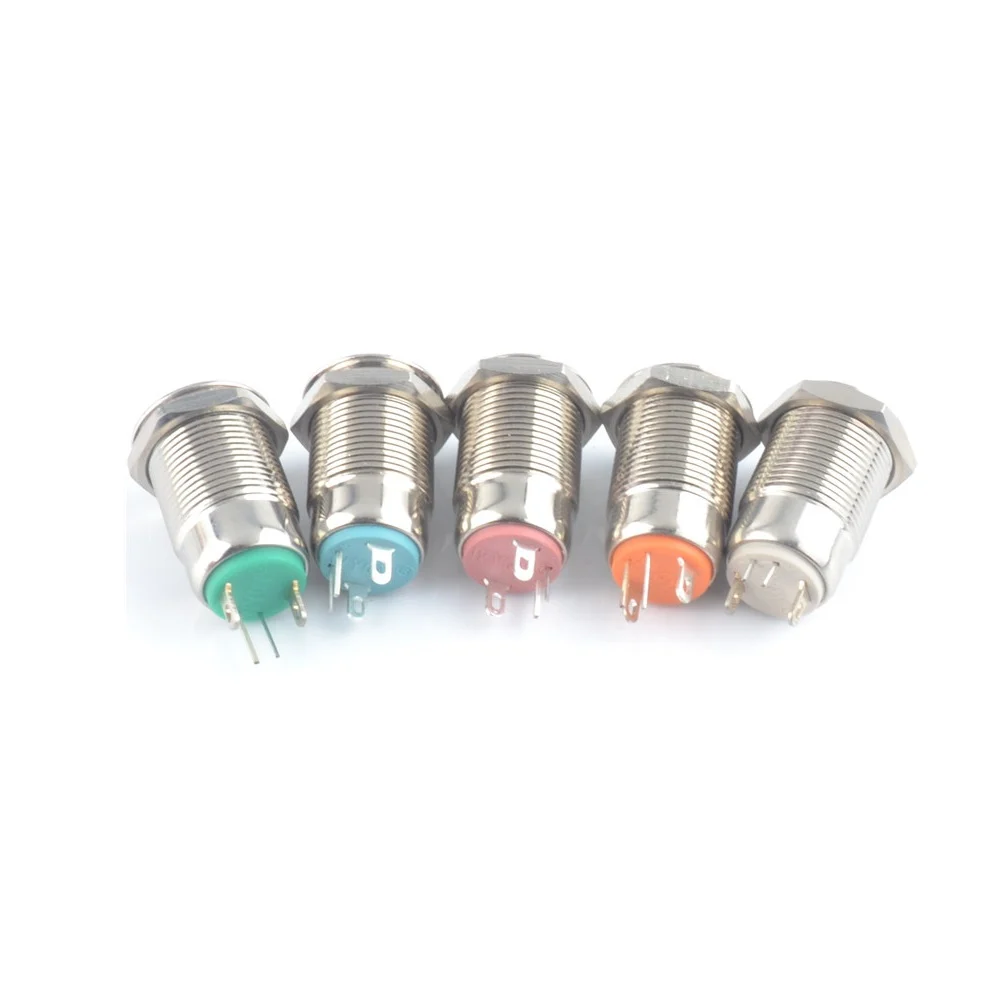

- Available in Various LED Color
- Independent LED terminals
- Bright daylight LEDs
- Single pole push to make and Push to break Function
- Front and rear panel seal to IP67
- Integral supply resistors
- TVS protection
- Good electrical conductivity
- Non-momentary type push-button switch
- Rubber ring and hexagon nut to fix, Waterproof and Dustproof
Package Includes:
1 x 12mm 12V Ring Light Self-Lock Metal Push-button Switch-White Light
12mm 12V Ring Light Self-Lock Non-momentary Metal Overview
This 12mm 12V Ring Light Self-Lock Non-momentary Metal Push-button Switch features a rugged stainless steel construction and a bright white LED illumination ring. Designed for panel-mount applications, it offers SPDT contacts with a self-locking latching action to toggle power on and off until pressed again.
Key Features of 12mm 12V Ring Light Self-Lock Non-momentary Metal
- Durable stainless steel housing for long-term use
- Bright daylight white LED ring with inbuilt illumination
- SPDT (single pole double throw) self-lock, non-momentary action
- 12mm threaded panel-mount with 1mm pitch, includes rubber seal and hexagon nut
- Front and rear IP67 sealing plus TVS protection for waterproof and dustproof reliability
- Available in various LED colors; genuine product quality with fast shipping from Zbotic
Applications and Use Cases
- Power switch indicator on automotive and motorcycle dashboards
- Control panels for industrial machinery and factory automation
- Marine electronics and boat control boards
- Audio amplifiers and DJ equipment power toggles
- DIY electronics and robotics projects requiring illuminated toggles
- Home automation panels and security system controls
How to Use 12mm 12V Ring Light Self-Lock Non-momentary Metal
Drill a 12mm hole in your panel, insert the switch body, then secure it with the supplied rubber ring and hexagon nut. Connect 12V power to the LED terminals and wire the SPDT contacts according to your circuit diagram. Once installed, press the button to toggle the ON/OFF state; the self-lock mechanism will hold position until pressed again.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this switch momentary or latching?
This is a non-momentary self-lock (latching) switch. It stays in the ON or OFF position until you press it again to change state.
What size panel cutout do I need?
The switch requires a 12mm threaded hole with a 1mm pitch. It comes with a rubber sealing ring and hexagon nut for secure mounting.
Can I use this switch outdoors?
Yes. The front and rear housings are sealed to IP67 standards and include TVS protection, making it waterproof and dustproof for outdoor applications.
Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Size | 12mm |
| Color | White |
| SKU | AI2019 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 12mm 12V Ring Light Self-Lock Non-momentary Metal Push-button Switch-White Light is a versatile metal push button switch used across a wide range of applications including industrial control panels, automotive dashboards, outdoor enclosures, marine electronics, and professional equipment.
Common use cases:
- Adding a waterproof power switch to an outdoor enclosure
- Building a professional-looking control panel
- Replacing a corroded switch in marine equipment
This product is ideal for industrial designers and professional equipment builders.
Technical Tip: IP65/IP67-rated metal switches are waterproof. LED ring illumination helps visibility in dark environments. Check panel cutout diameter before ordering.
