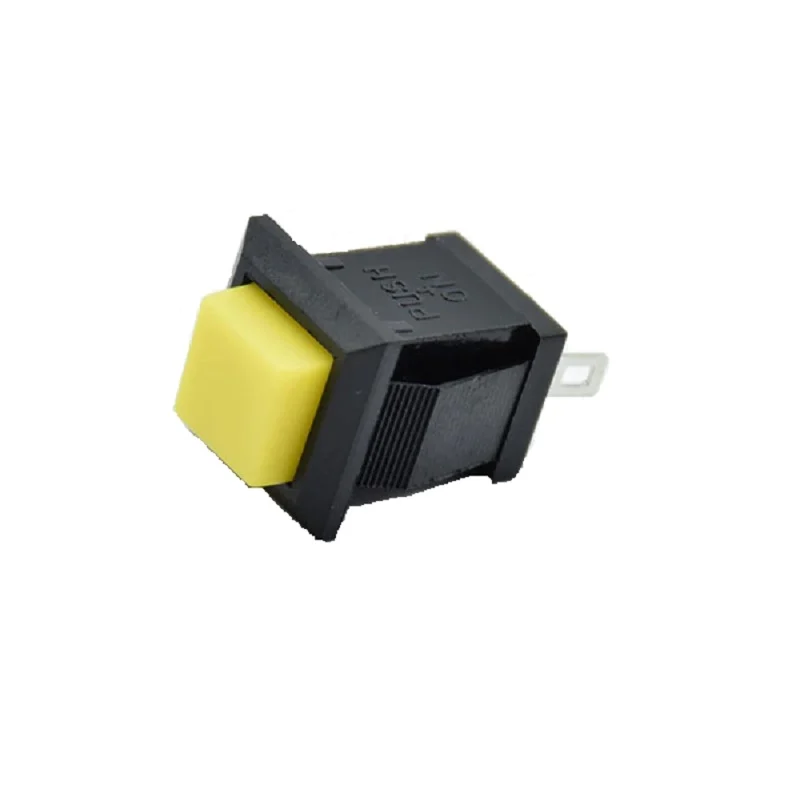

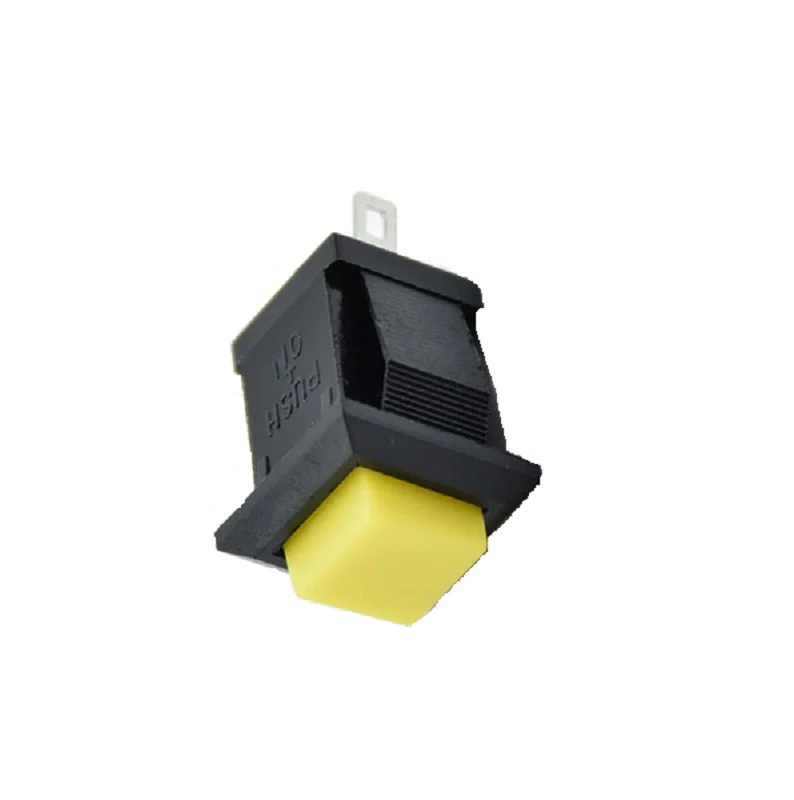

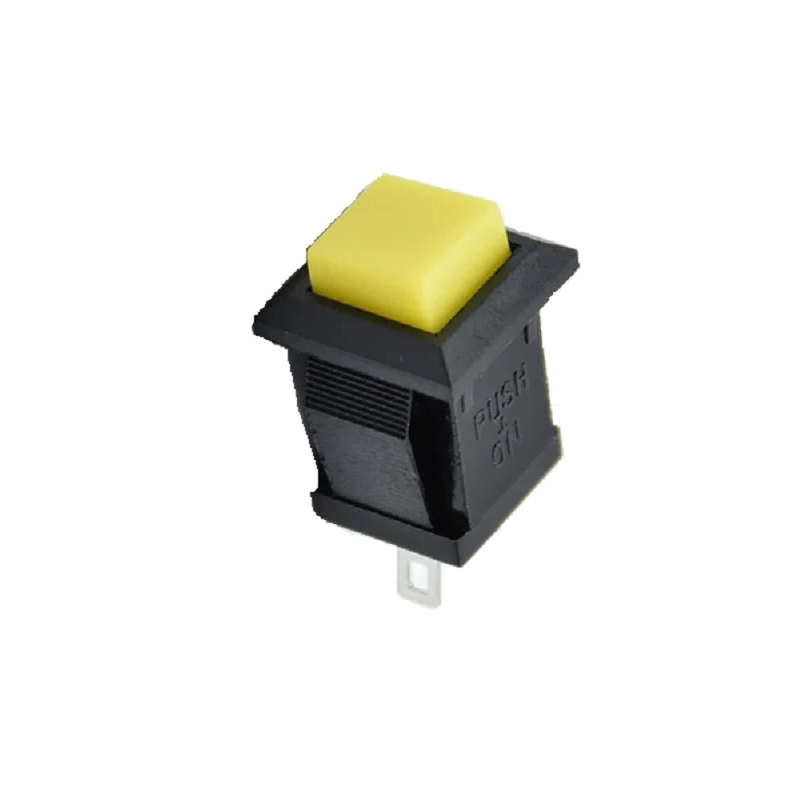

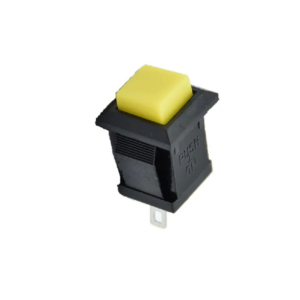

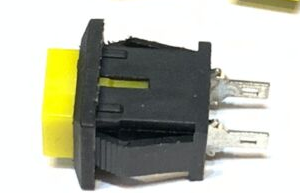

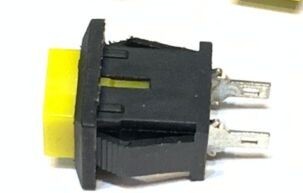

This is the Yellow variant of the Yellow DS-430 2PIN ONOFF Self-Reset Square Push Button Switch（NO Press Break） in Plastic Push Button Switch, Electronic Switches. Available at ₹11.33 (₹9.60 + GST) with free shipping across India.
Looking for Push Button Switch? Yellow DS-430 2PIN ONOFF Self-Reset Square Push Button Switch（NO Press Break） is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION
A momentary switch is an electrical switch that allows current to flow only while it is being pressed. It is commonly used in control panels, push-button phones, kitchen appliances, magnetic locks, and various other devices in both residential and industrial settings.
A push button is a simple example of a momentary switch. Typically made from metal or thermoplastic materials, it is designed for easy user operation. While electric circuits generally rely on a continuous flow of electricity, some circuits are more efficient and practical when they can be activated and deactivated as needed.
The push-button switch is a widely used component in both home and industrial environments. It controls various electrical circuits, devices, and machinery by turning loads such as contactors, motors, and relays on and off. The switch operates by pressing it to turn ON and releasing it to turn OFF.
Note: Image may vary from actual product in terms of design, color and brand printed
Features:
- Easy to use
- Best for your DIY projects
- Self-locking/Latching Self-reset
- Good electrical conductivity
- This is Momentary type push-button switch
Specification:
| Function | Momentary |
|---|---|
| Model No. | DS-430 |
| Operating Voltage(V) | 250V 1.5A ,125V 1A |
| Material | Plastic |
| Color: | Yellow |
| Terminals | 2 Pin |
| Temperature | -25°C to 85°C |
| Dimensional Accuracy (mm) | 10mm |
| Shipping Weight | 0.002 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
Packages Includes:
1 x Yellow DS-430 2PIN ONOFF Self-Reset Square Push Button Switch（NO Press Break）
Yellow DS-430 2PIN ONOFF Self-Reset Square Push Button Overview
The Yellow DS-430 2PIN ONOFF Self-Reset Square Push Button Switch is a momentary, normally-open (NO) control switch designed for quick manual activation. Its compact square design and bright yellow actuator make it ideal for visible, easy-to-use on/off control in electronics projects and control panels.
Key Features of Yellow DS-430 2PIN ONOFF Self-Reset Square Push Button
- Momentary self-reset action: only conducts while pressed, returning to open state when released
- 2-pin connection for straightforward wiring in low-current circuits
- Square yellow actuator for high visibility in panel-mounted applications
- Robust plastic body with reliable electrical contacts for consistent switching
- Lightweight and compact form factor, suitable for space-constrained designs
- Genuine product with fast shipping from Zbotic, ready for immediate dispatch
Applications and Use Cases
- Control panels for small machinery or laboratory instruments
- DIY electronics and hobby kits requiring manual on/off input
- Prototyping boards and breadboard circuits for momentary signal triggers
- Reset or test buttons on power supplies and security systems
- Kitchen appliances and consumer electronics needing a user-press action
- Alarm systems and door interlocks where momentary activation is required
How to Use Yellow DS-430 2PIN ONOFF Self-Reset Square Push Button
To install the DS-430, drill a matching square or round hole in your panel, insert the switch from the front, and secure it with its built-in retention clips. Solder or crimp wires to the two terminals: one to the signal/input line and the other to ground or return. Press the yellow actuator to close the circuit; releasing it will automatically open the circuit, making it ideal for momentary on/off control.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What does “NO Press Break” mean on this switch?
“NO” stands for Normally Open, which means the switch terminals remain disconnected until you press the button. The circuit closes only while the switch is pressed and opens again upon release.
How do I wire the two pins of the DS-430?
One pin connects to your input or signal source and the other to ground or the return path. When pressed, the switch completes the circuit between these two pins.
Is this switch suitable for outdoor use?
The DS-430 is designed for indoor electronic panels and enclosures. For outdoor applications, ensure it is mounted inside a weatherproof housing to protect against moisture and dust.
Technical Specifications
| Model | DS-430 |
|---|---|
| Pin Count | 2-pin |
| Color | Yellow |
| SKU | AI3408 |
| Weight | 0.00325 kg |
| Availability | In Stock |
Applications & Use Cases
The Yellow DS-430 2PIN ONOFF Self-Reset Square Push Button Switch（NO Press Break） is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
