PRODUCT DESCRIPTION

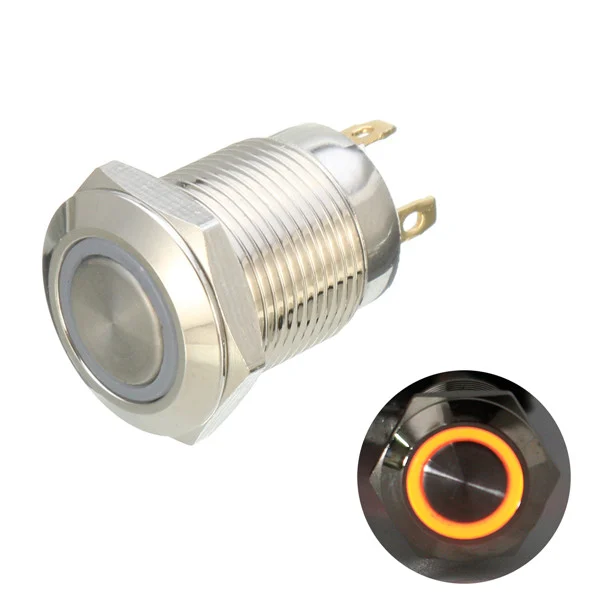

If you need a heavy-duty push-button with a yellow LED ring, this Self-lock Non-Momentary Metal Pushbutton Switch is ideal for you. This switch has a metal body and an SPDT mechanism. It can be mounted on a panel with a 12mm threaded hole and a 1mm pitch. The LED ring adds a premium look to your dashboard or control panel and comes in various colors to suit your preference.

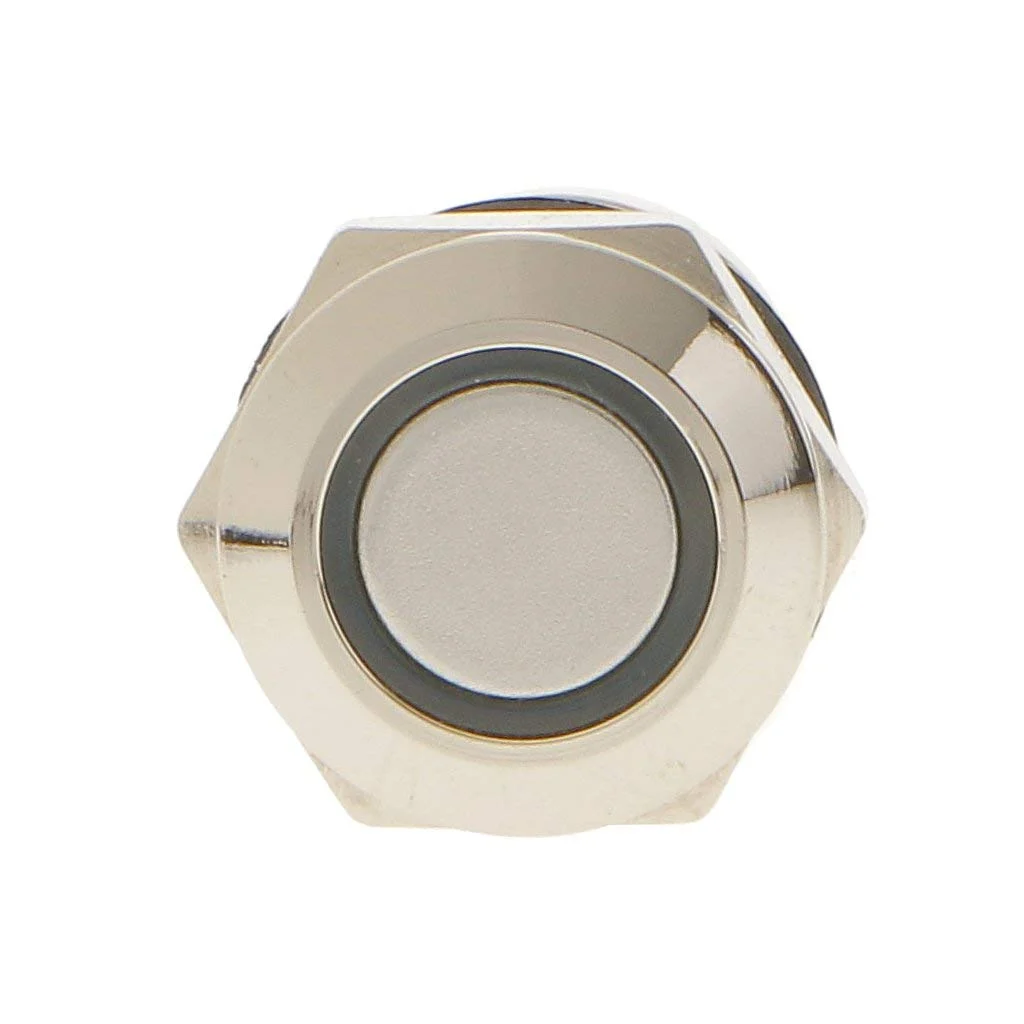

This switch has a non-momentary self-lock action, which means it stays in the same position and state until you press it again. It has a flat hexagonal head and a nut for easy installation and a sleek appearance. The switch has an IP67 protection rating, which means it is resistant to dust and water. You can use this button for basic on/off functions. It has a total length of 26mm and small solder lugs for wiring. The switch can handle up to 3A and 12V DC, while the LED works with 5V.
Note:
- Momentary means it turns off as soon as your pressure is released
- Non-momentary switches maintain the positions even if we release the pressure.
Features:
- Stainless steel material for long-term use
- High-end appearance and good to touch
- Inbuilt Colorful Ring illumination LED

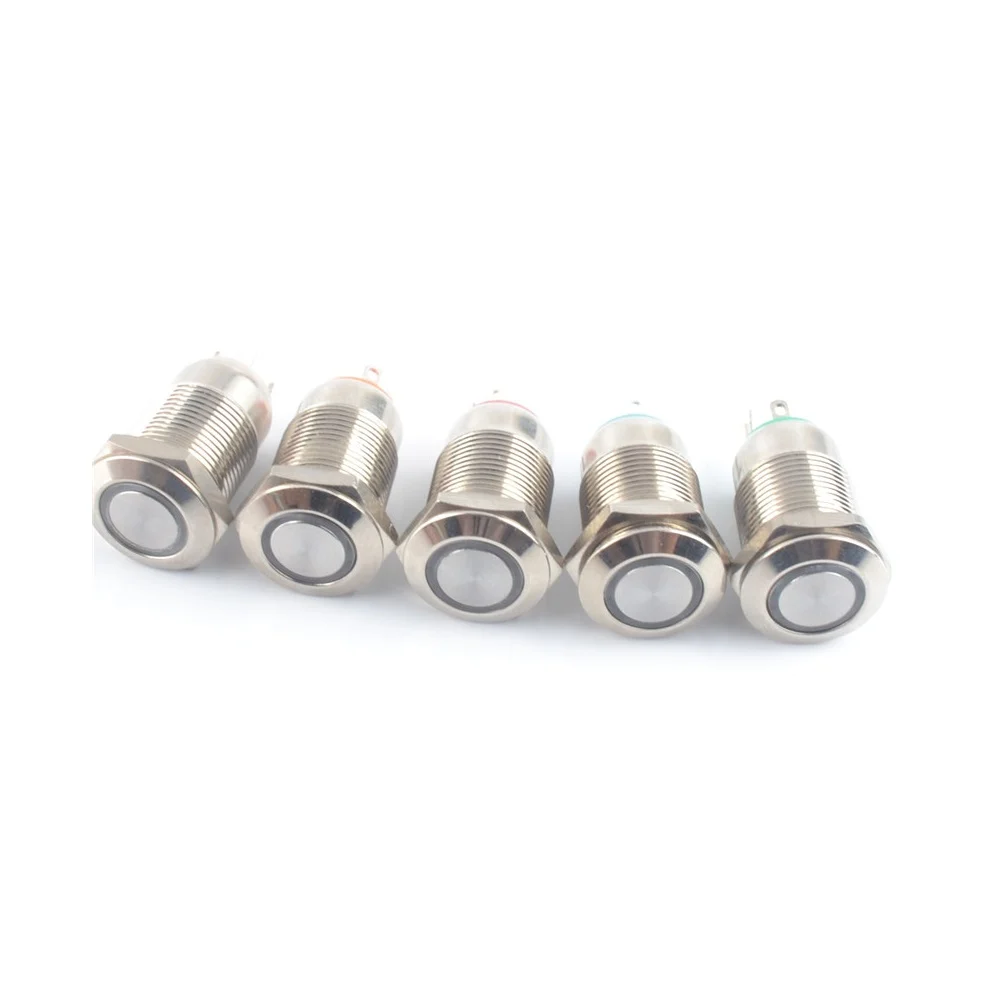

- Available in Various LED Color
- Independent LED terminals
- Bright daylight LEDs
- Single pole push to make and Push to break Function
- Front and rear panel seal to IP67
- Integral supply resistors
- TVS protection
- Good electrical conductivity
- Non-Momentary type push-button switch

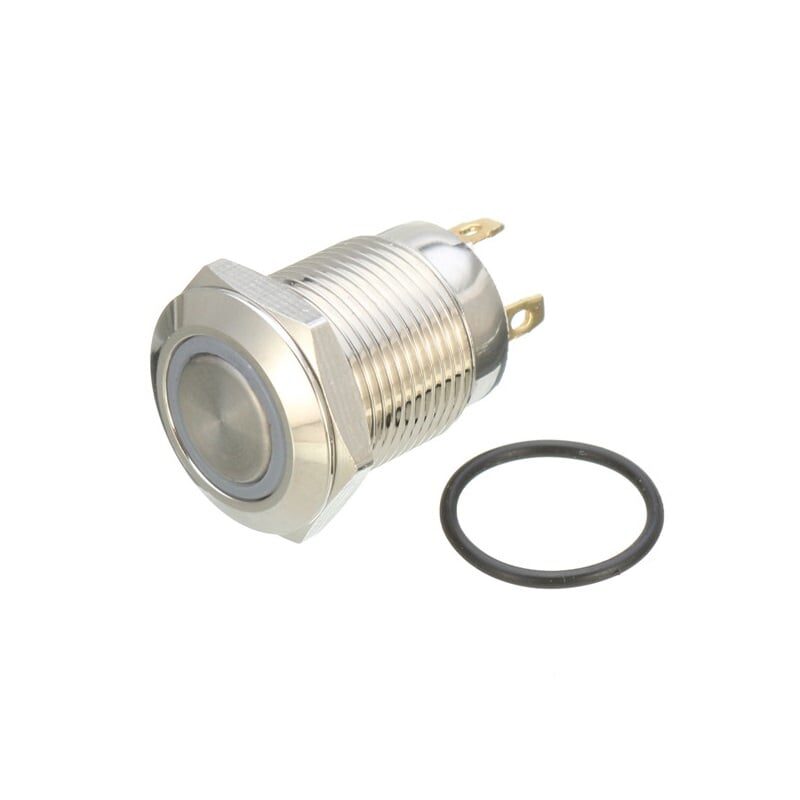

- Rubber ring and hexagon nut to fix, Waterproof and Dustproof
Specification:
| Operating Voltage (VDC) | 12 |
|---|---|
| Max. Operating Current (mA) | 2A MAX |
| Light Color | Yellow |
| On/Off Function | Push to ON and Push to OFF |
| Switch Type | Momentary/Latching |
| Mounting Hole Diameter (mm) | 12 mm |
| Contact Type | Solder Type |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤50 MΩ |
| Insulation Resistance (MΩ) | ≥1000 |
| Operating Temperature Range (°C): | -20 to 55 |
| Operation Force | About 3-5N |
| Operation Stroke | 2-5mm |
| Body Material | Stainless Steel and Plastic |
| Mech. & Electrical Lifecycle | ≈ 50000 |
| Protection Standard | IP66 |

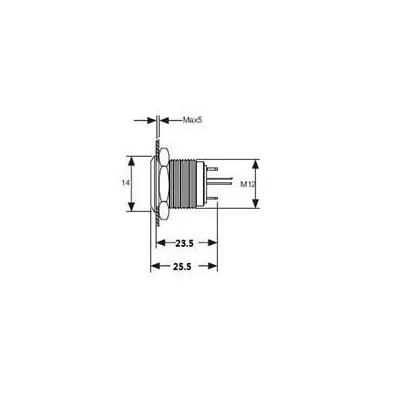

| Dimensions in mm (LxWxH) | 26 x 14 (Length x Head Dia) |
| Weight (gm) | 6 |
| Shipping Weight | 0.012 kg |
| Shipping Dimensions | 8 × 5 × 2 cm |
1 x 12mm 12V Ring Light Self-Lock Metal Switch-Yellow Light
