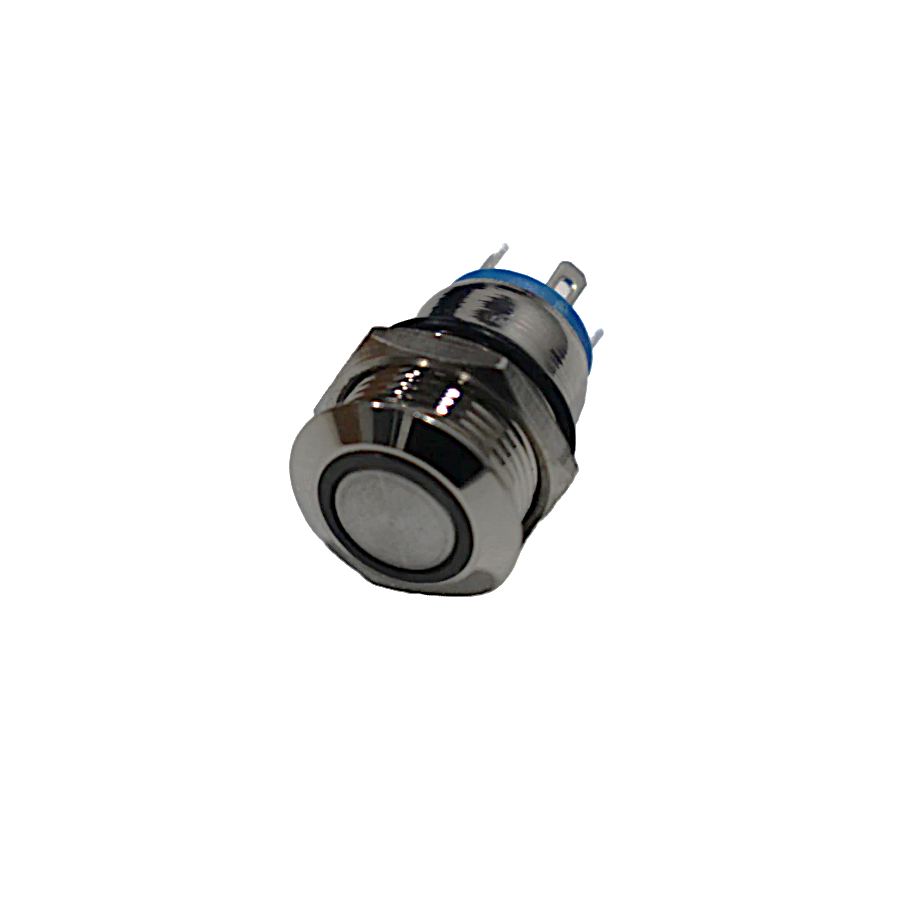

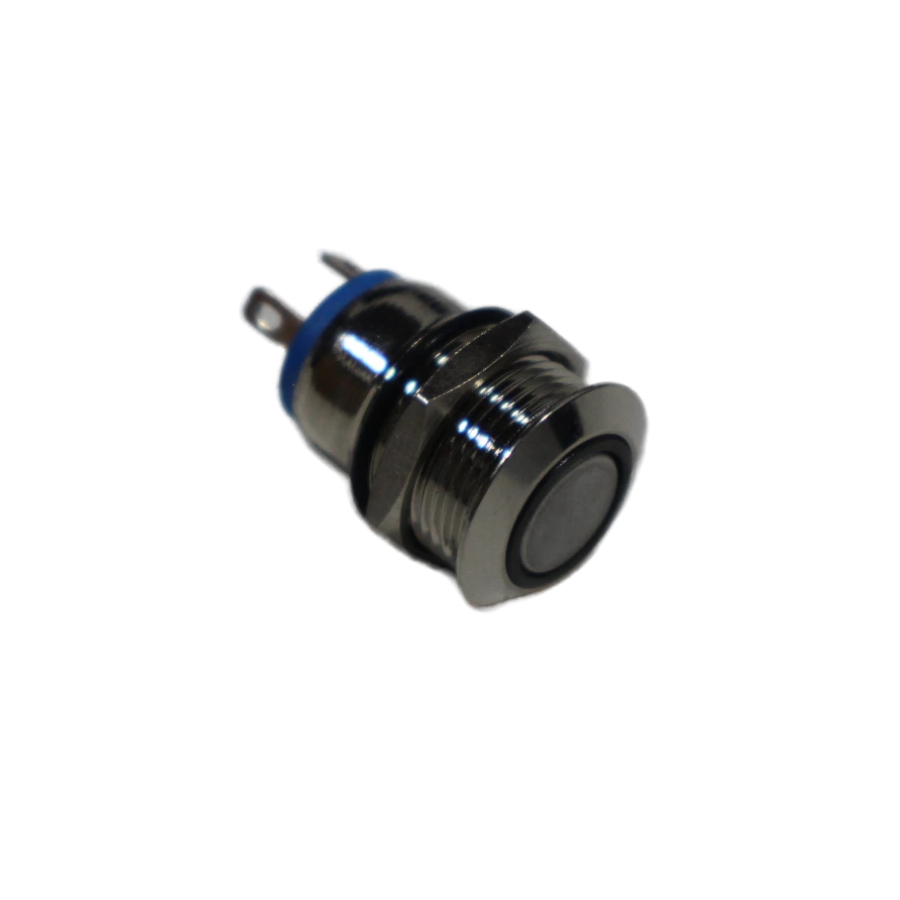

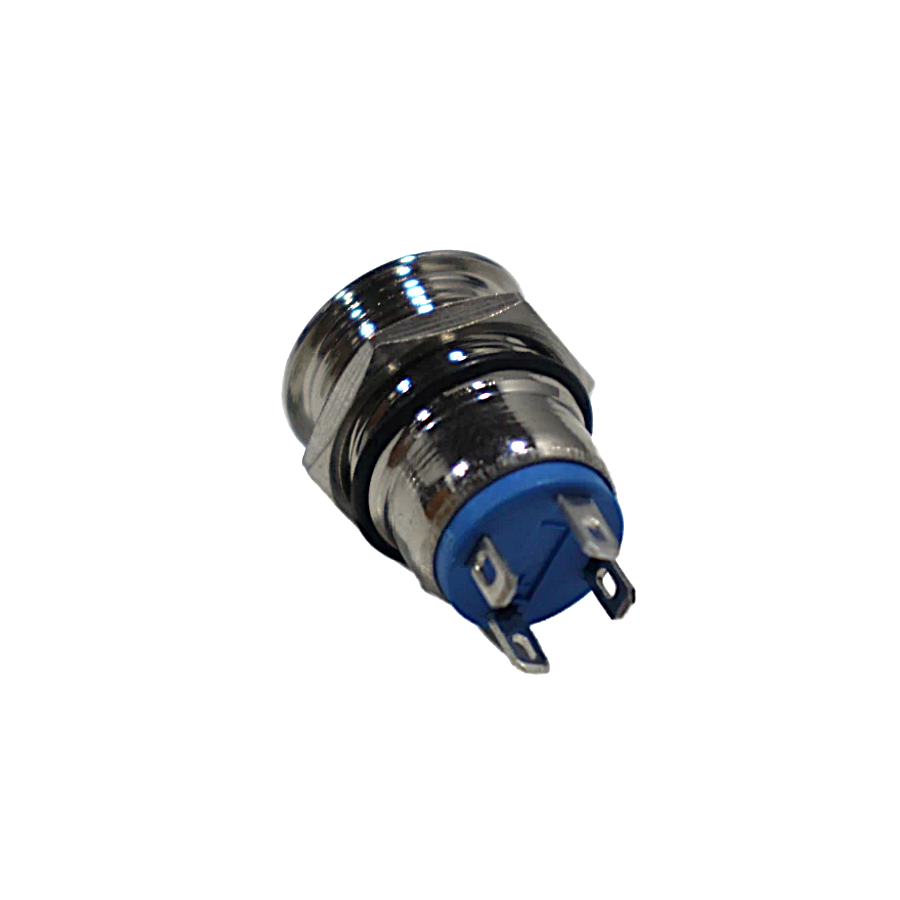

This is the White variant of the Flat Head 12MM 3-6V Waterproof Momentary Self-Reset Metal Push Button Switch with White Led Light in Metal Push Button Switch, Electronic Switches. Available at ₹105.02 (₹89.00 + GST) with free shipping across India.
Looking for 12mm Led? Flat Head 12MM 3-6V Waterproof Momentary Self-Reset Metal Push Button Switch with White Led Light is available at Zbotic with fast shipping across India.
Difference between Momentary self-reset and Latching:
1.Momentary/Self-reset: When you press the button, press-key will automatically return. (Like a car horn switch. Press it-power on, release it-power off.)
2.Latching: When you press the button, press-key will stay in position until you press again.And then the press-key return. (Like a light switch. Press it-power on, press it again-power off.)
Parameter:
Product Name: Metal Button Switch
Hole diameter: 12mm
Material: Nickel plated brass
LED color: White
Shell Color: Silver
Max current: 4A
Led voltage: 3-6V
Operation type: Momentary Self-reset
Switch contact : Flat head /High head
Waterproof level: IP66
Contact type: 1NO1NC
Features:
Copper nickel plated material, strong and durable.
High grade appearance and good handle.
It is fixed with rubber ring and hexagon nut, which is dustproof and waterproof.
Silver electric shock has good conductivity.
Metal button head, durable.
Button Switch Tips :
” NC “: Normal Close
” NO “: Normal Open
” C ” : Common Connect
” NO ” and ” C ” : The circuit is always open unless press the button.
Connect ” NC ” and ” C ” : The circuit is always close unless press the button.
The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.
package includes: 1x Flat Head 12MM 3-6V Waterproof Momentary Self-Reset Metal Push Button Switch with White Led Light
Flat Head 12MM 3-6V Waterproof Momentary Self-Reset Metal Overview
The Flat Head 12MM 3-6V Waterproof Momentary Self-Reset Metal Push Button Switch is a robust control actuator designed for panel installations requiring a 12 mm mounting hole. Featuring a nickel-plated brass body, white LED illumination, and IP66 waterproof rating, this switch delivers reliable on-demand signaling in wet or dusty environments.
Key Features of Flat Head 12MM 3-6V Waterproof Momentary Self-Reset Metal
- 12 mm panel hole diameter with flat head design for sleek surface mounting
- Durable nickel-plated brass shell in silver finish
- Integrated white LED (3–6 V) for clear visual feedback
- Momentary self-reset action (1NO1NC): press-to-make, automatic release
- High current capacity up to 4 A at switching contact
- IP66 waterproof rating protects against dust and strong water jets
- Fast shipping from Zbotic across India
Applications and Use Cases
- Emergency stop or horn activation in automotive and marine panels
- Start/stop controls on industrial machines and manufacturing equipment
- User input buttons on outdoor kiosks and vending machines
- Control switches for DIY robotics and automation projects
- Wall-mounted intercom or doorbell push button with illuminated feedback
How to Use Flat Head 12MM 3-6V Waterproof Momentary Self-Reset Metal
Drill a 12 mm hole in your control panel and secure the switch using the included nut. Wire the white LED leads to a 3–6 V DC source, and connect the 1NO and 1NC terminals to your circuit lines. Once mounted, pressing the button completes the circuit and lights the LED; releasing it instantly resets the contacts and turns off the indicator.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What LED voltage is required for this push button?
This switch’s integrated LED operates on a 3–6 V DC supply. Ensure your power source falls within this range for proper illumination.
How does the momentary self-reset mechanism work?
The Flat Head 12 mm switch uses a momentary self-reset design: pressing the button closes the normally open contact and opens the normally closed contact, and releasing it returns both to their default states.
Is this switch suitable for outdoor applications?
Yes. With an IP66 rating, the switch is fully dust-tight and resists powerful water jets, making it ideal for outdoor panels and marine environments.
Technical Specifications
| Size | 12mm |
|---|---|
| Color | White |
| SKU | AI4058 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Flat Head 12MM 3-6V Waterproof Momentary Self-Reset Metal Push Button Switch with White Led Light is a versatile metal push button switch used across a wide range of applications including industrial control panels, automotive dashboards, outdoor enclosures, marine electronics, and professional equipment.
Common use cases:
- Adding a waterproof power switch to an outdoor enclosure
- Building a professional-looking control panel
- Replacing a corroded switch in marine equipment
This product is ideal for industrial designers and professional equipment builders.
Technical Tip: IP65/IP67-rated metal switches are waterproof. LED ring illumination helps visibility in dark environments. Check panel cutout diameter before ordering.
