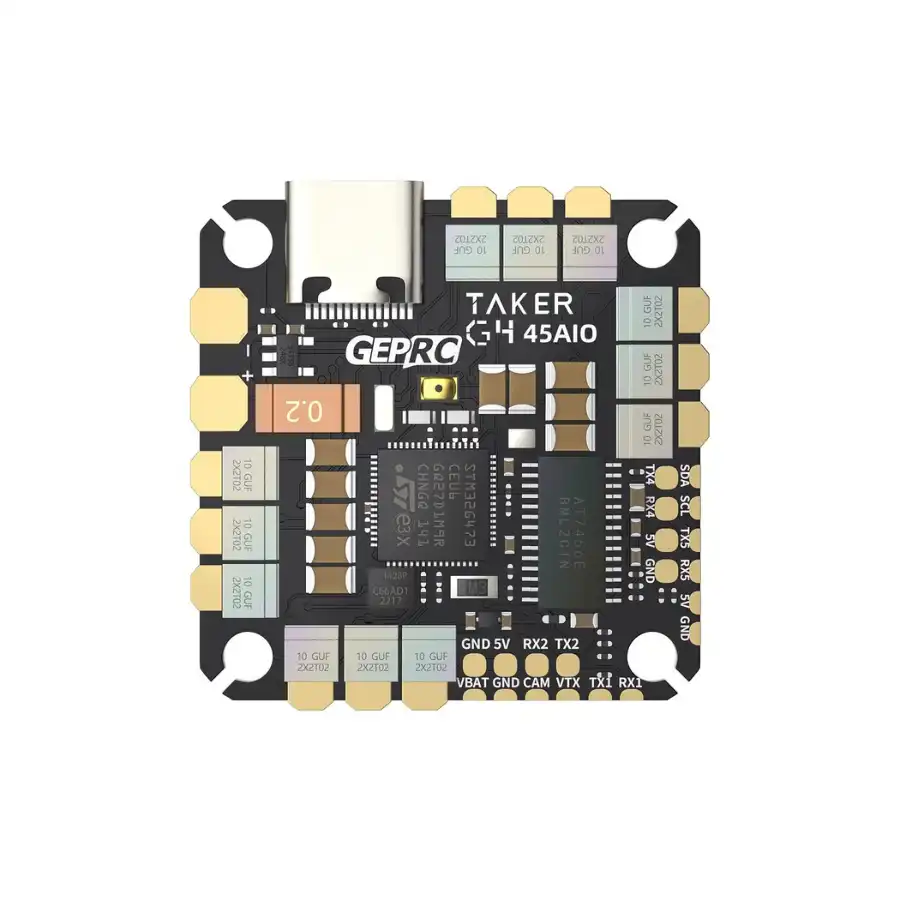

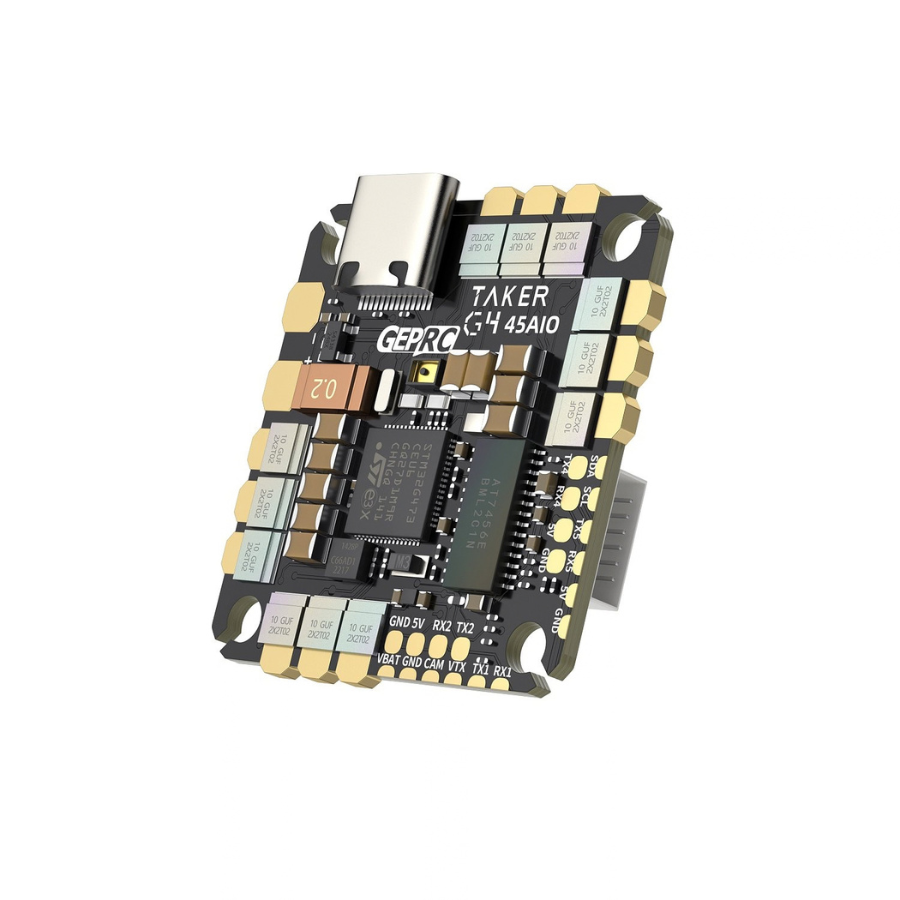

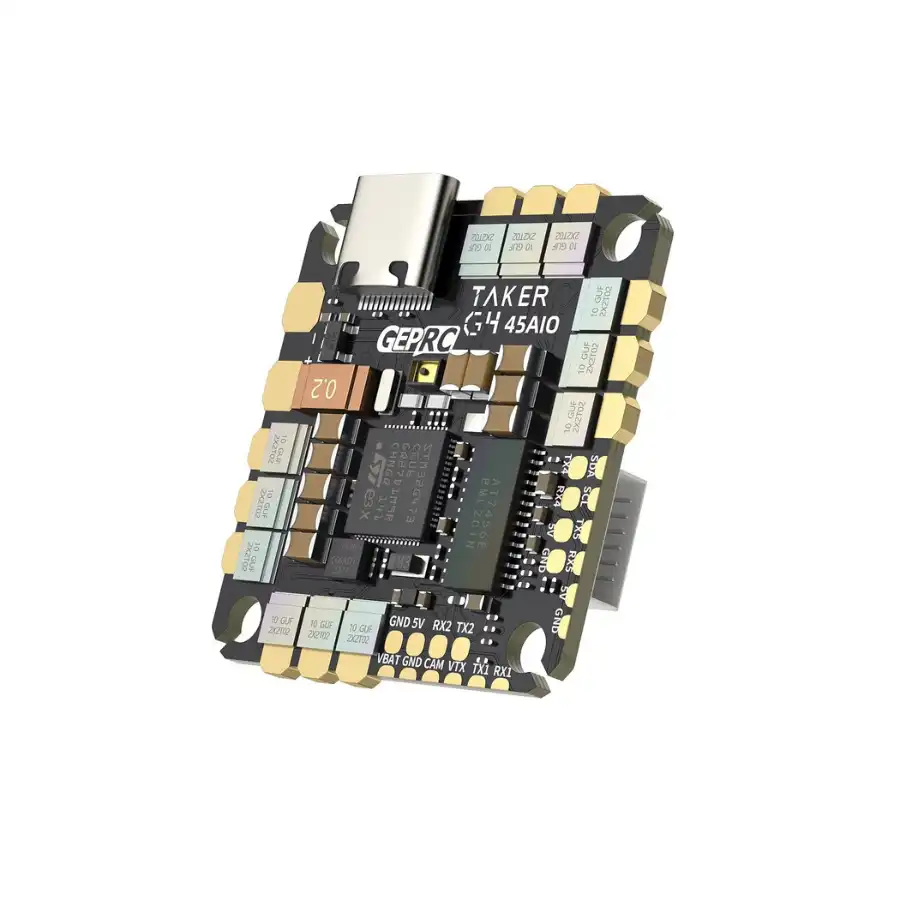

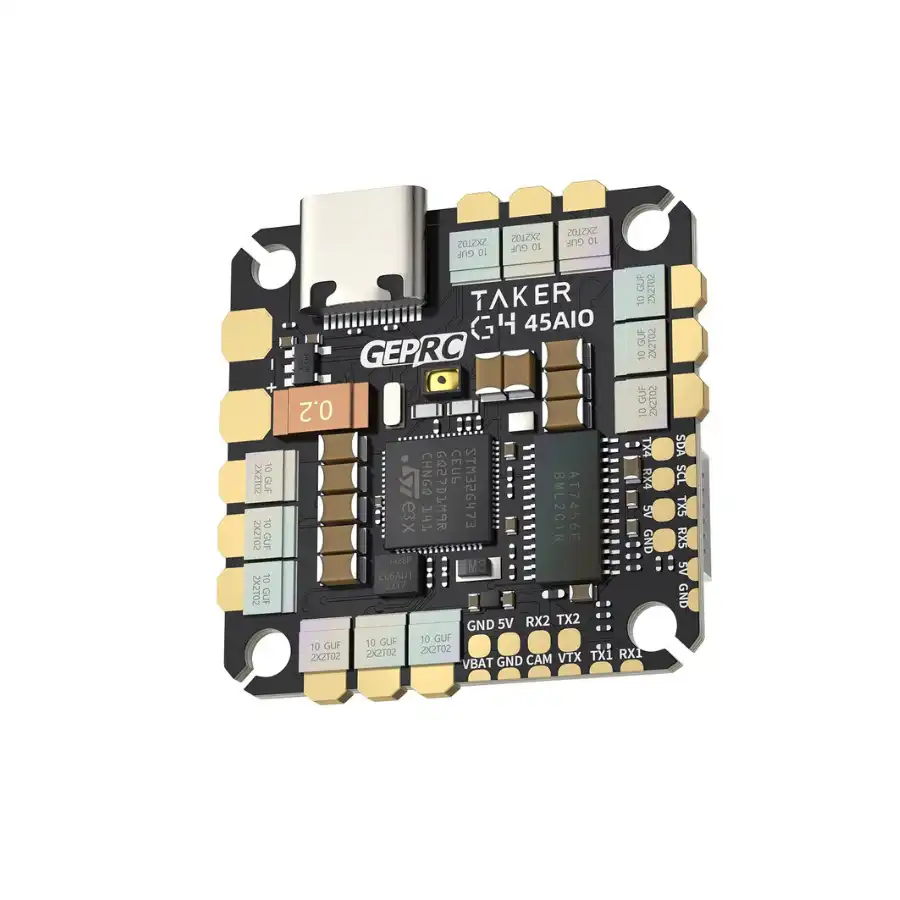

GEPRC TAKER G4 45A 8Bit AIO
Description:
The TAKER G4 45A 8Bit AIO, developed by the GEPRC team, features the advanced G473 flight controller for enhanced computing capability.
Its robust overcurrent protection and compact design, powered by the QF32MT chip and integrated ESU and MCU, ensure superior performance.
We are confident that TAKER G4 45A 8Bit AIO will deliver exceptional enjoyment.

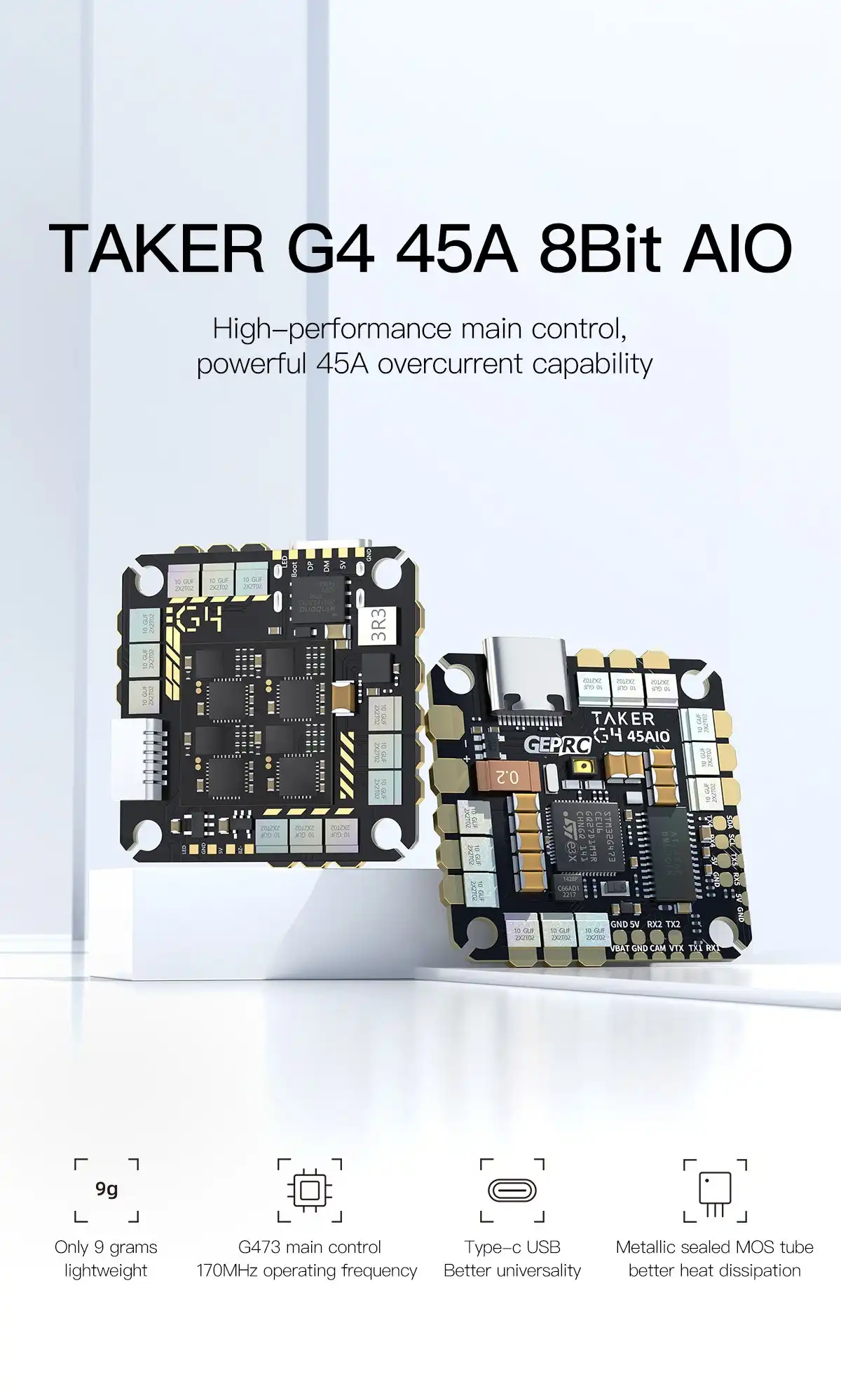

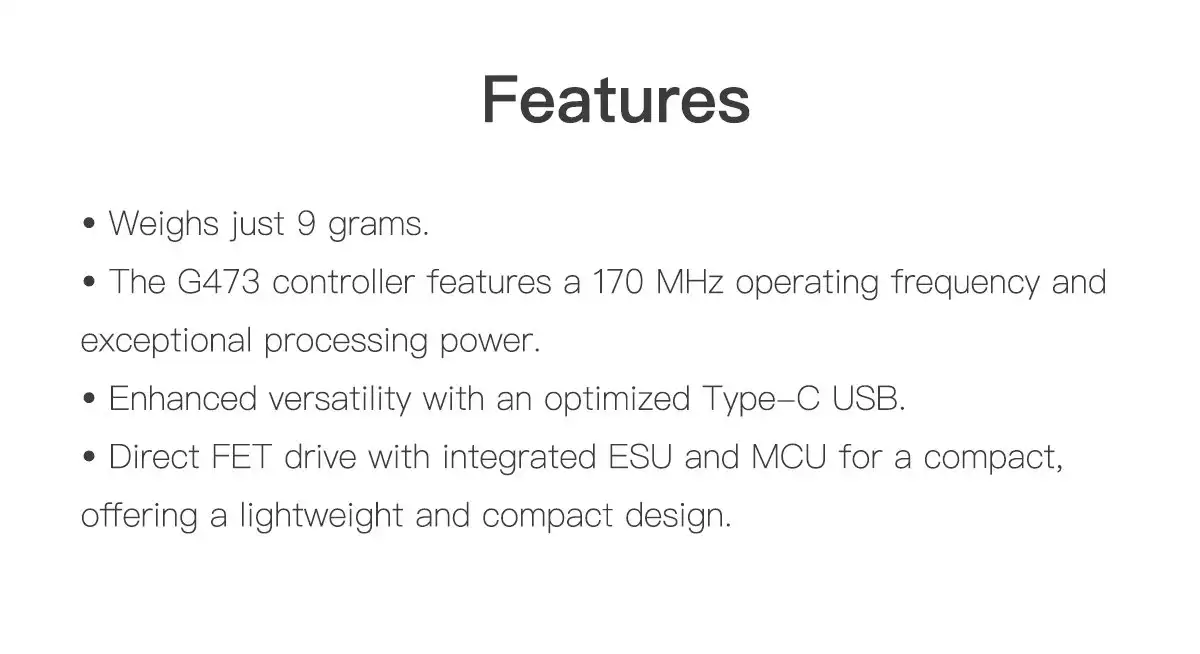

Feature
- Weighs only 9 grams.
- The G473 control possesses 170MHZ operating frequency and outsatnding computing capability.
- The optimized Type-c USB has better versatility.

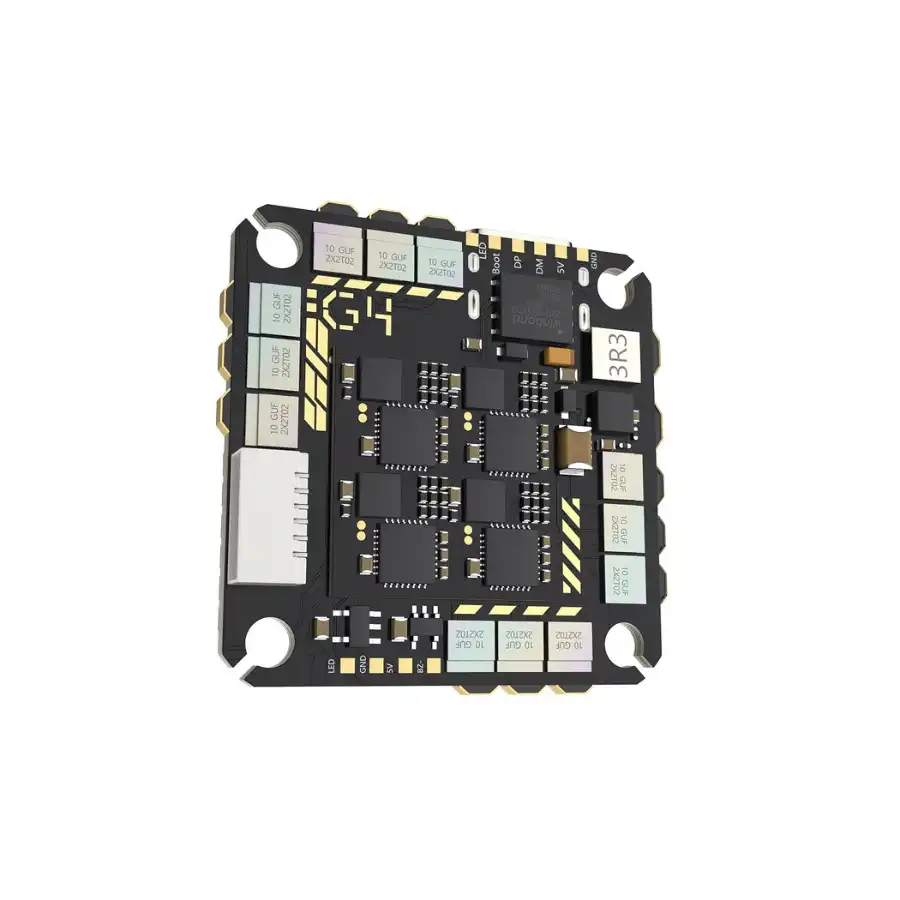

- The integrated ESU and MCU motivate FET directly, which is lightweight and space-saving.

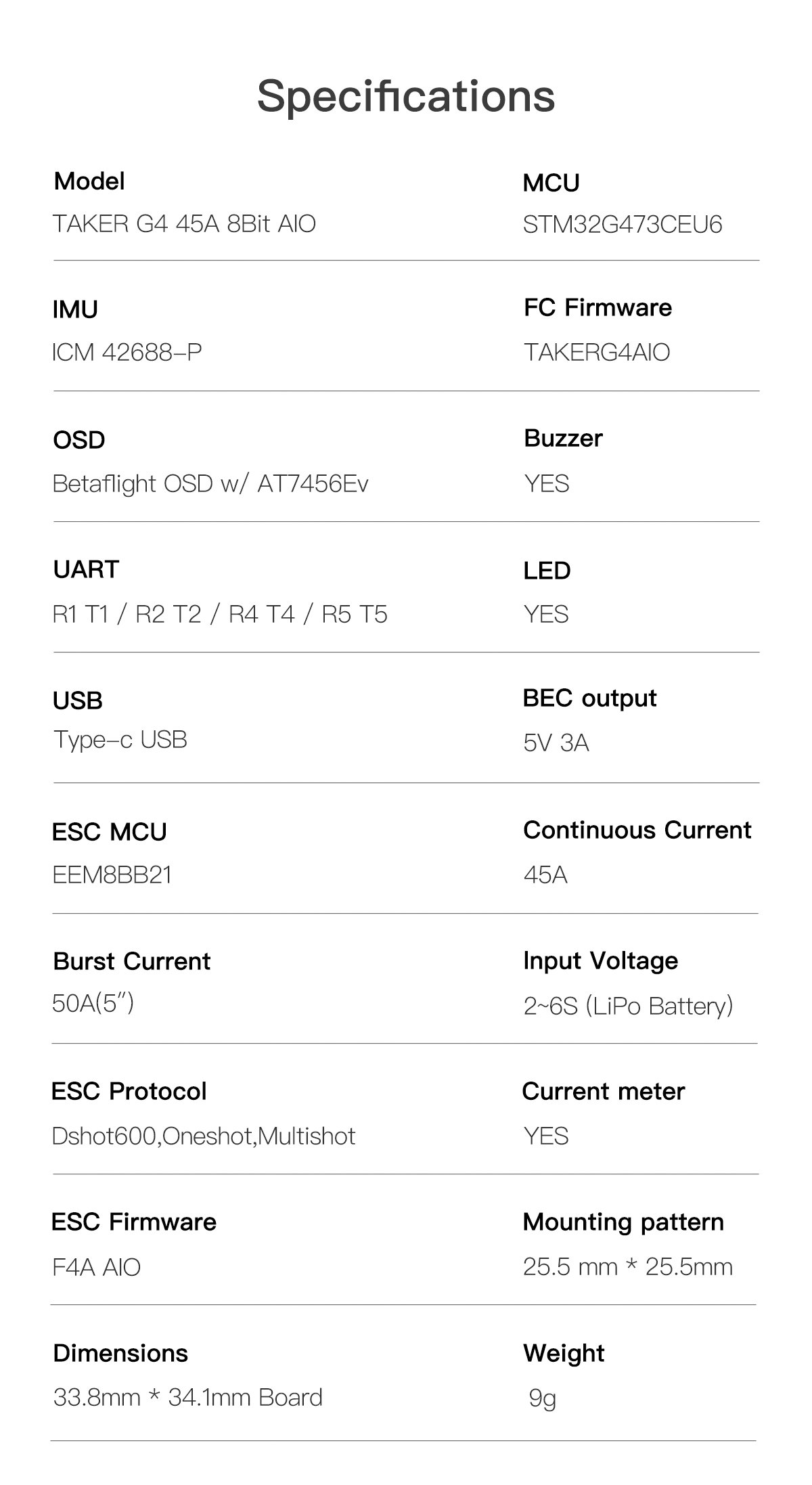

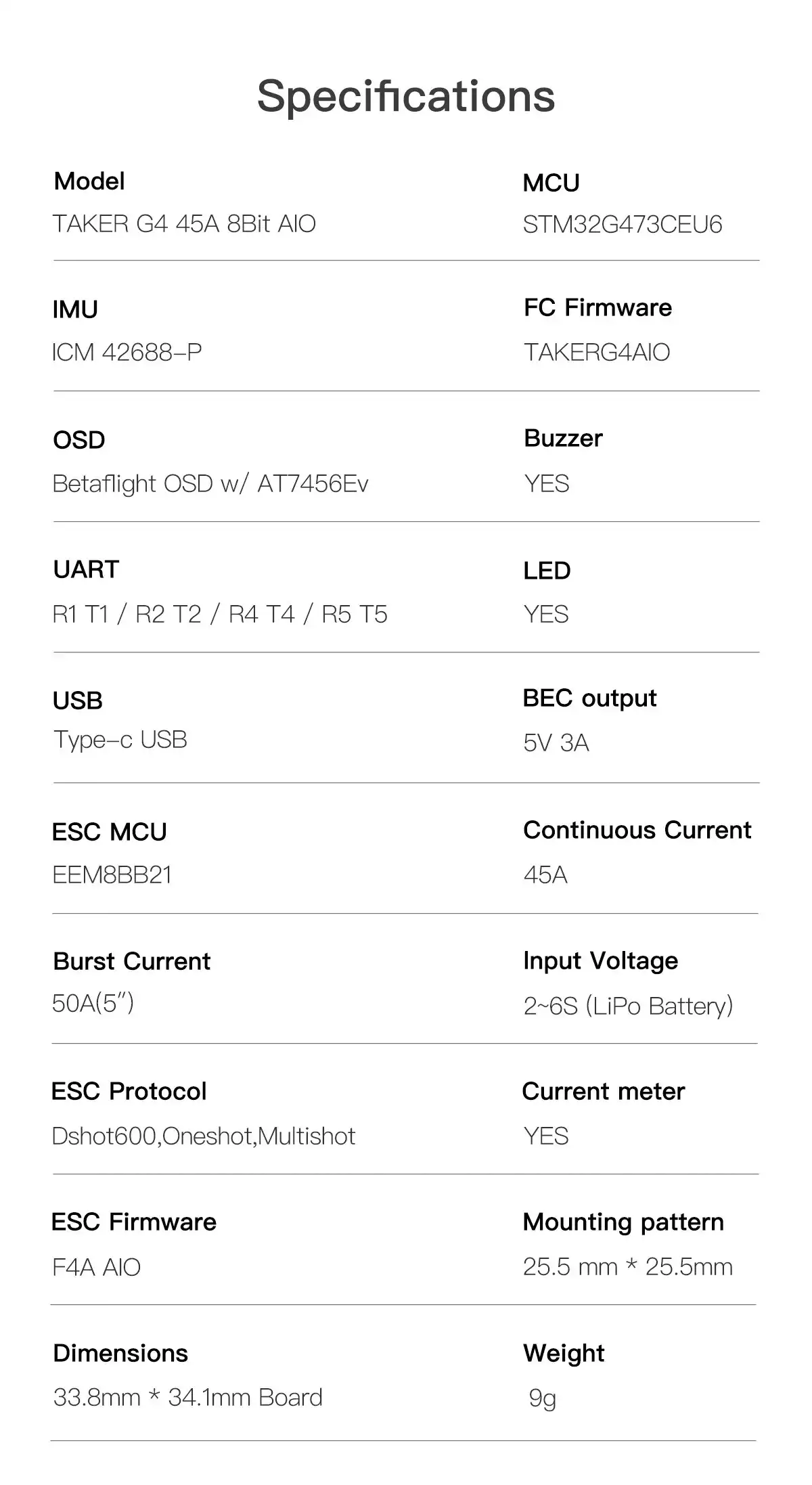

Specifications
- Model Name：TAKER G4 45A 8Bit AIO
- MCU：STM32G473CEU6
- IMU：ICM 42688-P
- Firmware target：TAKERG4AIO
- OSD：Betaflight OSD w/ AT7456Ev
- Uart：R1 T1 / R2 T2 / R4 T4 / R5 T5
- Buzzer：YES
- LED ：YES
- USB ：Type-c USB
- BEC output：5V 3A
- ESC MCU：QF32MT
- Continuous Current：45A
- Burst Current：50A(5″)
- lnput Voltage：2~6S (LIPO Battery)
- Supports：Dshot600,Oneshot,Multishot
- Current meter：YES
- target：F4A AIO

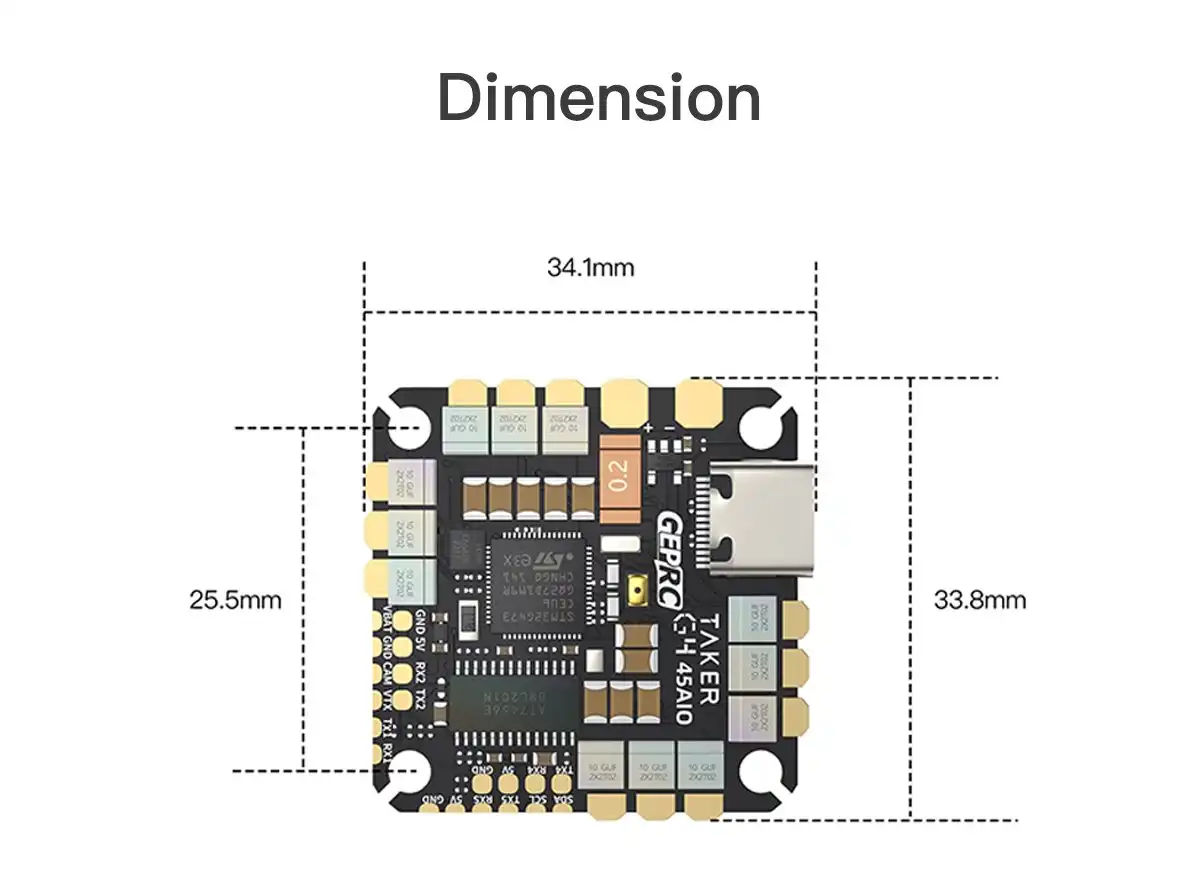

- Size：33.8mm * 34.1mm Board
- Install hole：25.5 mm * 25.5mm
- Weight：9g

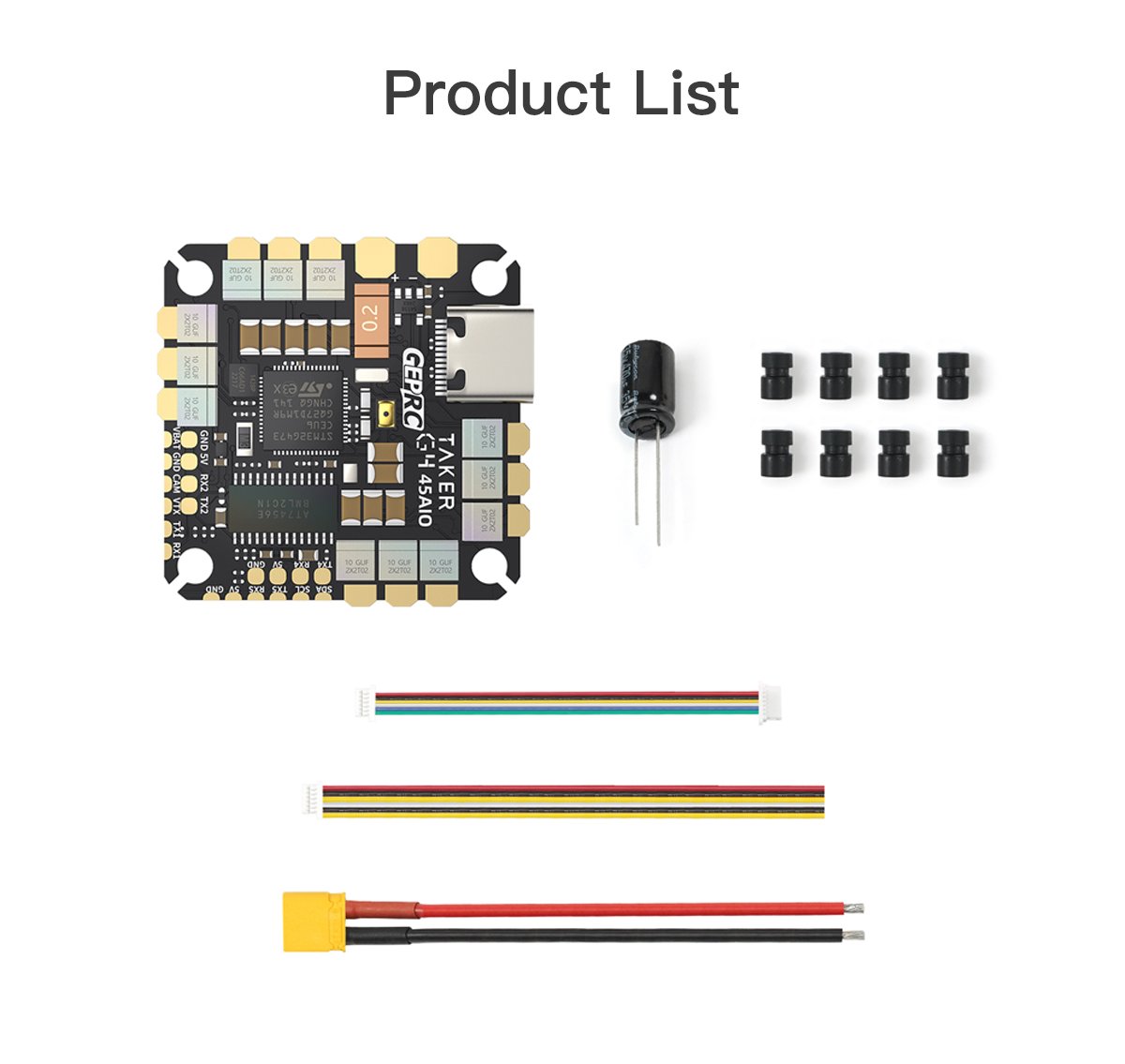

Pacakge Includes
1 x GEP-TAKER G4 45A AIO
1 x Cable Set
Build an Autonomous Delivery Drone with ArduPilot
Table of Contents Why Build an Autonomous Delivery Drone? How ArduPilot Enables Autonomy Complete Parts List for Your...
Read More →
TBS Crossfire vs ExpressLRS: Which Long Range System to Buy in India?
TBS Crossfire vs ExpressLRS: Which Long Range System to Buy in India? The battle for the best long-range...
Read More →
Drone Payload Systems: Drop Mechanism Design and Build Guide
Table of ContentsIntroductionApplications of Drone Payload Systems in IndiaTypes of Payload Drop MechanismsServo-Actuated Drop Mechanism: Design and BuildElectromagnet...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 45A |
| SKU | AI5088 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER G4 45A 8Bit AIO is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine GEPRC product sourced from authorized channels
Reviews
There are no reviews yet.
