Looking for Hobbywing Xrotor 20aesc Esc? Hobbywing Xrotor 20AESC is available at Zbotic with fast shipping across India.

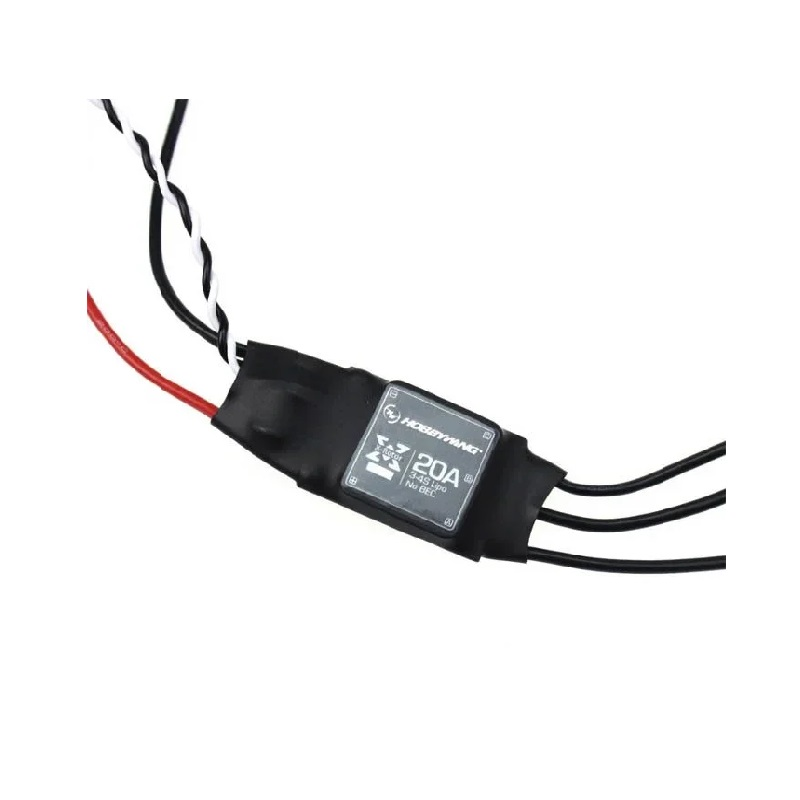

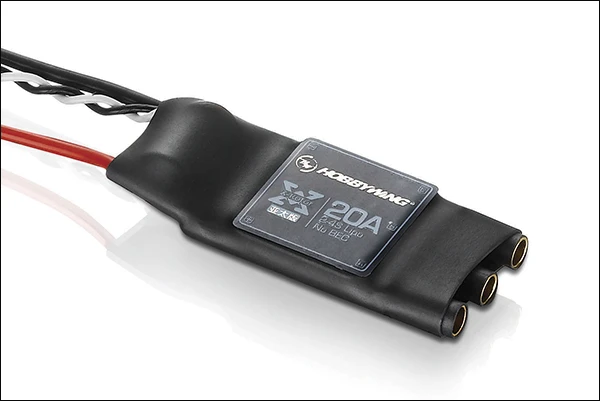

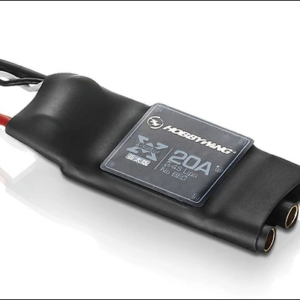

The Hobbywing XRotor 20 Amp Multi-Rotor Brushless ESC is an excellent option for drones in the 330 to 450 class range. It features software optimized for quadcopters and programmable timing, offering stable flight properties ideal for custom drone constructions.
Features:
- Special core program for multi-rotor controllers greatly improves throttle response.
- Specially optimized software for excellent compatibility with disc-type motors.
- All settings except the timing are preset, making usage simple, highly intelligent and adaptive.
- The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
- Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals)
- Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
- MOSFET with extra-low resistance brings high performance and great current endurance.
Specification:
| Constant Current (A) | 20 |
|---|---|
| Peak Current (A) | 30 |
| Suitable Lipo Batteries | 3-4S |
| Programmable Item | Timing （High/Intermediate) |
| Product Series | XRotor |
| Frequency(Hz) | Upto 621Hz |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 8 × 8 × 3 cm |
Package Includes:
1 x Hobbywing Xrotor 20A ESC
Hobbywing Xrotor 20AESC Overview
The Hobbywing Xrotor 20AESC is a 20 A brushless electronic speed controller designed specifically for multi-rotor drones in the 330–450 class range. It delivers smooth throttle response and flight stability through its XRotor core program and is optimized for 3–4S LiPo systems.
Key Features of Hobbywing Xrotor 20AESC
- 20 A continuous current and 30 A peak current (10 s) for reliable power delivery
- XRotor series ESC with special core program for enhanced throttle response and stability
- Compatible with 3-4S LiPo batteries for versatile voltage options
- Programmable timing (High/Intermediate) to fine-tune motor performance
- Compact and lightweight: 14 g weight, dimensions 52.4 × 21.5 × 7 mm
- Twisted-pair throttle signal cable minimizes crosstalk and signal interference
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Custom quadcopter assemblies in the 330–450 frame size
- FPV racing drones that demand quick throttle response
- Lightweight aerial photography platforms
- DIY multi-rotor prototypes for educational and research purposes
- Entry-level training drones for pilot skill development
- Small cargo drones carrying minimal payloads
How to Use Hobbywing Xrotor 20AESC
Mount the ESC near your motor, solder the 3-phase output wires to your brushless motor and connect the battery leads to a 3–4S LiPo. Plug the twisted-pair throttle signal cable into your flight controller or receiver channel. Use a Hobbywing USB programming card to select High or Intermediate timing, then calibrate throttle endpoints according to your flight controller’s instructions.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does the Xrotor 20AESC include a built-in BEC?
No. This ESC does not feature a BEC output. You will need an external voltage regulator or BEC to power your flight controller and receiver.
Which LiPo battery voltages are supported?
The Xrotor 20AESC is compatible with 3-cell (11.1 V) and 4-cell (14.8 V) LiPo batteries for a good balance of power and efficiency.
How do I change the timing setting?
Connect a Hobbywing USB programming card to the ESC’s signal port and follow the card’s menu to switch between High and Intermediate timing profiles. No additional software is required.
Drone Maintenance Checklist: Pre and Post Flight
Table of Contents Understanding Drone Maintenance Checklist Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Drone Payload Systems: Drop Mechanism Design and Build Guide
Table of ContentsIntroductionApplications of Drone Payload Systems in IndiaTypes of Payload Drop MechanismsServo-Actuated Drop Mechanism: Design and BuildElectromagnet...
Read More →
Best Budget Drone Kits in India 2026: Complete Comparison
Finding the best budget drone kits in India for 2026 can be overwhelming with dozens of options available...
Read More →Technical Specifications
| Brand | Hobbywing |
|---|---|
| SKU | AI4604 |
| Weight | 0.03835 kg |
| Availability | In Stock |
Applications & Use Cases
The Hobbywing Xrotor 20AESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
