YHDC Hall Split-core Current Sensor HSTS016L 50A/2.5V±0.625V

This is the 5V variant of the YHDC Hall Split-core Current Sensor HSTS016L 50A/2.5V±0.625V in Current and Voltage Sensor. Available at ₹1,406.56 (₹1,192.00 + GST) with free shipping across India.

Looking for Hsts016l Sensor? YHDC Hall Split-core Current Sensor HSTS016L 50A/2.5V±0.625V is available at Zbotic with fast shipping across India.

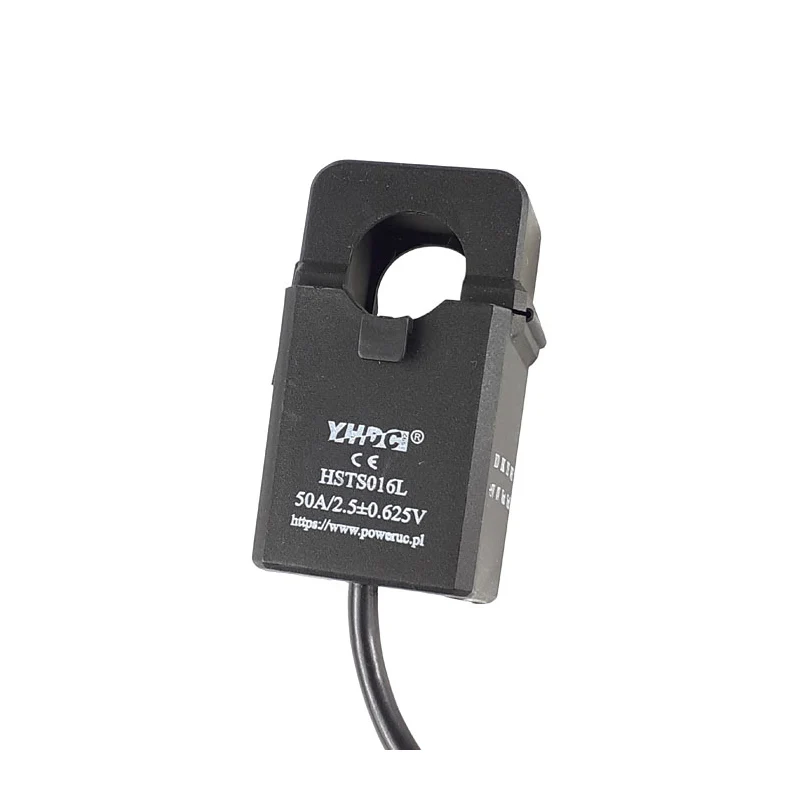

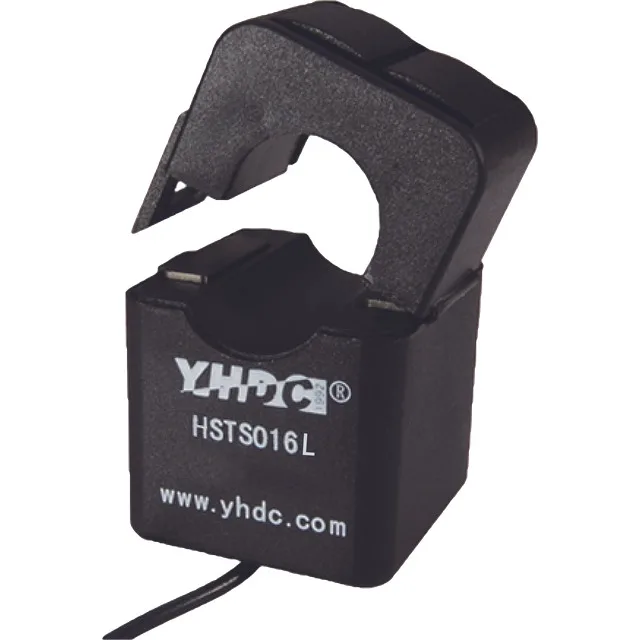

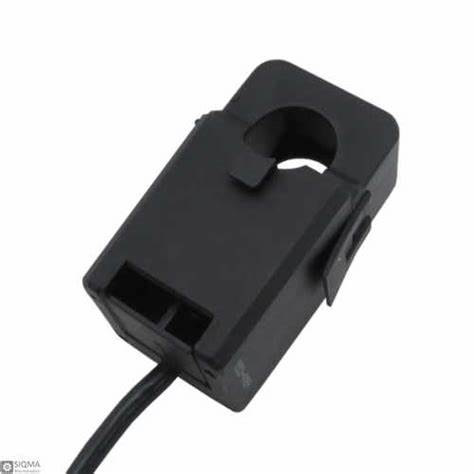

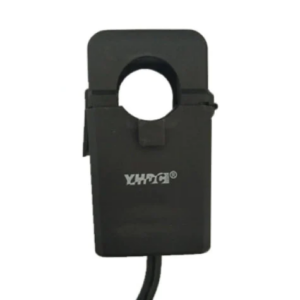

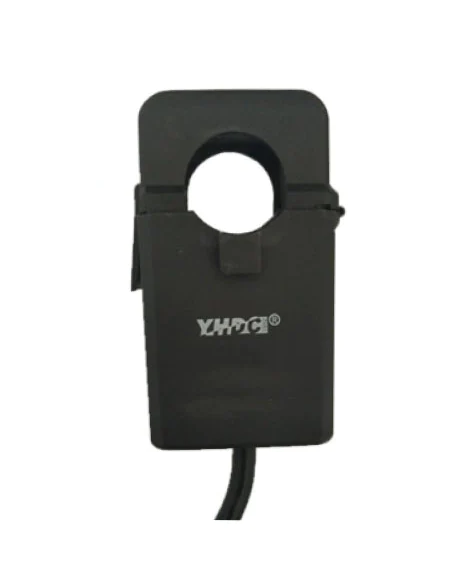

YHDC Hall Split-core Current Sensor HSTS016L 50A/2.5V±0.625V

Introducing the YHDC Hall Split-core Current Sensor HSTS016L, offering precise current measurement capabilities for a variety of applications.

Model: HSTS016L

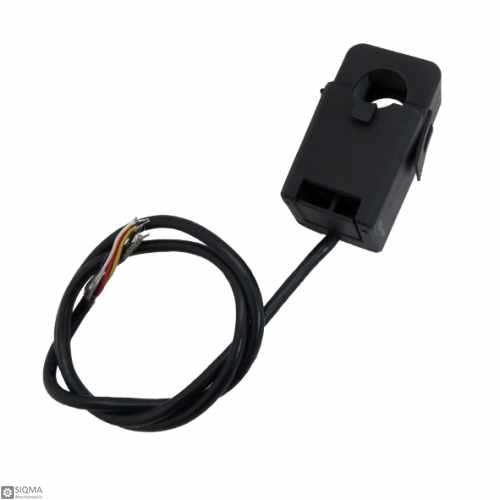

Featuring an open-loop split-core design, this sensor allows for easy installation via hanging installation and cable output. It is capable of detecting DC, AC, and pulse currents, making it versatile for different types of electrical systems.

Moreover, the sensor ensures high insulation between the primary and secondary circuits, ensuring safety and reliability in operation.

Whether you’re monitoring power consumption, controlling motors, or managing energy usage, the YHDC Hall Split-core Current Sensor HSTS016L provides accurate measurements for your electronic projects.

Features:

1. Lightweight
2. Low power consumption
3. Good linearity
4. No insertion loss
5. Fast response time
6. Fast response time

Application:

1. Railways
2. Metallurgical
3. Welding machine
4. Robotics
5. Electric Motors
6. Inverter power supply
7. Variable frequency governor
8. Uninterrupted power supply and communication power supply

Specifications:

Rated input: 50A
Input measurement range: 75A
Rated output: 2.5V±0.625V
Accuracy: 1%
Linearity: 1%
Dielectric strength: 2.5KV 50Hz 1min
Supply voltage: +5V
Current consumption: ≤12mA
Load impedance: ≥10KΩ
Zero offset voltage: ≤±15mV
Response time: ≤5μs
Operation temperature: -10~+70°C
Storage temperature: -25~+70°C
Bandwidth: DC~25KHz
Weight: 81g

Package Includes

1 x YHDC Hall Split-core Current Sensor HSTS016L 50A/2.5V±0.625V

YHDC Hall Split-core Current Sensor HSTS016L Overview

The YHDC Hall Split-core Current Sensor HSTS016L is an open-loop Hall effect transducer designed to measure DC, AC, and pulse currents up to 50 A. Featuring a factory-calibrated 2.5 V±0.625 V analog output, it delivers precise, low-loss current monitoring in industrial and commercial electrical systems.

Key Features of YHDC Hall Split-core Current Sensor HSTS016L

• Split-core design for non-intrusive hanging installation without circuit interruption
• Wide measurement range up to 50 A with mid-scale output of 2.5 V and ±0.625 V span
• Lightweight construction with good linearity and no insertion loss
• Fast response time for real-time monitoring of transient and pulse currents
• High insulation between primary conductor and secondary electronics for safety
• Low power consumption ideal for continuous operation
• Fast shipping from Zbotic across India

Applications and Use Cases

• Monitoring power draw in solar inverters and renewable energy systems
• Overcurrent protection and efficiency tracking in industrial machinery
• Battery management systems for electric vehicles and energy storage
• Load balancing in data center power distribution units (PDUs)
• Current sensing in UPS, generators, and backup power solutions

How to Use YHDC Hall Split-core Current Sensor HSTS016L

Open the split-core housing and snap it around the live conductor you wish to monitor. Connect the sensor’s cable—typically three wires—to your control system: tie VCC to a stable 5 V supply, ground to system GND, and route the 2.5 V±0.625 V output to an ADC or data acquisition input. Close the latch securely, power up, and calibrate zero-current offset at 2.5 V for accurate measurements.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What is the full-scale output voltage range of this sensor?

The HSTS016L provides a nominal 2.5 V at zero current, swinging ±0.625 V for the ±50 A range—yielding an output span from 1.875 V to 3.125 V.

Can I measure both AC and DC currents with the HSTS016L?

Yes. Its Hall effect split-core design supports accurate detection of DC, AC, and pulse currents without the need for separate sensors.

How do I install the split-core current sensor on existing wiring?

Simply open the hinged core, position it around the insulated live conductor, and snap it shut. No rewiring or power shutdown is required during installation.
