This is the Red variant of the XH-M452 Temperature and Humidity Controller Module (Displays are red) in Temperature & Humidity Sensor. Available at ₹446.04 (₹378.00 + GST) with free shipping across India.

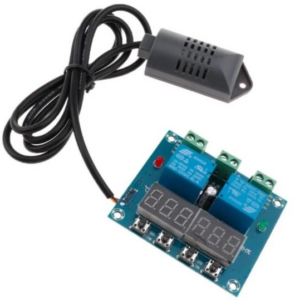

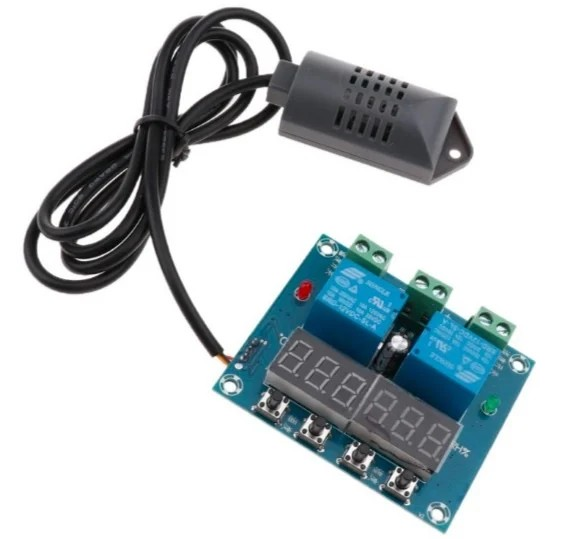

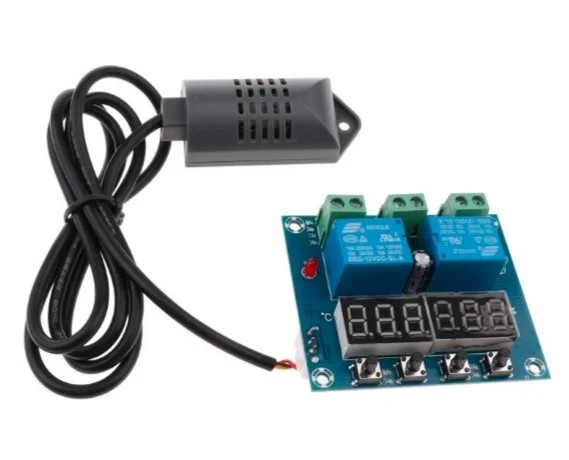

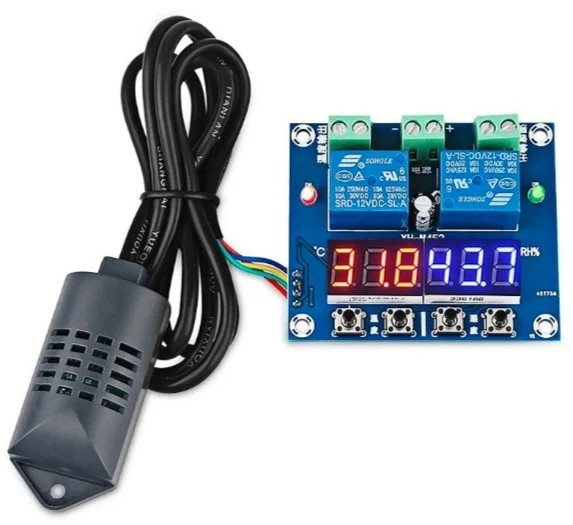

XH-M452 Temperature and Humidity Controller Module (Displays are red )
Introducing the DC 12V XH-M452 Temperature and Humidity Controller Module with a digital display. This advanced module delivers high accuracy with dual output, offering automatic and precise control of temperature and humidity. Ideal for maintaining consistent environmental conditions across a variety of applications.
Humidity Control
- Set to start humidity: long-press the + key, start the humidity value flashing, set by + / – key launch humidity value
- Set stop humidity: long press – to stop humidity value, set by + / – key to stop the humidity value
Temperature Control
- Setting the temperature +: Normal display mode, long-press the + key for 3 seconds, start temperature numerical flashing, press the + / – key setting values, the wrong operation after 5 seconds, automatically return to detect temperature display
- Setting the temperature – :Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the + / – key set value
- Restore the factory Settings: At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
- Setting the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / – key
- Setting Stop temperature: long press – button, stop flashing temperature, set stop temperature by + / – key
Features of XH-M452 Temperature and Humidity Controller Module:-
Power supply: DC 12V
Temperature measurement range:-40~120
Humidity range0~100%RH
Control precision0.1 0.1%RH
Test probe Integrated sensor
Note: Displays are red
Specifications:
| Model | XH-M452 |
|---|---|
| Voltage | DC 12V |
| Temperature Range | 0% to 100%RH |
| Control Accuracy | 0.1°C, 0.1RH |
| Detector probe | Integrated sensor |
| Output type | Relay output |
| Output capacity | up to 10A |
| Length(mm) | 65 |
| Width(mm) | 55 |
| Height(mm) | 28 |
| Weight(g) | 69g (with sensor) |
Package Includes
- 1 x XH-M452 Temperature and Humidity Controller Module With sensor
Proximity Sensor Types: IR vs Ultrasonic vs Capacitive Explained
Choosing the wrong proximity sensor type is one of the most common mistakes in Arduino and IoT projects....
Read More →
ACS758 Current Sensor: High Current AC/DC Measurement Guide
Measuring high currents accurately and safely is one of the most critical requirements in power electronics, electric vehicles,...
Read More →
Capacitive Level Sensor: Non-Contact Liquid Level Detection Guide
Table of ContentsWhat Is a Capacitive Level Sensor?How Non-Contact Liquid Detection WorksTypes of Capacitive Level SensorsCapacitive vs Resistive...
Read More →Technical Specifications
| Model | XH-M452 |
|---|---|
| Color | Red |
| SKU | AI6273 |
| Weight | 0.09 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XH-M452 Temperature and Humidity Controller Module (Displays are red) is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
