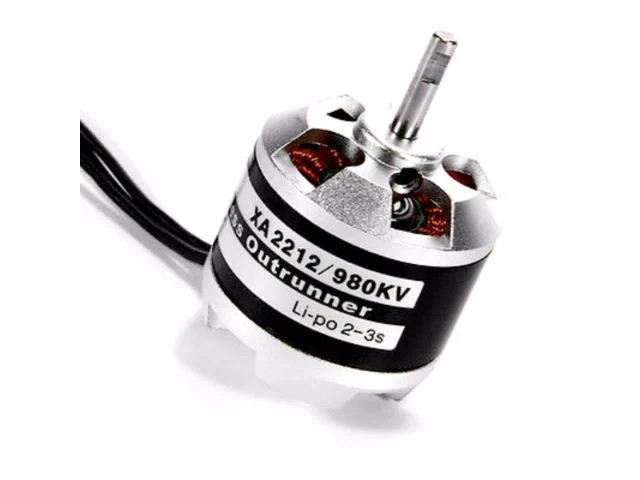

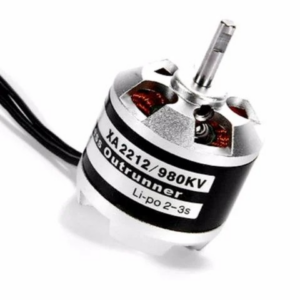

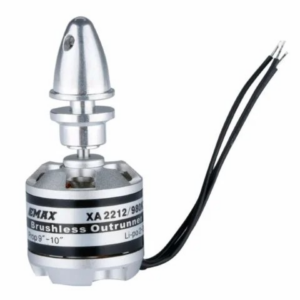

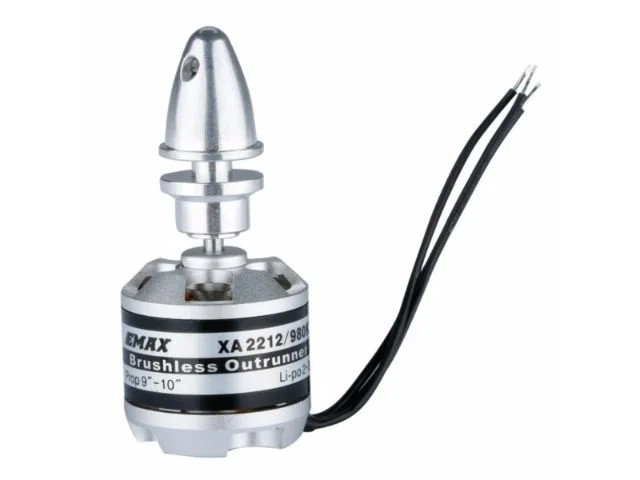

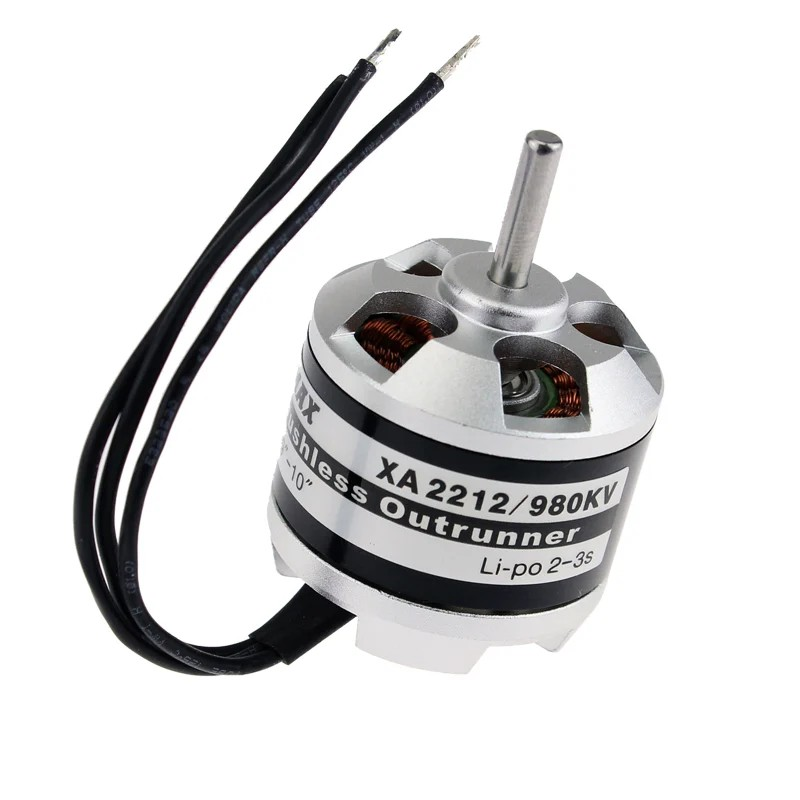

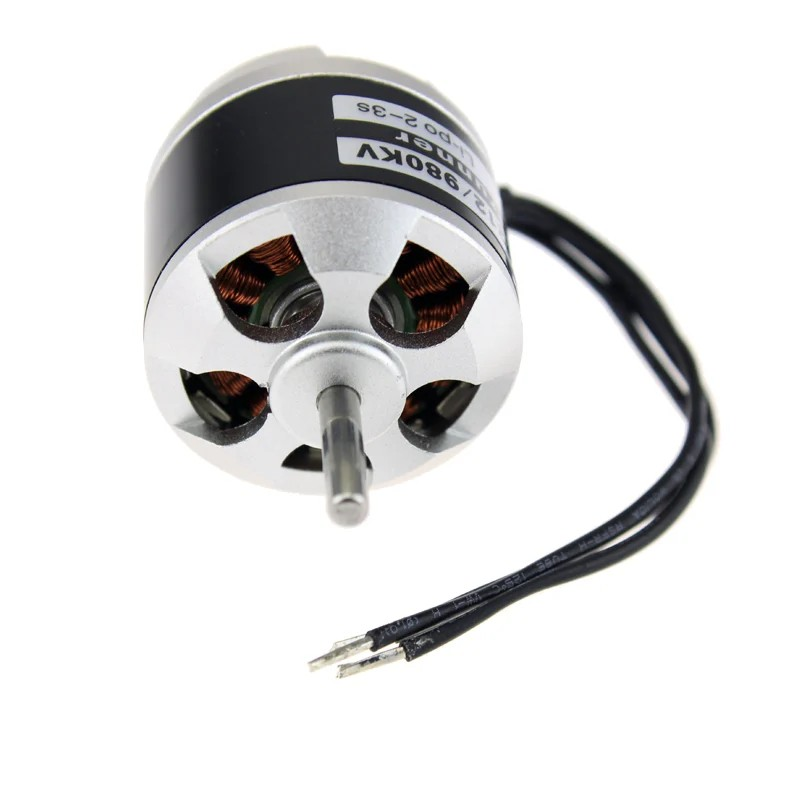

Original Emax XA2212 980KV Outrunner Brushless DC Motor

Looking for Xa2212 Motor? Original Emax XA2212 980KV Outrunner Brushless DC Motor is available at Zbotic with fast shipping across India.

At Zbotic.in, we are dedicated to providing quality products to makers striving for exceptional performance and longevity through the use of premium components. The EMAX XA2212 980KV Outrunner Brushless DC Motor is designed to meet your demands!

These EMAX Brushless DC motors are sourced directly from the original manufacturers, known for their commitment to quality. Our team carefully selects and tests EMAX innovations in the lab to ensure they meet our high standards before offering them to our customers.

The EMAX XA2212 980KV Outrunner Brushless DC Motor features high-quality bearings for smooth, vibration-free operation and silicone steel for optimal performance at lower temperatures. These motors are ideal for quadcopters and various multirotor configurations, including tri and hexa setups.

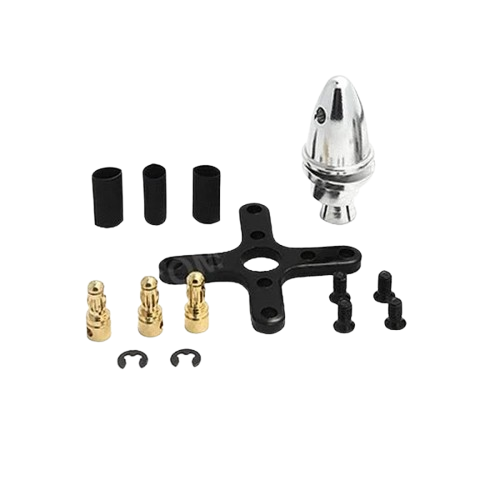

When paired with a 2S LiPO (Lithium Polymer) battery and the recommended high-quality Orange Series Propeller, this motor delivers excellent flight characteristics. It also comes with a prop adapter for easy propeller adjustments.

With its durability and high efficiency, supported by top-notch materials, this motor is an excellent choice for your RC model needs. Its standout features include quick transient response and superior stability.

The EMAX XA2212 980KV Outrunner Brushless DC Motor offers impressive thrust and efficiency at a competitive price.

Note:
To purchase premium quality Orange Li-Po (Lithium Polymer) batteries and Orange propellers, click the following links:

Features :

1. Vibration-free operation.
2. Very easy to install.
3. Generates less heat during operations.
4. High-quality bearings for reliable operation.
5. Imported silicon steel coils and high-quality magnets ensure longer life and better performance.
6. 100% balanced, less energy lost from vibration.
7. 63 steps of quality inspection, ensuring that every motor you have on your hand is qualified and safe.

Specification

Package includes :

1 x  EMAX XA2212 980KV Outrunner Brushless DC Motor

Datasheet

Video

Original Emax XA2212 980KV Outrunner Brushless DC Motor Overview

The Original Emax XA2212 980KV is an outrunner brushless DC motor engineered for lightweight multirotor drones and RC aircraft. With a 12N14P winding design and 980KV rating, it delivers efficient power and smooth throttle response for 2S–3S LiPo setups.

Key Features of Original Emax XA2212 980KV Outrunner Brushless DC Motor

• 12N14P Winding: Balanced magnetic design for stable RPM and reduced cogging.
• 980KV Rating: Ideal speed constant for 2S–3S LiPo, delivering responsive acceleration.
• Up to 880 g Thrust: Efficient thrust output with 9″–10″ propellers on recommended battery packs.
• High-Quality Bearings: Precision bearings ensure smooth, vibration-free operation.
• Silicone Steel Core: Laminated stator enhances magnetic efficiency and heat dissipation.
• 3 mm Shaft: Durable steel shaft compatible with standard collets and prop adapters.
• Fast Shipping from Zbotic: Genuine Emax products dispatched within 24 hours across India.

Applications and Use Cases

• 250 mm–350 mm quadcopters for aerial photography and racing
• Hexacopter and octocopter builds requiring balanced thrust
• Fixed-wing RC airplanes using 9″–10″ propeller setups
• FPV freestyle drones where smooth throttle control is critical
• Educational robotics projects focusing on brushless motor technology

How to Use Original Emax XA2212 980KV Outrunner Brushless DC Motor

Mount the motor on your drone’s motor arms using the included screws; solder the three motor leads to a compatible ESC rated for 2S–3S LiPo, then secure a 9″–10″ propeller on the 3 mm shaft collet. Perform a static thrust and vibration test before flight, and configure your flight controller’s motor output settings for optimal performance.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What battery voltage is recommended for the Emax XA2212 980KV motor?

This motor is optimized for 2S to 3S LiPo battery packs. Using within this range ensures efficient power delivery and longevity.

Which propeller size works best with this motor?

The XA2212 980KV performs best with 9″–10″ propellers, providing up to 880 g of thrust on a 3S LiPo setup.

What maximum thrust can this motor produce?

Tested under standard conditions, this motor delivers a maximum thrust of approximately 880 grams when paired with a 10″ propeller and a 3S LiPo battery.
