Looking for Geprc – Speedx2 Motor 552856? GEPRC – SPEEDX2 1404 4600KV Motor is available at Zbotic with fast shipping across India.

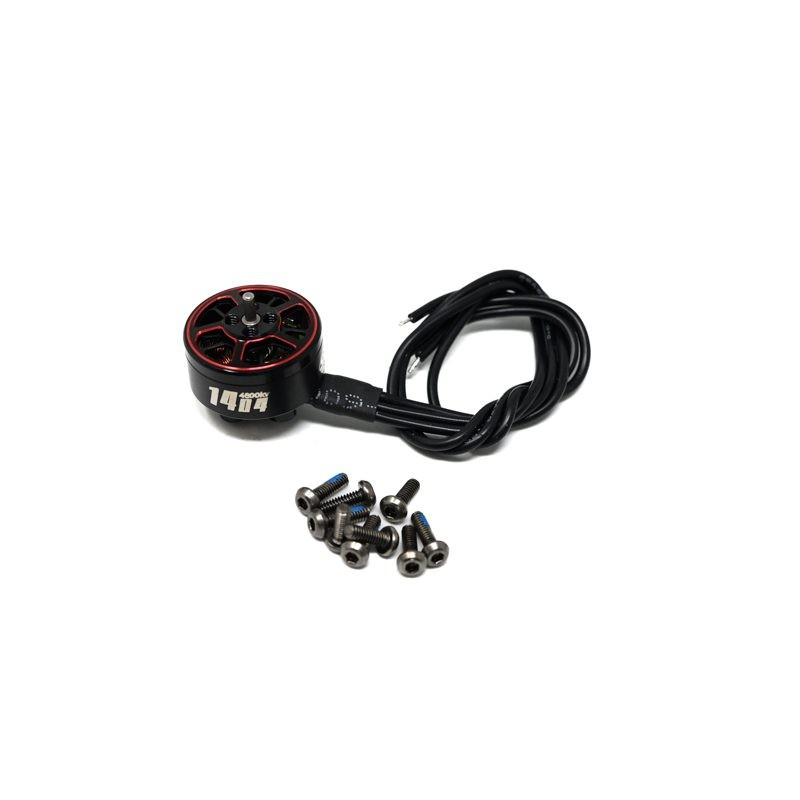

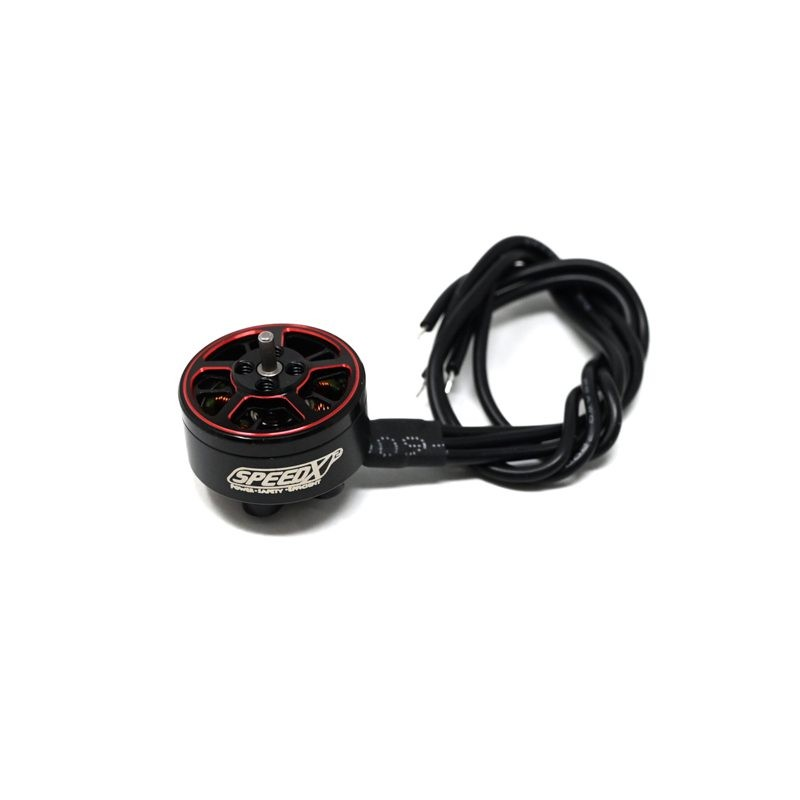

Geprc – Speedx2 Motor 552856 – GEPRC SPEEDX2 1404 4600KV Motor
The GEPRC SPEEDX2 1404 4600KV is a lightweight, high-speed motor built for 2-inch to 3-inch FPV racing and freestyle drones. With premium components like N52H arc magnets and NSK/NMB bearings, it delivers smooth, stable power and fast response, while weighing only 10.5g including wires. Ideal for agile, high-performance drone builds.
Features
Premium Finish – Striking red and black color scheme for a sleek, high-end appearance.
Ultra-Lightweight – Weighs just 10.5g (with wires), optimizing agility and flight time.
N52H Arc Magnets – Provide consistent and powerful magnetic field for efficient power delivery.
NSK/NMB Bearings – High-quality bearings ensure smooth operation and long-term durability.
FPV-Optimized Design – Specifically built for 2″ to 3″ racing and freestyle drones.
Specifications
Model: SPEEDX2 1404
KV Rating: 4600KV (RPM/V)
Battery Compatibility: 3S to 4S LiPo
Shaft Diameter: 1.5mm
Max Power: 180W
Number of Poles: 12
Package Includes
1 × GEPRC – SPEEDX2 1404 4600KV Motor
GEPRC – SPEEDX2 1404 4600KV Motor Overview
The GEPRC SPEEDX2 1404 4600KV Motor is a lightweight, high-speed brushless motor engineered for 2″ to 3″ FPV racing and freestyle drones. It combines premium N52H arc magnets with NSK/NMB high-precision bearings to deliver smooth throttle response and consistent power output in a compact 10.5 g package.
Key Features of GEPRC – SPEEDX2 1404 4600KV Motor
- NSK/NMB high-precision bearings for ultra-smooth performance and extended lifespan
- N52H arc magnets offering exceptional power density in a compact size
- Ultra-lightweight design at just 10.5 g (including wires) to maximise agility
- 4600KV rating for rapid RPM response ideal for micro FPV setups
- Striking red and black finish for a premium, high-end appearance
- Fast shipping across India from Zbotic, ready to hit the skies quickly
Applications and Use Cases
- 2″–3″ FPV racing quads demanding quick throttle punch and tight control
- Freestyle drone builds where weight reduction boosts acrobatics
- Long-range micro drones benefiting from efficient, high-speed motors
- Park flyers and stunt platforms requiring nimble handling
- Mini quad prototypes and custom micro projects prioritising power-to-weight
How to Use GEPRC – SPEEDX2 1404 4600KV Motor
Secure the SPEEDX2 1404 4600KV Motor onto your 2″–3″ drone frame with the provided mounting hardware, solder the pre-attached silicone-insulated wires to your ESC, verify rotation direction in your flight controller setup, and fit compatible 2″ or 3″ propellers before your first flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What frame size is the GEPRC SPEEDX2 1404 4600KV Motor designed for?
It’s optimized for 2″ to 3″ FPV drone frames, delivering peak performance when paired with 2″–3″ propellers.
Which bearings are used in this motor?
The SPEEDX2 uses premium NSK/NMB high-precision bearings to ensure smooth rotation and long-term durability.
Are wire leads included with the GEPRC SPEEDX2 1404 4600KV Motor?
Yes, the motor comes with silicone-insulated wires pre-attached, ready for soldering to your ESC of choice.
Tricopter Build Guide: Unique Y-Frame Drone Design
Tricopter Build Guide: Unique Y-Frame Drone Design In a world dominated by quadcopters, the tricopter is the odd...
Read More →
Best Budget Drone Kits in India 2026: Complete Comparison
Finding the best budget drone kits in India for 2026 can be overwhelming with dozens of options available...
Read More →
Motor Noise Filtering: Capacitor Placement on DC Motors
If you have ever noticed your Arduino resetting when a motor starts, your sensor readings jumping erratically while...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| KV Rating | 4600KV |
| Package Quantity | 2 pcs |
| SKU | AI6898 |
| Weight | 0.020001 kg |
| Availability | In Stock |
Applications & Use Cases
The GEPRC – SPEEDX2 1404 4600KV Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
