Name: T-MOTOR A6L-X-CCW Modular Propulsion System (Combo Kit)
Brand: T -Motor
SKU: AI8007
Price: 23598.82 INR
Availability: InStock

This is the CCW rotation variant of the T-MOTOR A6L-X-CCW Modular Propulsion System (Combo Kit) in Drone Motor. Available at ₹23,598.82 (₹19,999.00 + GST) with free shipping across India.

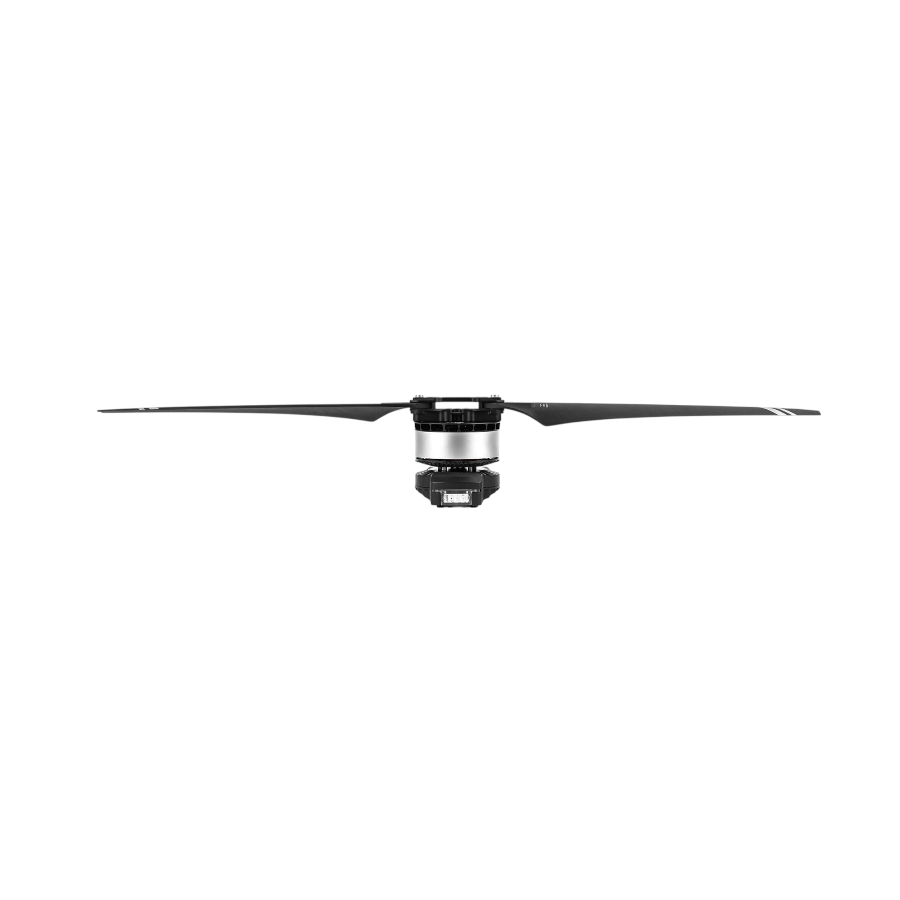

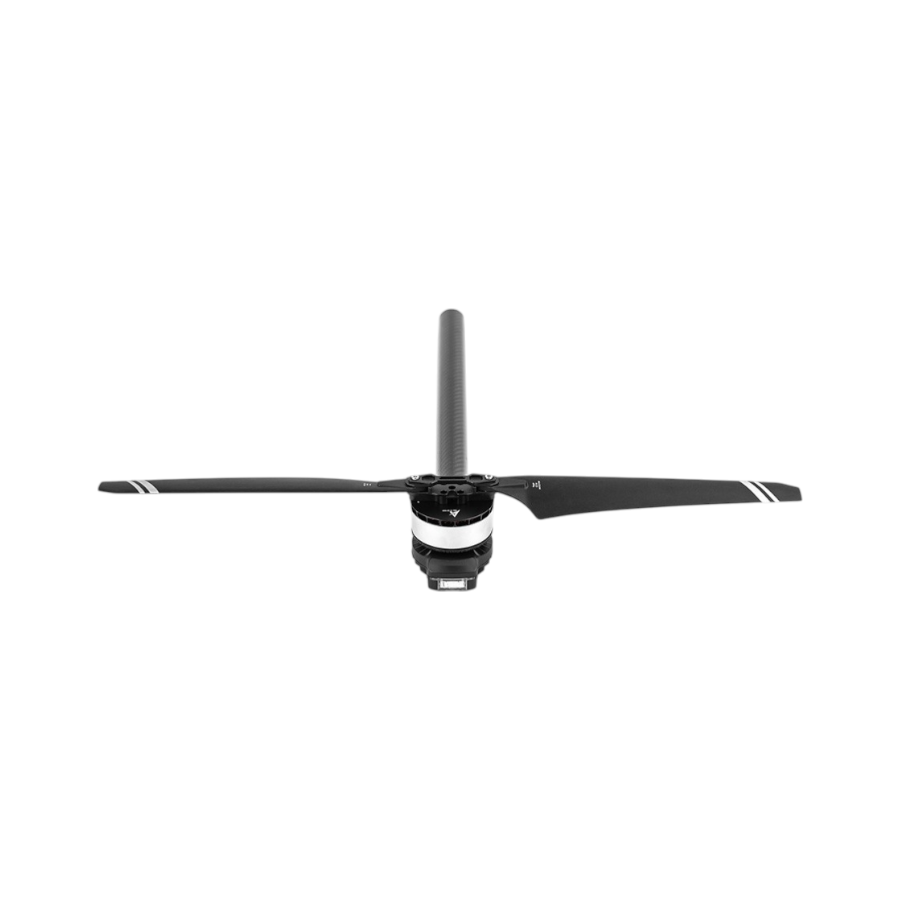

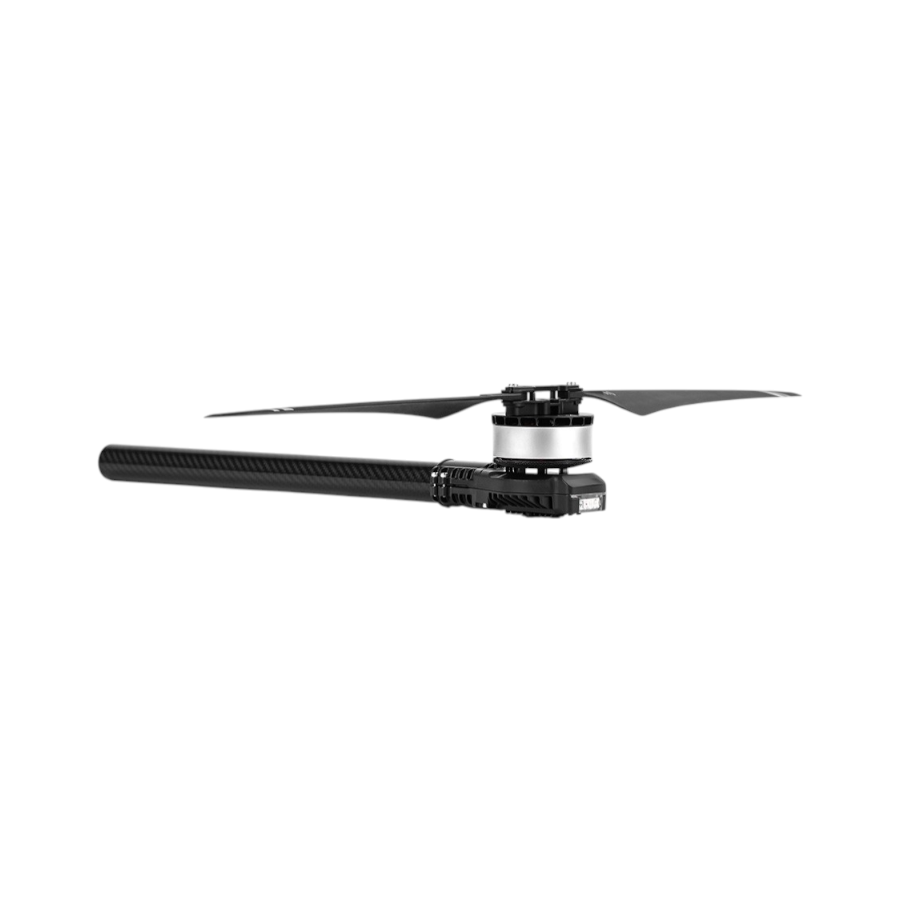

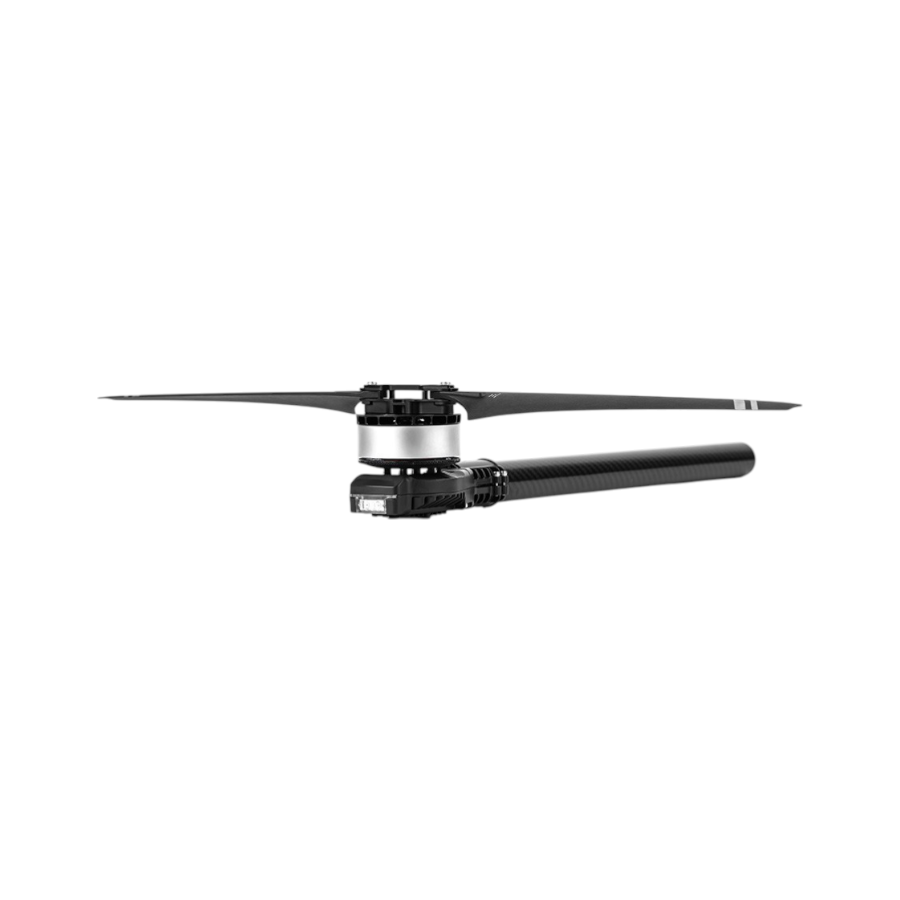

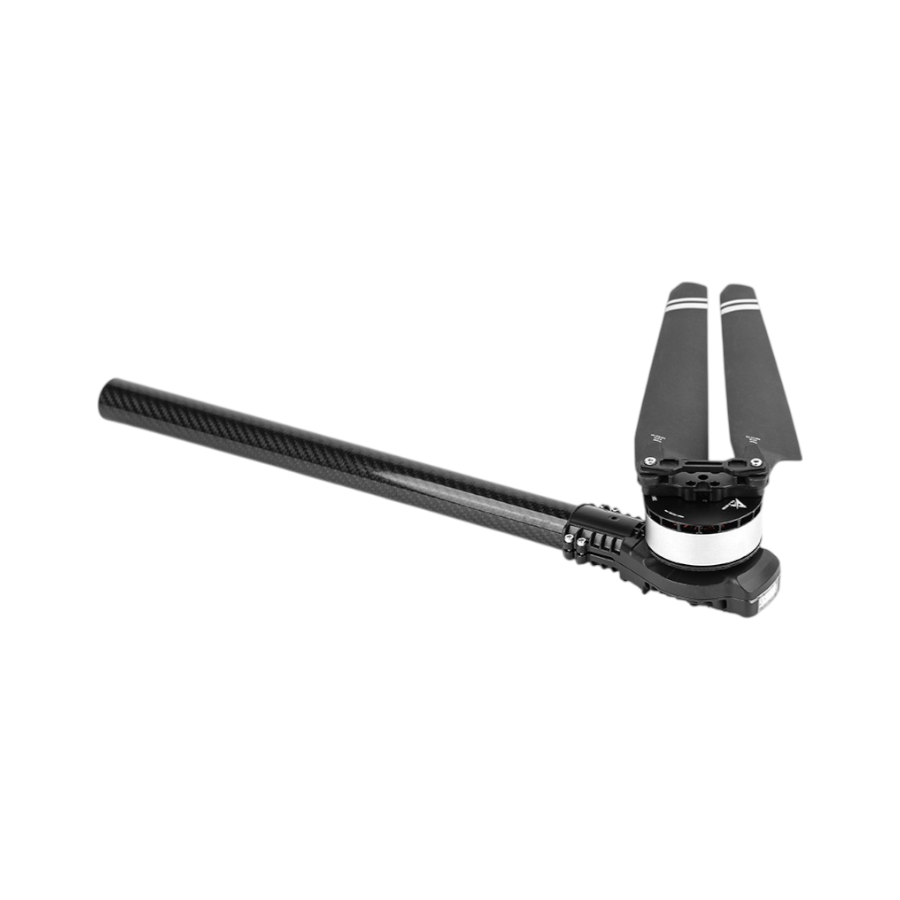

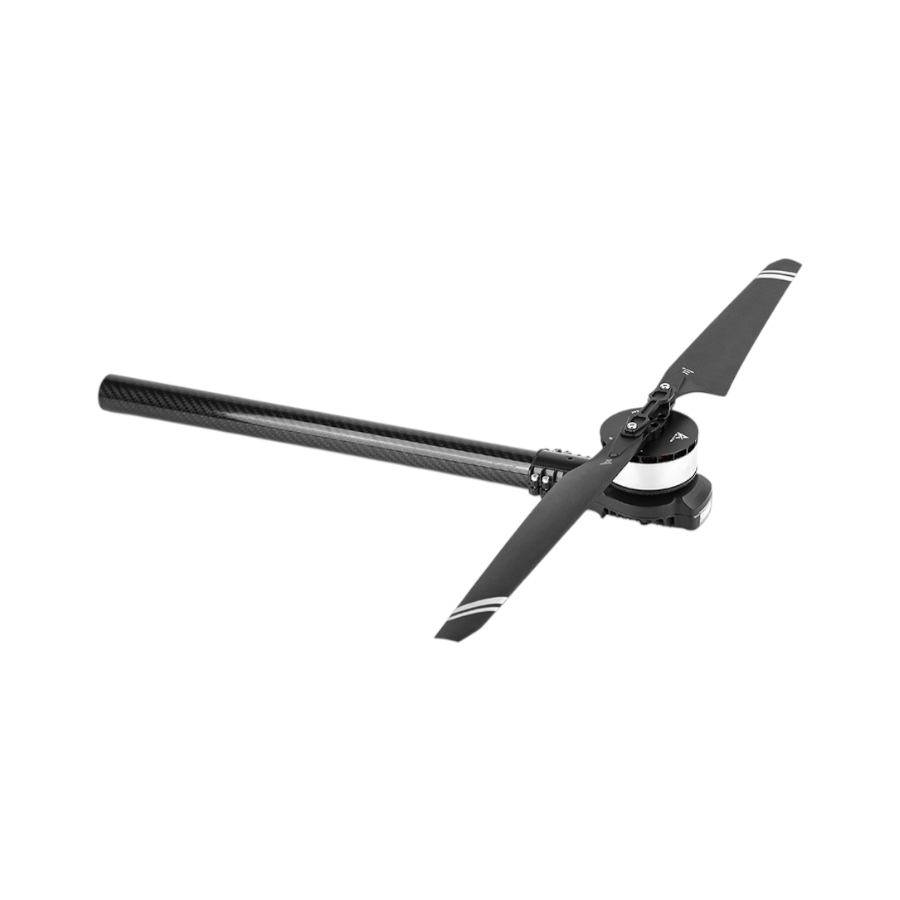

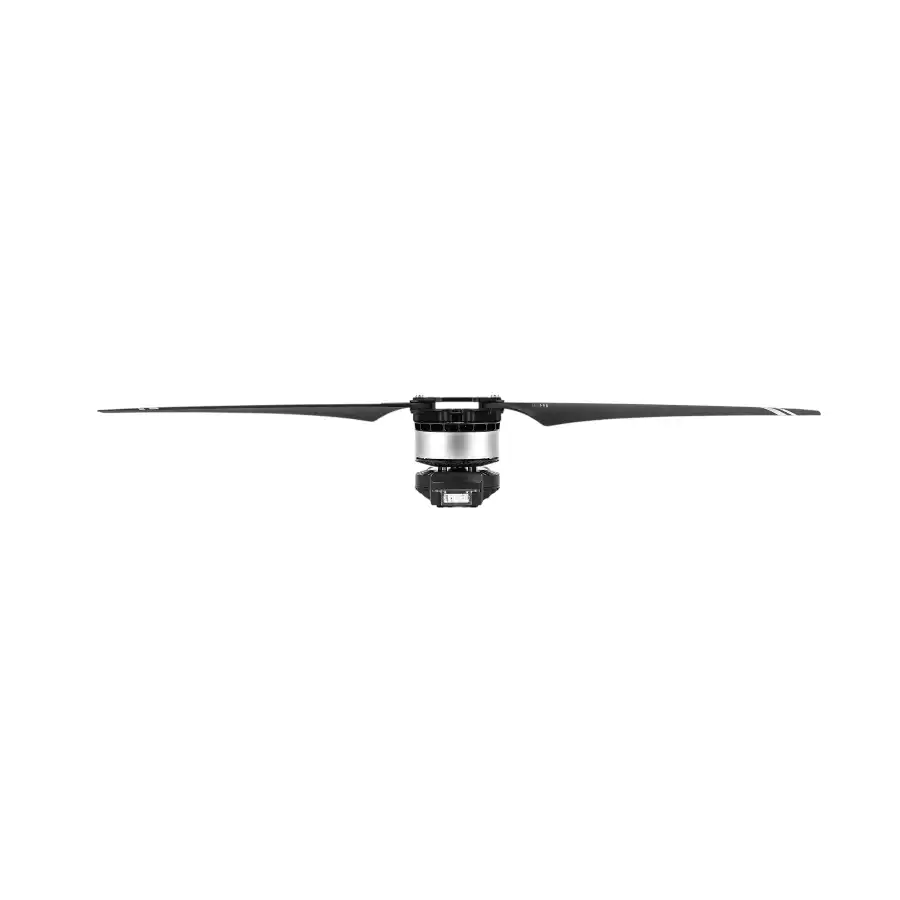

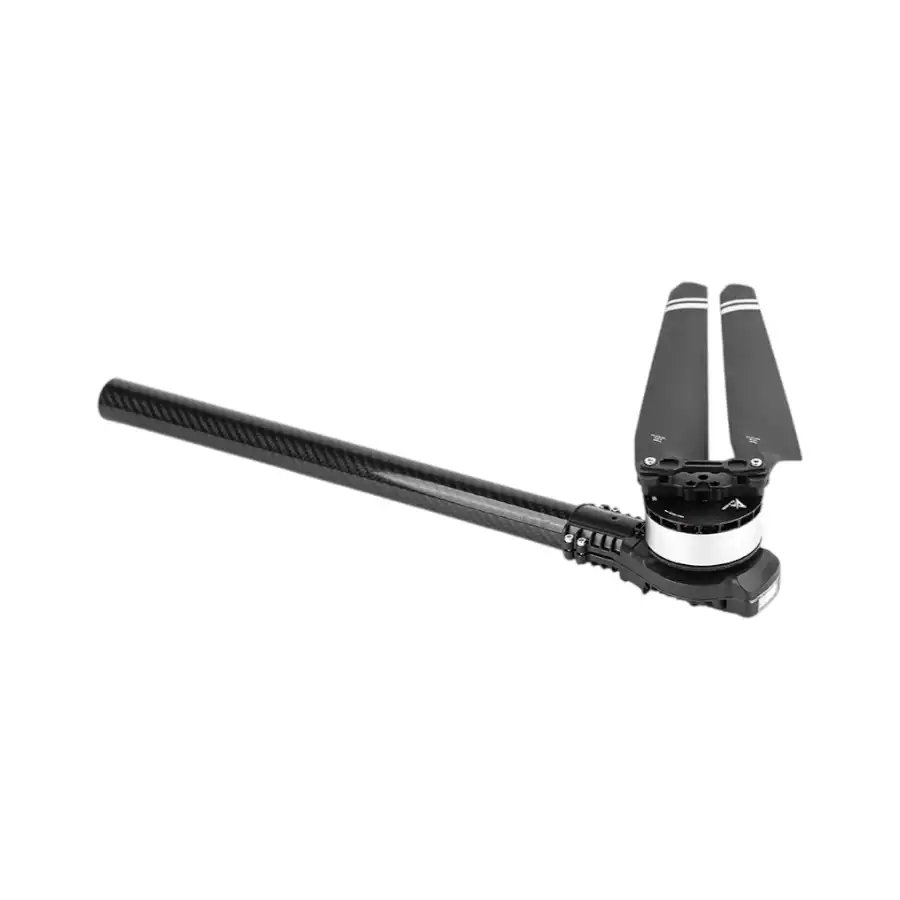

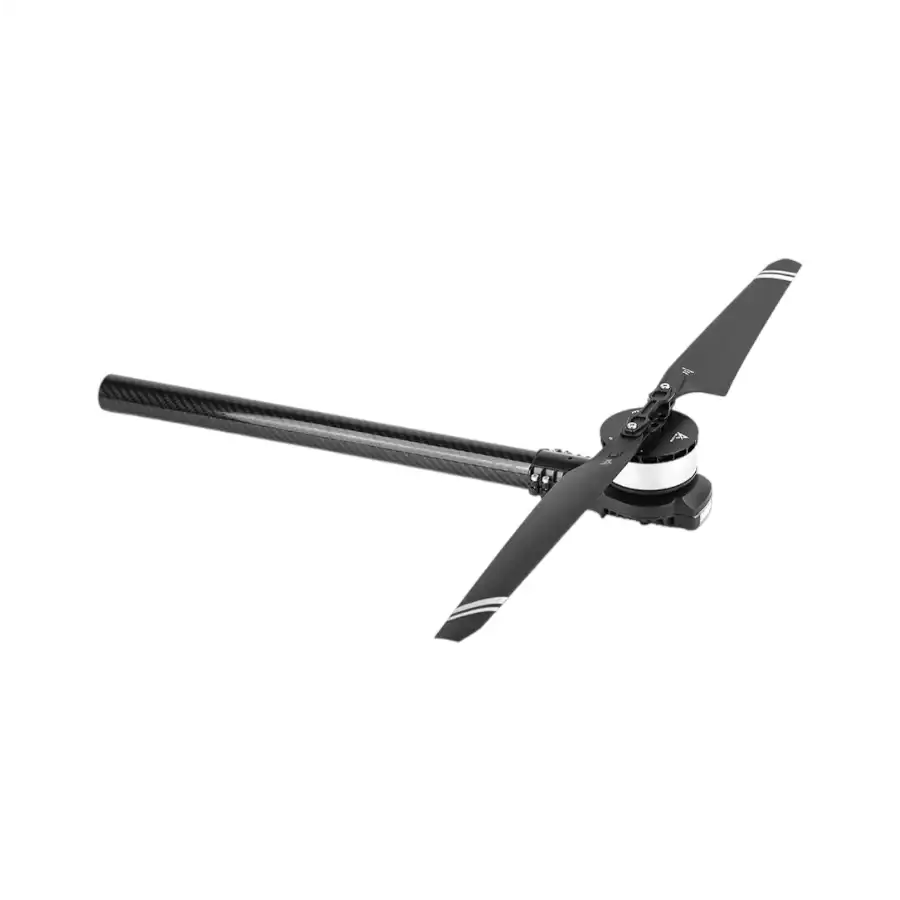

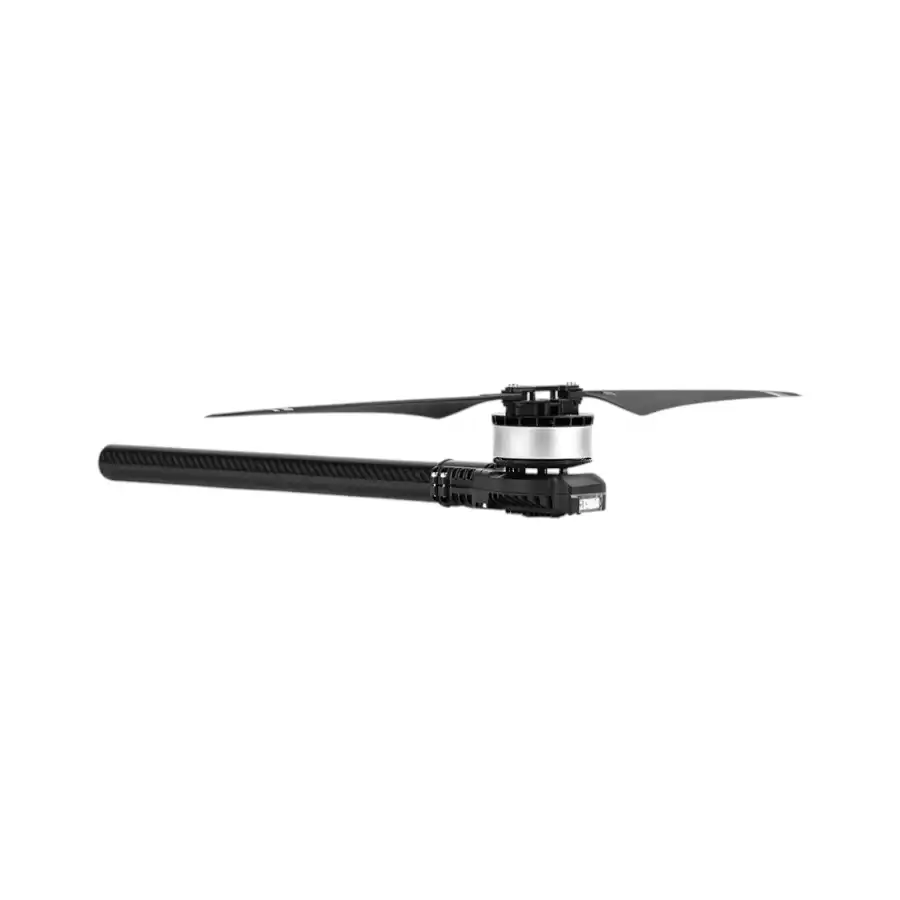

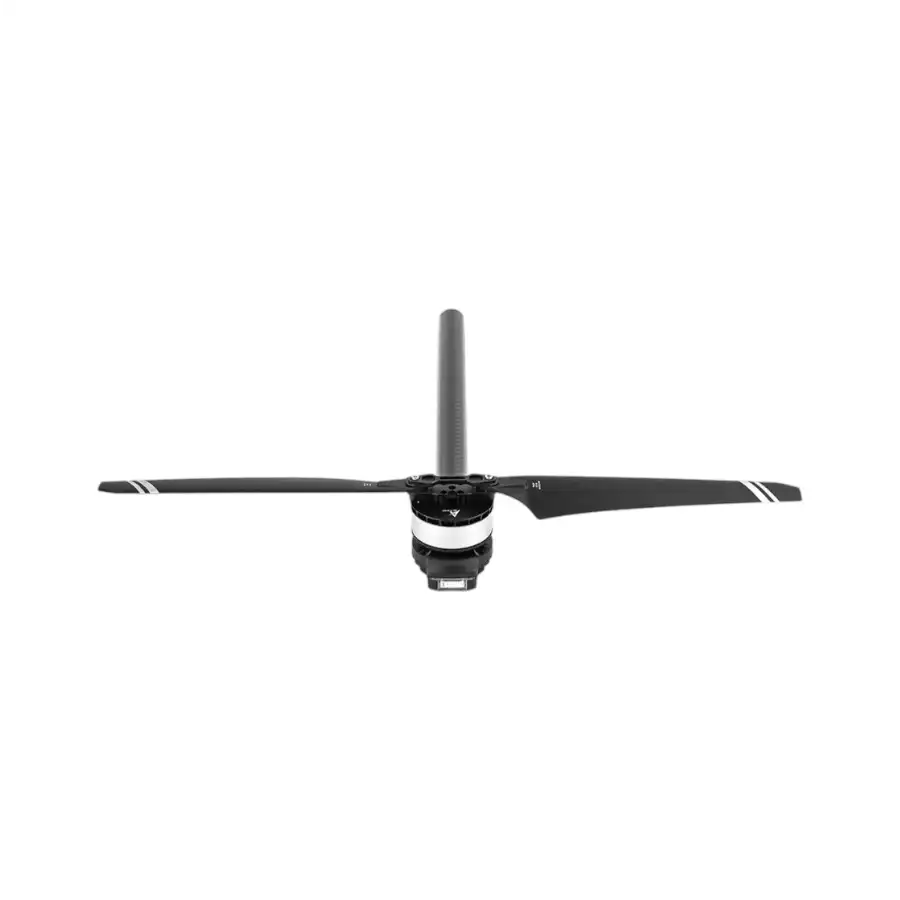

T-MOTOR A6L-X-CCW Modular Propulsion System (Combo Kit)

Description:

The T-MOTOR A6L-X-CCW Modular Propulsion System (Combo Kit) is a high-efficiency integrated propulsion unit designed primarily for agricultural UAVs (spraying drones) in the 5 L–10 L payload class. It combines motor, ESC, and propeller into a single optimized module for reliability and ease of integration.

The A6L-X is part of T-Motor’s A-series modular propulsion systems and is engineered for medium payload multirotor drones such as quadcopters and hexacopters used in precision agriculture.

Note: Carbon tubes are not included

Technical Drawing:

Specification:

Model No.: A6L-X-CCW KV160
Tube Size: 30 mm
Setup: A6L-X (Motor) + 14S FOC 80A (ESC) + MF2407P (Propellers)
Recommended Battery: 12–14S LiPo
Wire Material / Gauge / Color:
- Power Wires: 14# AWG Red & Black
- Signal Wires: 5P Teflon
Wire Length: 1160 ± 5 mm
Weight: 780 ±2% g (including wires + prop)
Rated Thrust: 4–5.5 kg
Maximum Thrust: 12 kg
Efficiency at Rated Thrust: 7.98 g/W (at 4.4 kg)
IP Rating: IPX6
Recommended Ambient Temperature: -30°C to 50°C

Motor Specifications

Stator Size: 62 × 18 mm
KV Rating: 160

ESC Specifications

Throttle Range: 1100–1940 µs (Fixed)
Maximum Voltage: 61 V
Protocol: DRONE CAN, UAV CAN, CUBE CAN
Peak Current (Short Time): 80 A (open environment, temperature ≤ 60°C)
Control Method: PWM / CAN
BEC: No

Propeller Specifications

Model No.: MF2407P (Polymer Folding)
Length: 24 inch (622 mm)

Features:

Modular All-in-One Design
High Thrust Performance
Efficient Power Usage
Durable and Weather Resistant
Wide Operating Temperature
Smart ESC Technology
Reliable Wiring
High-Performance Propeller
Lightweight Design
Easy Maintenance and Replacement

Package Includes:

1x T-MOTOR A6L-X-CCW Modular Propulsion system (Excl. Carbon Tube)

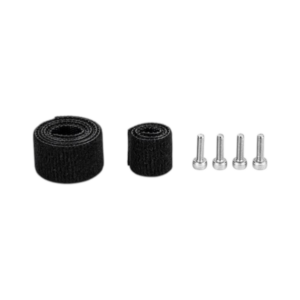

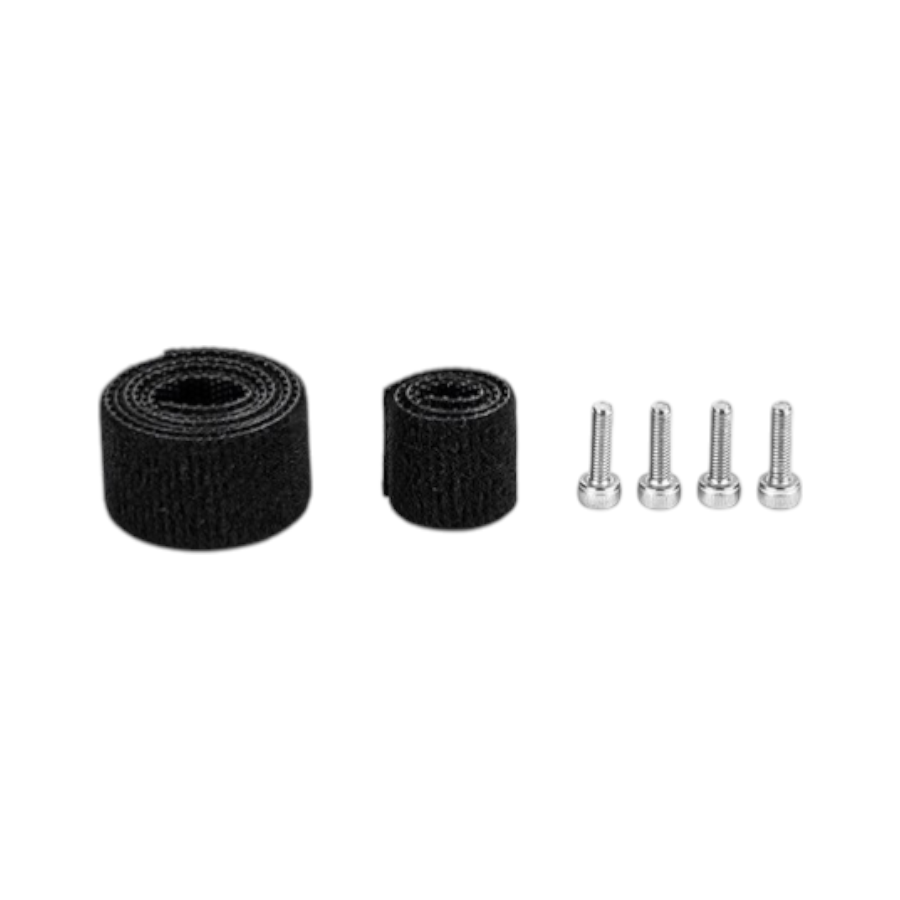

1x Parts Bag

Technical Specifications

Brand	T -Motor
SKU	AI8007
Weight	1.82 kg
Availability	In Stock

Applications & Use Cases

The T-MOTOR A6L-X-CCW Modular Propulsion System (Combo Kit) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.

Common use cases:

Replacement motor for crashed or worn-out drone
Building a custom quadcopter or hexacopter from scratch
Upgrading to a more efficient motor for longer flight times

This product is ideal for drone builders, FPV pilots, and agricultural drone operators.

Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
