Looking for Tl96020 Brushless Motor? Tarot TL96020 5008 340KV HIGH POWER BRUSHLESS MOTOR is available at Zbotic with fast shipping across India.
The 5008/340KV Efficient Multi-Rotor Brushless Motor is designed specifically for multi-rotor drones, perfectly suitable for frames like the T960 Folding Hexa-Rotor Rack (TL960A) and T18 Folding Octa-Rotor Rack (TL18A00), as well as other 17–18 inch rotor setups. Crafted using full CNC machining, the motor features a seamless, smooth surface with excellent balance.
The new turbofan cover design provides powerful airflow for effective heat dissipation. The rotor is made with high-magnetic NdFeB material, and the stator is reinforced with high-strength epoxy, ensuring durability under high temperature and magnetic flux. Precision balance correction minimizes vibration issues common in external rotor motors. The motor shaft is made of high alloy steel for enhanced strength and performance.
Both upper and lower lids use large precision bearings, offering low friction torque, low power loss, and impact resistance—ensuring stable, high-speed operation. The motor has passed extensive performance tests, ensuring long life, high efficiency, low power consumption, low noise, and excellent control stability, continuing the trusted Tarot motor legacy.
Tl96020 Brushless Motor – Features:
- Applicable Rotor Specifications: 17–18 inch
- Motor Outside Diameter: 58.50 mm
- Stator Diameter: 50.0 mm
- Stator Thickness: 8.0 mm
- Stator Number: 12N
- Motor Poles: 14P
- KV Rating: 340 RPM/Volt
- No-Load Current (25.2V): 1.1A
- Motor Weight: 168 g
- Gear Shaft Mounting Diameter: 4.0 mm
- Motor Length: 35.0 mm
- Motor Shaft Length: 42.0 mm
Specifications:
| Motor KV (RPM/V) | 340 |
|---|---|
| Motor Type | Brushless Motor |
| Outer Diameter [OD] (mm) | 58.5 |
| Stator Diameter | 50 |
| Stator Thickness | 8 mm |
| No of poles | 14 |
| Length (mm) | 35 |
| Shaft Length (mm) | 42 |

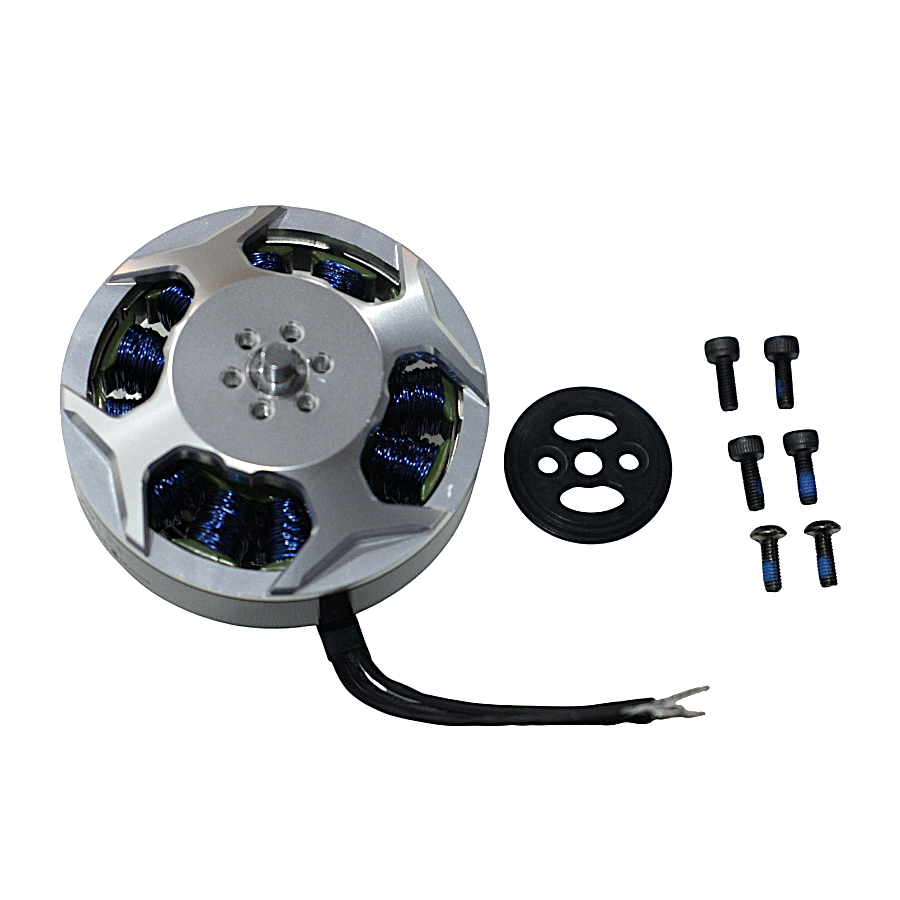

Package Includes:
- 4 x Cup Head Screws M3×8
- 2 x Button Head Screws M3×8
- 1 x Metal Rotor Mounting Piece
- 1 x 5008KV340 Brushless Motor

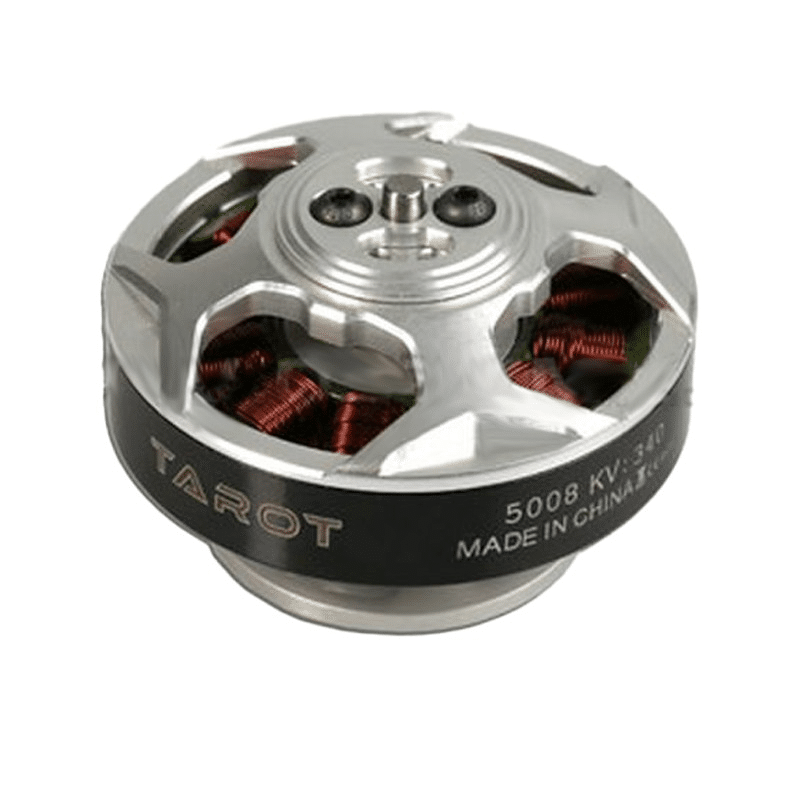

Tarot TL96020 5008 340KV HIGH POWER BRUSHLESS MOTOR Overview
The Tarot TL96020 5008 340KV is a high-power brushless motor engineered for multi-rotor drones requiring robust thrust and efficient operation. With a 5008 frame and 340KV winding, it’s ideal for 17–18″ prop setups in folding hexa- and octo-rotor frames.
Key Features of Tarot TL96020 5008 340KV HIGH POWER BRUSHLESS MOTOR
- Model 5008 with 340KV rating for balanced speed and torque
- 58.50 mm outer diameter, 50.0 mm stator diameter, 8.0 mm stator thickness
- 12N stator windings and 14 motor poles for smooth power delivery
- Full CNC-machined housing ensures precise balance and durability
- Innovative turbofan cover design for enhanced heat dissipation
- High-magnetic NdFeB rotor and epoxy-reinforced stator withstand high temperature and flux
- Fast shipping from Zbotic across India
Applications and Use Cases
- Installation on T960 Folding Hexa-Rotor Rack (TL960A) for heavy-lift platforms
- Use with T18 Folding Octa-Rotor Rack (TL18A00) for stable octocopter builds
- 17–18″ propeller setups for aerial photography and videography drones
- Delivery UAVs requiring reliable high thrust and continuous operation
- Agricultural spraying drones with extended flight times
- R&D and prototype multi-rotor platforms in universities and labs
How to Use Tarot TL96020 5008 340KV HIGH POWER BRUSHLESS MOTOR
Mount the TL96020 motor onto your multi-rotor frame using M4 screws, align with a 17–18″ prop adapter, and secure tightly. Connect to a 45–60 A ESC and pair with a compatible flight controller. Calibrate the ESC according to manufacturer instructions, perform a motor spin test without props, then install propellers and conduct low-throttle bench runs before maiden flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What frame and propeller sizes work best with this motor?
The 5008/340KV motor is optimized for multi-rotor frames featuring 17–18″ propellers such as the T960 Folding Hexa-Rotor Rack (TL960A) and T18 Folding Octa-Rotor Rack (TL18A00), delivering efficient lift and stability.
Which ESC and battery should I pair with the TL96020 motor?
For optimal performance, use a 45–60 A brushless ESC and a 4S–6S LiPo battery. Ensure the ESC firmware supports the motor’s KV rating and calibrate throttle endpoints before flight.
How does the turbofan cover enhance motor performance?
The integrated turbofan cover channels airflow over the stator and windings, improving heat dissipation under load. This keeps operating temperatures lower during extended flights and heavy-lift tasks.
Drone PDB vs AIO: Power Distribution Board Guide
Table of Contents Understanding Drone PDB vs AIO Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
HDZero VTX: Low-Latency Digital FPV for Racing
Table of Contents Understanding HDZero VTX Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →
Drone Night Flying: Lights, Settings and DGCA Rules India
Drone Night Flying in India: Lights, Settings, and DGCA Rules Explained Flying your drone at night unlocks a...
Read More →Technical Specifications
| Brand | Tarot |
|---|---|
| Model | TL96020 |
| KV Rating | 340KV |
| SKU | AI7339 |
| Weight | 0.2756 kg |
| Availability | In Stock |
Applications & Use Cases
The Tarot TL96020 5008 340KV HIGH POWER BRUSHLESS MOTOR is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
