This is the White variant of the White PBS-11B 12MM 2PIN Momentary Self- Reset Round Plastic Push Button Switch in Plastic Push Button Switch, Electronic Switches. Available at ₹12.39 (₹10.50 + GST) with free shipping across India.
Looking for Pbs-11b Switch? White PBS-11B 12MM 2PIN Momentary Self- Reset Round Plastic Push Button Switch is available at Zbotic with fast shipping across India.

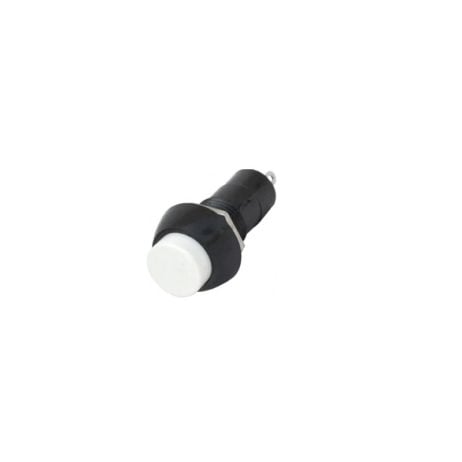

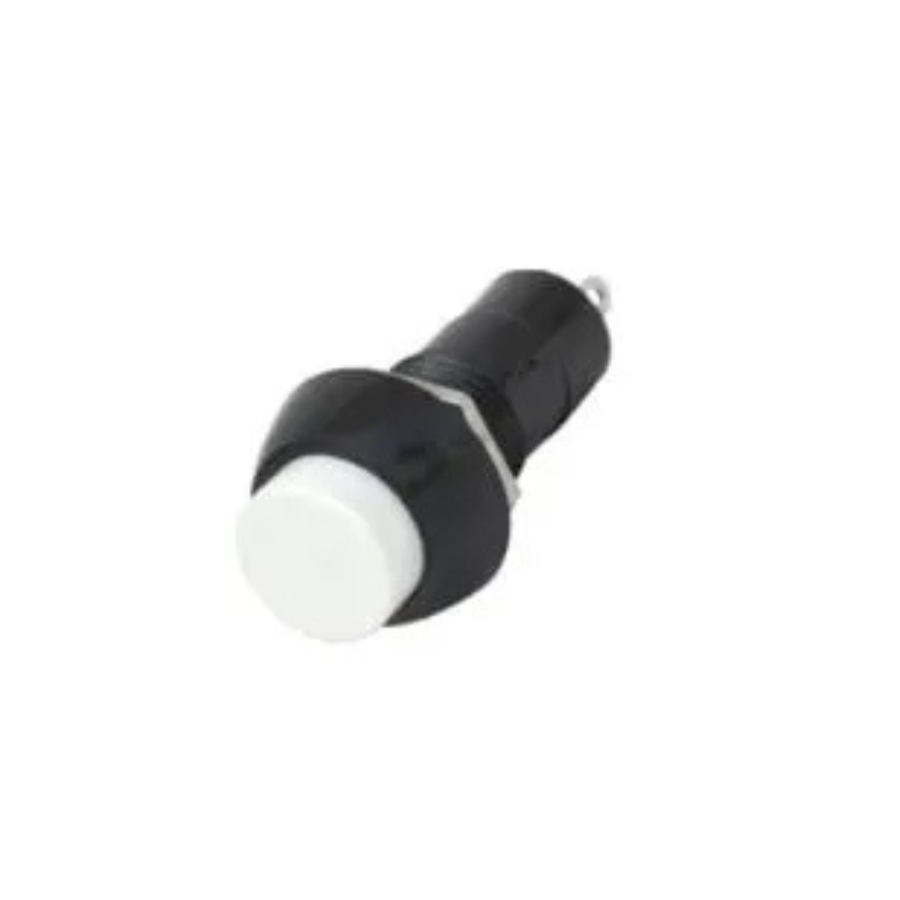

White PBS-11B 12MM 2PIN Momentary Self- Reset Round Plastic Push Button Switch
These momentary switches find common applications in control panels, push-button telephones, kitchen appliances, magnetic locks, and various mechanical and electronic devices utilized in both residential and industrial settings.
Push buttons serve as fundamental switches for controlling power in machinery or appliances. Typically made of metal or thermoplastic materials, these switches are designed to provide user-friendly access. In electric circuits, the objective is to ensure uninterrupted flow of electricity through various wires and components. However, circuits that remain constantly closed are not as practical as those that activate only when needed.
Widely employed as operational components in electrical circuits, devices, and machinery, push-button switches play a pivotal role in both domestic and industrial environments. These switches are capable of activating circuits, toggling loads such as contactors, motors, relays, and more. They typically function as push ON, release OFF type switches, offering convenient control over various electrical operations.

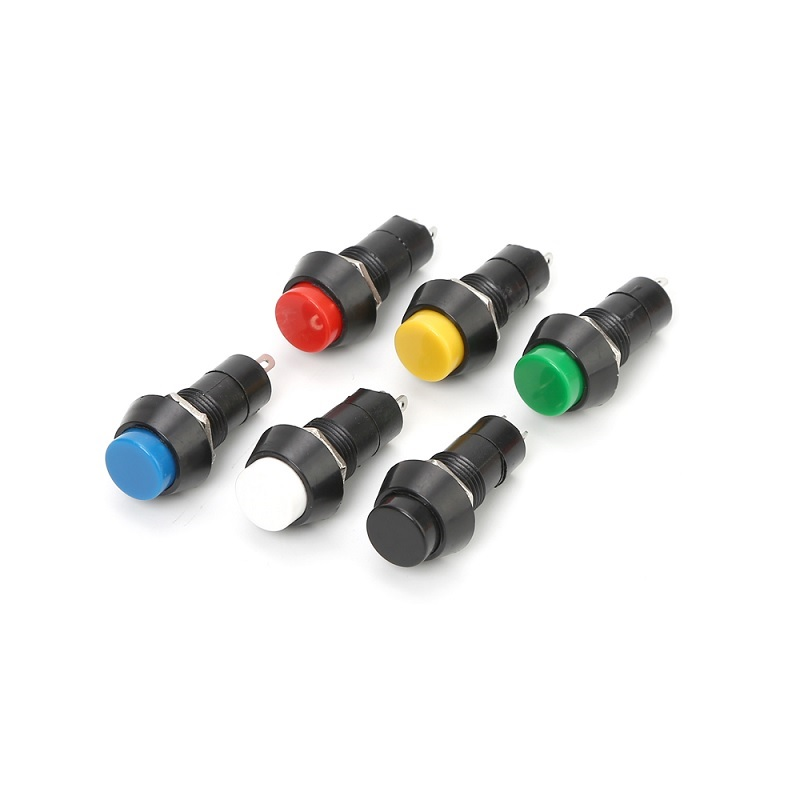

Note: Image may vary from actual product in terms of design, color and brand printed
Features:
- Easy to use
- Best for your DIY projects
- Self-locking/Latching Self-reset
- Good electrical conductivity
- This is a Momentary type push-button switch
Specification:
| Feature | Description |
|---|---|
| Product Name | White PBS-11B 12MM 2PIN Momentary Push Button Switch |
| Button Color | White |
| Button Shape | Round |
| Button Diameter | 12mm |
| Pin Configuration | 2 pins |
| Switch Type | Momentary |
| Reset Type | Self-reset |
| Material | Plastic |
| Mounting Style | Panel mount |
| Termination Style | Through-hole |
Packages Includes:
1 x White PBS-11B 12MM 2PIN Momentary Self- Reset Round Plastic Push Button Switch
White PBS-11B 12MM 2PIN Momentary Self-Reset Round Plastic Overview
The White PBS-11B 12MM 2PIN Momentary Self-Reset Round Plastic Push Button Switch is a compact control switch designed for quick, temporary circuit activation. Its momentary action and self-reset mechanism make it ideal for applications where a brief user input is needed before automatic reset.
Key Features of White PBS-11B 12MM 2PIN Momentary Self-Reset Round Plastic
- Momentary push-button action: closes circuit only while pressed
- Self-reset design: automatically returns to off position upon release
- Round plastic housing with 12 mm panel cutout for easy installation
- Two metal pins for reliable solder or crimp connections
- Lightweight and durable thermoplastic construction
- Excellent electrical conductivity for stable signal switching
- Genuine product stocked at Zbotic with fast shipping across India
Applications and Use Cases
- Control panels in industrial machinery for manual start/stop functions
- Push-button telephones or intercom systems requiring momentary dialing pulses
- Kitchen appliances such as blenders or coffee machines for user-triggered actions
- Magnetic locks and access control systems for door release inputs
- DIY electronics projects and prototyping on breadboards or small PCBs
- Automotive dashboards for horn or indicator switches
How to Use White PBS-11B 12MM 2PIN Momentary Self-Reset Round Plastic
To install the PBS-11B switch, drill or punch a 12 mm hole in your control panel and insert the switch until it clicks or seats flush. Solder or crimp your wires onto the two terminal pins according to your circuit design. When the button is pressed, the internal contact closes; releasing it restores the open state automatically.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I mount the PBS-11B switch on my panel?
Drill or punch a 12 mm diameter hole in the panel, then press the switch into place. The round plastic housing will secure itself via integrated clips or a retaining ring (if supplied) to hold it firmly.
What types of connections does this switch support?
This switch has two metal pins designed for soldering or crimp-on spade connectors, ensuring a solid electrical connection for low-voltage control circuits.
Is the PBS-11B suitable for outdoor use?
While the plastic housing offers basic durability, the PBS-11B is not sealed against moisture or dust ingress. It is best used in indoor or protected environments.
Technical Specifications
| Model | PBS-11B |
|---|---|
| Size | 12mm |
| Pin Count | 2-pin |
| Color | White |
| SKU | AI3098 |
| Weight | 0.0065 kg |
| Availability | Out of Stock |
Applications & Use Cases
The White PBS-11B 12MM 2PIN Momentary Self- Reset Round Plastic Push Button Switch is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
