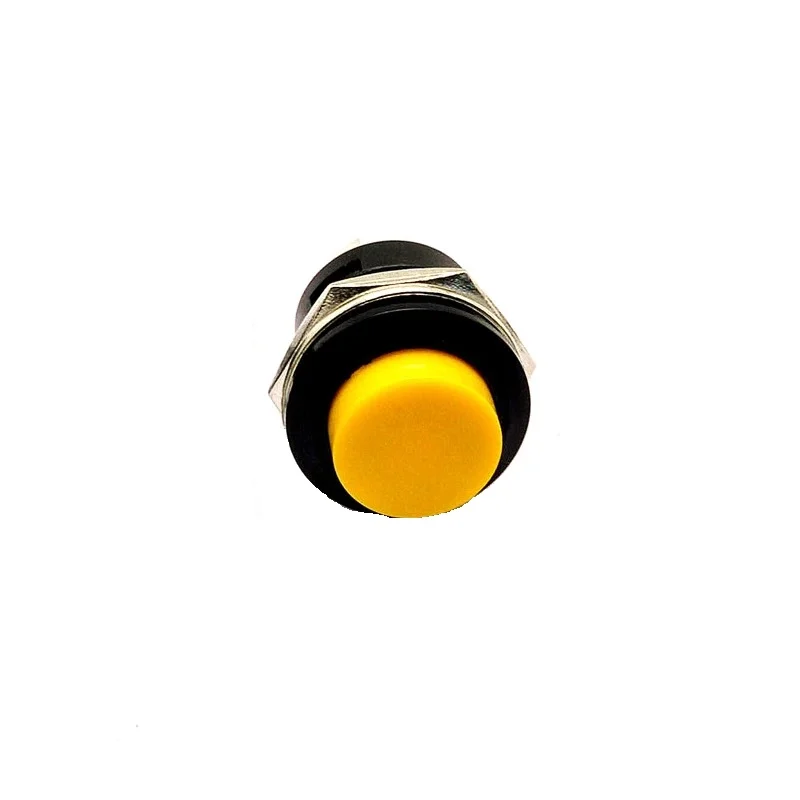

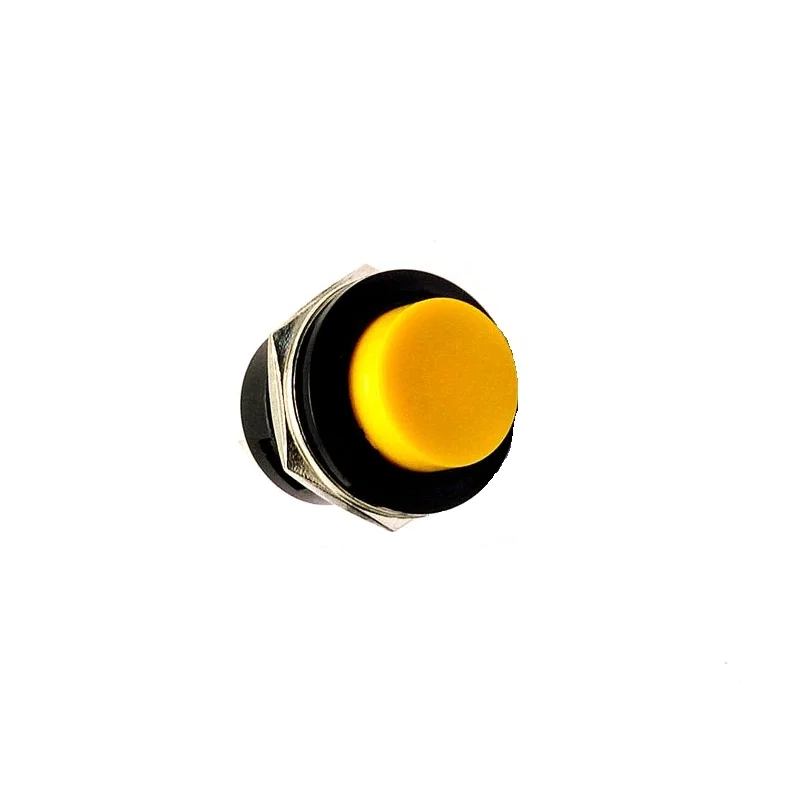

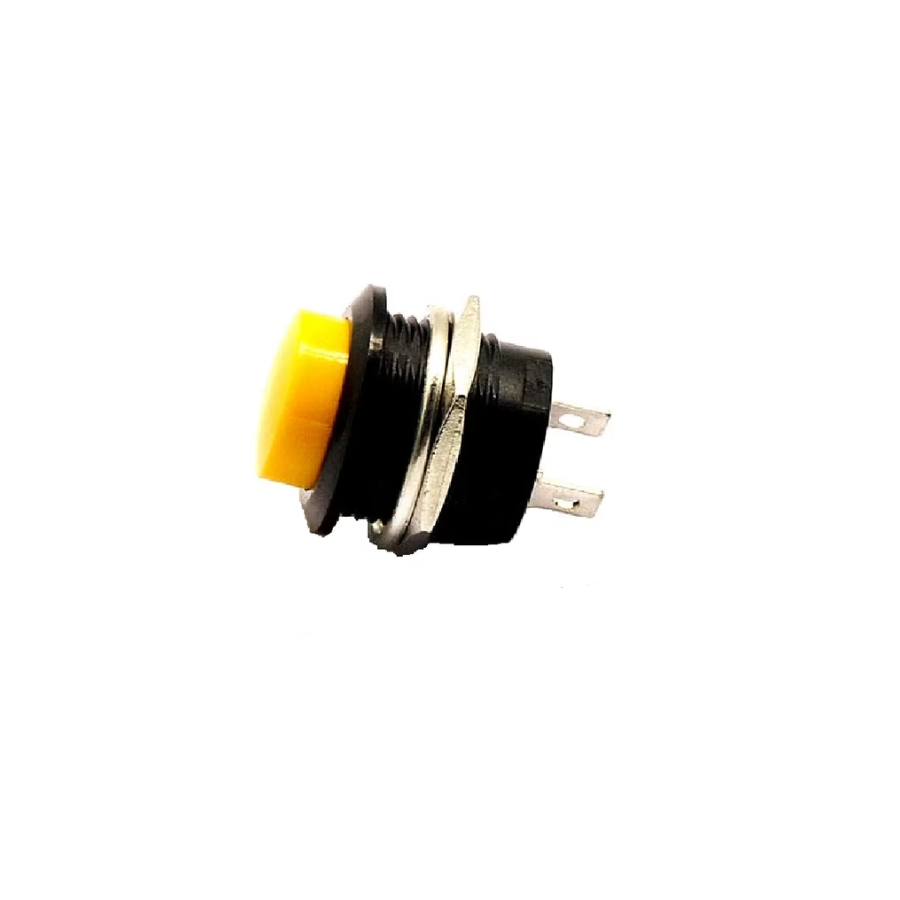

This is the Yellow variant of the Yellow R13-507 16MM 2PIN Momentary Self- Reset Round Cap Push Button Switch in Plastic Push Button Switch, Electronic Switches. Available at ₹28.91 (₹24.50 + GST) with free shipping across India.
Looking for Momentary Self? Yellow R13-507 16MM 2PIN Momentary Self- Reset Round Cap Push Button Switch is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION
A momentary switch is a type of switch that only allows electric current to flow when it is pressed. It is commonly used in controller panels, push-button telephones, kitchen appliances, magnetic locks, and many other mechanical and electronic devices in homes and industries.
A push button is a simple example of a momentary switch. It is a metal or thermoplastic switch that provides easy access to the user. Electric circuits are designed to allow electricity to flow continuously through wires and components. However, some circuits are more useful when they can be turned on and off as needed.
A push-button switch is widely used as an operating device in various electric circuits, devices, and machines in homes and industries. The switch can control circuits by turning on and off loads such as contactors, motors, relays, etc. It is a push-on release-off type of switch.
Note: Image may vary from actual product in terms of design, color and brand printed
Features:
- Easy to use
- Best for your DIY projects
- Self-locking/Latching Self-reset
- Good electrical conductivity
- This is Momentary type push-button switch.
Specification:
| Function | Momentary |
|---|---|
| Model No. | R13-507 |
| Operating Voltage(V) | 250V 1.5A, 125V 3A |
| Material | Plastic |
| Color: | Yellow |
| Terminals | 2 Pin |
| Temperature | -25°C to 85°C |
| Dimensional Accuracy (mm) | 16MM |
| Shipping Weight | 0.003 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
Packages Includes:
1 x Yellow R13-507 16MM 2PIN Momentary Self- Reset Round Cap Push Button Switch
Yellow R13-507 16MM 2PIN Momentary Self- Reset Round Cap Overview
The Yellow R13-507 16MM 2PIN Momentary Self-Reset Round Cap Push Button Switch is a compact panel-mount control switch designed for applications requiring a temporary on-state only while pressed. With its bright yellow cap and two solderable terminals, it’s ideal for quick user input in electronic devices, DIY projects, and industrial control panels.
Key Features of Yellow R13-507 16MM 2PIN Momentary Self- Reset Round Cap
- 16 mm panel-mount diameter for standard enclosures
- Two robust metal pins for solder connections
- Momentary self-reset action returns to off-position when released
- Bright yellow round cap for clear visual identification
- Lightweight thermoplastic housing with good electrical conductivity
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Temporary start/stop control on industrial operator panels
- Reset or test switch in DIY electronics kits and development boards
- Input button for arcade-style game consoles and simulators
- Control interface for laboratory equipment and measurement devices
- Momentary trigger in security systems and access control units
- Push-to-talk or signaling button in communication devices
How to Use Yellow R13-507 16MM 2PIN Momentary Self- Reset Round Cap
Drill a 16 mm hole in your panel or enclosure, insert the switch from the front, and secure it with the provided mounting nut. Solder your control wires to the two pins on the back, ensuring proper insulation. When pressed, the switch completes the circuit; it automatically returns to the open position once released.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What hole size and panel thickness does the switch require?
This switch fits a 16 mm diameter panel cutout and supports panels up to 5 mm thick. Make sure your cutout is cleanly drilled for a snug, vibration-free fit.
What voltage and current ratings does this push button support?
The Yellow R13-507 is rated for up to 250 VAC at 3 A or 30 VDC at 3 A, making it suitable for most low-voltage control and signalling applications.
How do I wire the 2 pins for my circuit?
Simply solder your input and output wires to the two brass terminals on the rear of the switch. Ensure solder joints are secure and insulated to prevent shorts.
Technical Specifications
| Model | R13-507 |
|---|---|
| Size | 16mm |
| Pin Count | 2-pin |
| Color | Yellow |
| SKU | AI3230 |
| Weight | 0.00715 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Yellow R13-507 16MM 2PIN Momentary Self- Reset Round Cap Push Button Switch is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
