PRODUCT DESCRIPTION

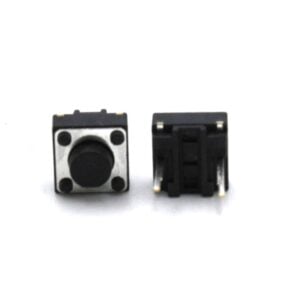

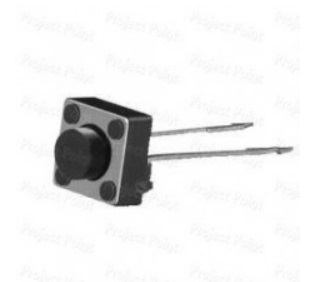

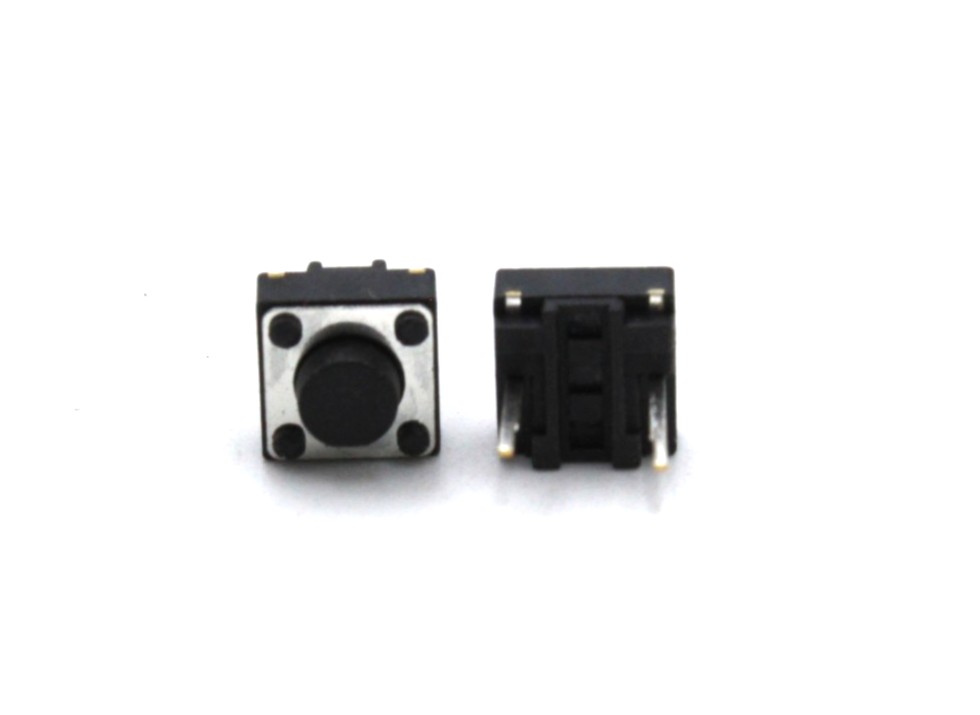

The 6x6x5mm Tactile Push Button Switch is a versatile input device commonly used in electronic projects. While it is ideally mounted on a PCB, it can also be used on a solderless breadboard for temporary connections during prototyping. The switch features normally open (disconnected) pins, which close and complete the circuit when the button is pressed.
This tactile switch uses reliable dome contact technology and provides strong tactile feedback. It is available with different operating force options to suit various applications. Ideal for use in telecommunications, consumer electronics, audio/visual equipment, medical devices, testing instruments, and computer peripherals, this switch offers both durability and responsiveness.
The switches are sold in a pack of 10, ensuring you have plenty on hand for current and future projects.
- Bounce Time: 10 msec.
- SPST momentary ON
- Contact Resistance: 100mohm
- Lead type: PC
- Rating: DC 12V 50mA
- Operating Force: 160±30 or 250±50gf
- Travel: 0.3±0.15mm
- Contact Resistance: 100mohm MAX.
- Life Cycles: 100,000 Cycles MIN
Specification:
| Operating Voltage (VDC) | 12 |
|---|---|
| Max. Operating Current (mA) | 50mA |
| Switch Type | Momentary |
| Contact Resistance | 30mΩ |
| Insulation Resistance (MΩ) | 100 |
| Operating Temperature Range (°C): | -30 to 70 |
| Protection Standard | IP65 |
| Length (mm): | 6 |
| Width (mm) | 6 |
| Height (mm) | 5 |
| Weight (gm) | 1 (approx) (each) |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 8 × 1 cm |
Package Includes

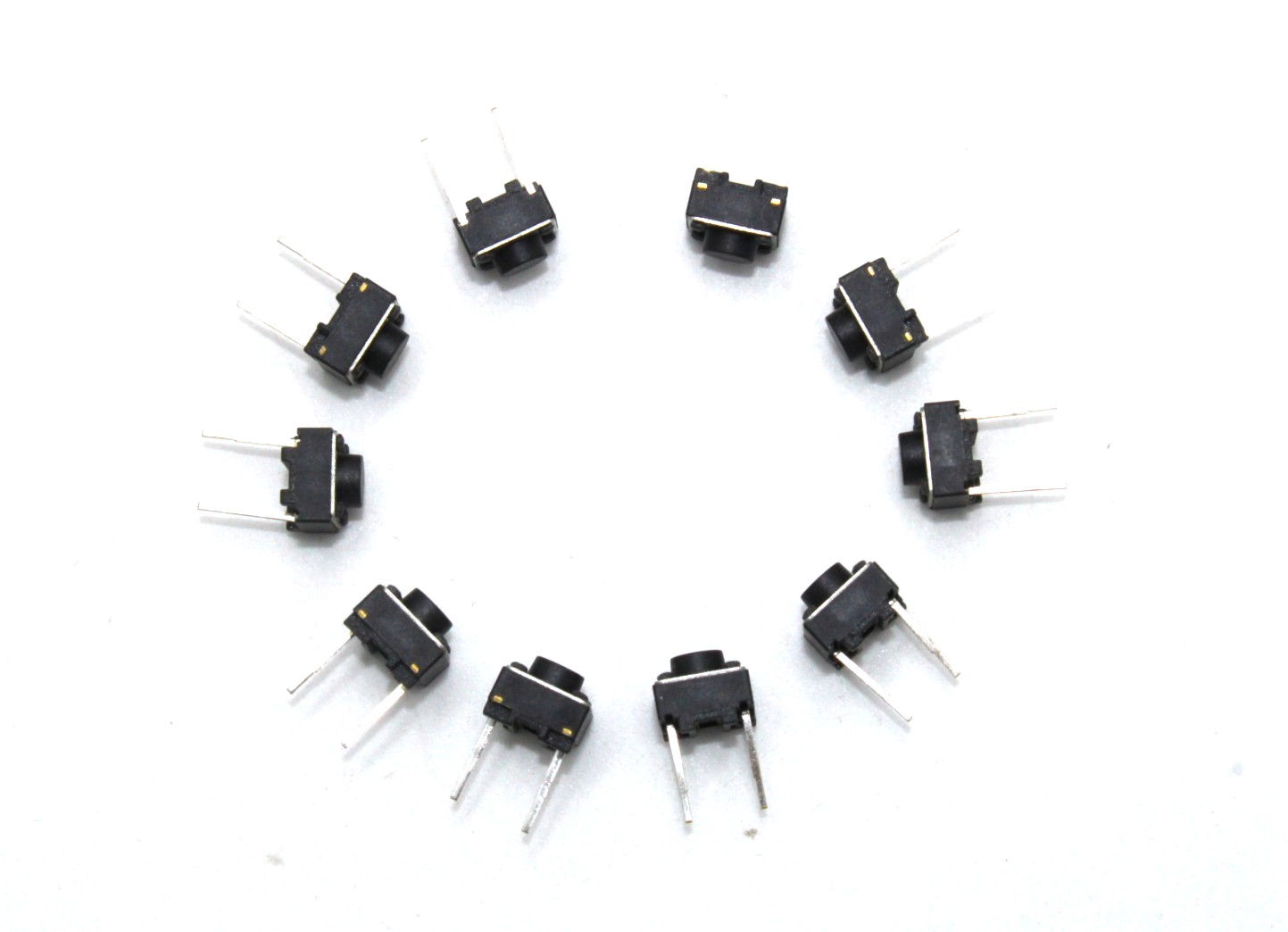

10 x 2Pin Round Pushbutton SPST Straight Tactile Micro Switch Through Hole
