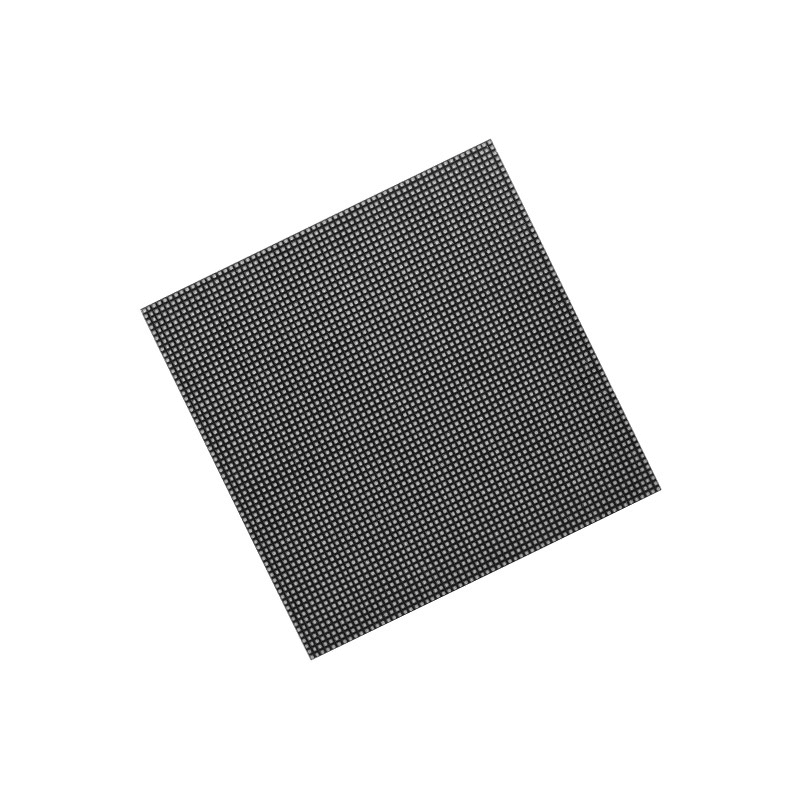

This product is a 64 × 64 full-color LED matrix display featuring 4096 RGB LEDs on board with a 2.5mm pitch. It is compatible with Raspberry Pi, Arduino, ESP32, and other platforms. The display comes with open-source demos and tutorials, making it suitable for makers, electronics enthusiasts, and DIY projects. It can be used for desktop or wall-mounted displays, as well as for learning and secondary development.
Features:
- 4096 individual RGB LEDs with full-color display and adjustable brightness
- 64 × 64 pixels, 2.5mm pitch, capable of displaying text, colorful images, or animations
- Dimensions: 160 × 160mm, suitable for DIY desktop or wall-mounted displays
- Onboard two HUB75 headers: one for controller data input, one for output, supports chaining multiple panels
- Open-source development resources available (examples for Raspberry Pi, Raspberry Pi Pico, ESP32, Arduino)
Specifications:
| Model | LED Matrix Panel |
|---|---|
| Pitch (mm) | 2.5 |
| Pixels | 64×64=4096 DOTS |
| View angle | ≥140° |
| Control Type | TYPE synchronization |
| Driving | 1/32 scan |
| Headers | HUB75 |
| Power Supply (V) | 5V / 4A (VH4 header input) |
| Power Rating (W) | ≤20W |

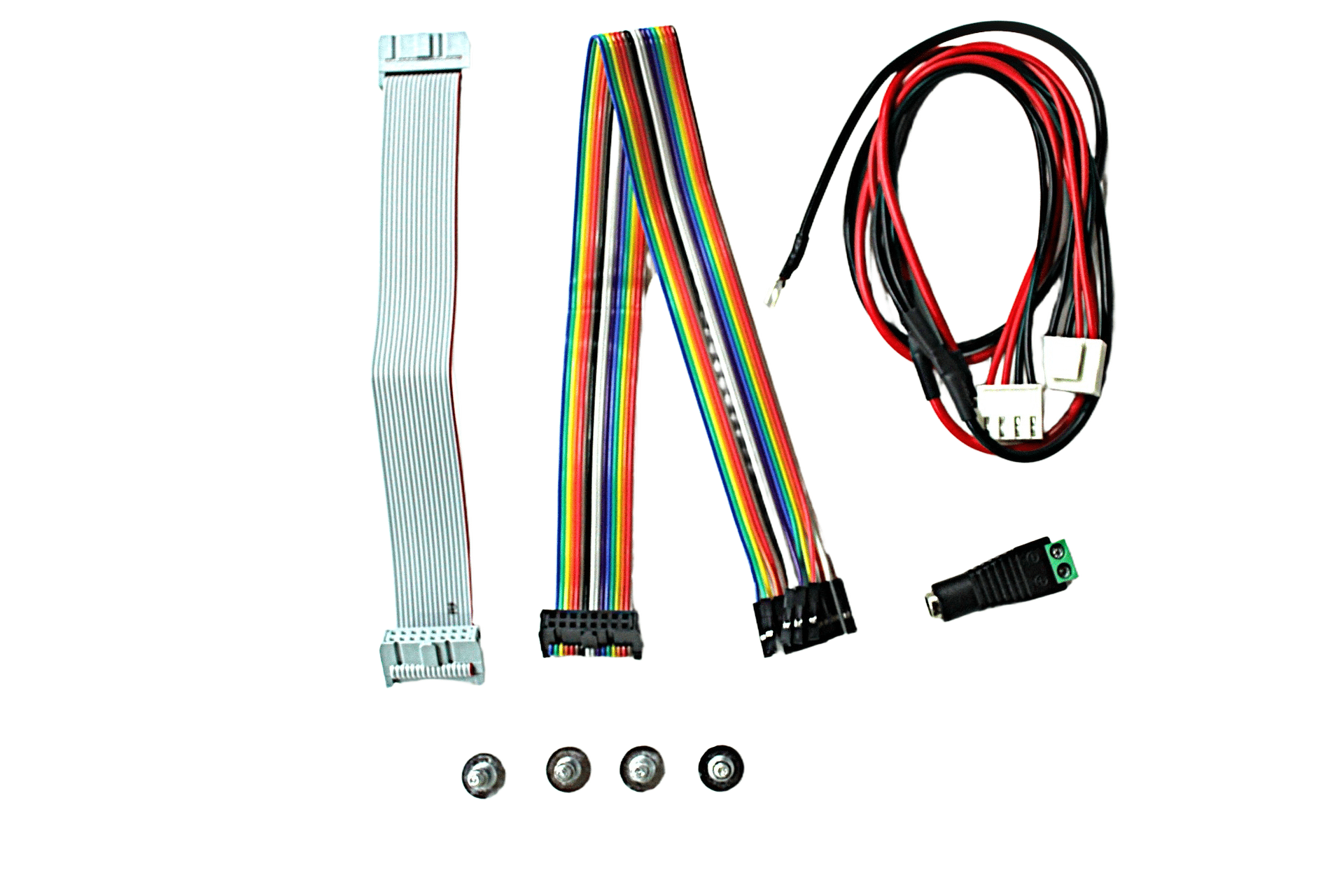

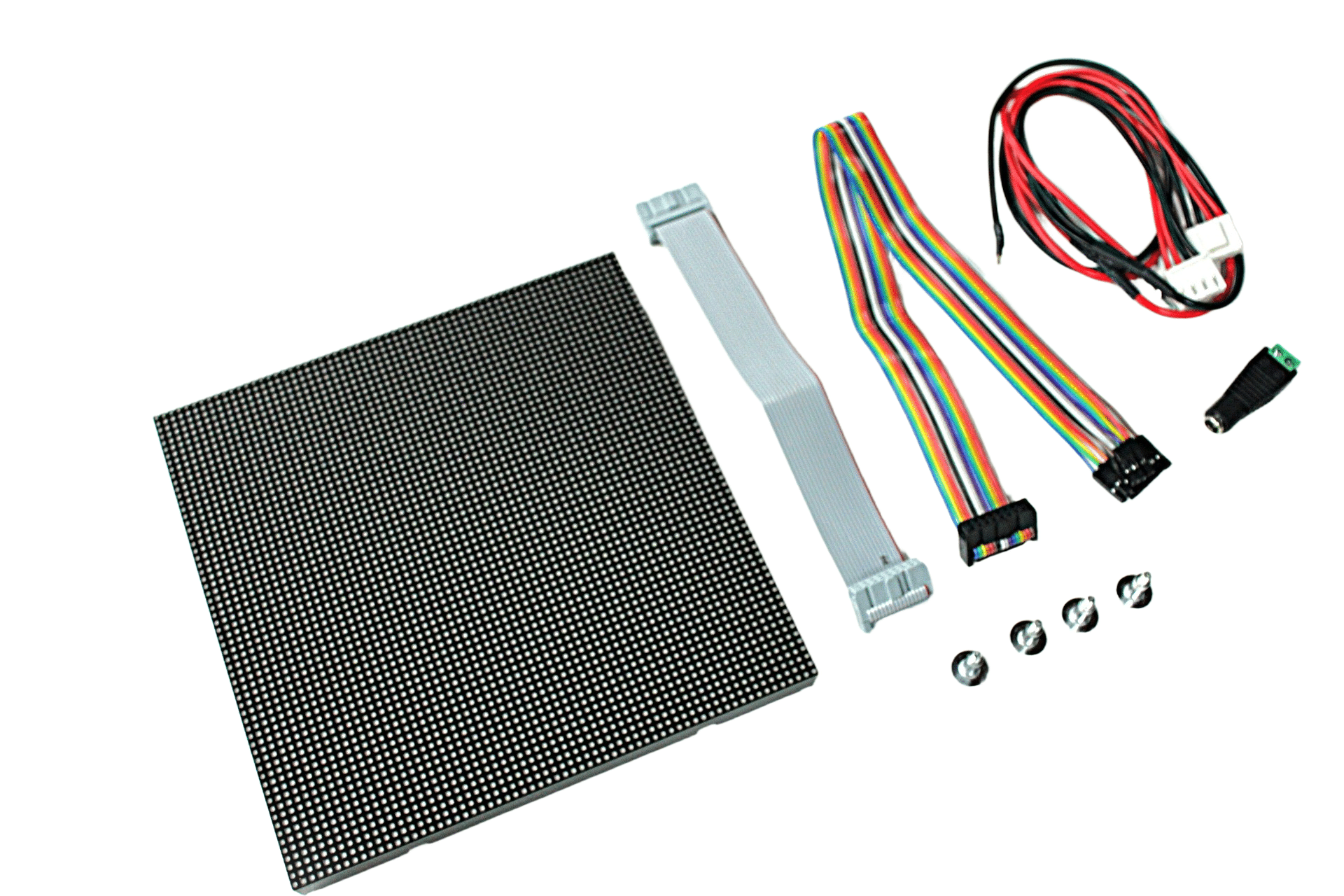

Package Includes:
- 1 × Waveshare RGB full-color LED matrix panel, adjustable brightness
Voice Activated Switch: Keyword Detection with Arduino
Understanding the voice activated switch is essential for anyone working with electronics in India. This comprehensive guide covers...
Read More →
Thermal Pad vs Thermal Paste: When to Use Each
Table of Contents Understanding Thermal Interface Materials Thermal Paste: Properties and Best Uses Thermal Pads: Properties and Best...
Read More →
Electrolytic Capacitor Polarity: How to Identify Correctly
Installing a capacitor the wrong way around is one of the most common — and potentially dangerous —...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Size | 2.5mm |
| Interface / Protocol | BLE |
| SKU | AI7511 |
| Weight | 0.73 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare RGB Full-Color LED Matrix Panel, 2.5mm Pitch, 64×64 Pixels, Adjustable Brightness is a versatile led dot matrix display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
