Description:
The PCIe to M.2 M key adapter board is specifically crafted for Raspberry Pi 5, enabling compatibility with NVMe protocol M.2 solid-state drives in 2230/2242 sizes. Supporting PCIe ×1 Gen2 or Gen3 modes, it ensures high-speed data transfer. With onboard indicator lights and an EEPROM chip, it offers enhanced functionality and clear operating status. Additionally, it includes a power monitoring chip and airflow vent for optimal SSD temperature control.

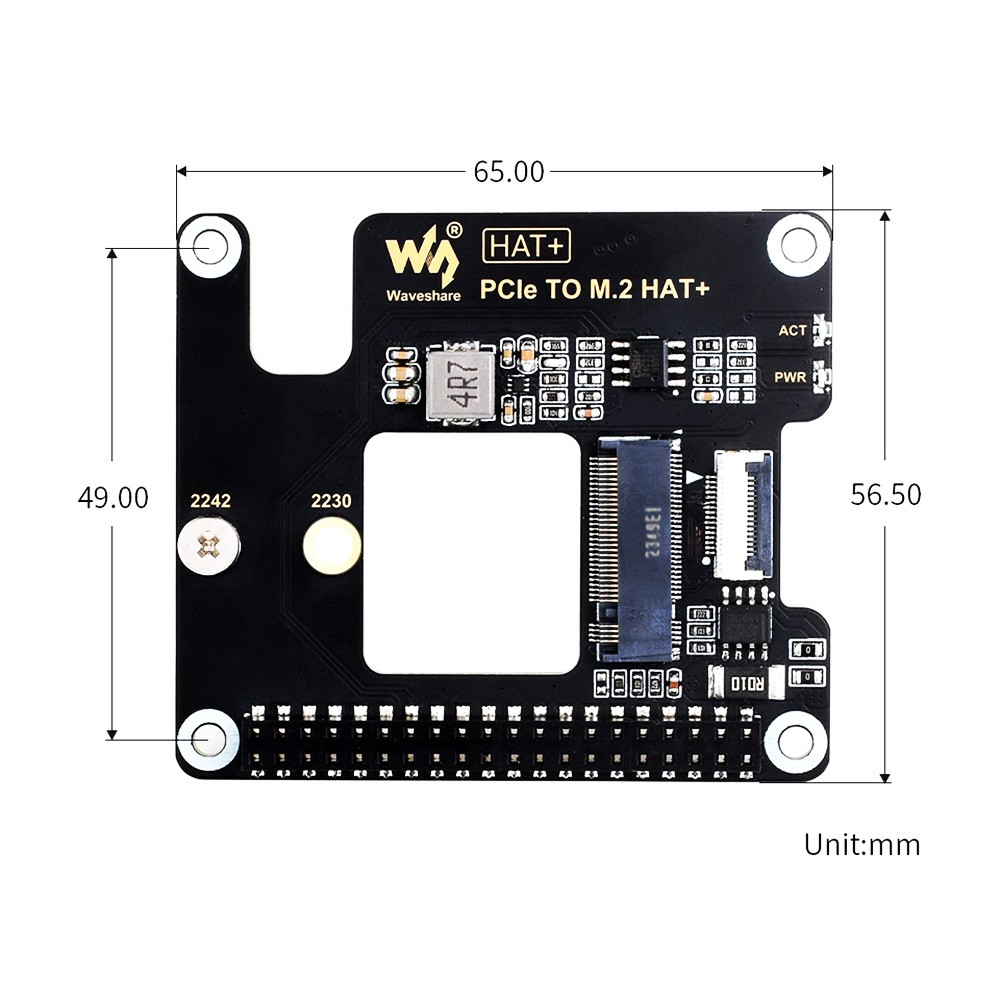

Image for reference only.

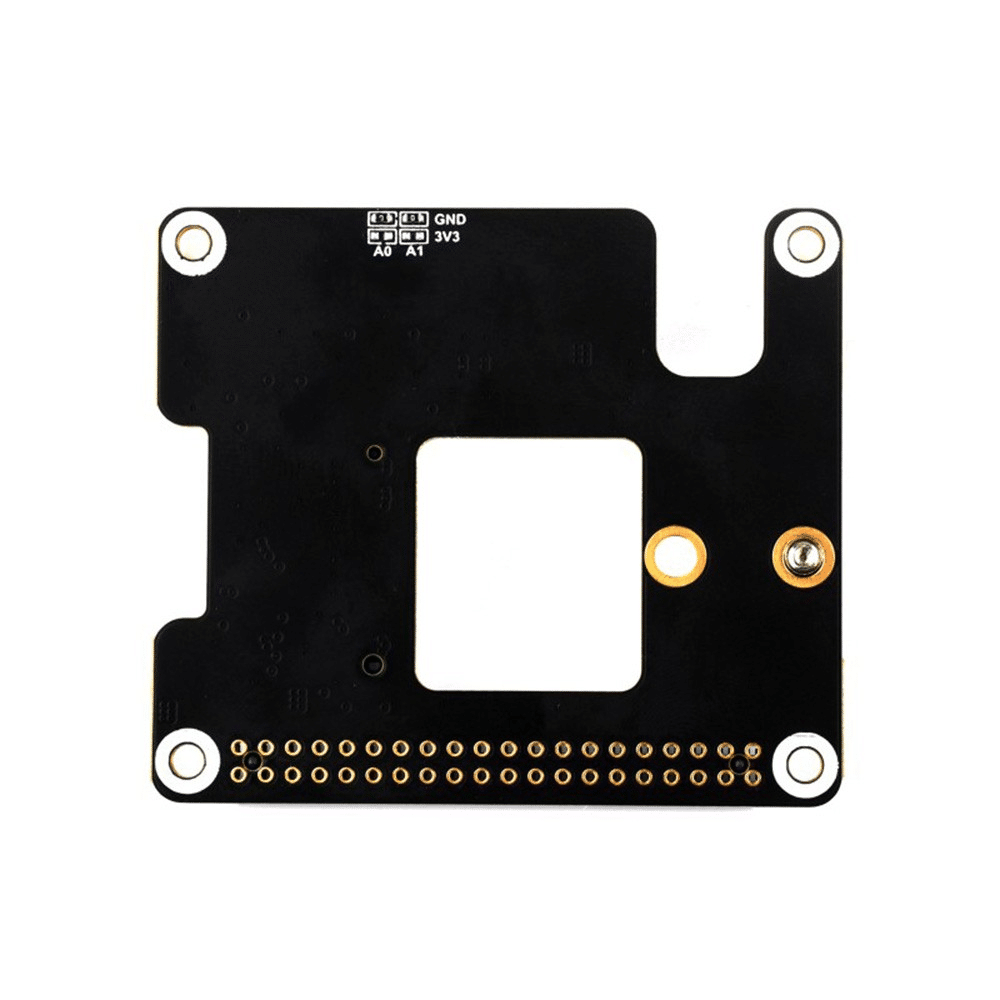

Image for reference only.
Features:
- Support NVMe protocol M.2 solid state drive, high-speed read/write, with high work efficiency.
- PCI-E×1 Gen2 or Gen3 mode.
- Only supports PI5B.
- Compatible with M.2 solid state drive of 2230/2242 sizes.
- Onboard working indicator lights, with PWR on continuously when powered, and ACT blinking during
- read/write, making the operating status clear at a glance.
- HAT+ design, with on-board EEPROM chip.
- Onboard power monitoring chip, for real-time monitoring of the working status of the solid-state drive.
- Reserved airflow vent for PI5 fans, increasing airflow, and reducing solid-state temperatures.
Specification:
| Item Type: | Adapter |
|---|---|
| Compatibility: | Pi 5 |
| HAT Type: | NVMe |
Package Includes:
1 x Waveshare PCIe To M.2 Adapter for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, HAT + Standard
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| SKU | AI7565 |
| Weight | 0.06 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare PCIe To M.2 Adapter for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, HAT + Standard is a versatile power adapters and cable used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
