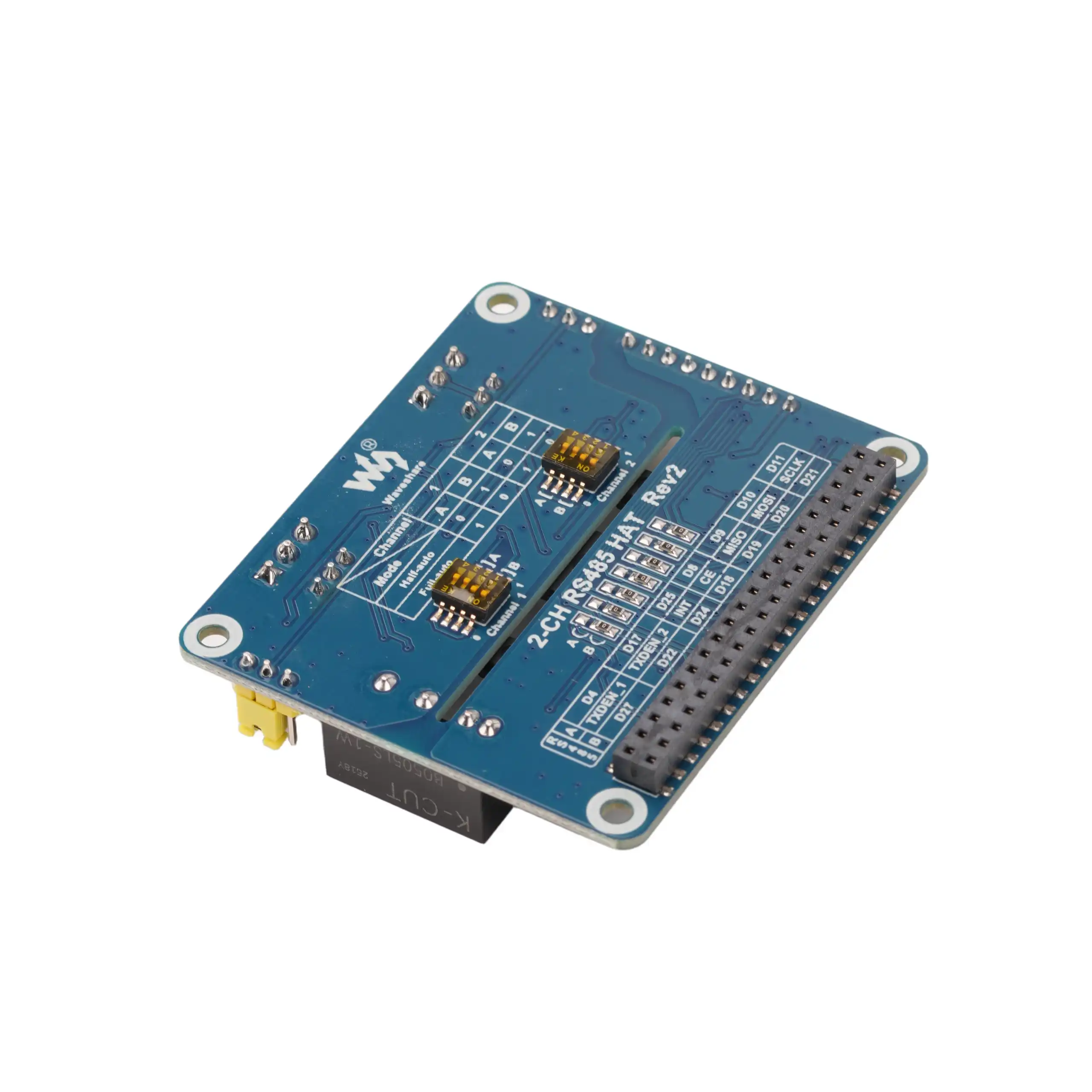

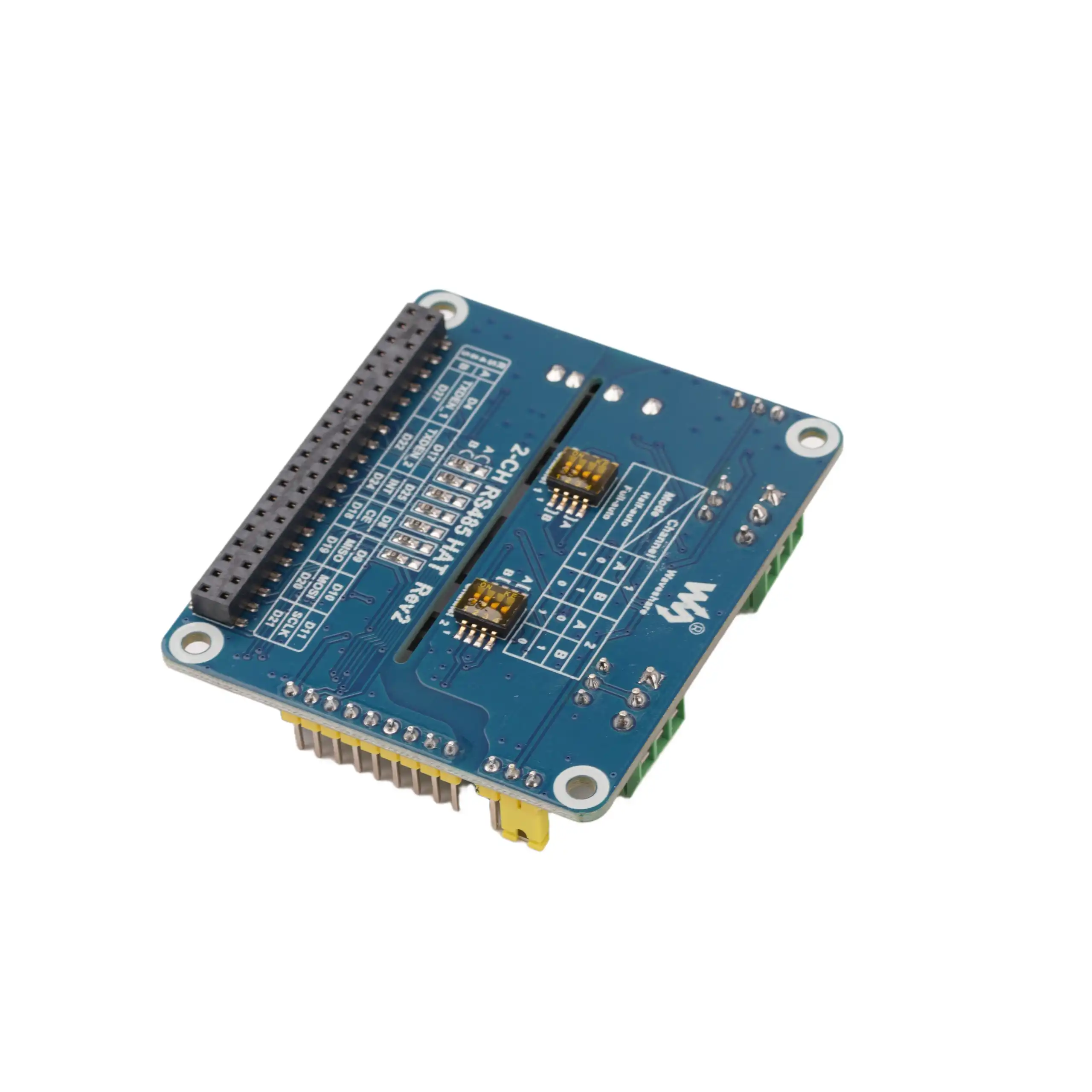

Waveshare 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi
Waveshare 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi
Waveshare 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi
Waveshare 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi
Waveshare 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi
Click to enlarge
Home Raspberry Pi Raspberry Pi Hats Waveshare 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi
Waveshare SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support
Waveshare SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support ₹5,999.0 ( +GST 18% )
Back to products
Waveshare 7inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480
Waveshare 7 inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480 ₹4,816.0 ( +GST 18% )

Waveshare 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi

₹1,434.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

QUICK OVERVIEW

  • UART expansion chip: SC16IS752
  • RS485 transceiver: SP3485
  • Communication interface: SPI
  • Data rate: 300 ~ 921600 bps
  • Operating voltage: 3.3V / 5V
  • Mounting hole size: 3.0mm

For B2B Enquiry Email Us:- [email protected]

4 in stock

Frequently Bought Together
Waveshare 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi
This item: Waveshare 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi

4 in stock

₹1,434.0 ( +GST 18% )
₹1,434.0 ( +GST 18% )
1 × Mini HDMI Male To HDMI Female Adaptor

39 in stock

₹41.5 ( +GST 18% )
1 × HDMI Female to Mini HDMI Male Adapter

37 in stock

₹48.0 ₹38.0 ( +GST 18% )
Compare
Add to wishlist
SKU: AI1550 Categories: No COD, Raspberry Pi, Raspberry Pi Hats Tags: 2-Channel HAT, Expansion HAT, RS485, RS485 Expansion HAT, Waveshare
Waveshare
Share:
  • Description
  • Specification
  • Additional information
  • Brand
  • Reviews (0)
  • COO
  • Attachments
Description

This is a dual-channel isolated RS485 extension board specially designed for raspberry PI, which adopts SC16IS752+SP3485 solution embeds with protection circuits such as power supply isolation, ADI magnetical isolation, and TVS diode, etc.

This product adopts SC16IS752 as a controller. SC16IS752 is a dual-channel high-performance UART expansion chip that supports SPI and I2C interface communication. This module uses an SPI interface.


Useful link:

To do Hardware and Software setup, please follow this tutorial.

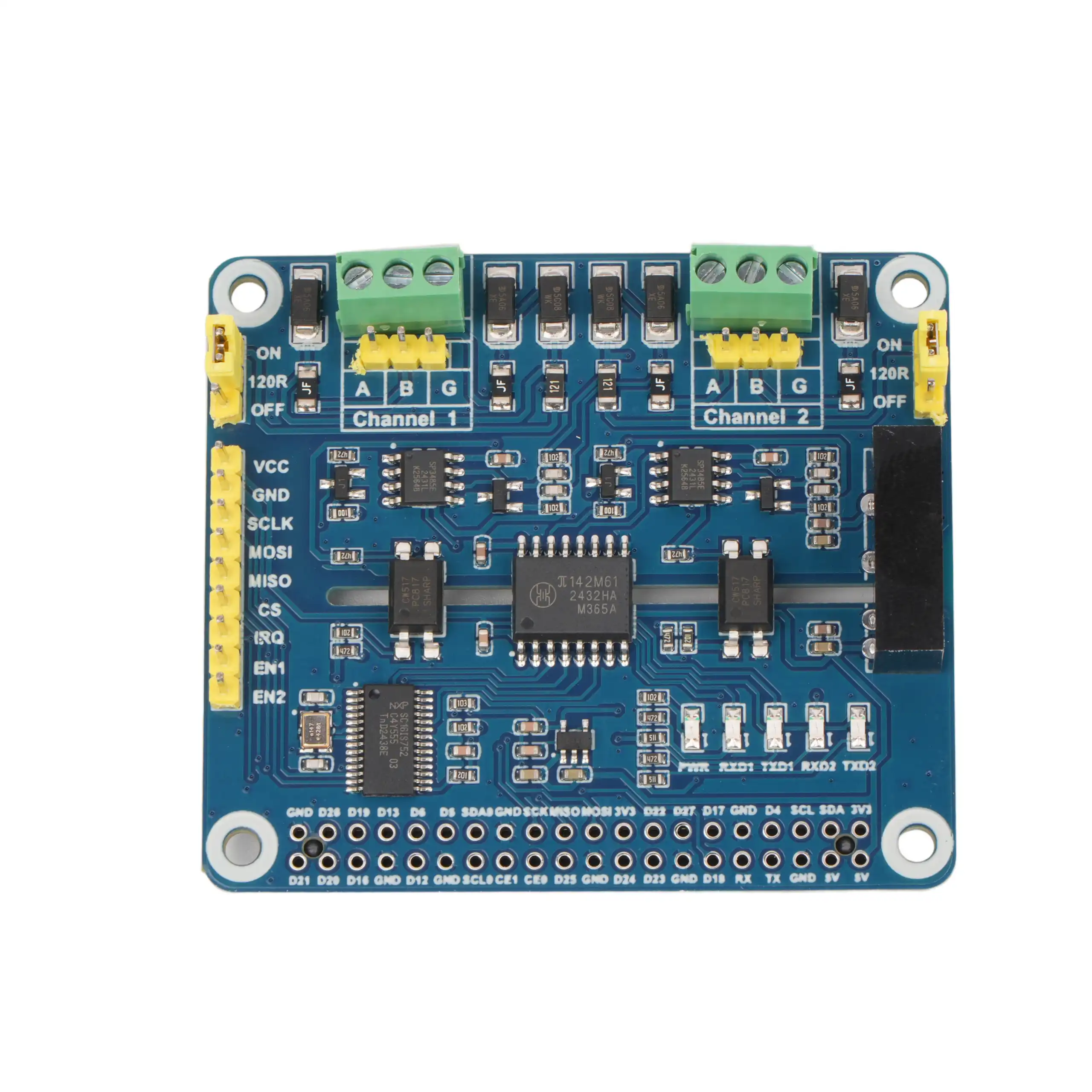

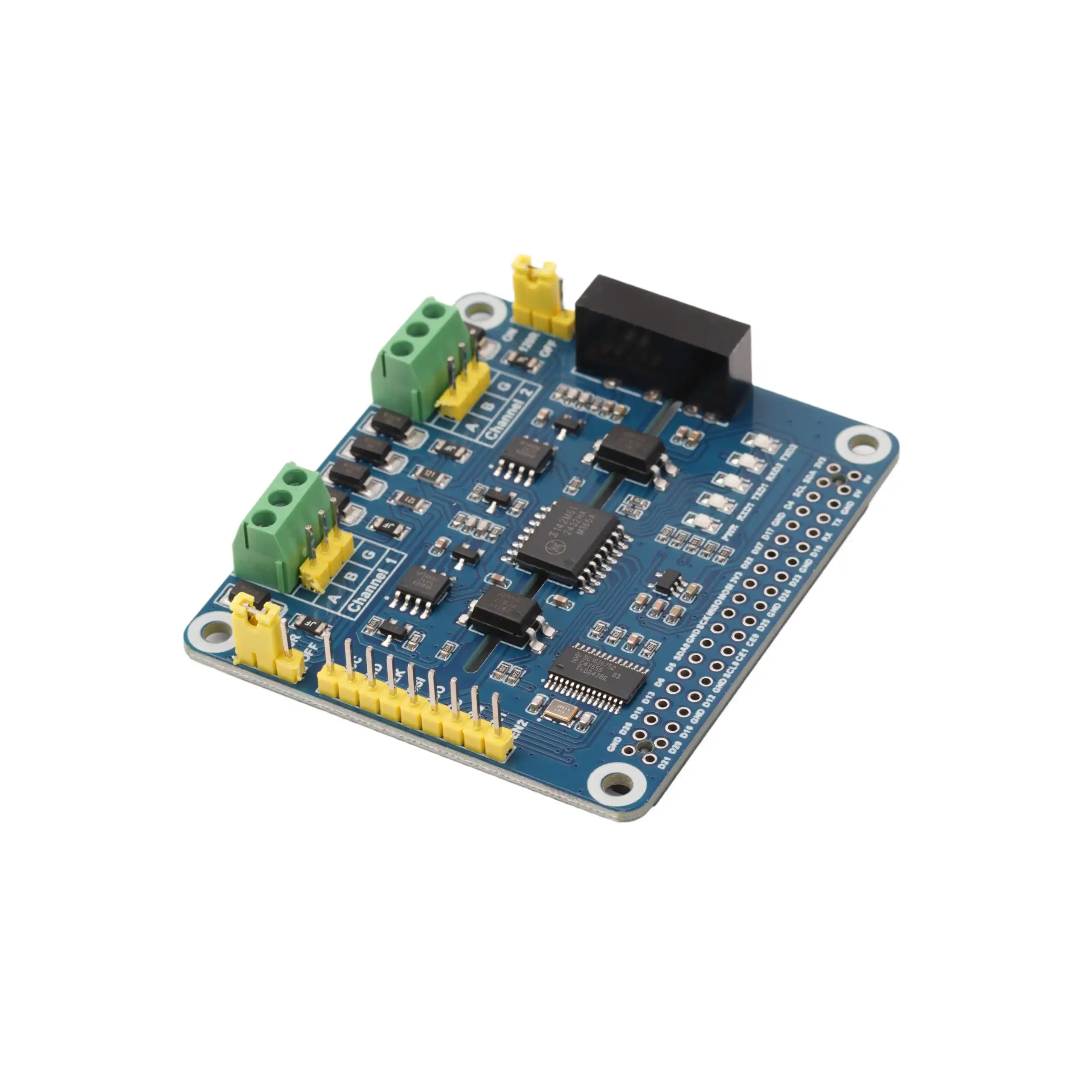

What’s on Board:

Waveshare 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi

  1. SC16IS752 UART expansion chip
  2. ADUM1412 digital isolator
  3. PC817 optocoupler
  4. SP3485 RS485 transceiver
  5. B0505LS power supply isolation module
  6. RT9193-33 power chip
  7. SMAJ12CA transient suppress diode array
  8. Auto-recovery fuse
  9. Status indicator
    PWR: power indicator
    RXD/TXD: UART transceiving indicator
  10. Raspberry Pi GPIO connector: for connecting Raspberry Pi
  11. RS485 terminal
  12. MCU control header: for connecting host control boards like Arduino
  13. 120Ω terminal resistor switch
  14. Interrupt pin switch
  15. Operating mode selection
    Half-auto: A=0, B=1
    Full-auto: A=1, B=0

It is easy to control the 2-channel RS485 for auto-transceiving via the SPI interface. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for fields like industrial automation.

Note: Raspberry Pi is not included with this product.


Useful link:

To explore more about this module, please follow this link .


Features:

  1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  2. Adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485, data rate up to 921600bps
  3. Allows transceiving data manually or automatically, configured by DIP switch
  4. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
  5. Onboard auto-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  6. Onboard LEDs for indicating the power and transceiver status
  7. Breakout SPI control pins, for connecting with host control boards like Arduino

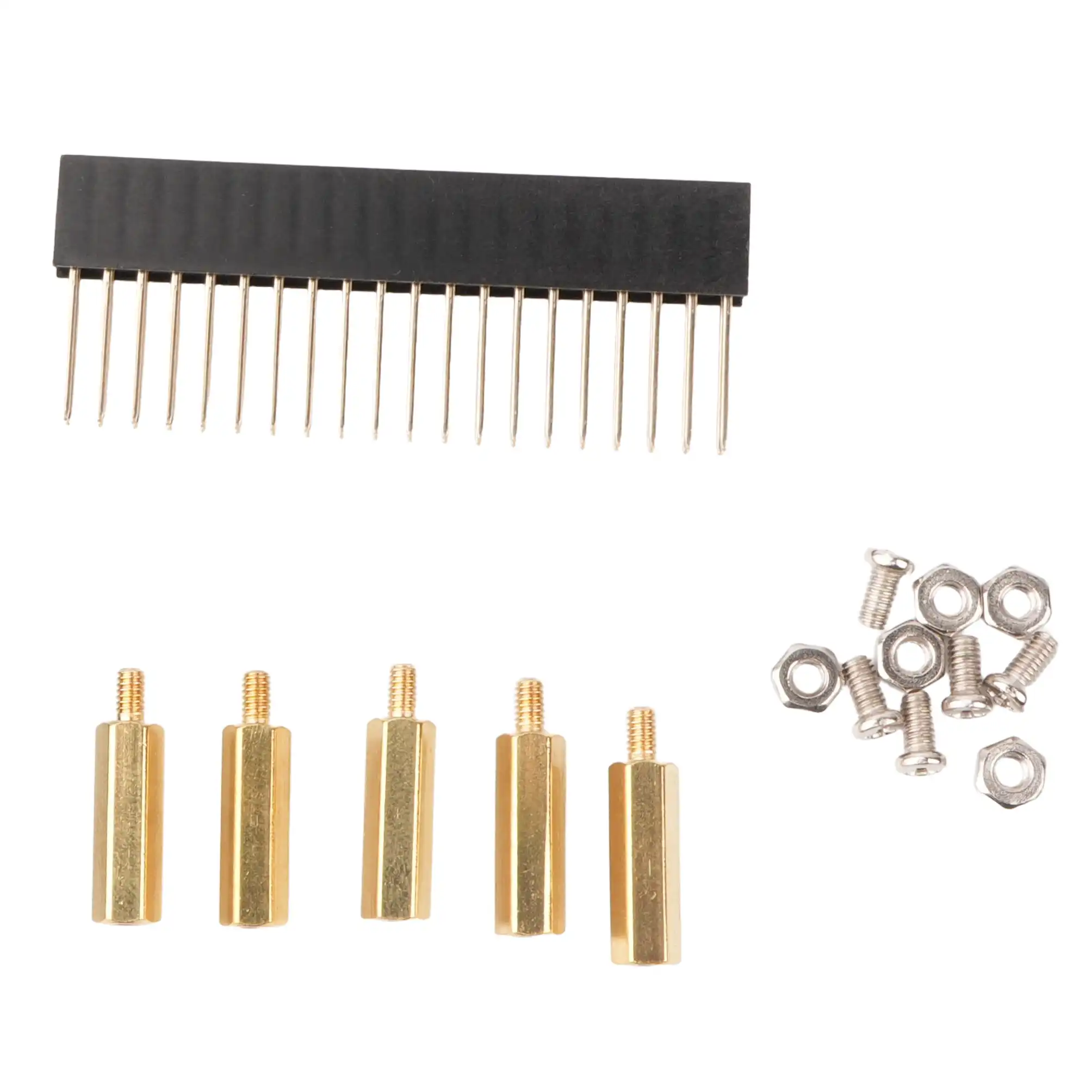

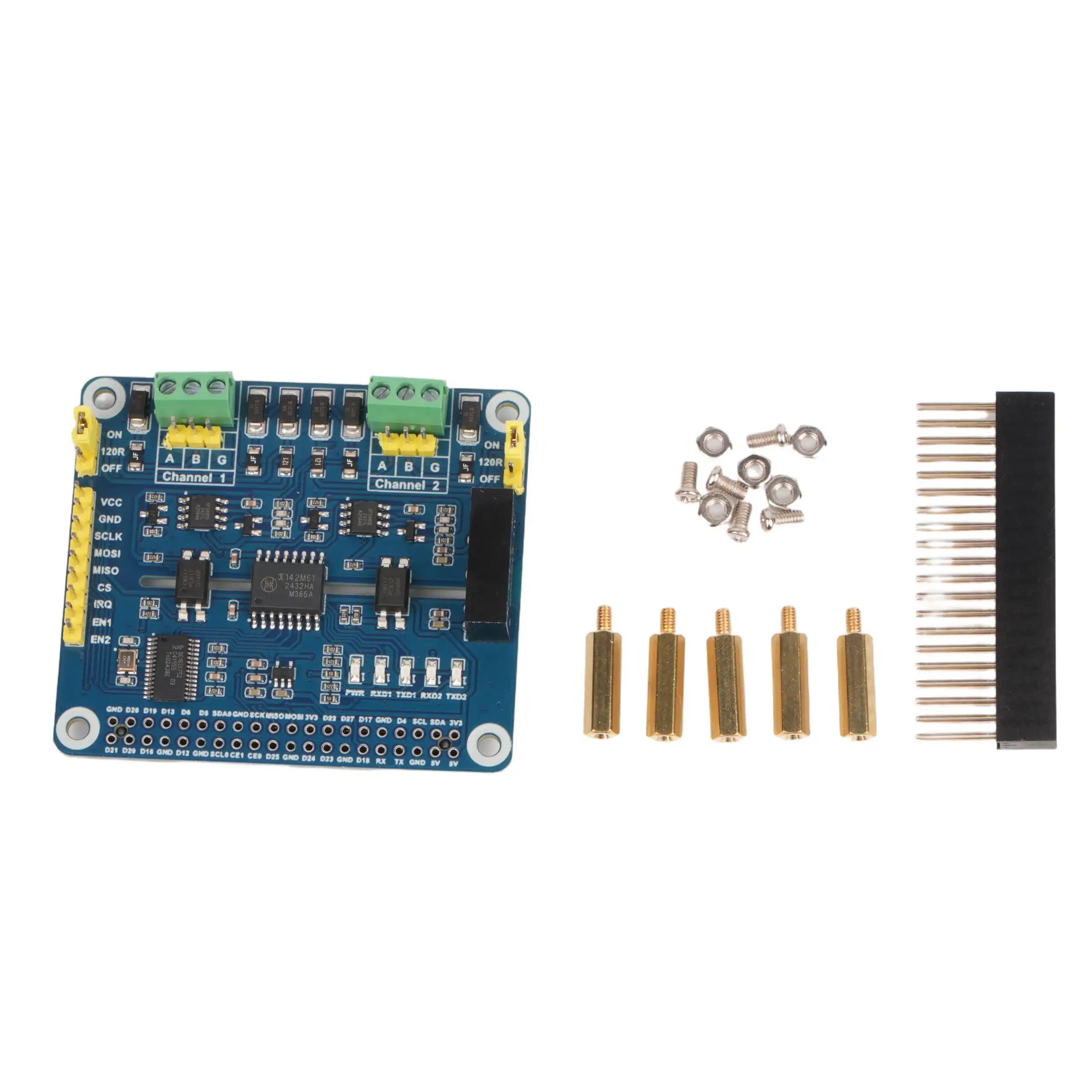

Package Includes:

1 x 2-CH RS485 HAT

1 x 2x20PIN female pin header

1 x RPi screws pack (2pcs)

Specification
UART Expansion Chip SC16IS752
RS485 Transceiver SP3485
Communication Interface SPI
Data Rate 300 ~ 921600 bps
Operating Voltage (VDC) 3.3 ~ 5
Length (mm) 65
Width (mm) 56.5
Height (mm) 20
Mounting Holes Diameter (mm) 3
Weight (gm) 29
Shipment Weight 0.035 kg
Shipment Dimensions 7 × 6 × 3 cm
Additional information
Weight 0.035 kg
Brand

Brand

Waveshare

waveshare
Waveshare is a Chinese company that specializes in designing and manufacturing electronic products and accessories for the global market. Founded in 2004, Waveshare has become a well-known brand in the electronics industry, with a range of products such as displays, development boards, sensors, and modules. The company is committed to providing high-quality products that are affordable and accessible to all, with a focus on innovation and customer satisfaction. Waveshare's products are widely used in the electronics industry, including education, research, and development sectors. The company has a strong distribution network and is present in over 60 countries worldwide, with a focus on providing excellent customer service and technical support. Waveshare has won several awards for its products, including the CES Innovation Award and the Red Dot Design Award. Waveshare continues to expand its product line to meet the changing needs of its customers and the evolving electronics industry.
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

COO

Country Of Origin – China

Attachments

SCHEMATICS  Download Button

Related products

-21%
Add to cart
Compare
Quick view
Add to wishlist

HDMI Female to Mini HDMI Male Adapter

₹48.0 ₹38.0 ( +GST 18% )
Set of Aluminum Heatsink for Raspberry Pi (Large and Small)
Add to cart
Compare
Quick view
Add to wishlist

Set of Aluminum Heatsink for Raspberry Pi (Large and Small)

₹11.8 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

Raspberry Pi Pico

Rated 5.00 out of 5
₹287.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

Raspberry Pi Zero Without Headers

₹1,650.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

Raspberry Pi 3 Model A+

₹2,150.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

3.5 inch TFT LCD Touch Screen Display for Raspberry Pi

₹984.0 ( +GST 18% )
Micro USB-B (Female) to USB Type C (Male) Converter Adapter for Raspberry Pi 4
Add to cart
Compare
Quick view
Add to wishlist

Micro USB-B (Female) to USB Type C (Male) Converter Adapter for Raspberry Pi 4

Rated 4.75 out of 5
₹33.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

HAT DIY PCB Prototyping Board for Raspberry PI ZERO

₹236.0 ( +GST 18% )

kisspng-computer-icons-scalable-vector-graphics-adobe-illu-thumb-svg-png-icon-free-download-148447-onlin-5c0598a80bc5f2.4617737315438706320482

High Quality

Buy high reliable products for your critical project.

kisspng-telephone-call-computer-icons-portable-network-gra-phone-call-svg-png-icon-free-download-518851-5b80a222402649.4360944515351567702628

Awesome Support

Our Support lines are open from 10 am to 6 pm, to support all your queries.

kisspng-delivery-computer-icons-encapsulated-postscript-5b1ed86cdf6f28.3572173215287481409152

Fast Delivery

99% of orders are shipped within 24Hours.

kisspng-computer-icons-padlock-icon-design-5b163a323d99c6.2970240315281833462523

Secure Payments

We follow highest security standards to make your transaction safe.

ZBOTIC
Goyal Industrial Complex
Above Jayaka Tea, J-514
Gawali Matha Chowk, Telco Road
Bhosari, Pune-411026, India


Phone: +91-7410737370
Email: [email protected]
Recent Posts
  • Industrial Robotics
    Industrial Robotics
    February 11, 2023 No Comments
  • zbotic Robotics Projects
    Robotics Projects
    February 11, 2023 No Comments
My Account
  • My Account
  • Cart
  • Checkout
  • Wishlist
  • Payment Option
Information
  • FAQ
  • Blogs
  • Career
  • About Us
  • Contact Us
Policies
  • Privacy Policy
  • Terms and Conditions
  • GST Inputs Tax Credit
  • Shipping & Return Policy
  • E-Waste Collection Points
  • Our Sitemap
© 2020 CREATED BY Zbotic. PREMIUM ELECTRONIC COMPONENTS SOLUTIONS.
payments
  • Menu
  • Categories
  • Shop By Brands
  • Development BoardsDevelopment Boards
  • Electronic ComponentsElectronic Components
  • Electronic ModulesElectronic Modules
  • SensorsSensors
  • IoT and WirelessIoT and Wireless
  • Display ModulesDisplay Modules
  • 3D Printer Parts3D Printer Parts
  • Motors and DriversMotors and Drivers
  • Wires and CablesWires and Cables
  • BatteriesBatteries
  • Drone PartsDrone Parts
  • Shop
  • Track order
  • Sale
  • B2B
  • About Us
  • Blogs
  • Contact Us
  • Services
  • Wishlist
  • Compare
  • Login / Register
Shopping cart
close

Sign in

close
Or

Lost your password?
Or login with
Google
OR
Don't have an account? Signup

No account yet?

Create an Account
Shop
0 Wishlist
0 items Cart
My account
×

Back
