Looking for Waveshare Pcie To Module? Waveshare PCIe TO M.2 Adapter, Supports Raspberry Pi Compute Module 4 is available at Zbotic with fast shipping across India.
This is a Waveshare PCIe TO M.2 Adapter, which Supports Raspberry Pi Compute Module 4. An M. 2 SSD will support either SATA or PCIe, but not both at the same time. … The PCIe interface is faster, as the SATA 3.0 spec is limited to ~600MB/s maximum speed, while PCIe Gen 2 x2 lanes is capable of up to 1000MB/s, Gen 2 x4 lanes is capable of up to 2000MB/s, and Gen 3 x4 lanes of up to 4000MB/s.Onboard Operating Indicator, The LED Lights Up When Power-On And Keeps Blinking While-Reading/Writing also this connector can copy videos, music, photos, data files between USB devices and the computer at blazing fast speeds.
Features And Specifications:
- Adapter For NVMe Protocol M.2 SSD, Faster Reading/Writing, Improving Efficiency
- Supports Base Boards With PCI-E×1 / ×4 / ×8 / ×16 Socket
- Supports Raspberry Pi Compute Module 4
- Compatible With Different Sizes Of M.2 SSD
- Onboard Operating Indicator, The LED Lights Up When Power-On And Keeps Blinking While-Reading/Writing
Package Includes:
1 x Waveshare PCIe TO M.2 Adapter, Supports Raspberry Pi Compute Module 4
About Waveshare Pcie To Module
Waveshare PCIe TO M.2 Adapter, Supports Raspberry Pi Compute Module 4 is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by WAVESHARE, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: WAVESHARE
- SKU: AI1569
- Category: USB Interface Module
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Waveshare Pcie To Module and other products.
Applications
Waveshare Pcie To Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Waveshare Pcie To Module today and start building.
Waveshare PCIe TO M.2 Adapter, Supports Raspberry Pi Overview

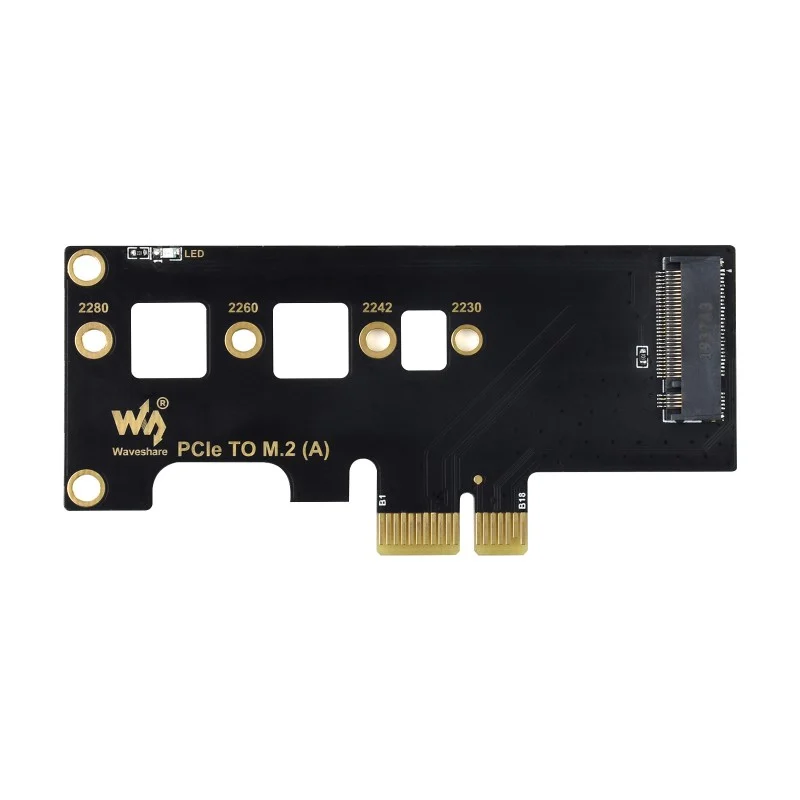

The Waveshare PCIe TO M.2 Adapter is a compact expansion module that lets you connect an NVMe M.2 SSD to any baseboard with a PCI-E×1/×4/×8/×16 slot. Designed for Raspberry Pi Compute Module 4, it provides high-speed storage for operating systems, data logging, and embedded applications.
Key Features of Waveshare PCIe TO M.2 Adapter, Supports Raspberry Pi
- NVMe PCIe interface supporting up to PCIe Gen2×2 (1 000 MB/s), Gen2×4 (2 000 MB/s) and Gen3×4 (4 000 MB/s)
- Compatible with base boards featuring PCI-E×1, ×4, ×8 or ×16 slots
- Fits multiple M.2 SSD sizes (2230, 2242, 2260, 2280)
- Onboard LED indicator lights up on power-on and blinks during read/write operations
- Ideal for expanding storage on Raspberry Pi Compute Module 4
- Genuine Waveshare product, fast shipping across India from Zbotic
Applications and Use Cases
- High-speed boot drive for Raspberry Pi CM4 in industrial controllers
- Data logging and real-time analytics in IoT gateways
- Media server or home NAS based on Compute Module 4
- Embedded vision systems requiring fast image capture and storage
- Development boards and test benches with PCIe expansion slots
How to Use Waveshare PCIe TO M.2 Adapter, Supports Raspberry Pi
Insert your NVMe M.2 SSD into the adapter slot and secure it with the included standoff. Plug the adapter’s PCIe edge connector into the PCI-E slot of your Raspberry Pi Compute Module 4 carrier board or other PCIe-enabled baseboard. Power on the system and verify the LED indicator lights, then format and mount the SSD in your OS to begin high-speed read/write operations.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use a SATA-based M.2 SSD on this adapter?
No. This adapter only supports NVMe PCIe-based M.2 SSDs. SATA M.2 drives are not compatible.
Will it work with the Raspberry Pi Compute Module 4 IO Board?
Yes. Plug the adapter into the IO Board’s PCIe slot, attach your CM4 module, and secure the SSD. The system will detect the NVMe drive once powered on.
What transfer speeds can I achieve?
Speeds depend on your SSD and baseboard. With a PCIe Gen3×4 NVMe SSD, you can reach up to 4 000 MB/s under optimal conditions.
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| SKU | AI1569 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare PCIe TO M.2 Adapter, Supports Raspberry Pi Compute Module 4 is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
