40 pin GPIO Reference Board For Raspberry Pi B+/Respberry Pi 2
This is a 40-pin GPIO reference board for Raspberry Pi B+/Raspberry Pi 2.
This device can be attached to the GPIO header of a Raspberry Pi to help you identify the function of each pin. This convenient reference board makes project assembly easier and faster. You can also carry this board around as it has a useful keyring hole.
Compatible with all 40 pin GPIO headers on Raspberry Pi’s such as:
| No of IO Pins | 40 |
| Color | Red |
| Dimensions in mm (LxWxH) | 62 x11 x 2 |
| Weight (gm) | 3 |
| Shipment Weight | 0.005 kg |
Package Includes
40 pin GPIO Reference Board For Raspberry Pi B+/Respberry Overview

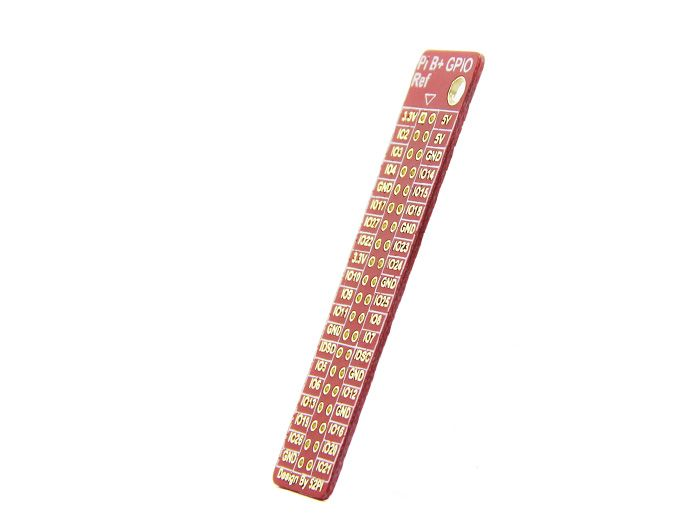

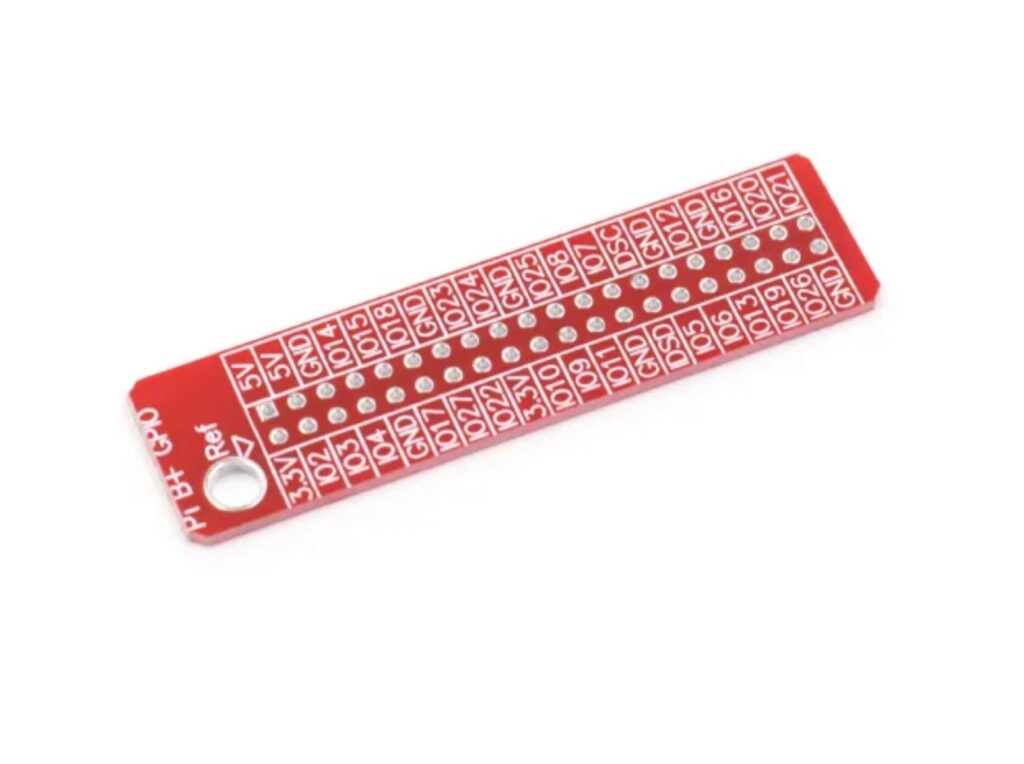

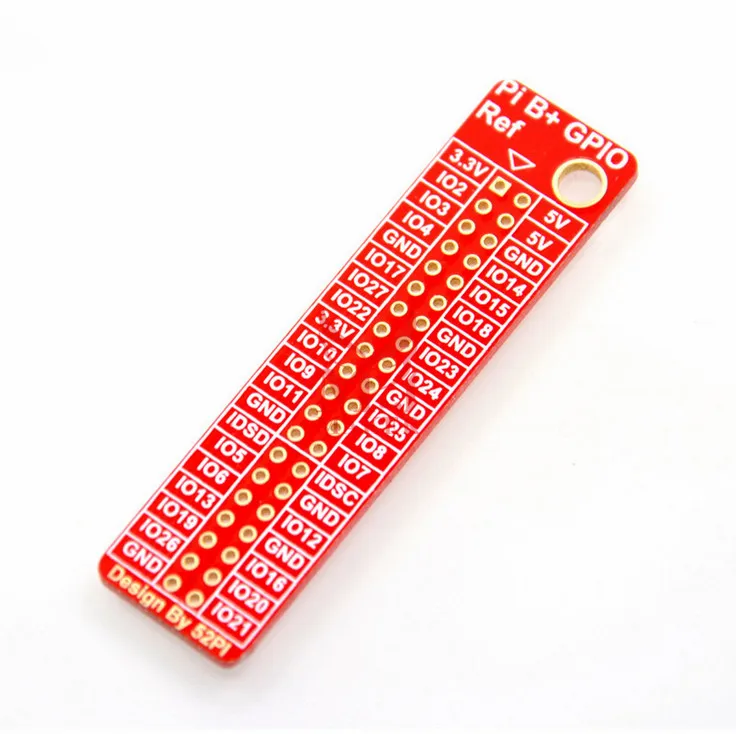

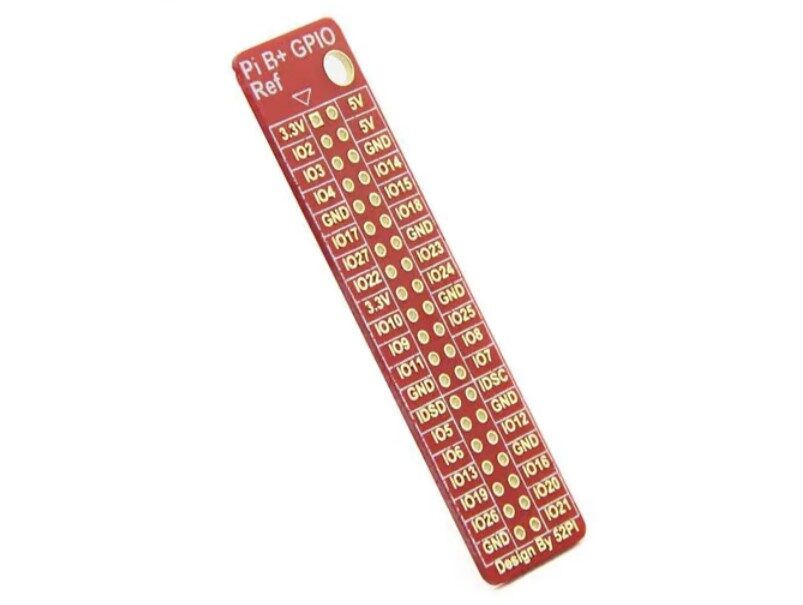

The 40 pin GPIO Reference Board for Raspberry Pi B+/Raspberry Pi 2 is a compact PCB that plugs directly onto the 40-pin header of your Pi models. It provides clear silkscreen labels for each GPIO pin, making wiring, prototyping and troubleshooting faster and more reliable.
Key Features of 40 pin GPIO Reference Board For Raspberry Pi B+/Respberry
- Compatible with all 40-pin GPIO headers on Raspberry Pi A+, B+, Pi 2, Pi 3 and Pi Zero
- High-contrast red PCB with white silkscreen labels for easy pin identification
- Compact dimensions of 62 × 11 × 2 mm and lightweight at only 3 g
- Keyring hole for portability—carry your pinout wherever you go
- Without soldered jumpers—simply plug in without any assembly
- Fast shipping from Zbotic: orders dispatched within 24 hours*
Applications and Use Cases
- Quickly identify GPIO pins during breadboard prototyping and sensor wiring
- Educational workshops—help beginners learn pin functions at a glance
- Troubleshooting header connections without referring to external diagrams
- Fieldwork and maker fairs—portable reference on your keychain
- Speed up assembly of HATs, shields and custom breakout boards
How to Use 40 pin GPIO Reference Board For Raspberry Pi B+/Respberry
Align the notch or pin 1 marking on the reference board with pin 1 on your Raspberry Pi’s GPIO header, then gently press down until it seats firmly. Read the silkscreen labels to wire your sensors, modules or LEDs correctly without cross-referencing external charts.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this reference board with a Raspberry Pi Zero?
Yes, it is fully compatible with the 40-pin GPIO header on the Raspberry Pi Zero, providing identical pin labeling as on Pi B+ and Pi 2/3.
Does the board require any soldering or additional assembly?
No assembly or soldering is needed. The reference board comes without soldered jumpers—simply plug it onto the GPIO header.
Can I leave the reference board attached during normal Pi operation?
Yes, the board is made from FR4 material and can remain plugged in during regular use without affecting your Raspberry Pi’s performance.
