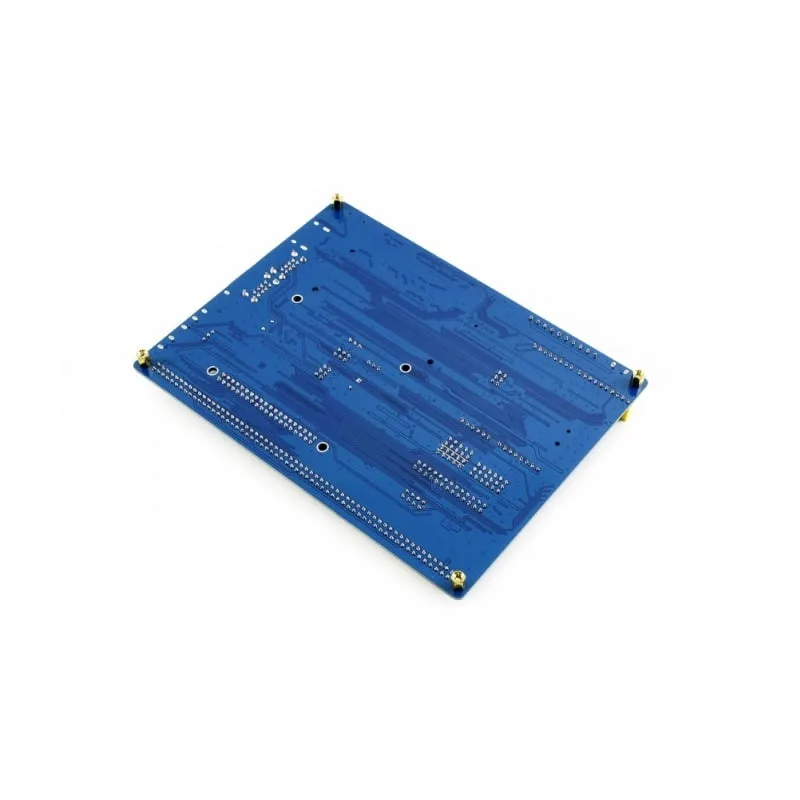

Looking for Cm3l Module? Waveshare Compute Module IO Board Plus, for Raspberry Pi CM3 / CM3L / CM3+ / CM3+L is available at Zbotic with fast shipping across India.
Description:

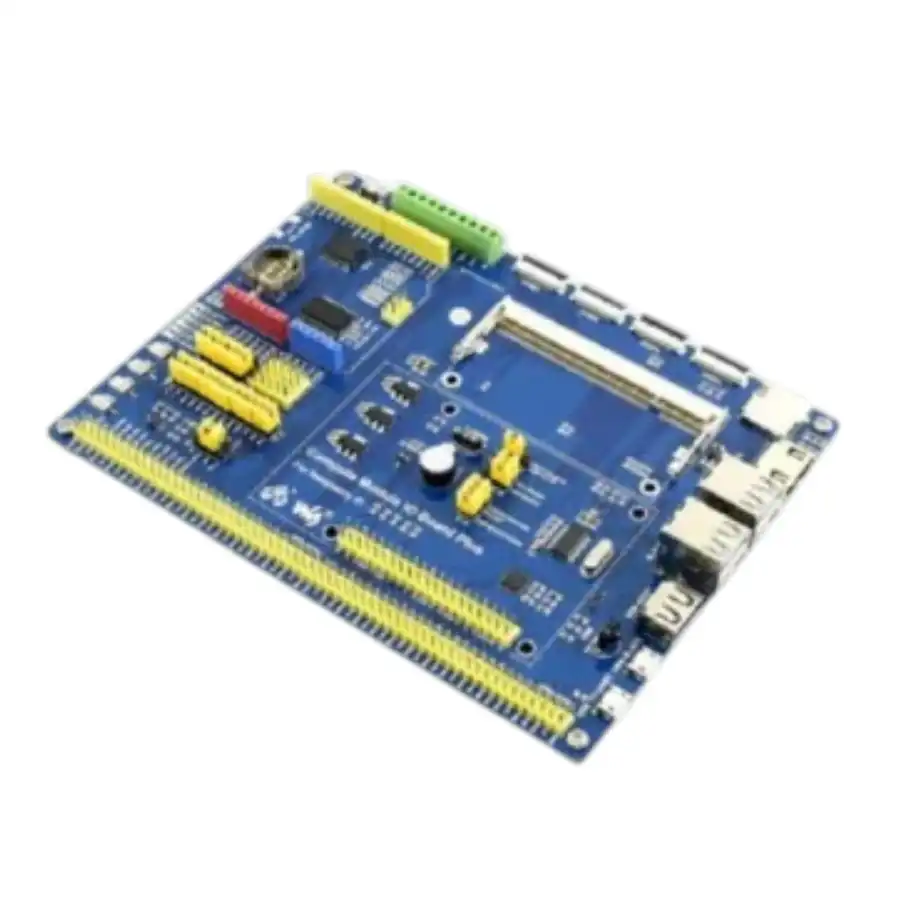

The Compute Module IO Board Plus is a development board which you can plug a Raspberry Pi Compute Module into, and make use of the resources of Pi more flexibly. It is compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation, along with various common-use components.
Features:
- Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation.
- Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs.
- Arduino connectivity also supports Arduino shields.
- 1-WIRE interface, for connecting single-bus devices like DS18B20.
- 4 x keys, 4 x LEDs, and 1 x Buzzer, for I/O testing.
- Onboard USB HUB allows connecting more USB devices.
- IR receiver and IR remote control is available.
- Onboard USB TO UART, for serial debugging.
- Sensor interface.
- 10-bit ADC, 38KSPS, 11-ch (6-ch for Arduino interface, 5-ch for sensors).
- 16-bit DAC, 2-ch.
- Onboard RTC, is one of the most common and useful functions.
Specifications:
- Compute Module interface: for connecting Compute Module (CM3 / CM3L / CM3+ / CM3+L)
- Compute Module GPIO header: breakout all the Compute Module pins
- Raspberry Pi GPIO header: for connecting Raspberry Pi HATs
- CSI interface: camera ports, for connecting Raspberry Pi Camera
- DSI interface: display ports, for connecting Raspberry Pi LCD
- Voltage regulator: 3.3V / 2.5V / 1.8V
- ACT indicator: indicating the Micro SD card status
- TLC1543: AD converter
- DAC8552: 16-bit DAC, 2-ch
- DS3231: high-precision RTC chip, I2C interface
- RTC battery holder supports CR1220 batteries
- Crystal: 12MHz
Useful link:
Packages include:
1 x Waveshare Compute Module IO Board Plus, for Raspberry Pi CM3 / CM3L / CM3+ / CM3+L
About Cm3l Module
Waveshare Compute Module IO Board Plus, for Raspberry Pi CM3 / CM3L / CM3+ / CM3+L is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by WAVESHARE, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: WAVESHARE
- SKU: AI2039
- Category: Raspberry Pi Hats
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Cm3l Module and other products.
Applications
Cm3l Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Cm3l Module today and start building.
Waveshare Compute Module IO Board Plus, for Raspberry Pi Overview
The Waveshare Compute Module IO Board Plus is a development board designed specifically for Raspberry Pi Compute Modules CM3, CM3L, CM3+ and CM3+L. It breaks out all the module’s interfaces and adds power regulation, ADC/DAC, indicators and expansion headers to speed up prototyping and integration.
Key Features of Waveshare Compute Module IO Board Plus, for Raspberry Pi
- Supports Raspberry Pi Compute Module CM3, CM3L, CM3+ and CM3+L with standard SODIMM connector
- On-board voltage regulators providing 3.3V, 2.5V and 1.8V rails for module and peripherals
- Built-in TLC1543 analog-to-digital converter and 16-bit, 2-channel DAC8552 for analog I/O
- Micro SD card ACT LED indicator and user LEDs plus four push-buttons for status and input
- Raspberry Pi 40-pin GPIO header and Arduino-style shield compatibility for HATs and shields
- Fast shipping from Zbotic across India and 100% genuine Waveshare hardware
Applications and Use Cases
- Industrial sensor data acquisition with analog-to-digital conversion
- Custom audio generation or waveform output using the onboard DAC
- Rapid prototyping of robotics controllers with Raspberry Pi HATs or Arduino shields
- 1-WIRE device networking, such as DS18B20 temperature sensors
- Embedded system development requiring multiple regulated voltage rails
- Educational labs exploring GPIO, ADC and DAC capabilities of the Compute Module
How to Use Waveshare Compute Module IO Board Plus, for Raspberry Pi
Insert your Raspberry Pi Compute Module into the SODIMM connector, supply power via the onboard barrel jack or micro USB port, and attach any GPIO HATs or Arduino shields to the 40-pin headers. Connect analog sensors or signal outputs to the ADC and DAC terminals, and monitor the ACT LED for Micro SD card activity. Four onboard buttons and LEDs let you test input and output directly before moving to a custom enclosure or PCB.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which Raspberry Pi Compute Modules are compatible?
This IO Board Plus is compatible with CM3, CM3L, CM3+ and CM3+L. It fits the standard SODIMM connector and supports all interfaces provided by these Compute Modules.
How do I power the IO Board Plus?
You can power the board via the DC barrel jack (5V) or the micro USB port. The onboard regulators generate the required 3.3V, 2.5V and 1.8V rails for both the Compute Module and external peripherals.
How can I use the ADC and DAC on this board?
Analog inputs connect to the TLC1543 pins, accessible via screw terminals or header pinouts. The DAC8552 provides two 16-bit outputs for waveform generation—just configure the I2C interface in your Compute Module firmware and send data commands.
