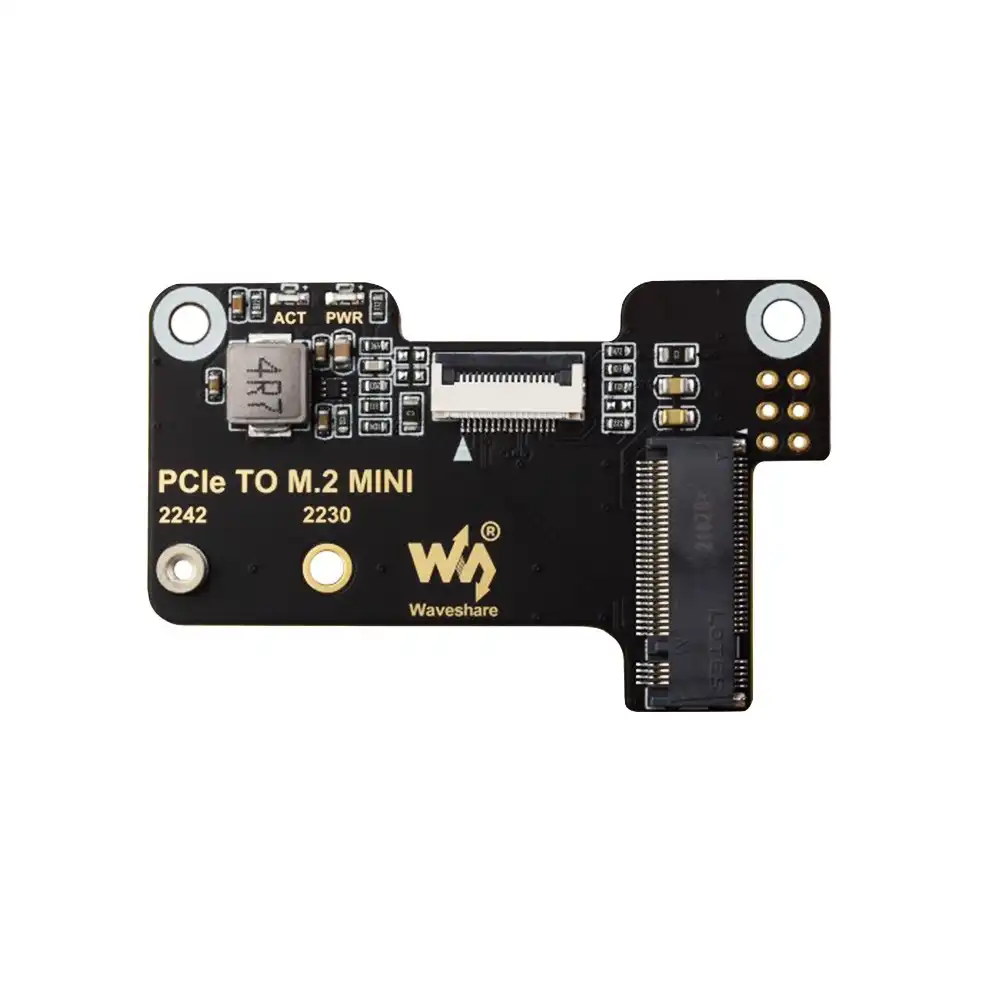

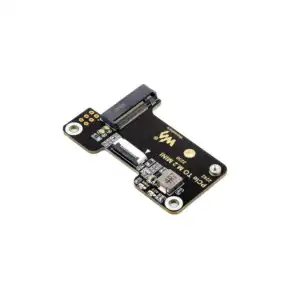

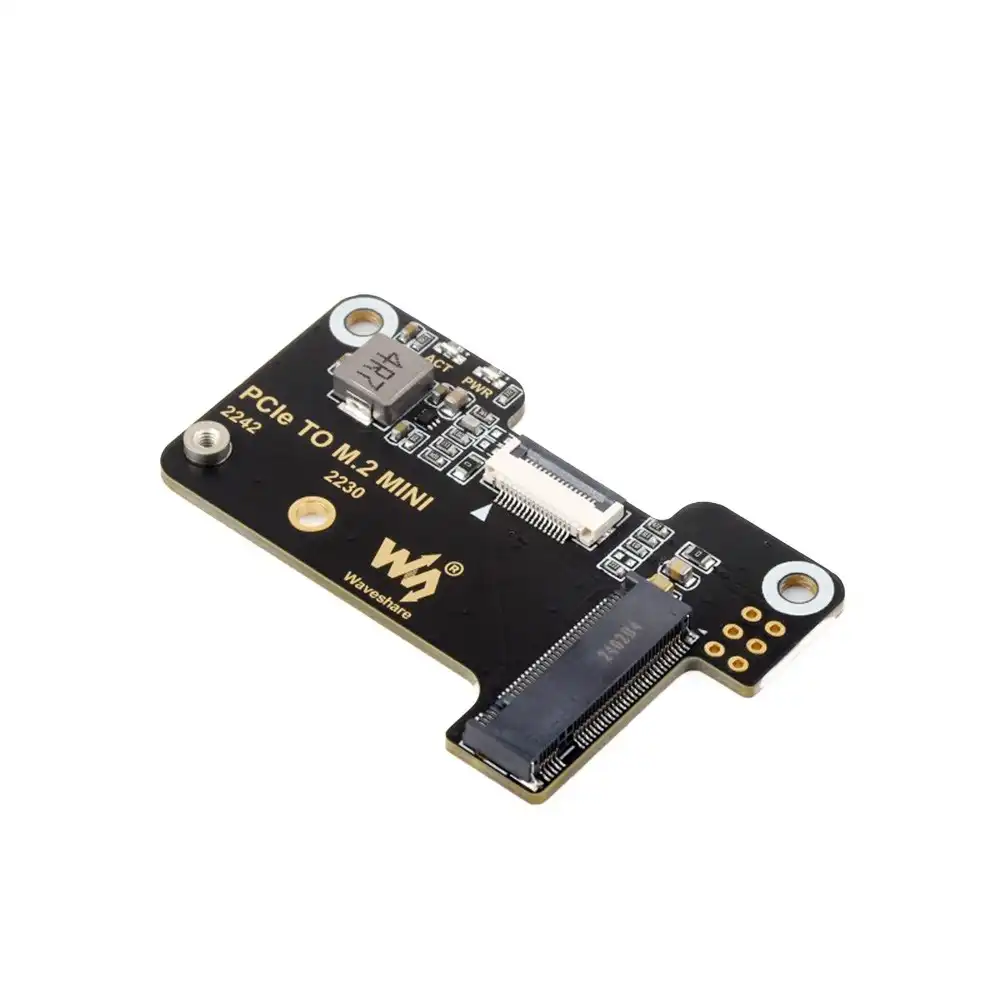

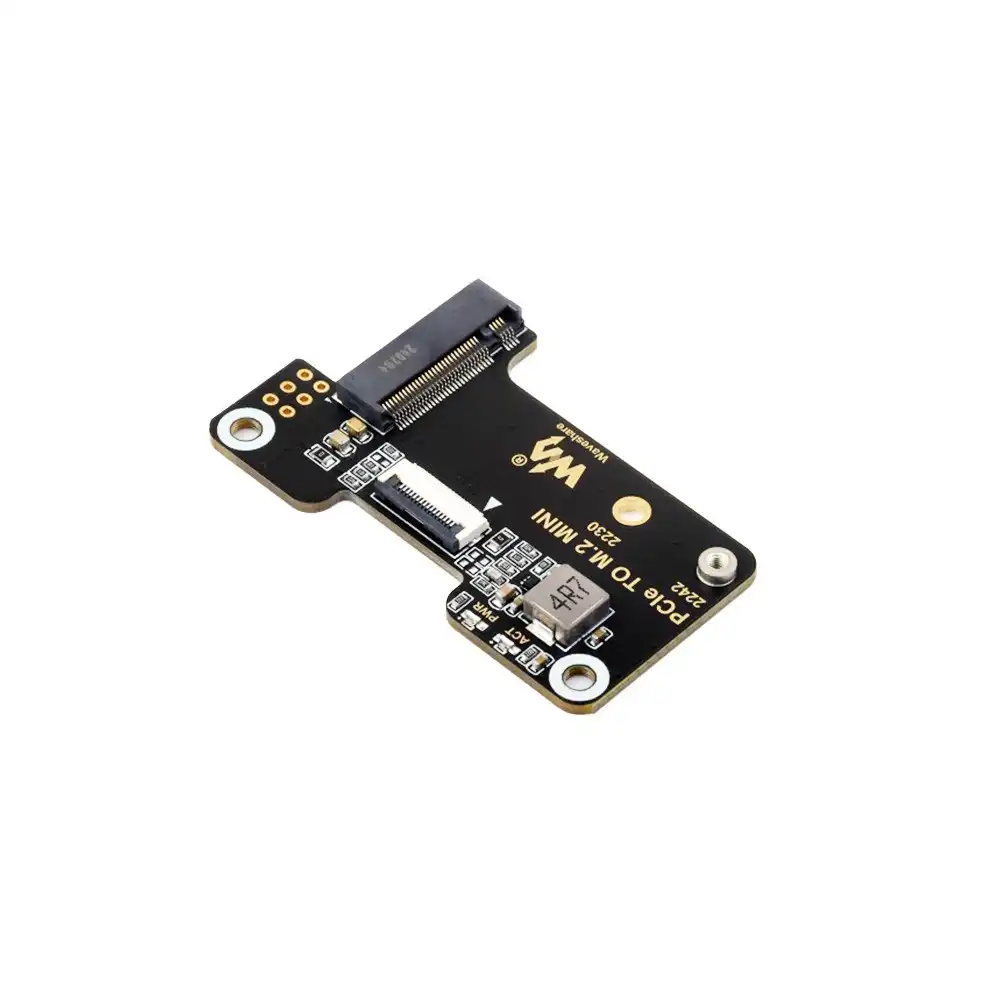

Mini PCIe TO M.2 adapter for Raspberry Pi 5, supports NVMe Protocol M.2 solid state drive with high-speed reading/writing, compatible with M.2 solid state drive in 2230 / 2242 size, supports Gen2 and Gen3 modes, and supports booting PI5 from SSD.
Note: As the Raspberry Pi does not support NVME booting, the config text should be modified.
Note: These infographic images are for reference.
Features:
- Support NVMe protocol and M.2 solid state drive protocol, high-speed read/write, with high work efficiency.
- Support PCI-E×1 Gen2 or Gen3 modes.
Only supports PI5B. - Compatible with M.2 solid state drive of 2230/2242 sizes.
- Onboard working indicator lights, with PWR on continuously when powered, and ACT blinking during read/write.
Specification:
| Item Type: | Adapter |
|---|---|
| Compatibility: | Pi 5 |
| HAT Type: | NVMe |
| Interface: | Mini PCIe to M.2 |
| Protocol | NVMe |
| Supported | M.2 SSDs (2230/2242 sizes), Raspberry Pi 5 |
| Modes | PCI-E×1 Gen2/Gen3 |

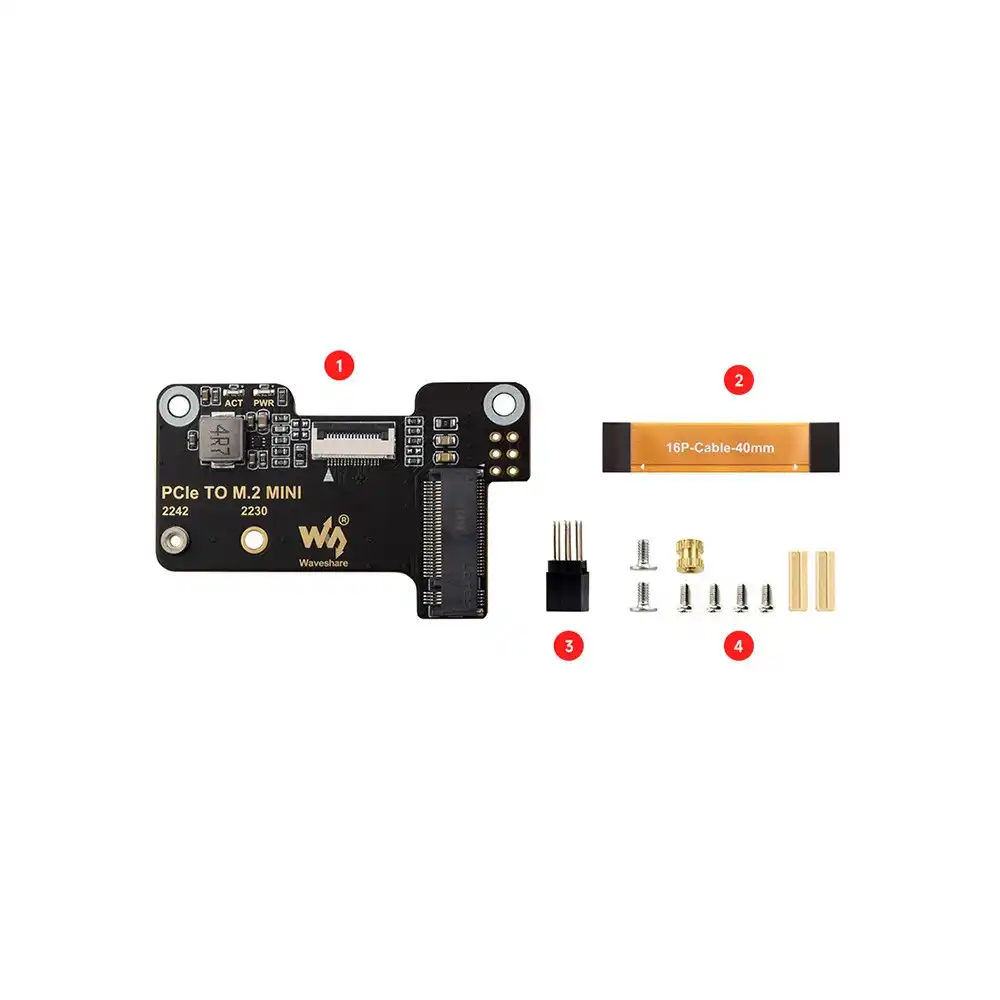

Package Includes:
1 x PCIe TO M.2 MINI
1 x 16P-Cable-40mm
1 x (2×3)Pin header
1 x Screws pack
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| SKU | AI6662 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare PCIe To M.2 Mini Adapter for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 NVMe HAT is a versatile power adapters and cable used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
