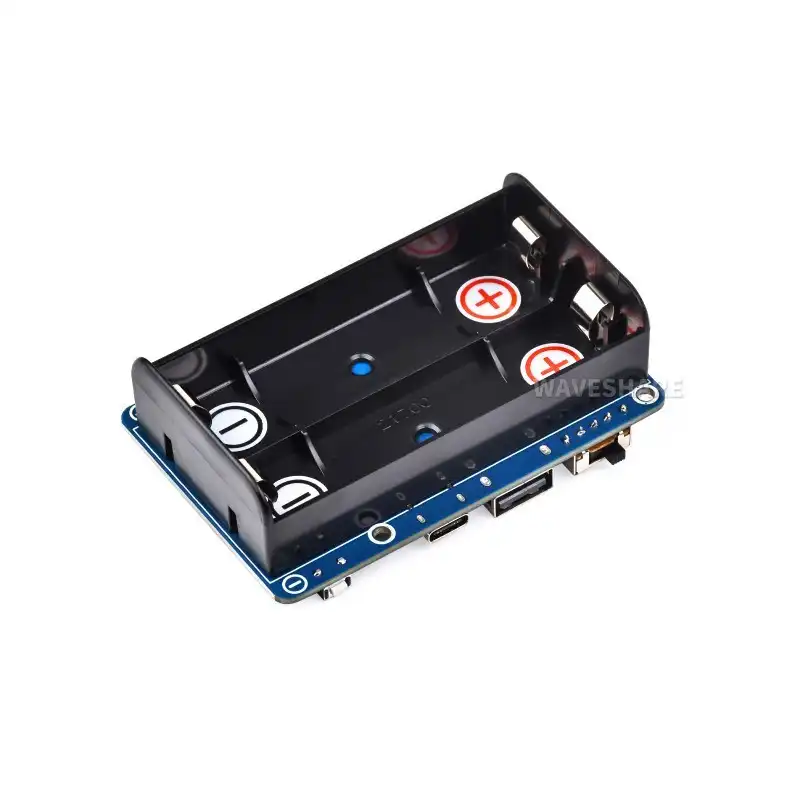

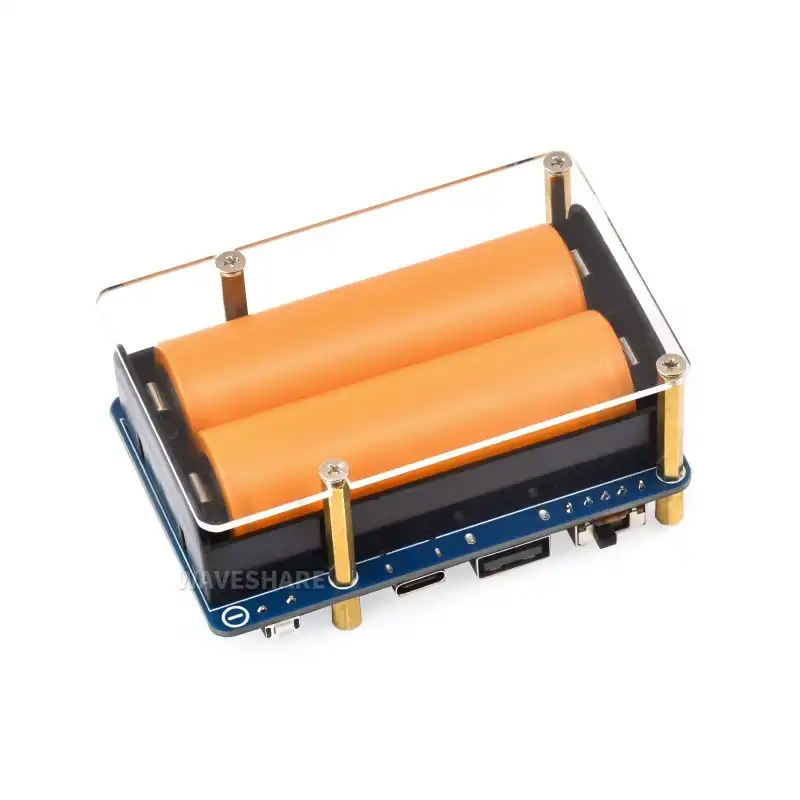

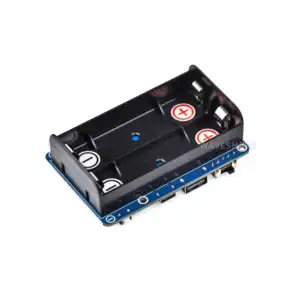

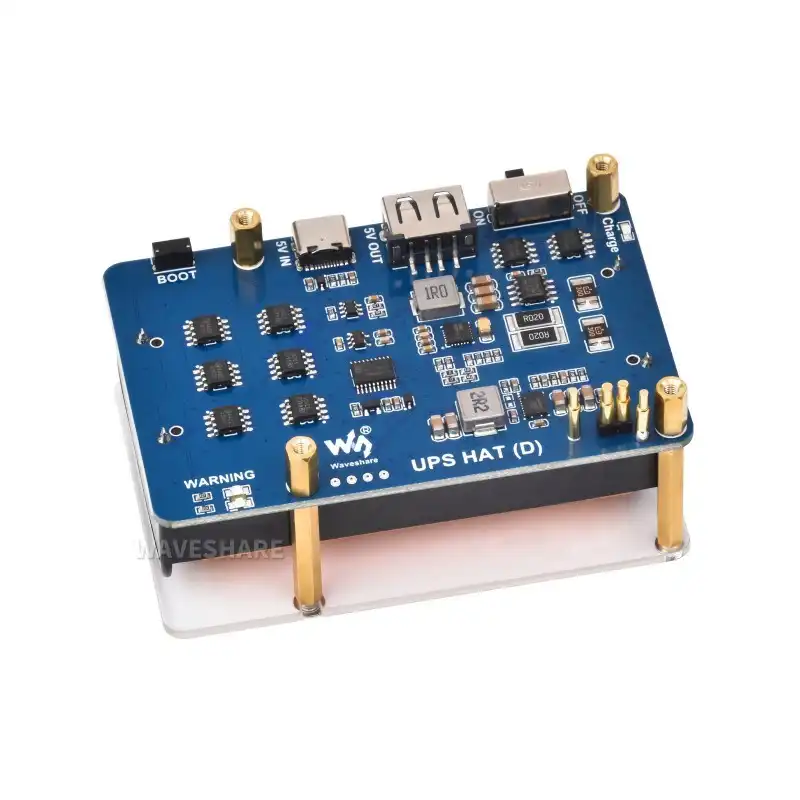

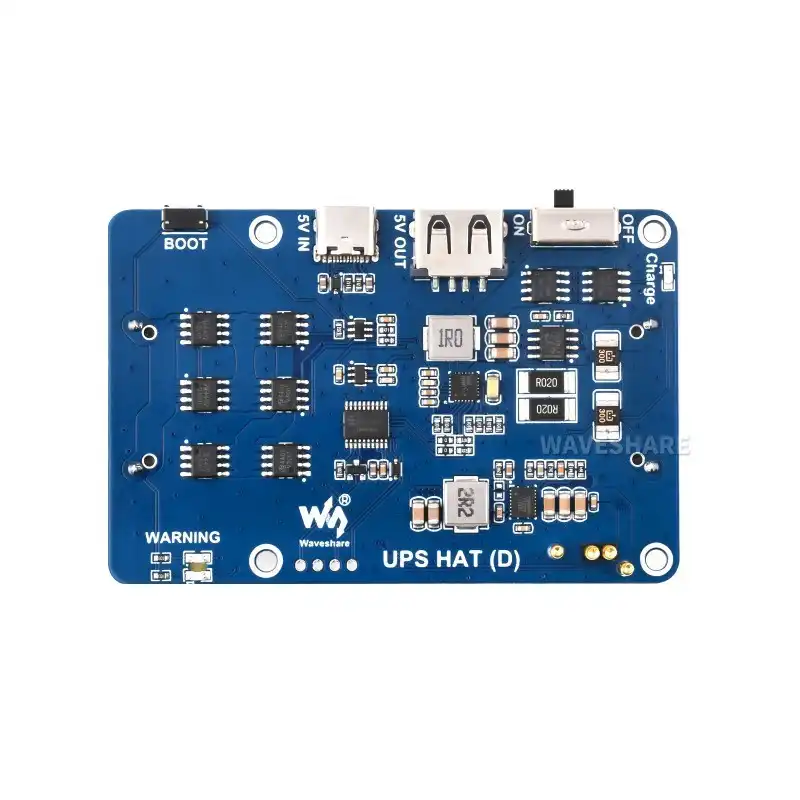

UPS HAT (D) For Raspberry Pi, Supports 21700 Li Battery (NOT Included), 5V Uninterruptible Power Supply, Pogo Pins Connector, Supports Charging And Power Output At The Same Time
Useful Link:
https://www.waveshare.com/wiki/UPS_HAT_(D)
Features:
- Adopts pogo pins connector design, compatible with Raspberry Pi 3 / 3B+ / 4B, etc.
- Onboard Li battery charging chip, with dynamic path management, more stable power supply
- Onboard boost converter chip for stable 5V power output
- I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
Multi battery protection circuits: overcharge/discharge protection, over current protection, short circuit protection, more safe and stable - Onboard MCU management, supports detecting power connection and booting the Raspberry Pi
- Supports displaying the battery level on the system, easy to check the battery’s remaining capacity
- Onboard LED indicators for monitoring the battery operating status
- Comes with online development resources and manual
Specification:
| Item Type: | HAT |
|---|---|
| Compatibility: | Pi Series |
| HAT Type: | Power Management HAT |
| Output Voltage (V): | 5V |
| Protocol | I2C |

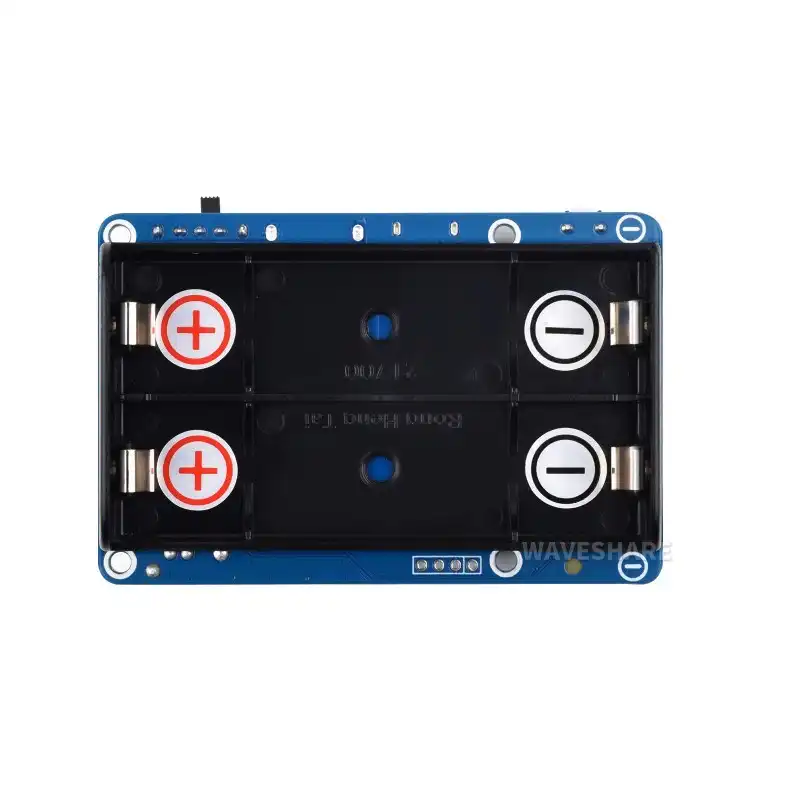

| Battery | 21700 Li battery × 2 (in parallel, NOT included) |
| Supported | 5V (Type-C port) Charger |
| Dimensions (L x W x H) mm | 56 × 85mm |
| Mounting holes | 3.0mm |
Package Includes:
1 x Waveshare UPS HAT (D) for Raspberry Pi, Supports 21700 Li battery (NOT included), 5V Uninterruptible Power Supply, Pogo Pins Connector
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Operating Voltage | 5V |
| Interface / Protocol | BLE |
| SKU | AI6640 |
| Weight | 0.2 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare UPS HAT (D) for Raspberry Pi, Supports 21700 Li battery (NOT included), 5V Uninterruptible Power Supply, Pogo Pins Connector is a versatile power adapters and cable used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
