PRODUCT DESCRIPTION
The IR Remote Control Sensor Module for Arduino features a high-sensitivity sensor that operates at 5V and outputs a digital signal. It is compatible with both 5V and 3.3V microcontrollers through the VCC pin.
While the kit’s theoretical range is approximately 5-8 meters, actual performance may differ due to environmental factors and physical obstructions like partitions and glass.
Equipped with an HX1838 chip, the receiver includes a power indicator light and is capable of receiving any 38K frequency encoded remote data.

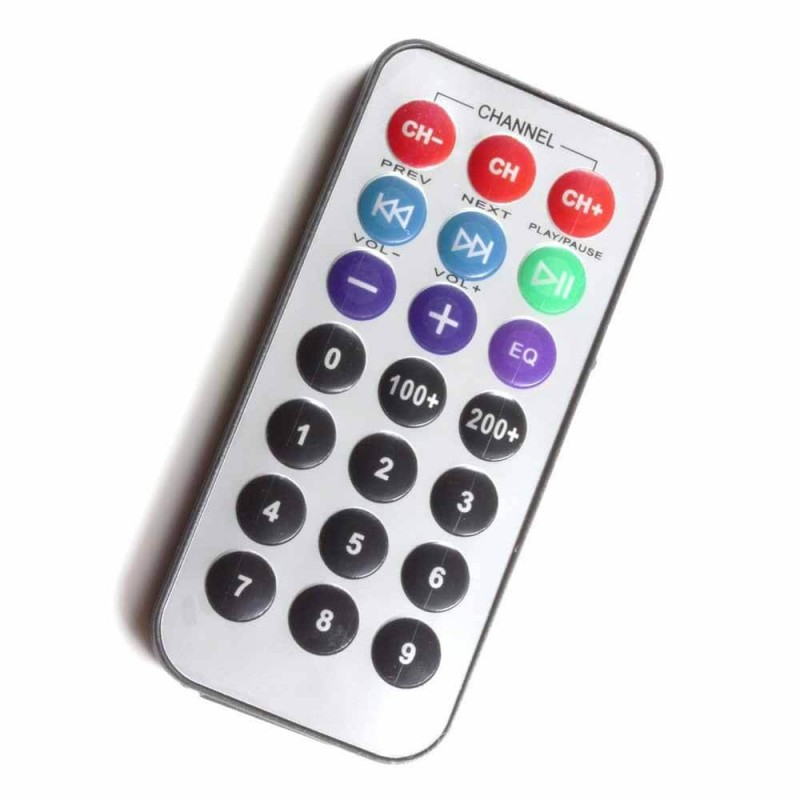

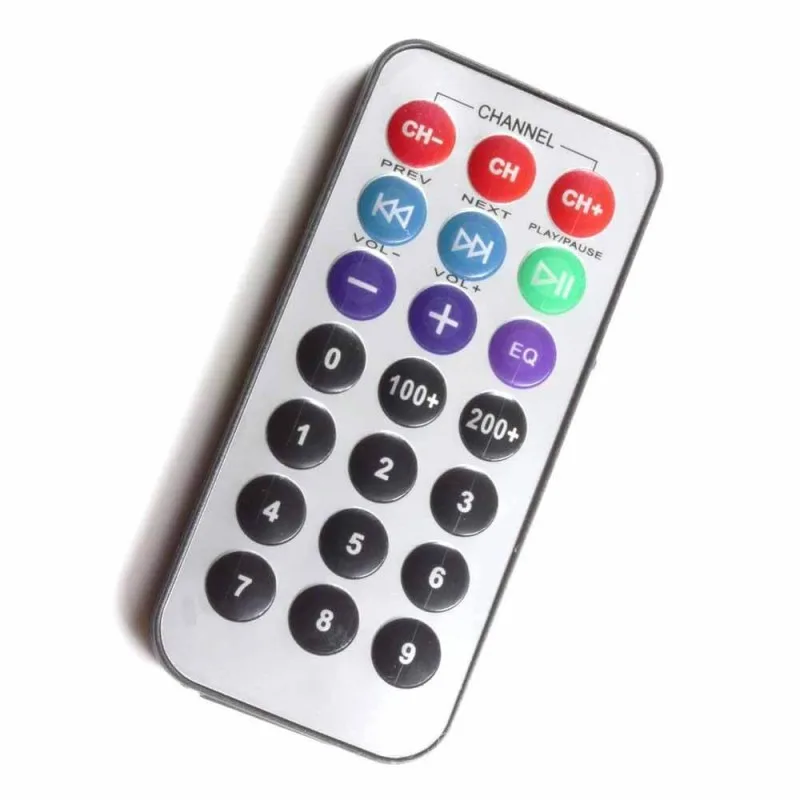

Additionally, the module comes with a sleek 38K universal infrared IR remote control, utilizing the NEC encoding format and offering 21 keys. This remote is versatile, suitable for a range of devices including USB port stereos, car MP3 systems, foot baths, lighting solutions, digital photo frames, and various microcontroller boards.
Note: IR Remote does not come with Battery (CR2025) you have to buy it separately.
Features:
- Crystal: the oscillation frequency of 455
- Encoding: the encoding format of the NEC, upd6122 encoding scheme, the user code 00FF, key coding below
- Button: free height is less than 3mm, the force 200-350g, the life of more than 200 000
- Photo-detector and preamplifier in one package
- Internal filter for PCM frequency
- Improved shielding against EMI
Specification:
| Transmission Distance | up to 8m |
|---|---|
| Effective Angle | 60° |
| Static Current (µA) | 3 ~ 5 |
| Dynamic Current (mA) | 3 ~ 5 |
| Supply Voltage (V) | 2.7 – 5.5 |
| Remote Battery | 1 x CR2025 Button battery ( not Included) |
| Remote dimensions | as per below |
| Length (mm): | 85.7 |
| Width (mm) | 40 |
| Height (mm) | 6.5 |
| Weight (gm) | 10 |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 9 × 4 × 1 cm |

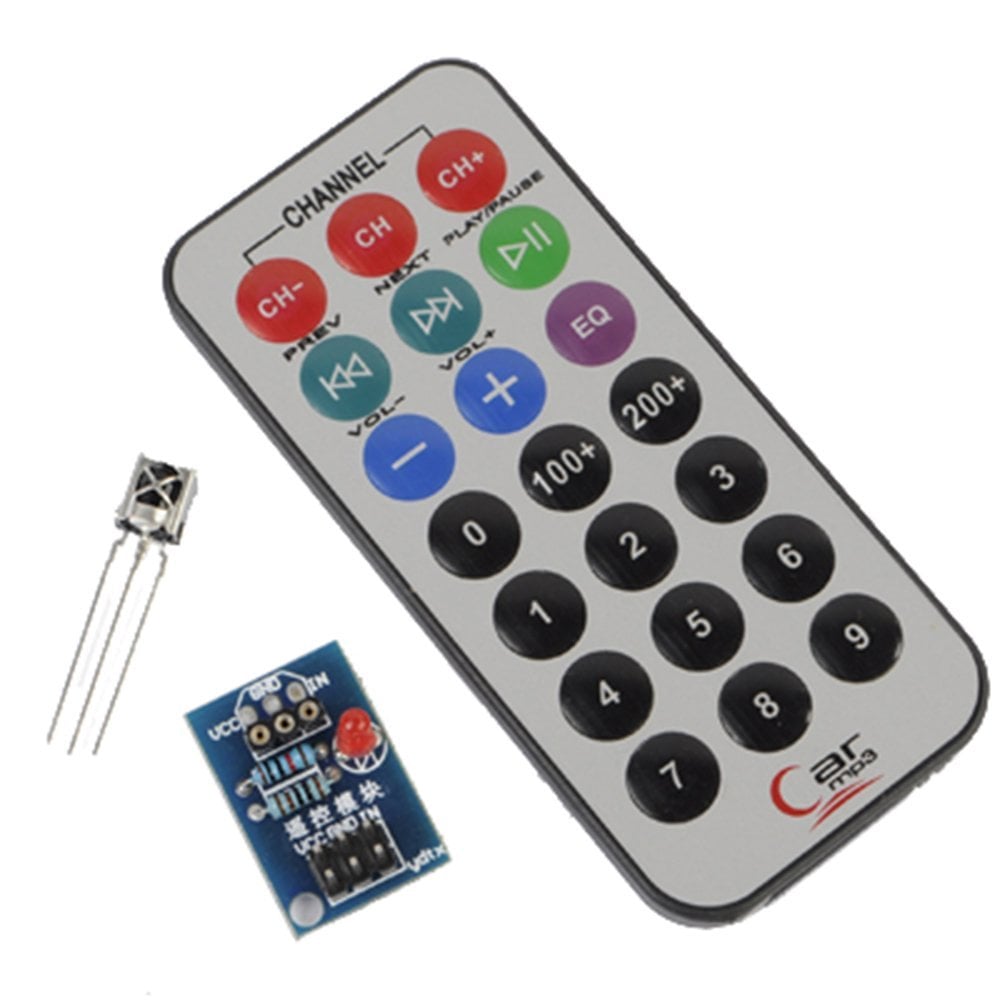

Package Includes:
1 x IR Remote Control Module
1 x IR Telecontrol
1x Receiver.
