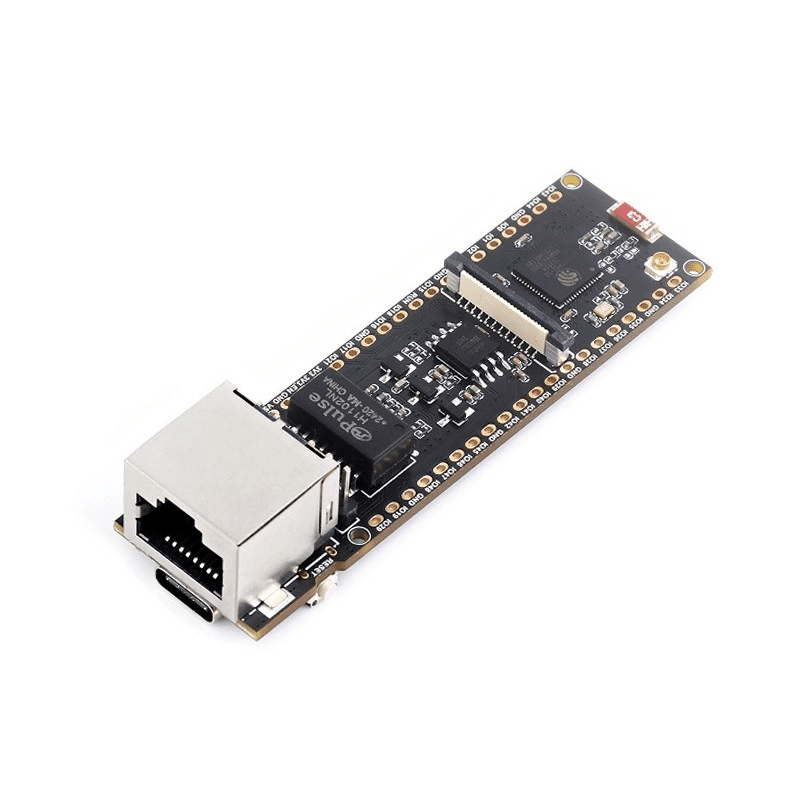

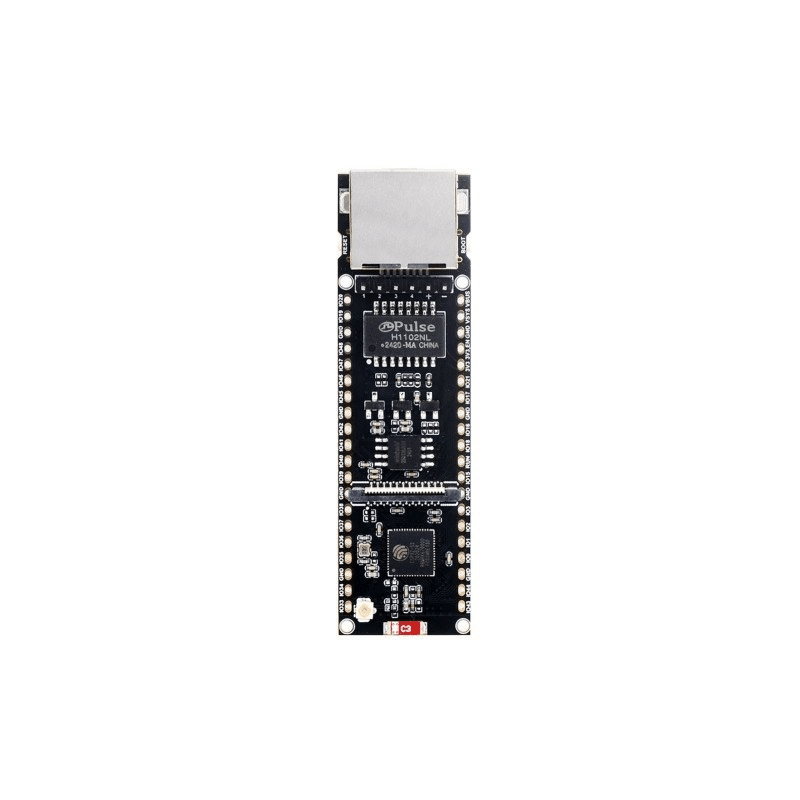

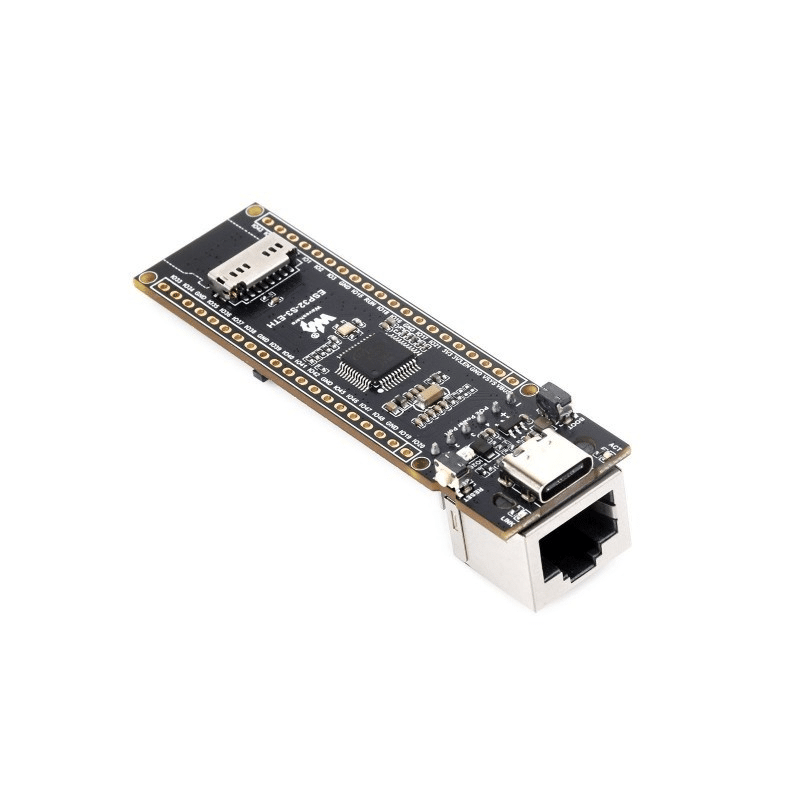

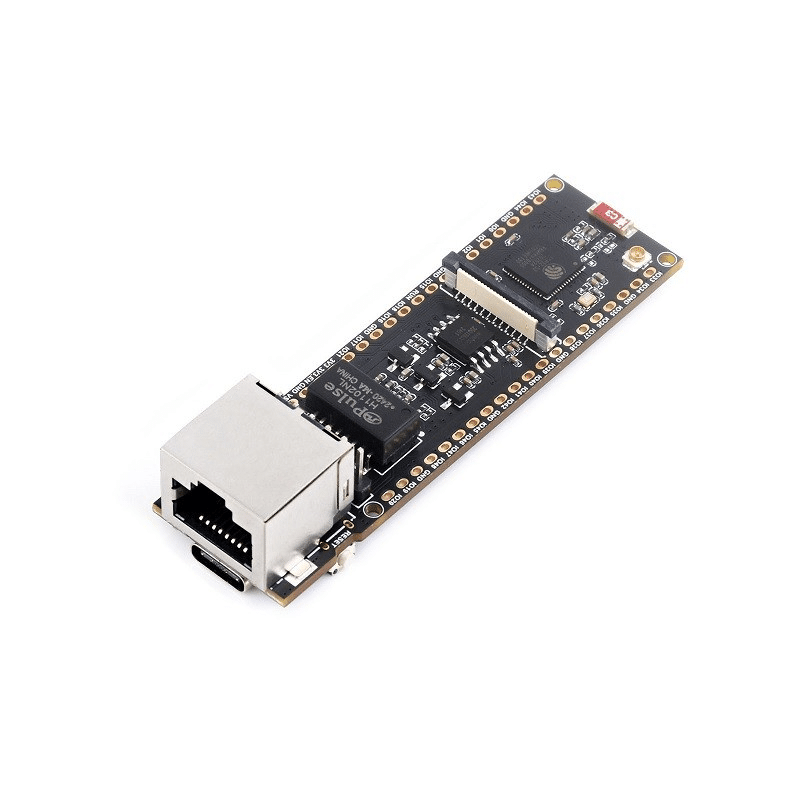

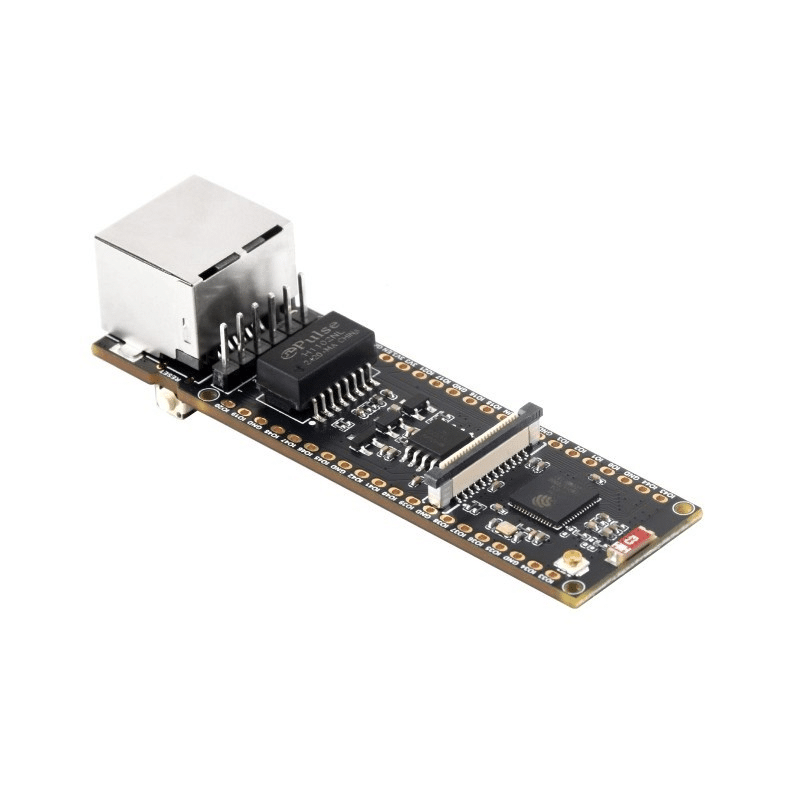

Waveshare ESP32-S3 ETH Development Board is an ETH development board based on ESP32-S3R8, supporting Wi-Fi and Bluetooth wireless communication with reliable and efficient wired Ethernet connectivity, optionally including PoE function. The board features an onboard camera interface, compatible with OV2640, OV5640, and other mainstream cameras for image and video capture.
Compatible with Pico header, the Waveshare ESP32-S3 ETH Development Board can be used with some Raspberry Pi Pico HATs. Leveraging the rich ecosystem and open-source resources of ESP32, it enables quick start for secondary development. This board is ideal for Internet of Things, image acquisition, smart home, and other AI projects.
Features:
- Adopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, running up to 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, and 16MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, with onboard antenna; supports switching to external antenna
- Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
- Optional PoE module to enable Power over Ethernet (IEEE 802.3af-compliant)
- Onboard camera interface, compatible with OV2640, OV5640, and other mainstream cameras
- Onboard USB Type-C port for power supply, programming, and debugging
- Onboard TF card slot for external storage of pictures or files
- Compatible with Pico header and multiple peripheral interfaces, offering strong compatibility and expandability
Specifications:
| Item Type | ETH Development Board |
|---|---|
| Chipset | ESP32-S3R8 |
| Processor | Xtensa 32-bit LX7 |
Package Includes:
- 1 × ESP32-S3-ETH
- 1 × 40PIN male pin header (black)
ESP32 FreeRTOS Tasks: Concurrent IoT Operations Explained
If you've been working with the ESP32 and want to take your IoT projects to the next level,...
Read More →
ESP32 Camera Streaming: MJPEG Video to Browser Tutorial
ESP32 camera streaming MJPEG video to a browser is one of the most impressive demonstrations of what a...
Read More →
Home Automation with ESP32 and Alexa: Full Setup Guide for Indian Homes
Table of ContentsIntroductionHow ESP32 + Alexa WorksHardware & Software RequirementsWiring DiagramMethod 1: Using SinricPro (Easiest)Method 2: Using FauxmoESP...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Interface / Protocol | Wi-Fi, Bluetooth |
| Frequency | 240MHz |
| Color | Blue |
| SKU | AI7518 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare ESP32-S3 ETH Development Board, 10/100Mbps RJ45 Ethernet port, Wi-Fi & Bluetooth Support, 240MHz Dual Core Processor, ESP32 Ethernet Development Board is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
