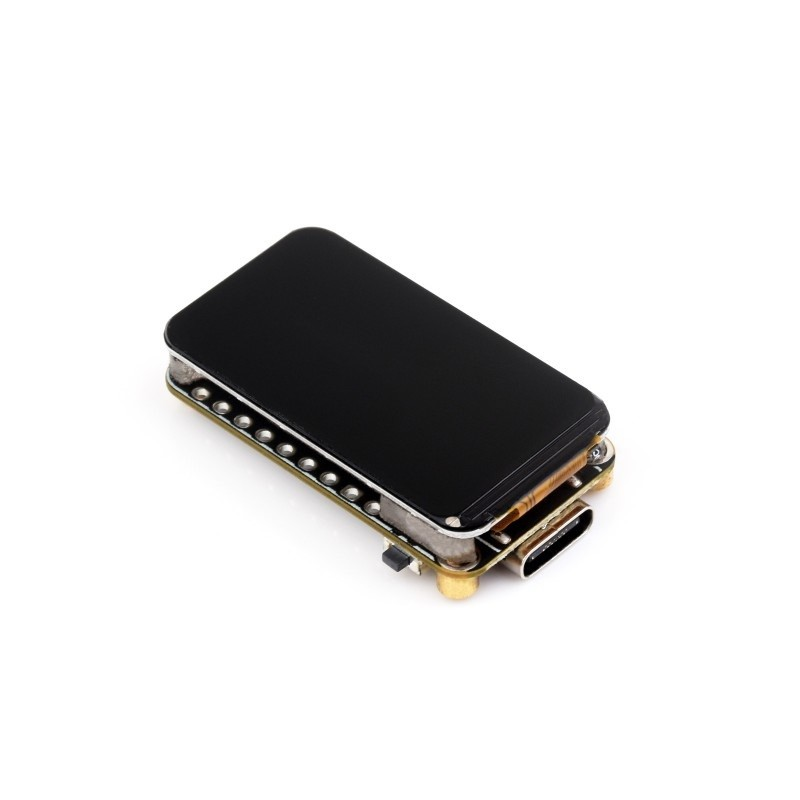

This is the 47inch variant of the Waveshare ESP32-C6 1.47inch Display Development Board, 172×320, 262K Color, 160MHz Running Frequency Single-core Processor, Supports WiFi 6 & Bluetooth, ESP32 With Display in IoT Development Boards. Available at ₹1,172.92 (₹994.00 + GST) with free shipping across India.

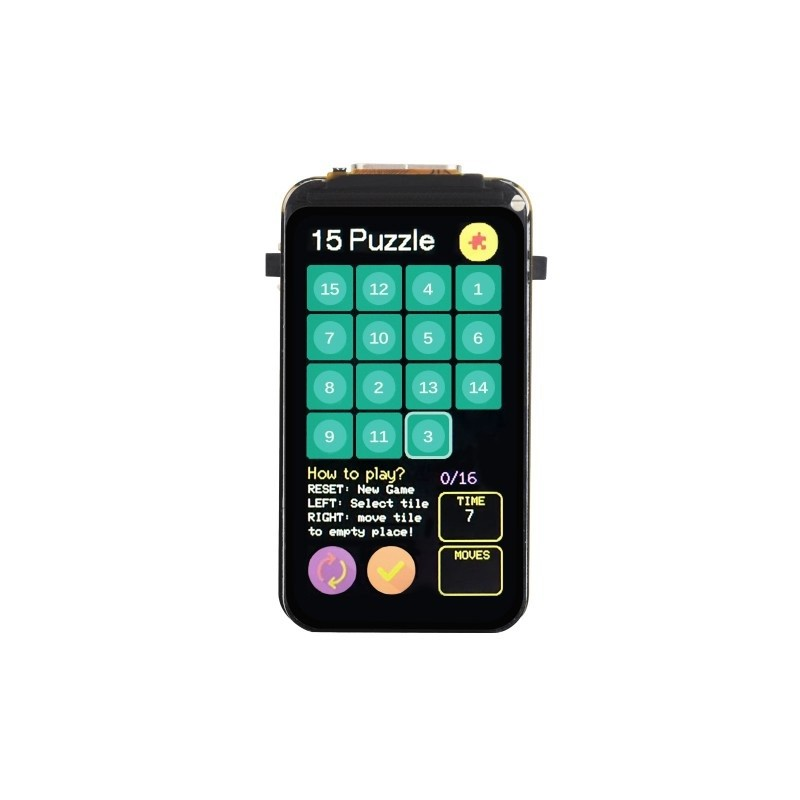

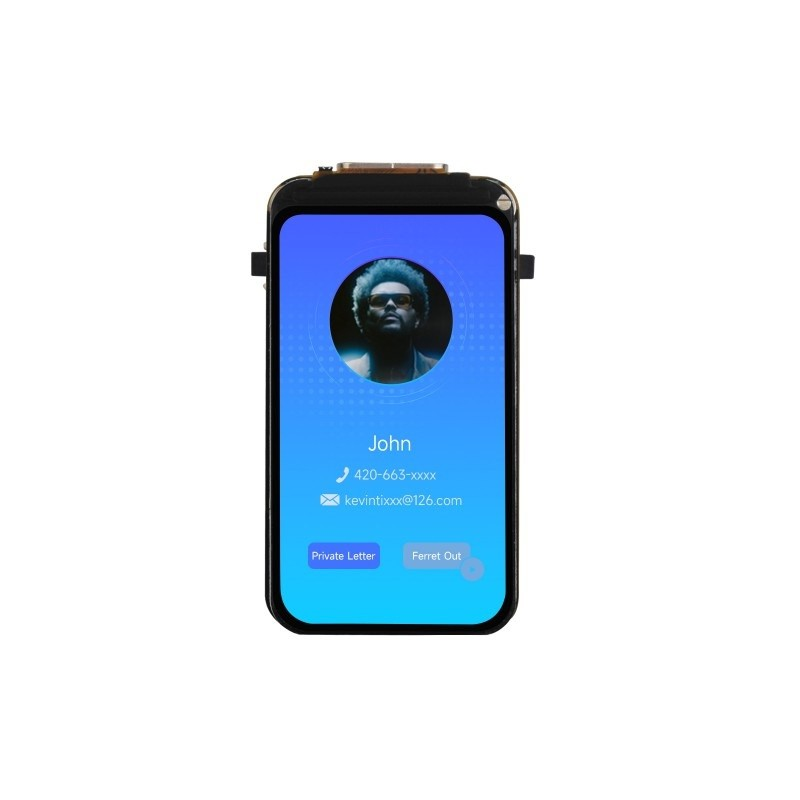

embedded applications. Powered by a 32-bit RISC-V processor with clock speeds of up to 160 MHz, it supports Wi-Fi 6 and Bluetooth 5 (LE), making it ideal for modern wireless communication needs. The board features a 1.47-inch LCD display with a resolution of 172×320 and 262K colors, perfect for graphical user interfaces (GUIs) and low-power applications. It includes 4MB Flash, an onboard TF card slot, RGB LED for visual effects, and multiple GPIO interfaces for easy expansion, making it a robust solution for development.
Features:
- Processor: High-performance 32-bit RISC-V processor, up to 160 MHz.
- Memory: 4MB Flash, 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM.
- Peripherals: Full-speed USB port, GPIO header for peripheral expansion.
- Storage: Onboard TF card slot for external storage.
- Power Efficiency: Flexible clock and multiple power modes for low consumption.
- LED: Built-in RGB LED for visual effects with an acrylic sandwich panel.
- Expansion: Supports multiple peripheral connections via GPIO header.
Specification:
| Model No.: | ESP32-C6 |
|---|---|
| Connectivity | Wi-Fi 6 & Bluetooth 5 |
| Power Rating: | Low |
| Shipping Weight | 0.015 kg |
Package include:

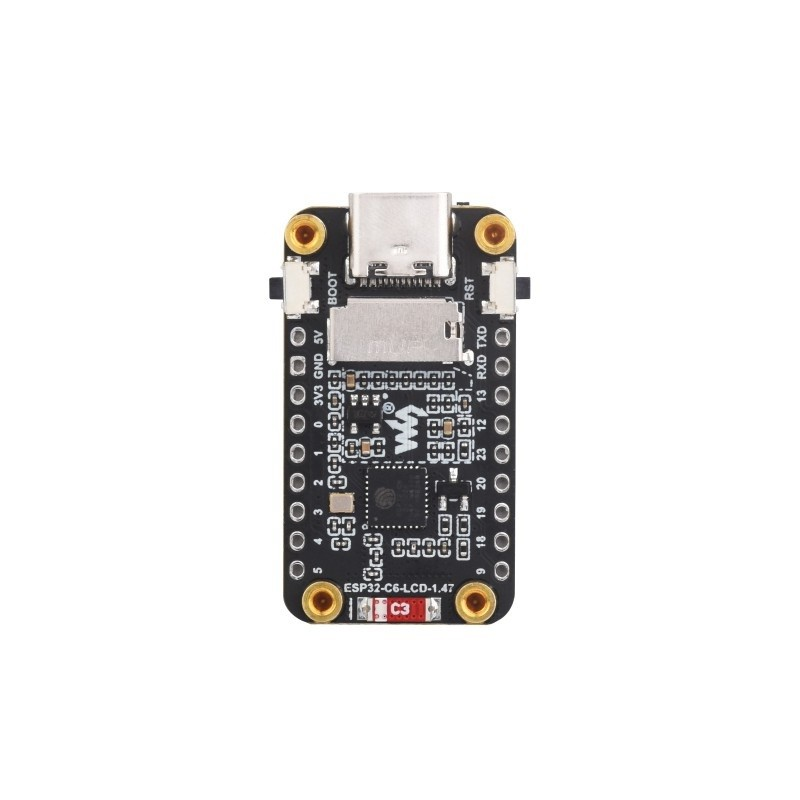

1 x ESP32-C6-LCD-1.47
ESP8266 D1 Mini: Small Form Factor WiFi for IoT Projects
The ESP8266 D1 Mini WeMos IoT board has become one of the most popular microcontroller modules among hobbyists,...
Read More →
ESP32 ULP Coprocessor: Wake Sensor in Deep Sleep Mode
The ESP32 ULP coprocessor deep sleep sensor wake capability is one of the chip's most underappreciated features. ULP...
Read More →
ESP32 Telegram Bot: Control Hardware with Chat Commands
Imagine controlling your home appliances, reading sensor data, or toggling LEDs simply by sending a message on Telegram....
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-C6 |
| Display Size | 1.47" |
| Interface / Protocol | WiFi, Bluetooth |
| Frequency | 160MHz |
| Resolution | 172x320 |
| Package Quantity | 320 pcs |
| Color | Blue |
| SKU | AI6682 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare ESP32-C6 1.47inch Display Development Board, 172×320, 262K Color, 160MHz Running Frequency Single-core Processor, Supports WiFi 6 & Bluetooth, ESP32 With Display is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
