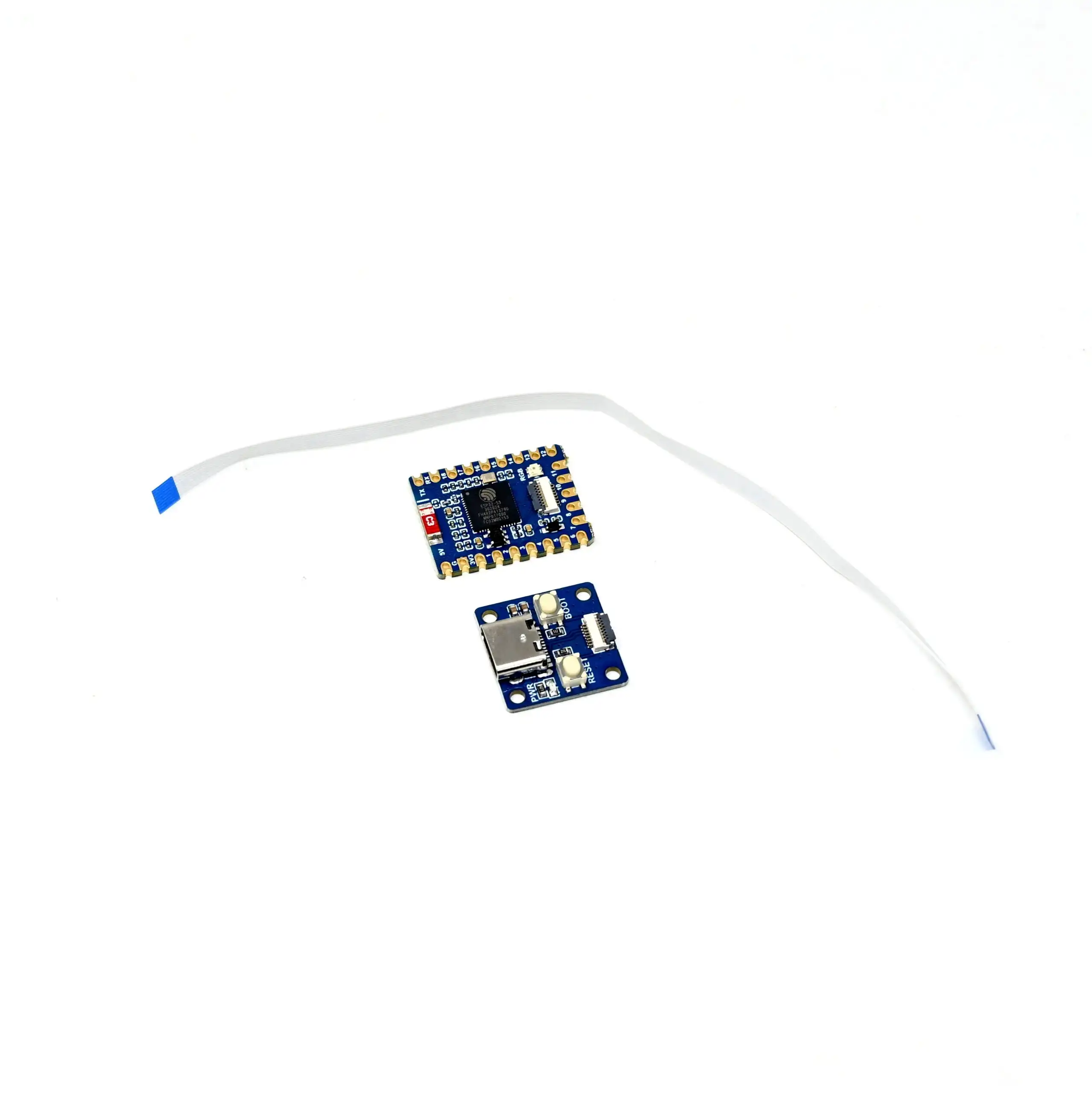

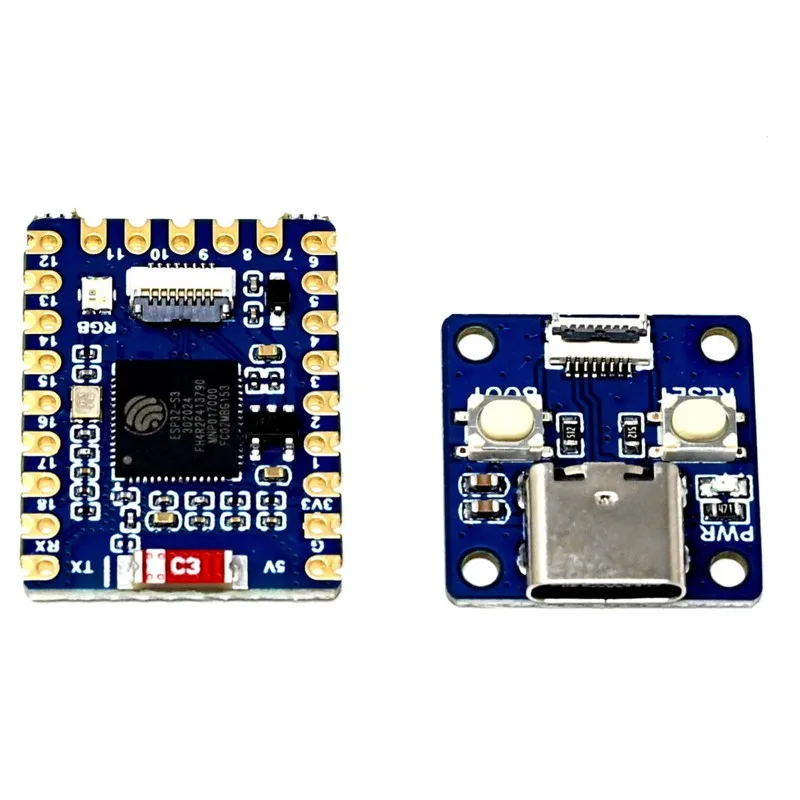

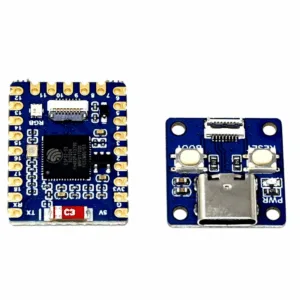

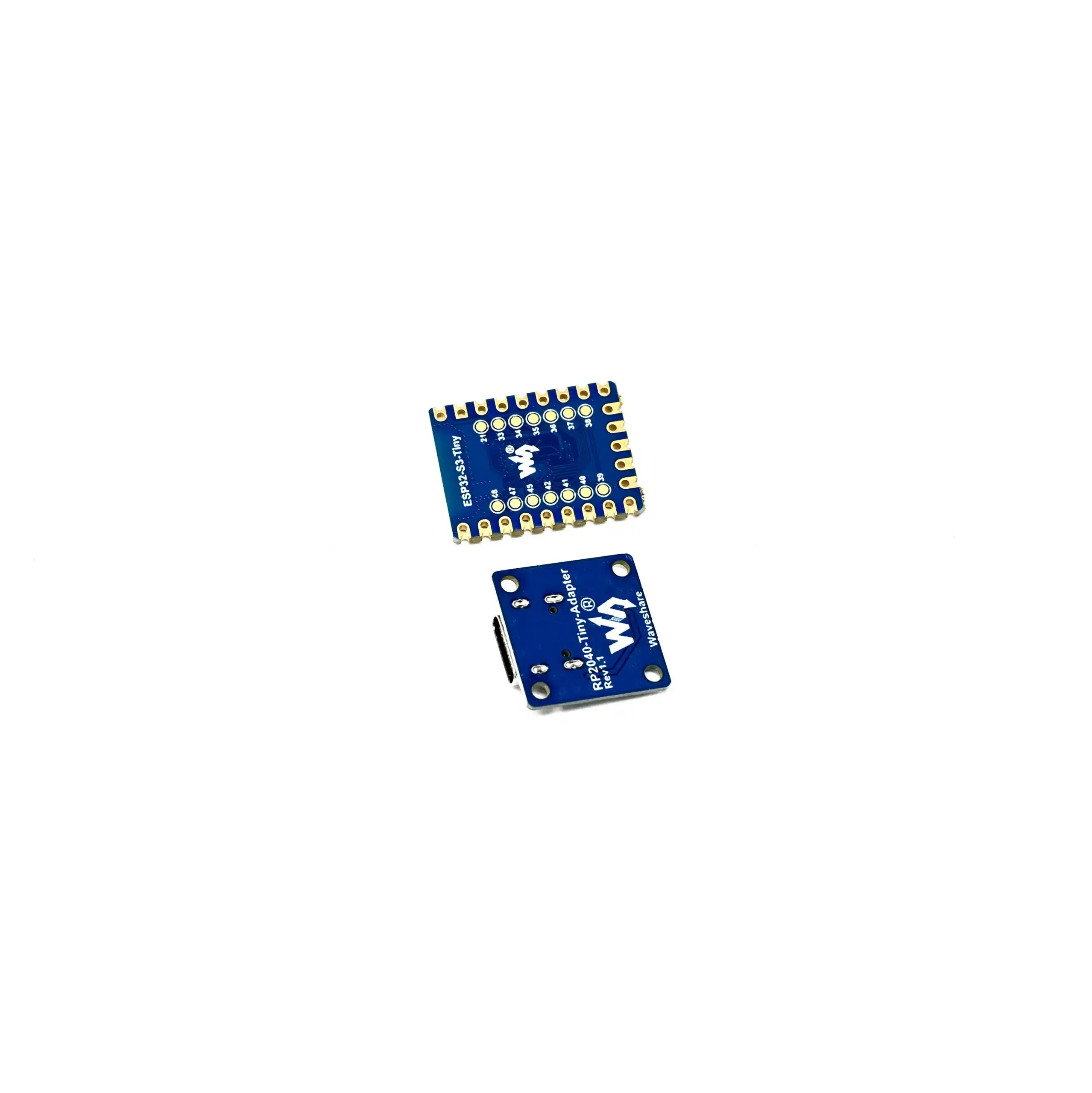

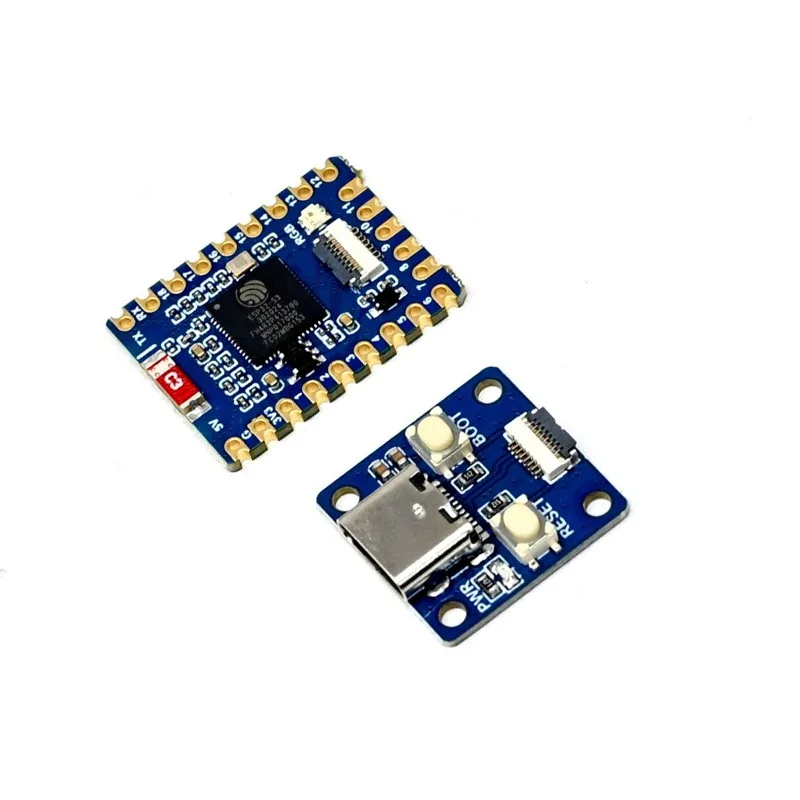

The Waveshare ESP32-S3 Mini Development Board is built around the ESP32-S3FH4R2 chip featuring an Xtensa 32-bit LX7 dual-core processor running up to 240MHz. It integrates 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication with superior RF performance. The board comes with onboard 2MB PSRAM and 4MB Flash memory, 512KB SRAM, and 384KB ROM, providing ample resources for various development projects.
Equipped with an FPC 8PIN connector and support for USB Type-C port via adapter board, it offers flexible connectivity options. With 34 multi-function GPIO pins and rich peripheral interfaces such as SPI, I2C, UART, ADC, and PWM, it enables versatile functionality. The board also supports multiple low-power operating states, allowing adjustable balance between communication distance, data rate, and power consumption to meet different application requirements.
Features:
- ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, up to 240MHz
- 512KB SRAM and 384KB ROM, onboard 2MB PSRAM and 4MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication
- Onboard FPC 8PIN connector, supports USB Type-C via adapter board
- 34 multi-function GPIO pins for versatile interfacing
- Rich peripheral interfaces including SPI, I2C, UART, ADC, and PWM
- Supports multiple low-power operating states for energy-efficient applications
Specifications:
| Processor | Xtensa 32-bit LX7 dual-core |
|---|---|
| SRAM | 512KB |
| ROM | 384KB |
| PSRAM | Onboard 2MB |
| Flash Memory | 4MB |
| Connector | Onboard FPC 8PIN |
| USB | Type-C port |
Package Includes:
-
1 × Waveshare ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, USB Port Adapter Board Optional
ThingsBoard IoT Dashboard: Self-Hosted Setup Guide
Table of Contents What is ThingsBoard Community vs Professional Edition Installing ThingsBoard on Ubuntu Adding Devices and Dashboards...
Read More →
Smart Warehouse IoT: Inventory and Climate Control
Table of Contents Smart Warehouse Overview Inventory Tracking with IoT Climate Control Systems Worker Safety Monitoring Automated Alerts...
Read More →
IoT Home Insurance Sensor Kit: Leak, Smoke, and Motion
Table of Contents IoT and Home Insurance Water Leak Detection Smoke and Fire Detection Motion and Intrusion Sensing...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Interface / Protocol | USB |
| Frequency | 240MHz |
| SKU | AI7513 |
| Weight | 0.04 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, USB Port Adapter Board Optional is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
