Description:

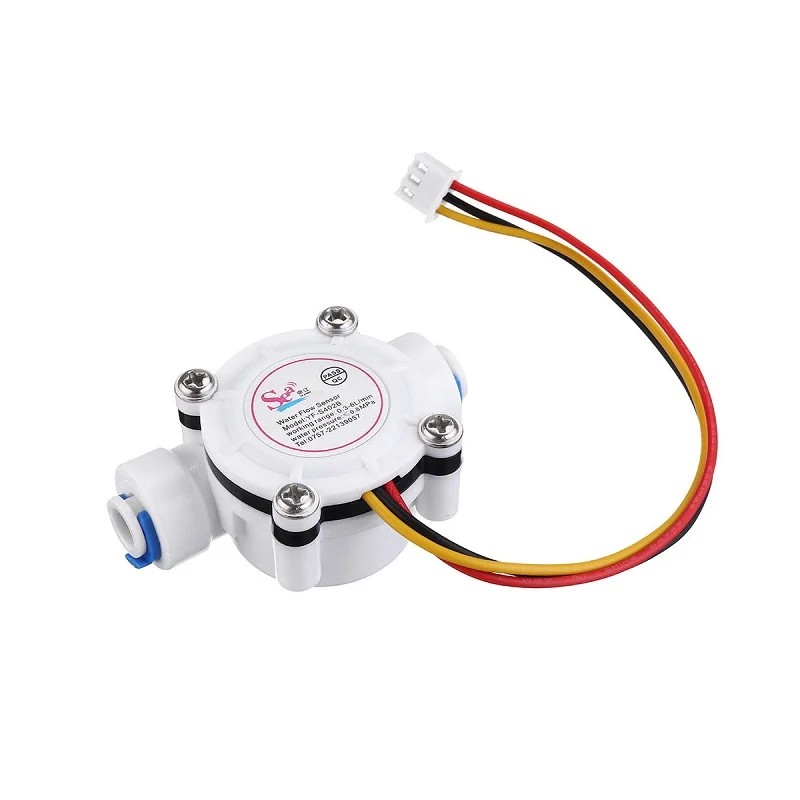

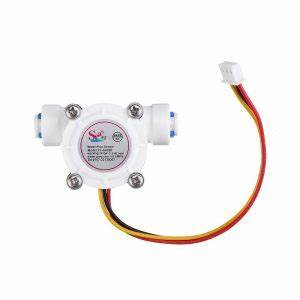

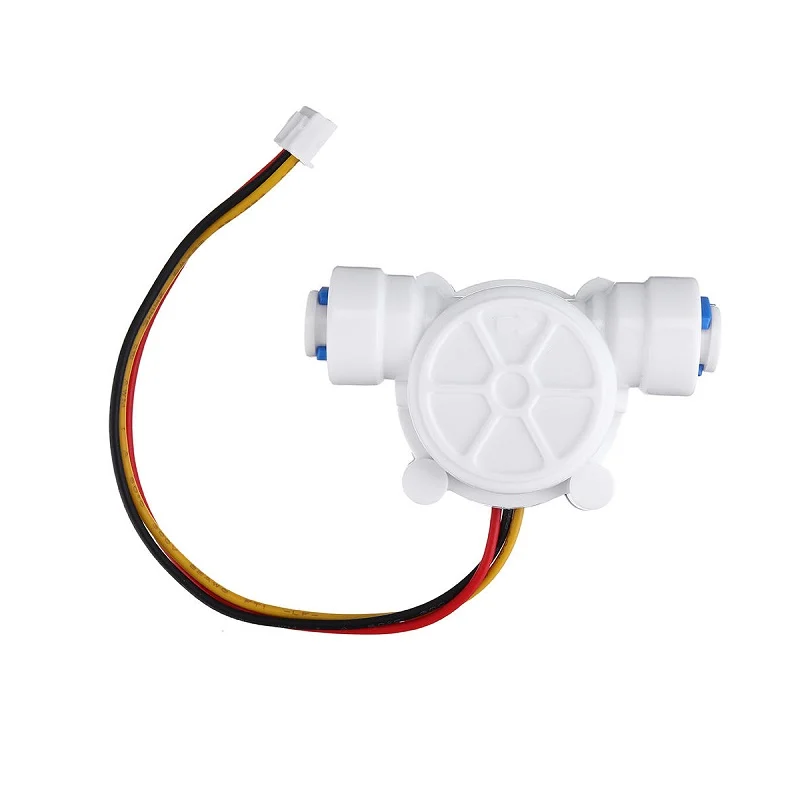

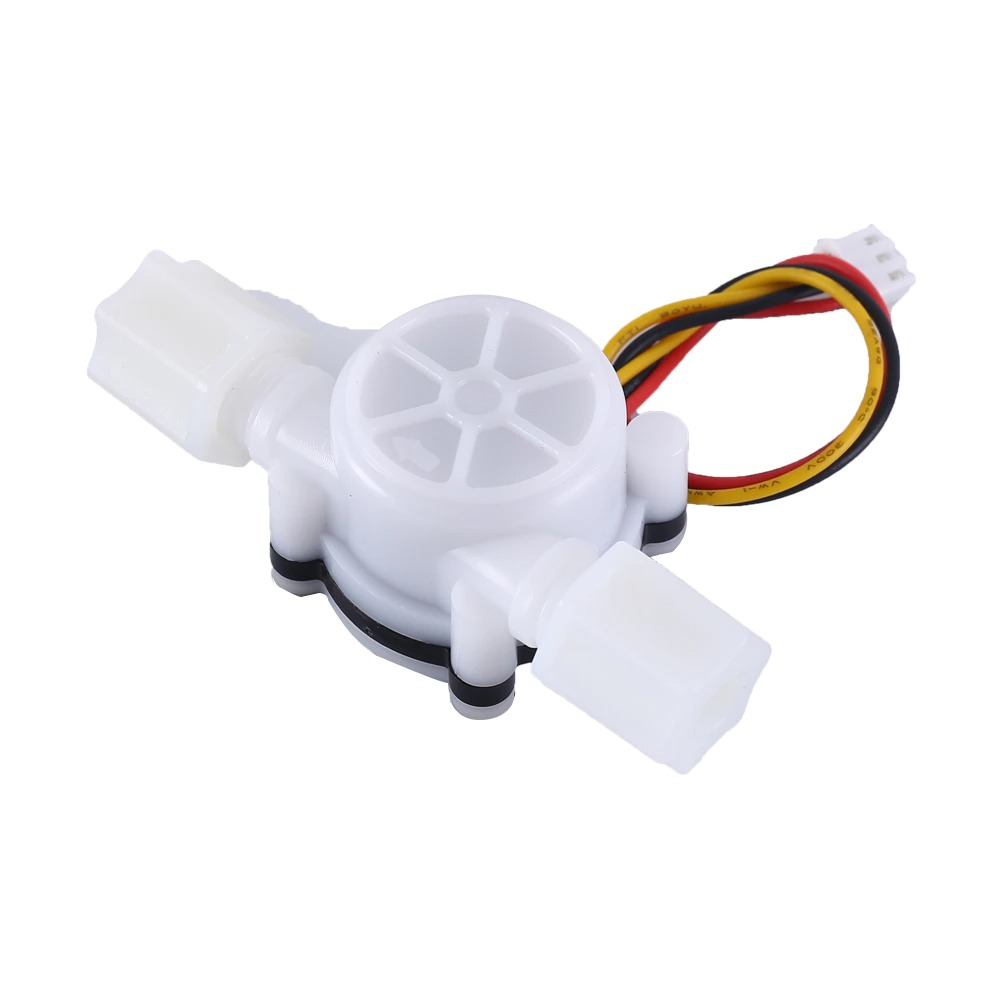

This is a Water Flow Sensor YF-S402B 5-24V Flowmeter 0.3-6L/Min. The  1/4 inch water flow sensor is basically a small turbine whose output signal is a series of digital pulses. The frequency of the pulses is proportional to the flow rate of the liquid passing through the sensor. That digital signal, whose frequency is in the range between 0Hz and 100Hz, can be read directly through one of the digital input/output pins of a microcontroller.
Specification:
Water Flow Sensor
Model: YF-S402
Working Range: 0.3-6L/Min
water pressure: < 0.8 MPa
Operating Voltage: 3.5-24VDC
Max. working current: 15mA (DC 5V)
Load capability: <= 10mA (DC 5V)
Input/Output Diameter: 6.35mm
Applications: –
Suitable for water heater, POS terminal, Automatic water dispenser, Water Purifier, etc.
Package Includes:
1 x Water Flow Sensor YF-S402BÂ Flowmeter 0.3-6L/Min
