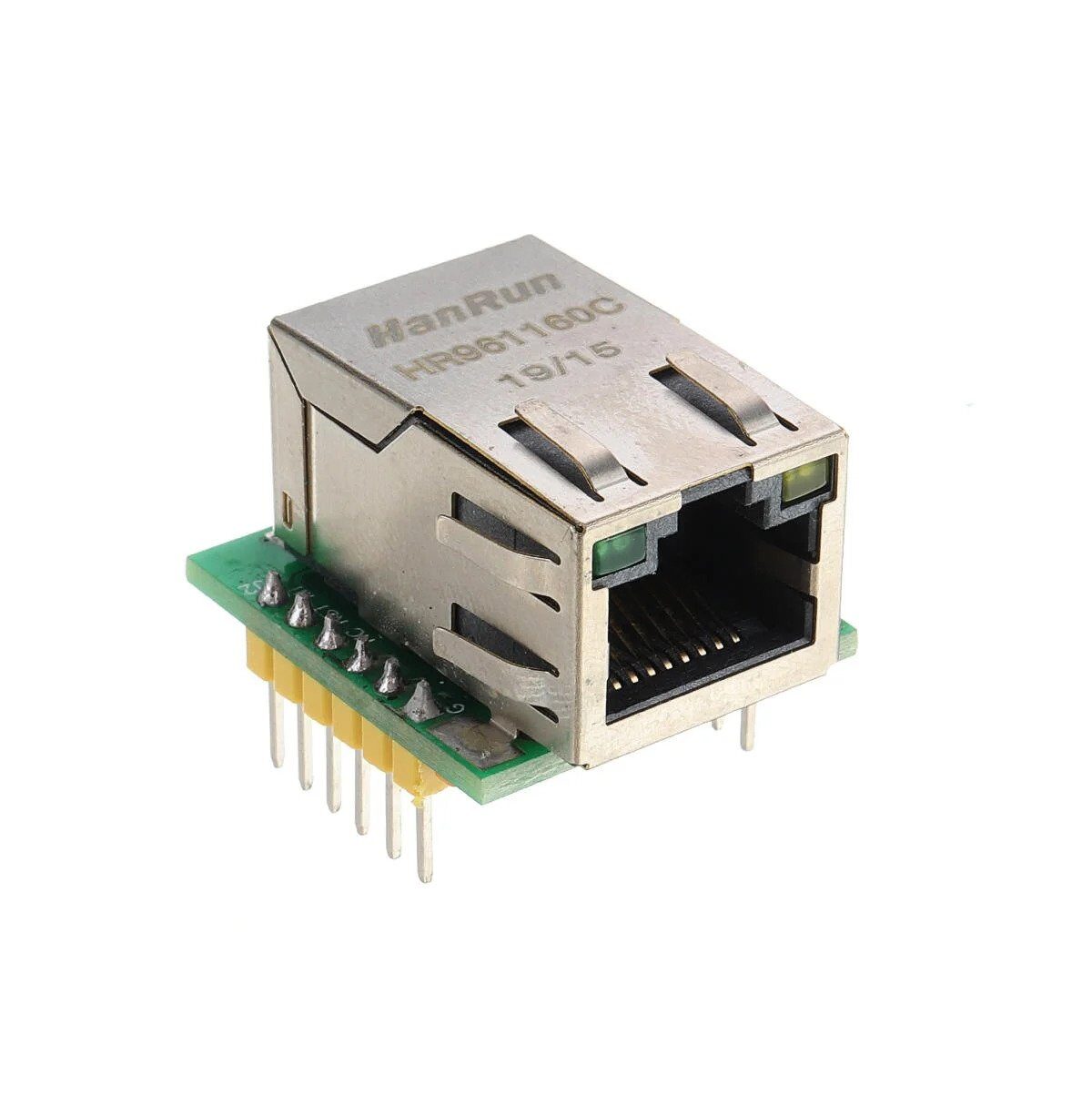

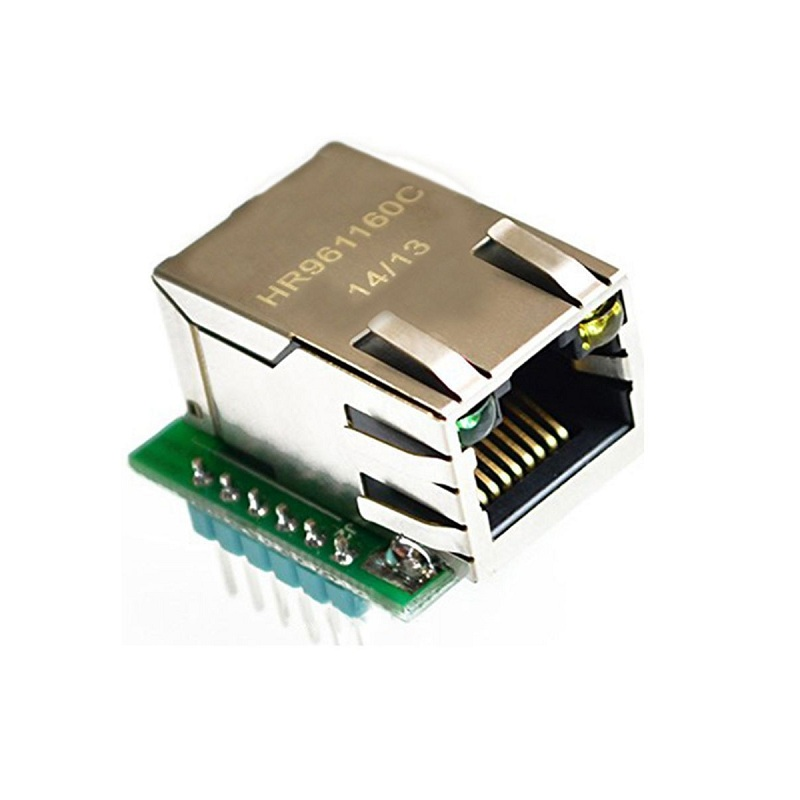

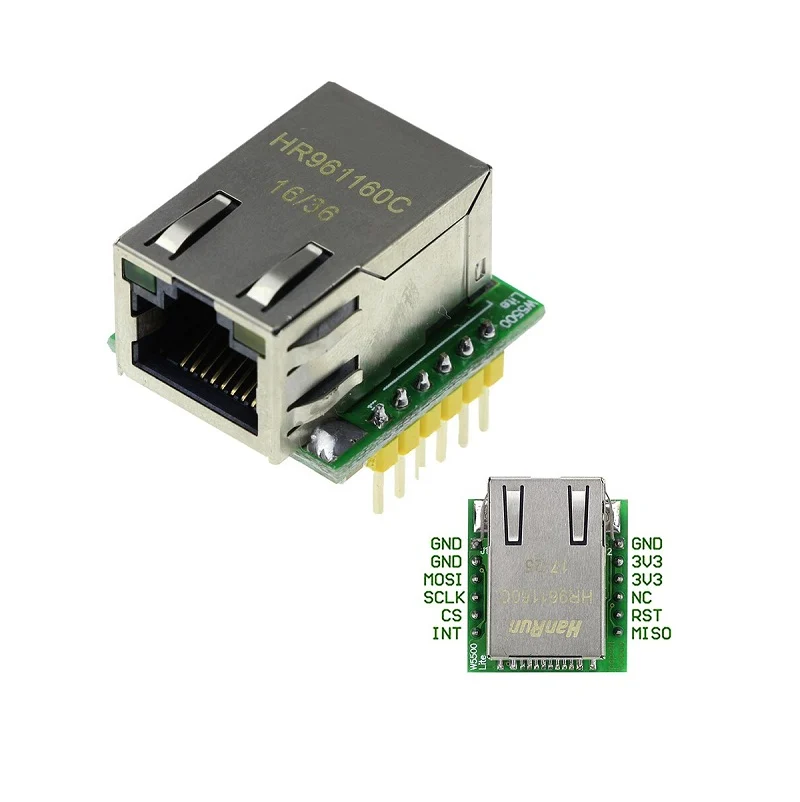

W5500 TCP / IP SPI to LAN Ethernet Interface SPI to LAN / Ethernet Converter
The W5500 stands as a comprehensive TCP/IP embedded Ethernet controller, offering a streamlined Internet connectivity solution for embedded systems. Employing hardware logic gates, it effectively implements the transport and network layers of the TCP/IP protocol stack, encompassing protocols such as TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE, among others. Integrated with a data link layer, physical layer, and 32K bytes of on-chip RAM for data transceiving buffer, it significantly reduces the workload of the host computer’s main control chip. This translates to minimized processing tasks related to data copying, protocol handling, and interrupt processing, thereby enhancing system utilization and reliability.
Specification/Features:
Package Includes
- 1 x W5500 TCP / IP SPI to LAN Ethernet Interface Module
W5500 Chipset Datasheet
W5500 Shematic
Video
