PRODUCT DESCRIPTION

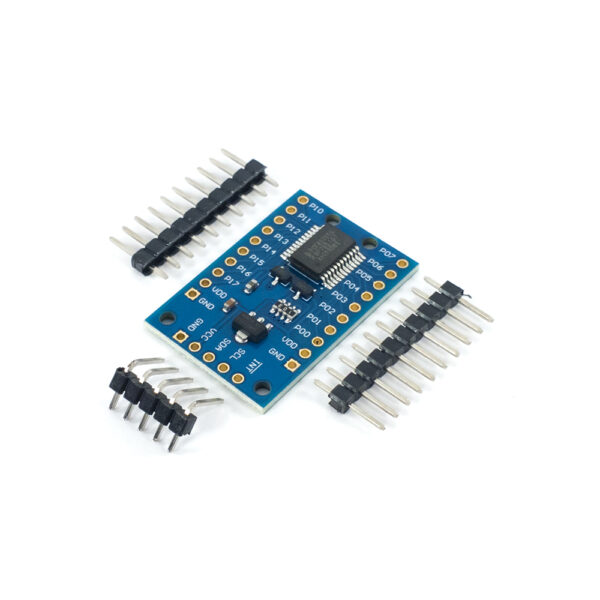

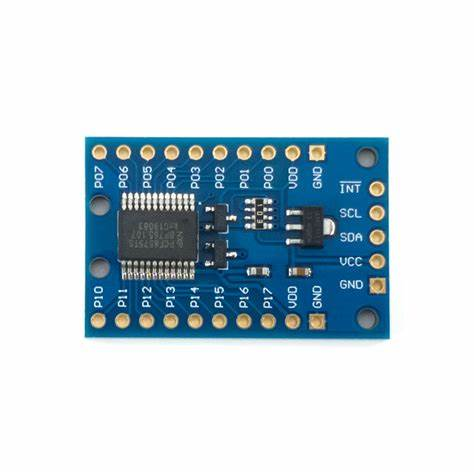

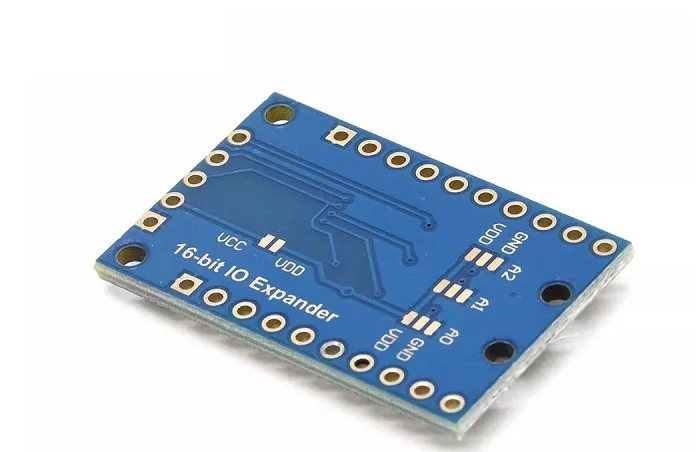

This module lets you add up to 16 input/output pins by using only two pins for control. It uses the PCF8575 chip, which has an I2C interface and 16-bit quasi-bidirectional input/output pins. It also has a 3.3V level converter circuit on board. If you don’t solder the VCC-VDD pad, the PCF8575 level will be 3.3V. If you do, the level will match VCC.
Features:
- 16 individually addressable pins.
- Each pin configurable for input or output
- Open drain interrupts output pin for input change interrupt.
- Ideal for R3 and other MCUs to simple relay, buzzer, button, led.
Package Includes:
1 x Expander Module
Technical Specifications
| Model | PCF8575 |
|---|---|
| Interface / Protocol | I2C |
| SKU | AI2944 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PCF8575 Remote 16 Bits I2C IIC SMBus I/O Expander Module is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
