Serial DB9 RS232/485 9 pin Terminal Female Screw

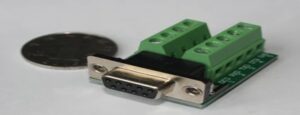

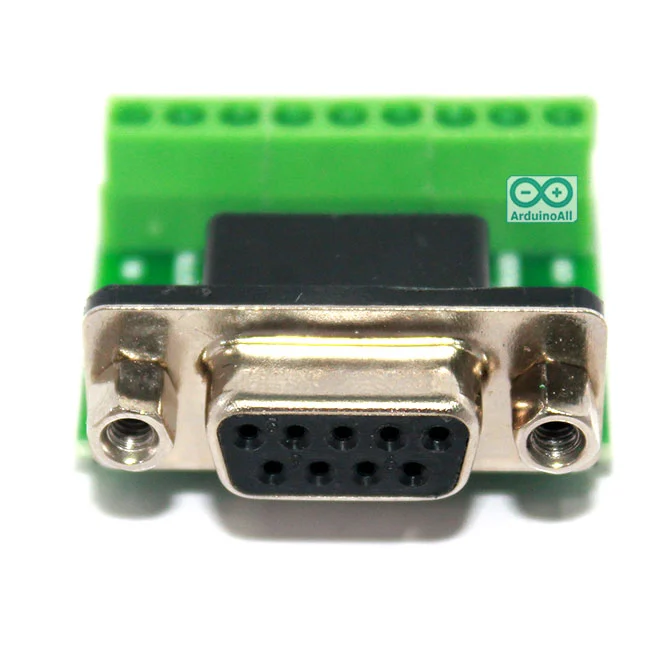

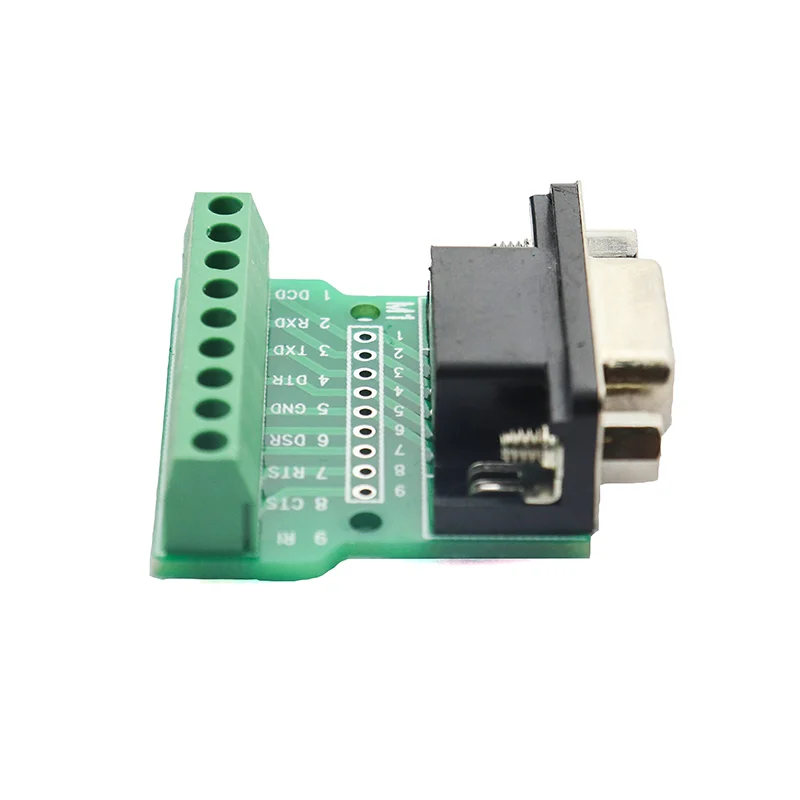

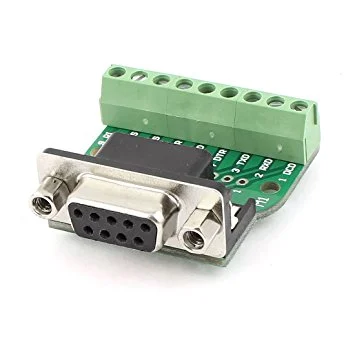

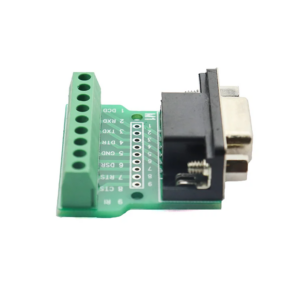

Introducing the DB9 Female Adapter Plate Signal Module, a practical and efficient solution for connecting RS232 serial DB9 9-pin devices to 4+5 position screw terminal blocks. This adapter plate streamlines wiring and simplifies project setups, making it ideal for on-site equipment commissioning. Equipped with a screw terminal block that accommodates wire sizes from 24 to 12 AWG and features a 5.08mm pitch, it ensures secure and reliable connections for your projects.
The all-copper DB9 socket enhances electrical contact and resists oxidation, providing long-lasting performance and stable signal transmission. Perfect for a range of applications, this adapter plate is a convenient tool for both industrial and DIY projects that require DB9 connectivity, offering ease of use and dependable reliability.
Specification:
| Specification | Value |
|---|---|
| Connector Type | DB9 (D-sub 9) Female |
| Interface | RS232/RS485 |
| Pin Configuration | 9 pins |
| Terminal Type | Screw terminals |
| Compatibility | Devices requiring RS232 or RS485 serial communication |
| Wire Range | 24 AWG to 12 AWG |
| Pitch | 5.08mm |
| Material | All-copper |
| Features | Anti-oxidation for improved contact reliability |
| Application | Used for connecting and terminating serial communication cables with ease |
PACKAGE INCLUDES
1 X Serial DB9 RS232/485 9 pin Termina Female Screw
Serial DB9 RS232/485 9 pin Terminal Female Screw Overview

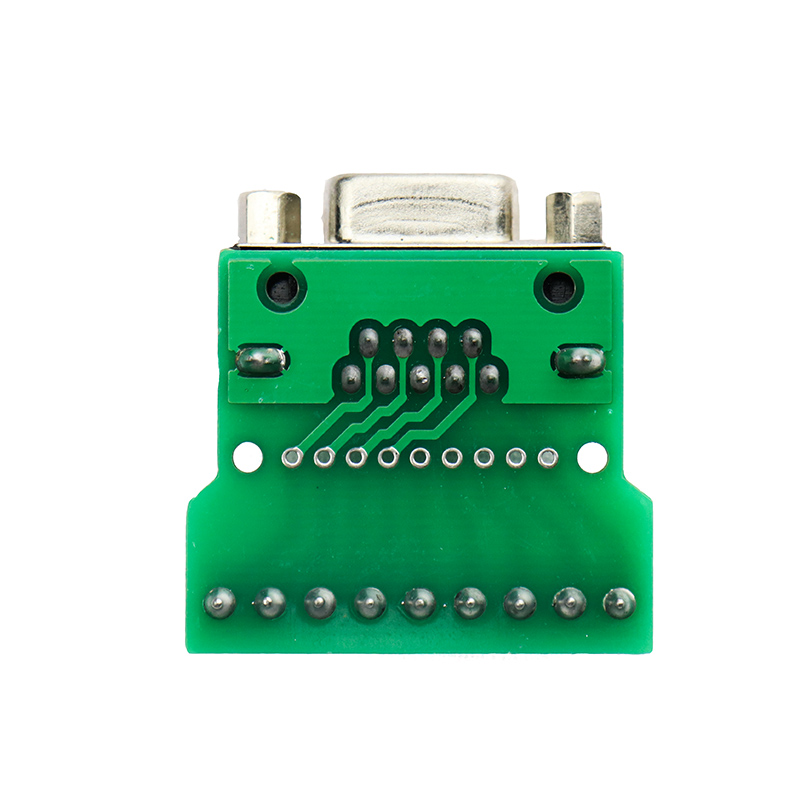

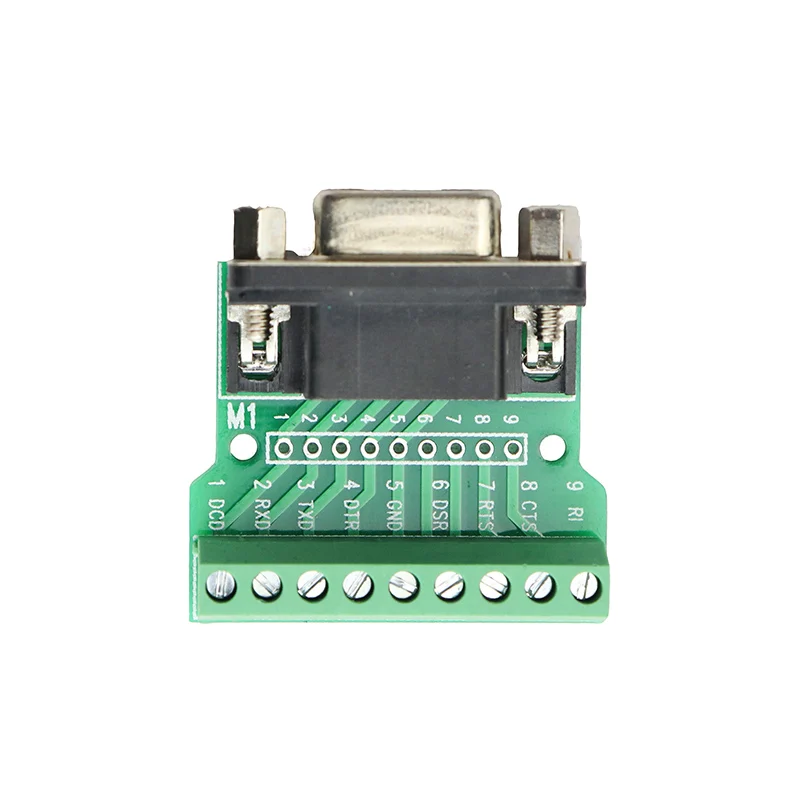

The Serial DB9 RS232/485 9 pin Terminal Female Screw is a compact adapter plate that provides a DB9 female connector mapped to a 4+5 position screw terminal block. It’s designed to simplify wiring for RS232 or RS485 serial devices by allowing direct connection of 24–12 AWG wires without soldering.
Key Features of Serial DB9 RS232/485 9 pin Terminal Female Screw
- Screw terminal block with 5.08 mm pitch for secure 24–12 AWG wire connections
- All-copper DB9 female socket for enhanced electrical contact and oxidation resistance
- Breakout design supports both RS232 and RS485 serial interfaces
- Compact, cover-less PCB format ideal for on-site equipment commissioning
- Mounts directly to standard panel cutouts for quick installation
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Connecting industrial PLCs and HMIs to field wiring without soldering
- Wiring data loggers or modems for remote monitoring systems
- On-site commissioning of RS485 sensor networks in building automation
- Integrating legacy RS232 devices into modern control panels
- Prototyping serial communication hardware in robotics and research labs
How to Use Serial DB9 RS232/485 9 pin Terminal Female Screw
Mount the adapter plate in your panel opening, strip each wire to about 8 mm, insert into the appropriate terminal clamp, and tighten the screw to secure. Plug a standard DB9 male cable into the female socket, select RS232 or RS485 mode on your device, and power up—no soldering required.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What wire gauge does the terminal block accept?
The screw terminal block accepts solid or stranded wires from 24 AWG up to 12 AWG, tightened securely via high-torque screws.
Does this adapter provide active RS232 to RS485 conversion?
No, it is a passive breakout plate. You must use external transceivers or configure your host device for the desired RS232 or RS485 signaling.
Is a protective cover included with this adapter?
No cover is supplied. The PCB-mounted design is intended for enclosed panel installations or use inside equipment racks.
