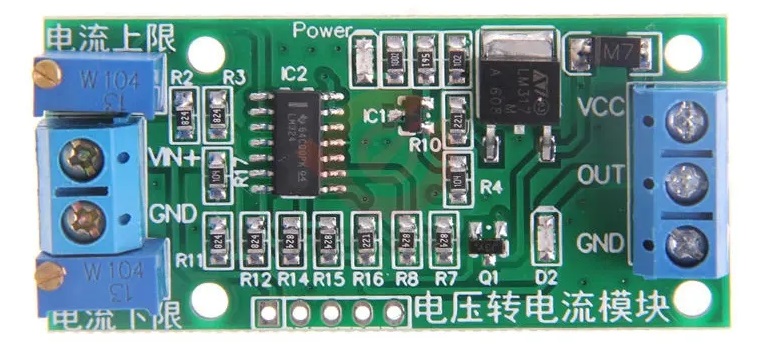

Voltage (0-5V) to Current (4-20mA) Converter Module
A voltage-to-current module can convert a 0-5V voltage signal into a 4-20mA current signal. As the transmission distance increases, the voltage signal in the circuit may weaken; however, this can be mitigated by using a current signal, which is less susceptible to weakening over distance.
 Features:
- Power supply voltage 7-30VDC power supply voltage must be greater than the voltage to be converted
- The voltage signal to be converted: 2.5V 3.3V 5V 10V 15V 24V (Depends on Module Specifications; looks same but function is different)
- Output current: O-20mA or 4-20mA
- Both zero point and full scale can be adjusted by potentiometer
- The module has isolation properties, non-optocoupler isolation.
Package Includes
1 x Voltage (0-5V) to Current (4-20mA) Converter Module
