Looking for Power Supply Transfer Module? XH-M229 Desktop PC ATX Power Supply Transfer Module is available at Zbotic with fast shipping across India.
Product Description

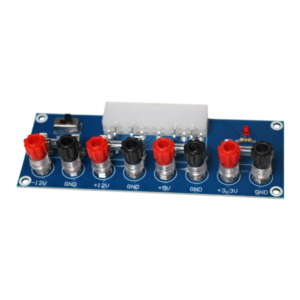

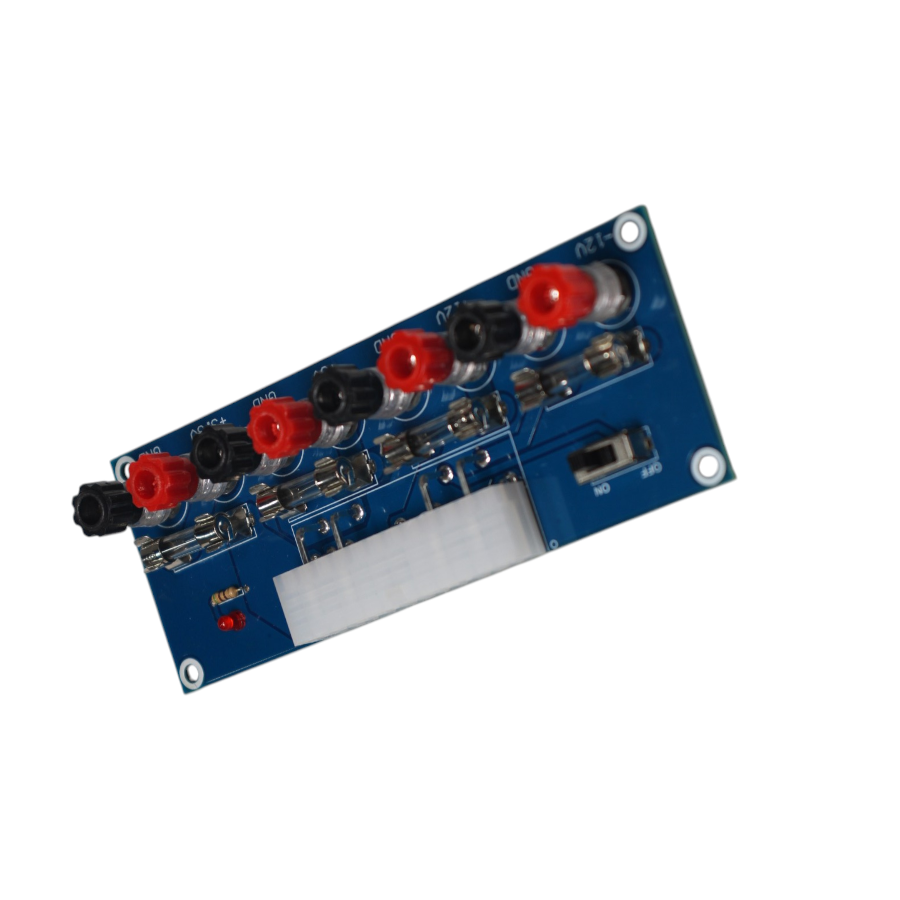

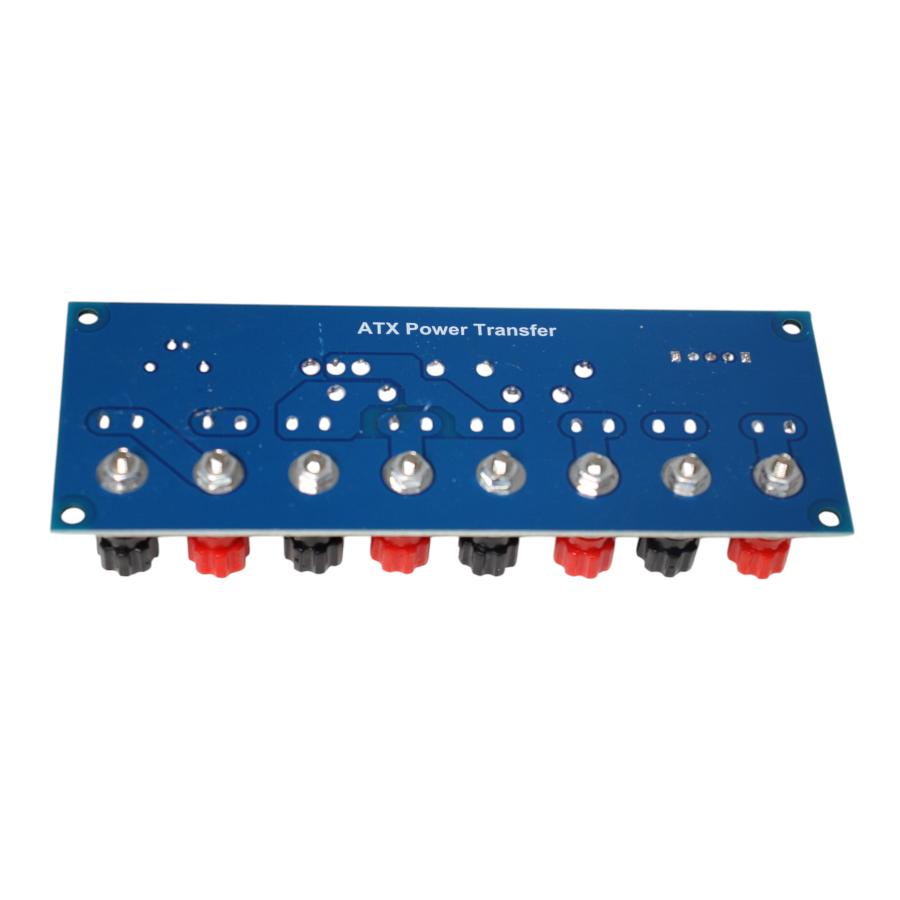

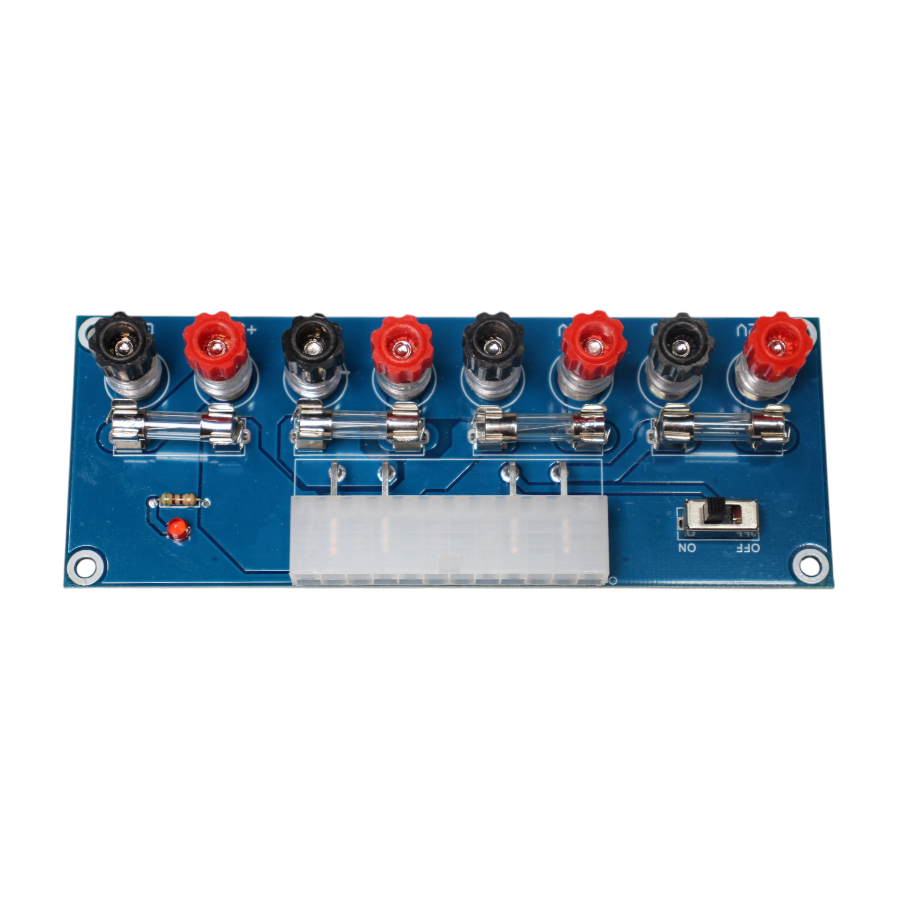

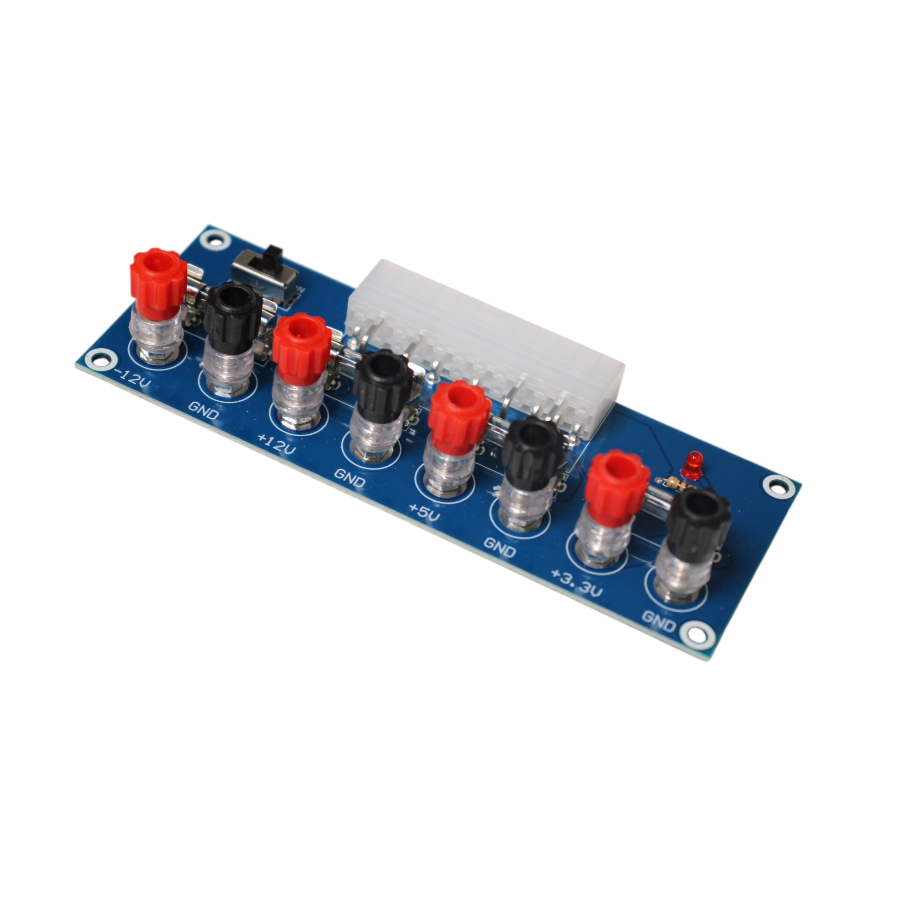

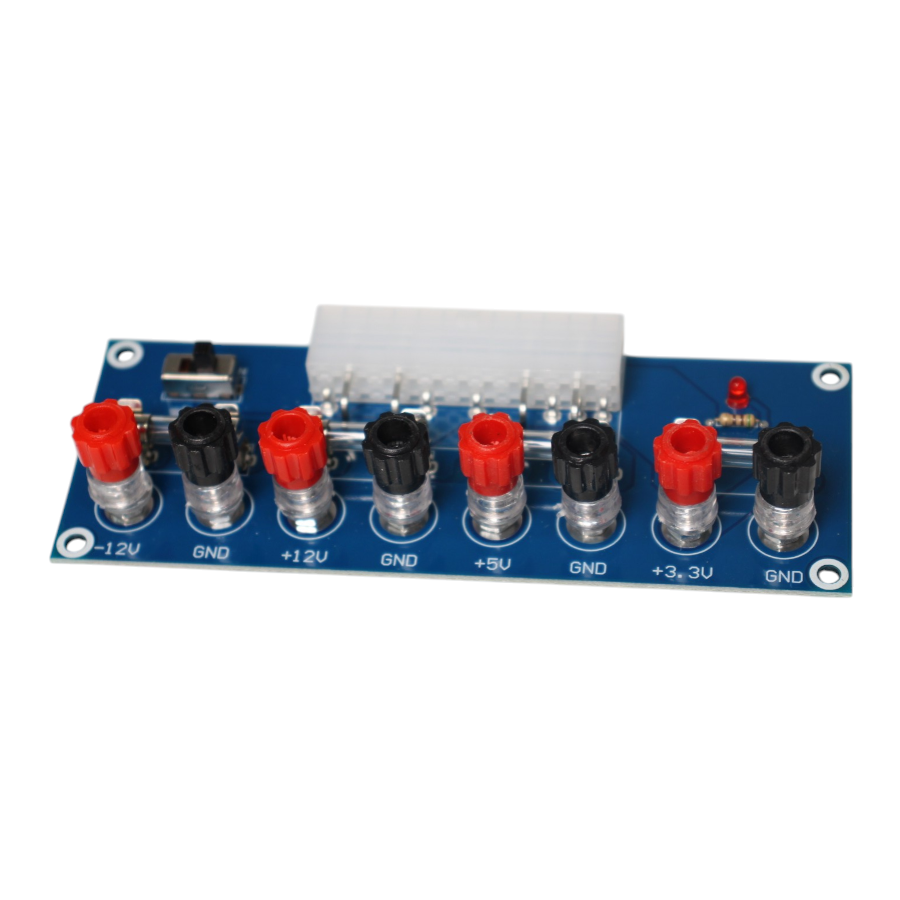

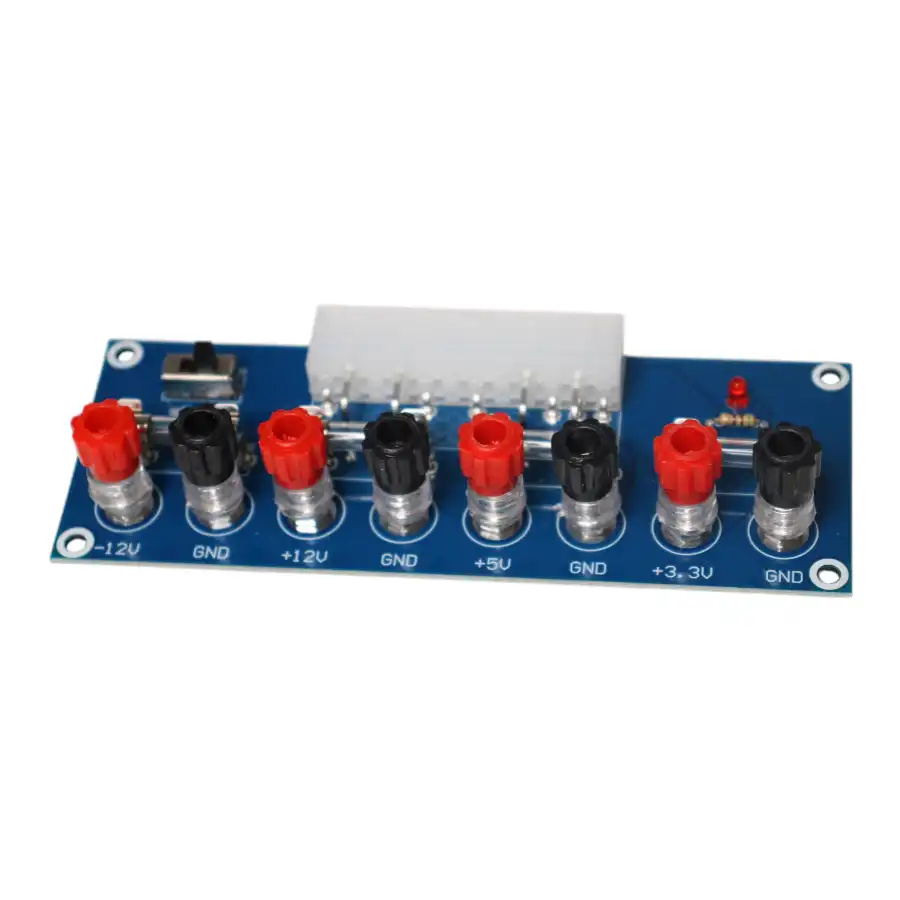

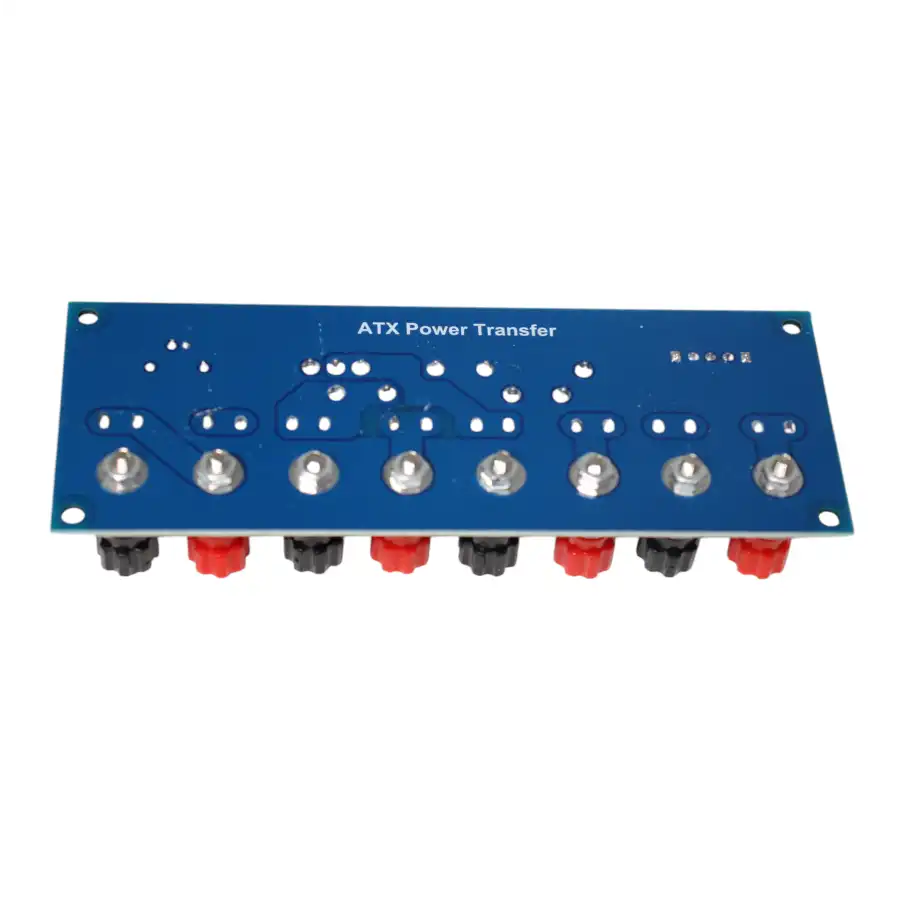

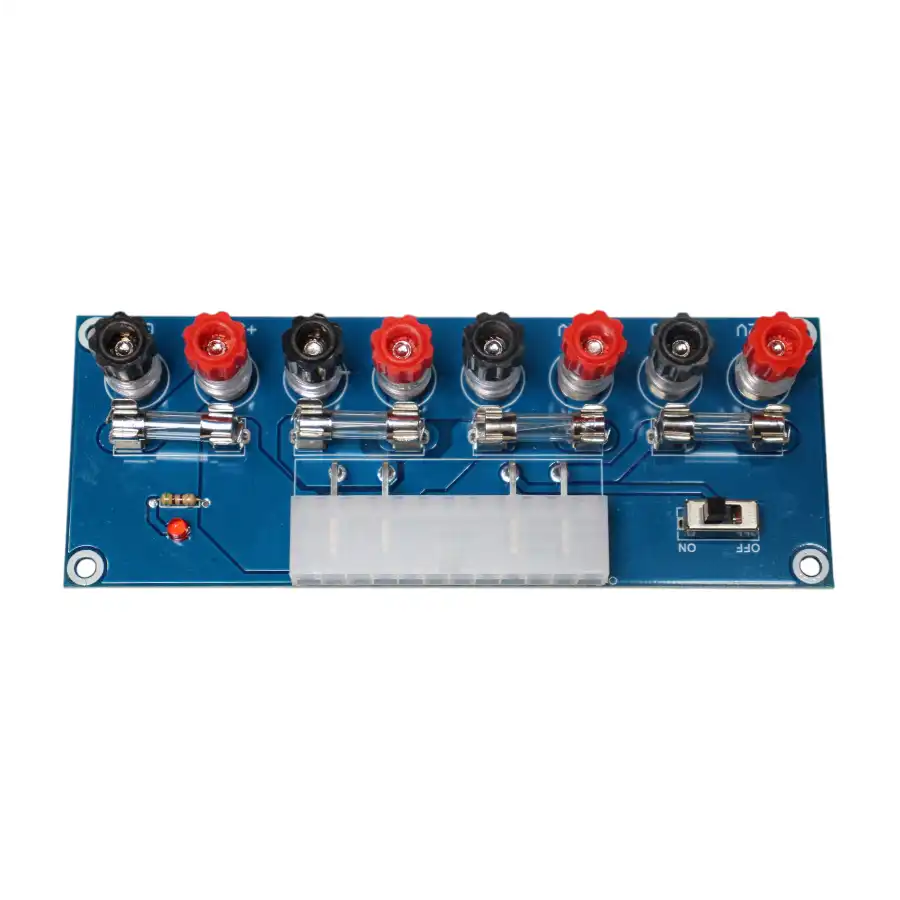

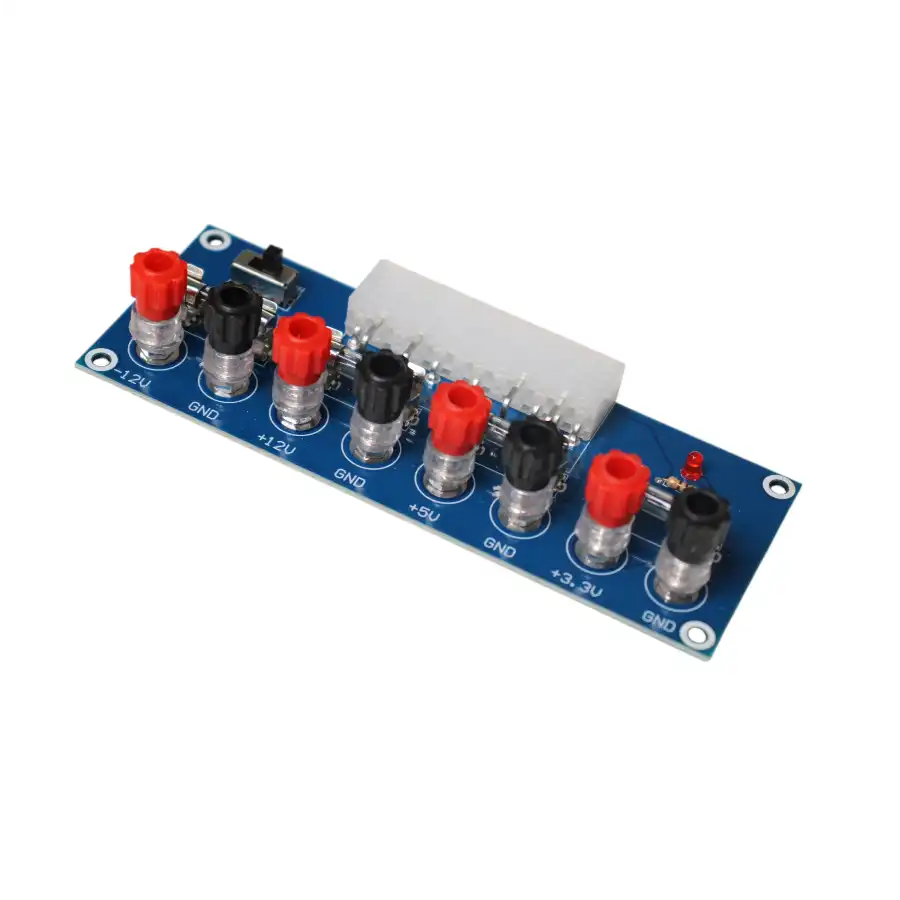

This module divides a 24-pin ATX power supply cable into four separate outputs. Each output has its own ground and output fuses for safety. The module provides two binding posts per output for connecting external devices. The module also features an ON/OFF switch that can turn on or off the outputs as needed.
Features:
- Standard 24 pin motherboard power connector at the input.
- Four separate outputs with fuse
- Onboard ON/OFF switch
- Good Quality
Specification:
| Model | XH-M229 |
|---|---|
| Input | 24 Pin ATX motherboard power supply connector |
| Output | -12VDC +12VDC +5VDC +3.3VDC |
| Onboard Fuse | Fuse on each output |
| Length (mm): | 135 |
| Width (mm) | 50 |
| Height (mm) | 25 |
| Weight (g): | 68 |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 15 × 10 × 3 cm |
Package Includes:
1 x XH-M229 Desktop PC ATX Power Supply Transfer Module
XH-M229 Desktop PC ATX Power Supply Transfer Module Overview
The XH-M229 Desktop PC ATX Power Supply Transfer Module converts a standard 24-pin ATX motherboard power connector into four separate, fuse-protected outputs with individual binding posts. It’s designed to simplify bench testing and DIY electronics setups by offering multiple voltage rails and an onboard power switch.
Key Features of XH-M229 Desktop PC ATX Power Supply Transfer Module
- Standard 24-pin ATX motherboard power connector input for easy PSU integration
- Four separate outputs with individual fuses for +12V, +5V, +3.3V and –12V rails
- Two binding posts per output for secure, quick connections to test devices
- Onboard ON/OFF switch to control power to all outputs simultaneously
- Dedicated ground rail for each output channel to prevent cross-noise
- Fast shipping from Zbotic across India – get genuine modules delivered quickly
Applications and Use Cases
- Bench testing PC components or add-on cards without installing them in a chassis
- Powering multiple breadboard circuits or sensor arrays simultaneously
- Educational labs requiring stable +3.3V, +5V, +12V and –12V rails
- DIY electronics projects where separate fused outputs are essential for safety
- Prototyping embedded systems with different voltage requirements
How to Use XH-M229 Desktop PC ATX Power Supply Transfer Module
Simply plug a standard 24-pin ATX power supply cable into the module’s input header, secure your device leads onto the matching binding posts, and ensure each line’s fuse is intact. Flip the onboard switch to energize all four outputs, and monitor voltage rails as needed for your application.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage rails does the XH-M229 module provide?
The module provides four distinct outputs: +3.3V, +5V, +12V and –12V, each accessible via dedicated binding posts.
How are the outputs protected on this transfer module?
Each of the four outputs has its own inline fuse to safeguard against overloads or short circuits.
Can I control each voltage rail independently?
The onboard switch powers all outputs on or off together; individual rails are protected by separate fuses but share the single master switch.
Technical Specifications
| Model | XH-M229 |
|---|---|
| SKU | AI2773 |
| Weight | 0.08 kg |
| Availability | In Stock |
Applications & Use Cases
The XH-M229 Desktop PC ATX Power Supply Transfer Module is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
