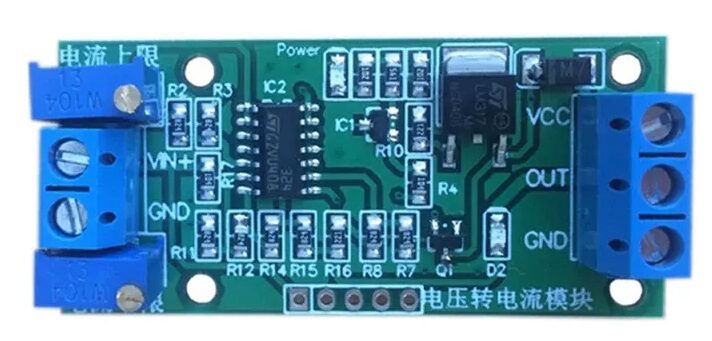

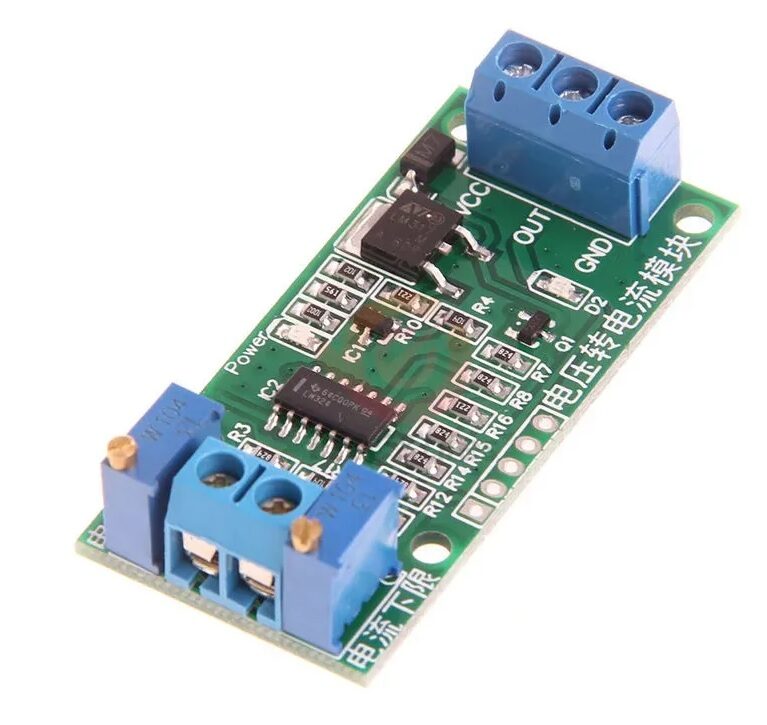

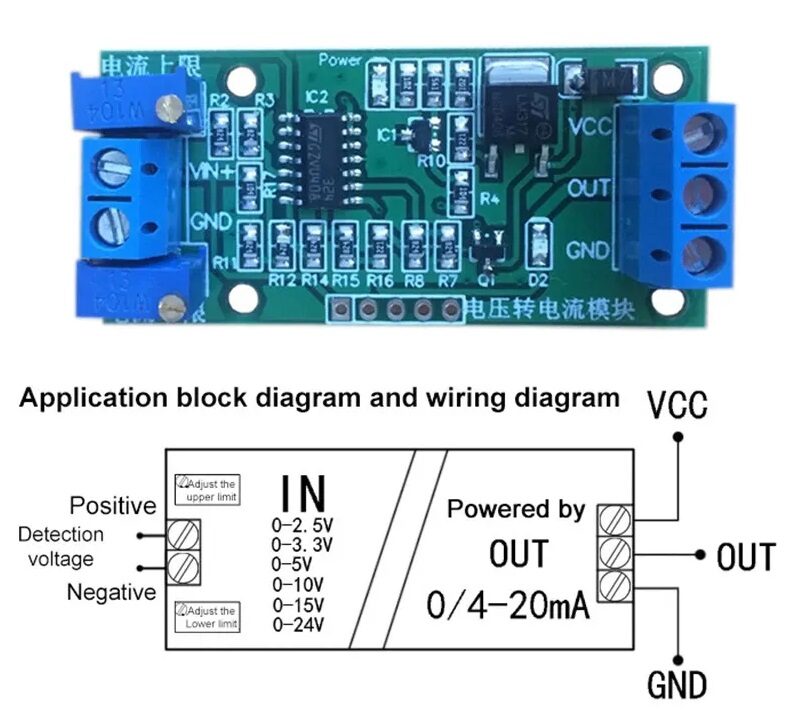

Voltage (0-24V) to Current (4-20mA) Converter Module
A voltage switch current module is capable of converting a 0-24V voltage signal into a 4-20mA current signal. As the transmission distance increases, the voltage signal in the signal transmission circuit may weaken; however, this can be mitigated by using a current signal instead.
Product Features
- Power supply voltage 7-30VDC power supply voltage must be greater than the voltage to be converted
- The voltage signal to be converted: 2.5V 3.3V 5V 10V 15V 24V (Depends on Module Specifications; looks same but function is different)
- Output current: O-20mA or 4-20mA
- Both zero point and full scale can be adjusted by potentiometer
- The module has isolation properties, non-optocoupler isolation.
Package IncludesÂ
1 x Voltage (0-24V) to Current (4-20mA) Converter Module
