This is the Red variant of the Solar Energy Step-down and Step-up Module Red in Electronic Modules. Available at ₹261.96 (₹222.00 + GST) with free shipping across India.

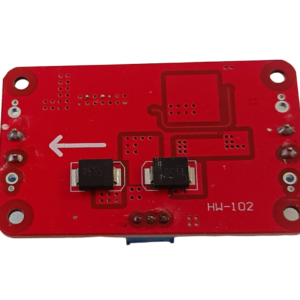

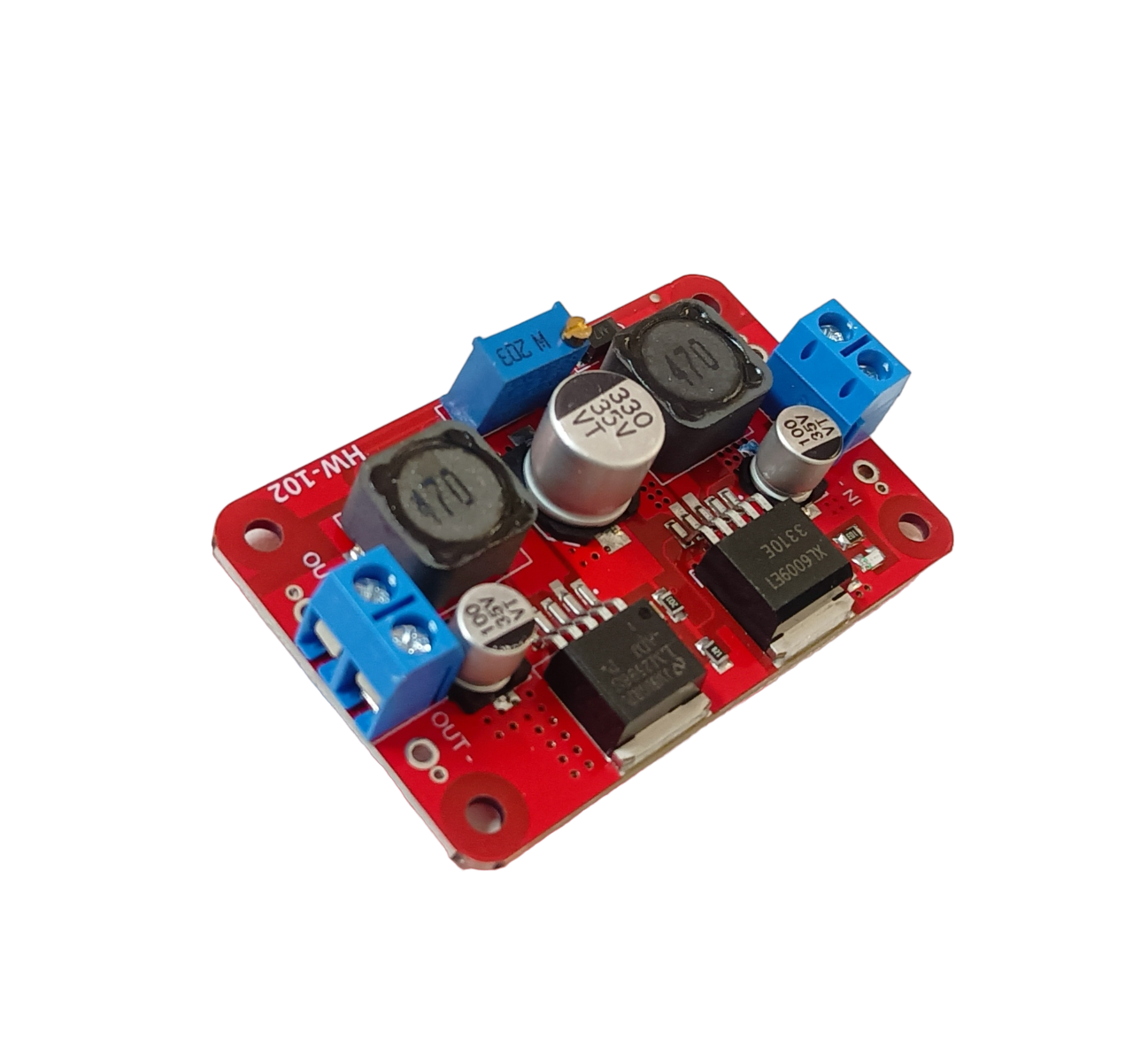

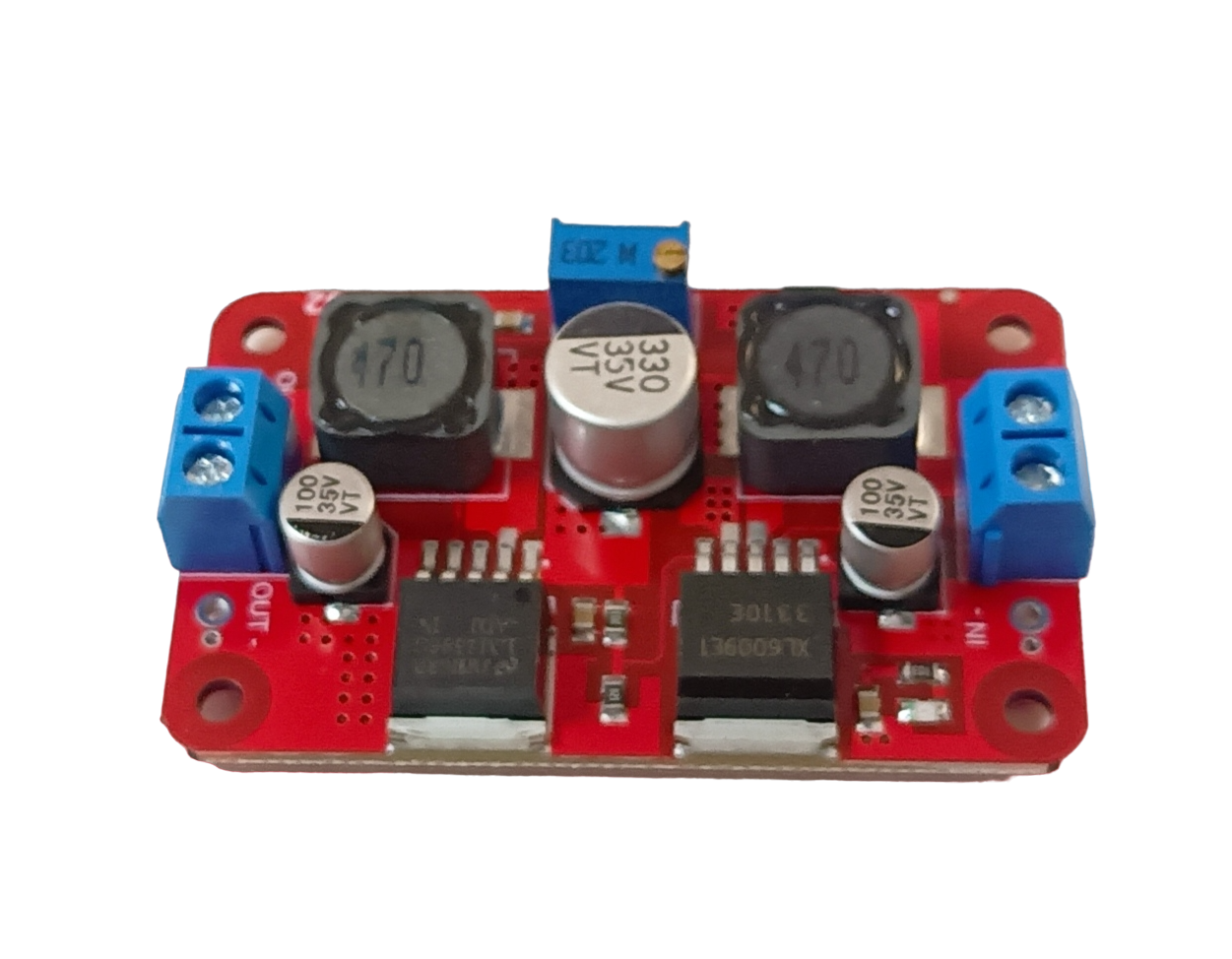

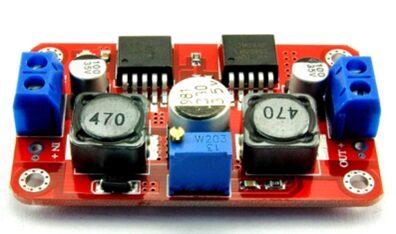

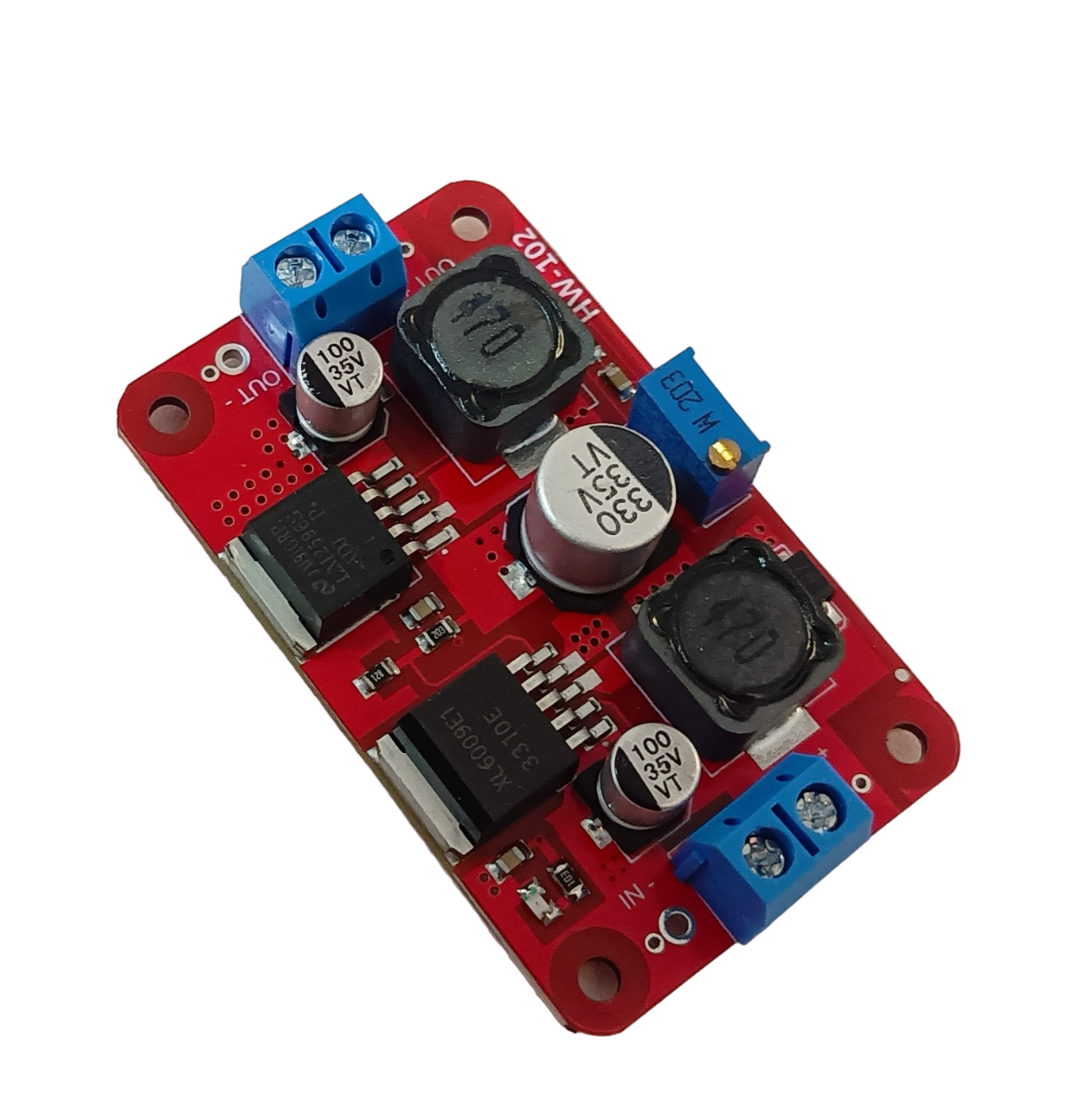

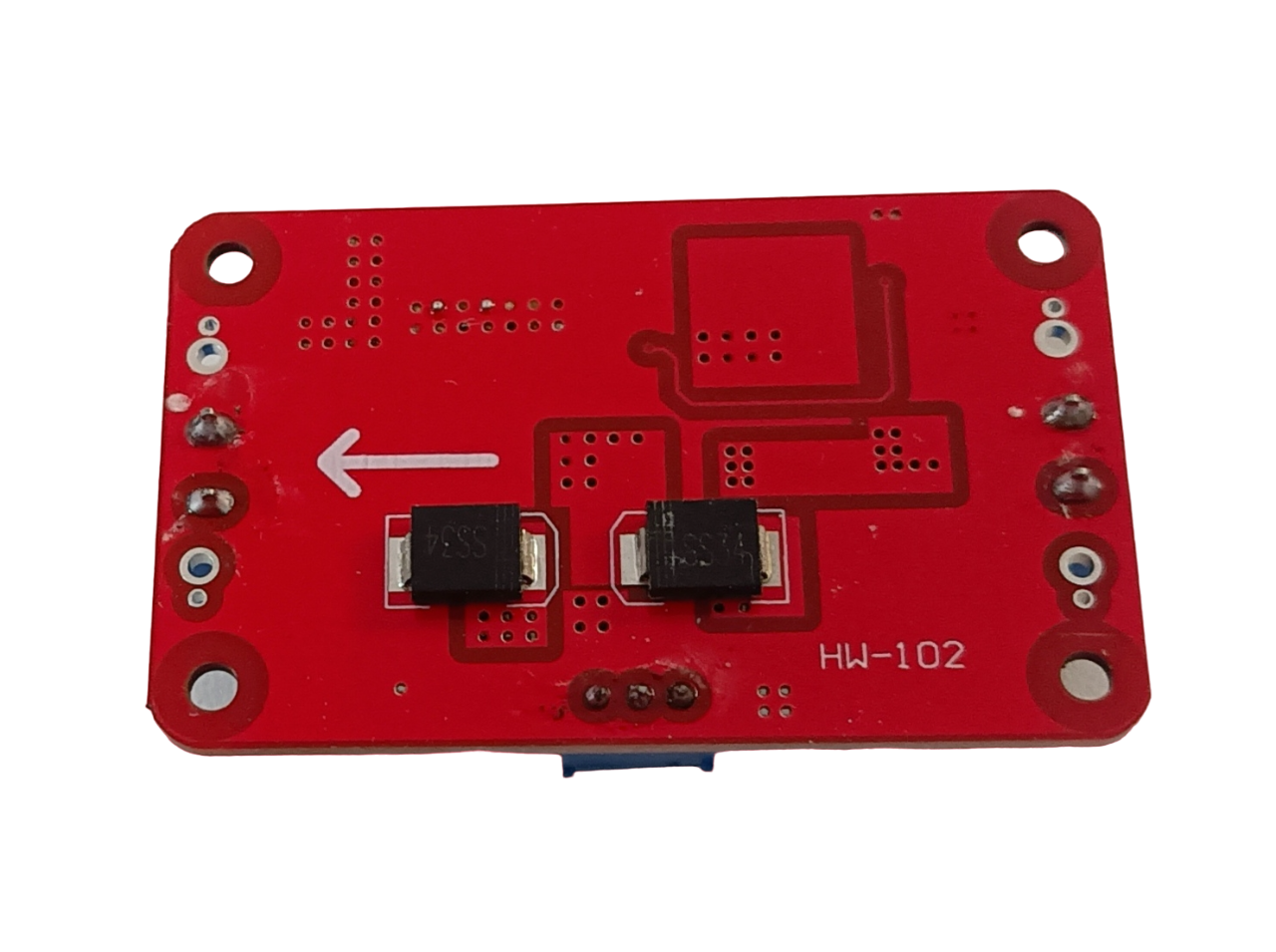

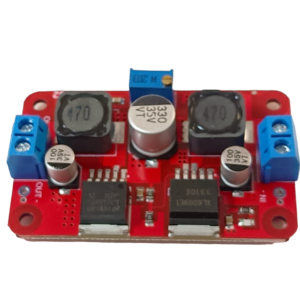

Solar Energy Step-down and Step-up Module Red LM2596 2577 D1A3
The Solar Energy Step-down and Step-up Module (Red LM2596 2577 D1A3) is a highly versatile power converter, designed to efficiently regulate voltage in solar energy systems. Combining both step-down (LM2596) and step-up (2577) capabilities, this module allows seamless integration of solar panels with devices that require different voltage inputs. The LM2596 step-down converter lowers higher input voltages to the desired output level, while the 2577 step-up converter boosts lower input voltages to meet specific requirements.
With its distinctive red design, this module is easy to identify in various installations. Perfect for solar-powered projects, off-grid systems, and battery charging applications, it provides reliable and efficient voltage regulation to optimize energy use and ensure stable power delivery. Whether you’re working on renewable energy setups or DIY solar applications, this module offers the flexibility and performance you need.
Feature and Specification:
Input Voltage: 4-35V.
Output Voltage: 1.25-25V continuously adjustable (default delivery voltage 4.2V current 1A,
need other voltage can be adjusted)
Adjustment Method: the first input power (4-35V) and then use a multimeter to monitor the output voltage and adjust the potentiometer (generally turn up the pressure in turn, reverse the buck)
Output Current: 12V to 5V maximum 2A (output other voltage, calculated by 15W current, formula 15 / output voltage = output current)
Output Power: maximum 15W (such as high temperature please strengthen the heat)
Conversion Efficiency: 80% (the higher the output voltage, the higher the efficiency)
Operating Temperature: industrial (-40 ℃ to +85 ℃ ambient temperature of more than 40 degrees, please reduce the power to use, or strengthen the heat)
Full Load Temperature Rise: 45 ℃
PACKAGE INCLUDES
1 X Solar Energy Step-down and Step-up Module Red
Technical Specifications
| Color | Red |
|---|---|
| SKU | AI3543 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The Solar Energy Step-down and Step-up Module Red is a versatile electronic modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
