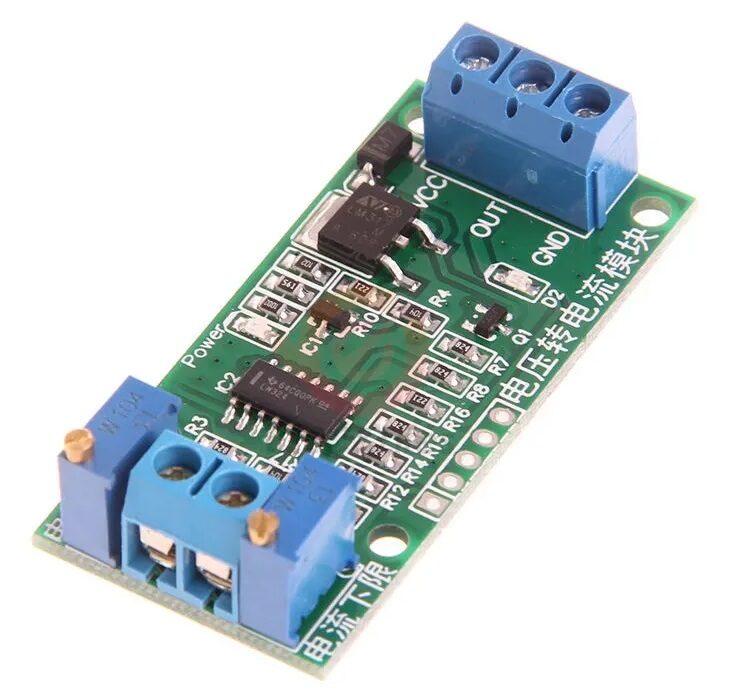

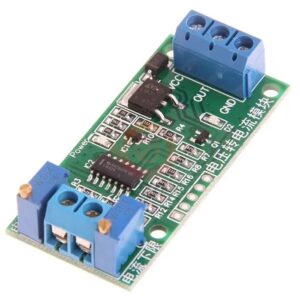

Voltage (0-10V) to Current (4-20mA) Converter Module
A voltage switch current module is capable of converting a 0-10V voltage signal into a 4-20mA current signal. As the transmission distance increases, the voltage signal in the transmission circuit may weaken; this can be mitigated by using a current signal, which is less susceptible to weakening over distance.
Product Features
- Power supply voltage 7-30VDC power supply voltage must be greater than the voltage to be converted
- The voltage signal to be converted: 2.5V 3.3V 5V 10V 15V 24V (Depends on Module Specifications; looks same but function is different)
- Output current: O-20mA or 4-20mA
- Both zero point and full scale can be adjusted by potentiometer
- The module has isolation properties, non-optocoupler isolation.
Package Include
1 x Voltage (0-10V) to Current (4-20mA) Converter Module
Voltage (0-10V) to Current (4-20mA) Converter Module Overview
This Voltage (0-10V) to Current (4-20mA) Converter Module converts a standard 0–10 V control or sensor output into a 4–20 mA current loop signal. Ideal for industrial automation and remote transmission, it ensures signal integrity over long cable runs.
Key Features of Voltage (0-10V) to Current (4-20mA) Converter Module
- Wide supply range: DC 12 V to 24 V allows flexible integration into existing systems.
- Precise conversion: Accepts 0–10 V input and outputs a stable 4–20 mA current loop.

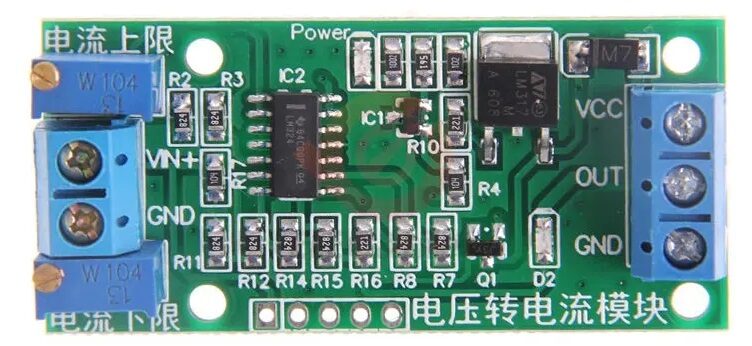

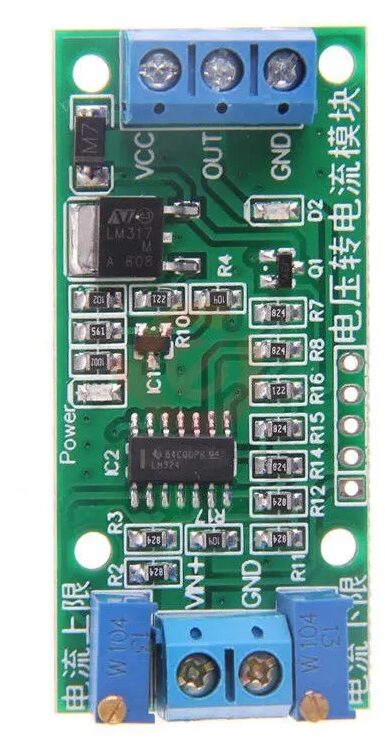

- Zero and span adjustment: Two on-board potentiometers for fine-tuning offset and gain.
- Compact design: Module size of 5.5 cm × 2.5 cm fits DIN-rail holders or custom enclosures.
- Non-isolated design: Direct signal path without optical isolation for straightforward wiring.
- Fast shipping from Zbotic: Dispatch within 24 hours on in-stock items, pan-India delivery.
Applications and Use Cases
- Converting PLC or microcontroller 0–10 V outputs to industry-standard 4–20 mA loops.
- Transmitting temperature, pressure, or flow sensor signals over long cable lengths.
- Integrating analog control signals into SCADA or DCS systems requiring current inputs.
- Upgrading older voltage-based instrumentation to modern current-loop networks.
- Driving remote indicators or actuators in process control environments.
How to Use Voltage (0-10V) to Current (4-20mA) Converter Module

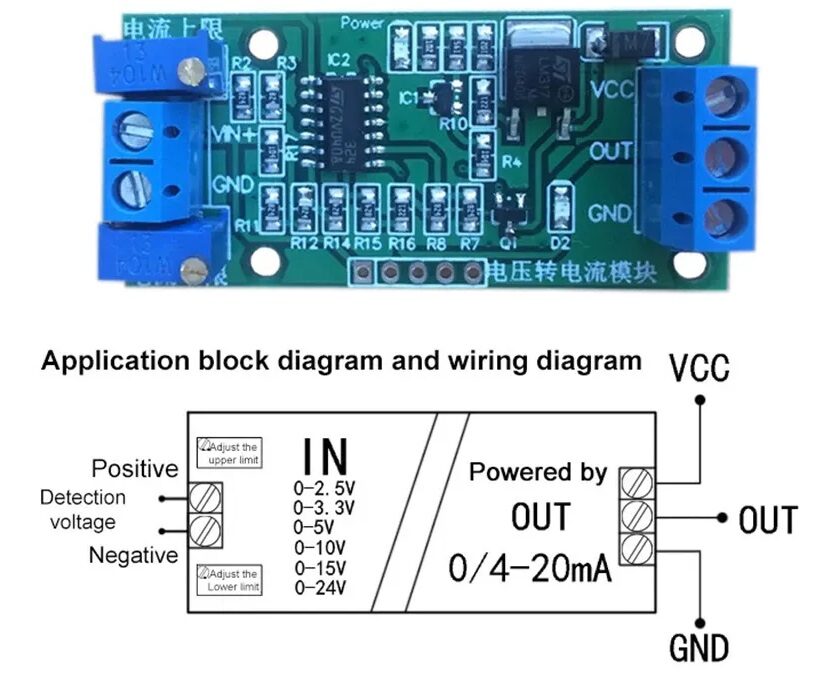

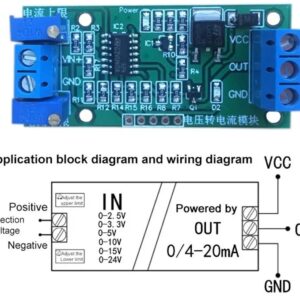

Begin by powering the module with a DC 12 V–24 V supply. Connect your 0–10 V signal source to the input terminals, then wire the 4–20 mA output to your current loop receiver. Adjust the zero and span potentiometers until the output matches 4 mA at 0 V input and 20 mA at 10 V input. Secure the compact module in your control panel or DIN-rail enclosure.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What supply voltage does this converter require?
This module operates on a DC supply between 12 V and 24 V. Ensure the supply voltage exceeds your maximum input voltage (10 V) for proper conversion.
How do I calibrate the 4–20 mA output range?
Use the onboard “Zero” potentiometer to set the output at 4 mA when the input is 0 V, then adjust the “Span” potentiometer so the output reaches 20 mA at 10 V input.
Is the converter electrically isolated?
No, this module is non-isolated, meaning there is no optical or galvanic isolation between input, output, and power supply. Grounding and wiring should follow your system’s grounding scheme.
Technical Specifications
| Current Rating | 20mA |
|---|---|
| SKU | AI1123 |
| Weight | 0.003 kg |
| Availability | Out of Stock |
