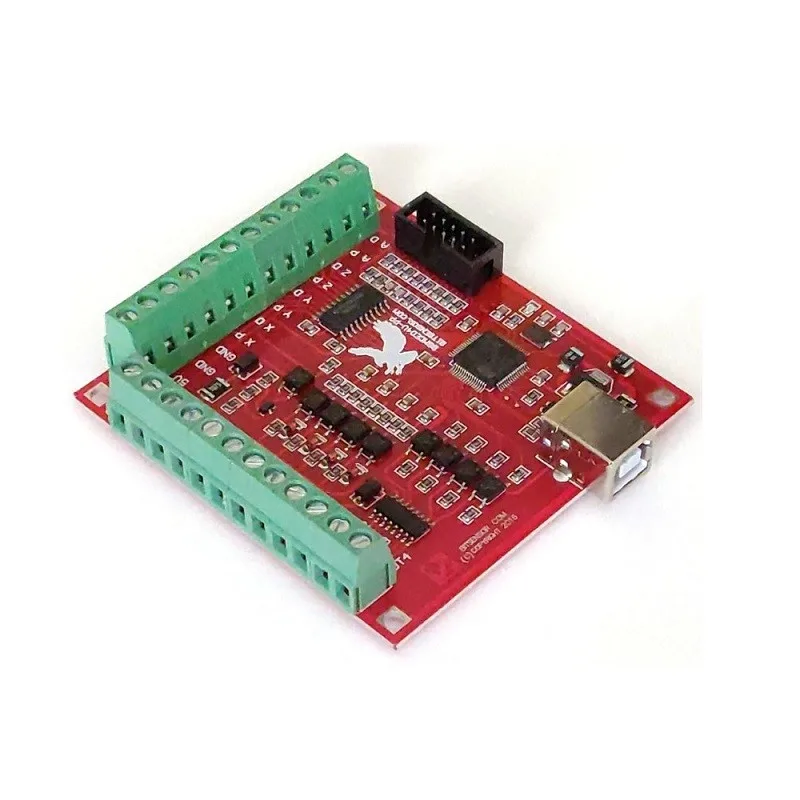

This is USB Interface MACH3 Motion Control Card Flying Carving Card +USB
If you’re tired of needing a parallel port and an outdated PC to run Mach3, this is the solution you’ve been waiting for! Our newest interface board runs through any standard USB port for communication. You simply need to install the card’s plugin for Mach3 and follow the setup instructions.
This Mach3 USB Controller will run Mach3 through a standard USB port on a PC. You can use Windows 10 and older Windows version 32-bit or 64-bit.
Connection Diagram:
Features and Specifications:
- Supports up to 4- axis linkage control. The fourth axis can be set as driven axis
- Output pulse 100K , using the smallest error interpolation algorithm, high precision machining
- USB interface for any PC compatible computer with USB interface for netbooks, laptops, desktops, and tablets
- Compatible in windows 7/8/10.
- Drive-free design, to better compatible with a variety of hardware and software environment
- Support auto-zero
- The driven shaft automatically adjusts to zero
- Support automatic knife
- Support emergency stop input
- Support limit switch access
- Support spindle control (PWM mode and relay mode)
- Provides 4 channels with optocoupler isolation digital signal input
- Provides up to 12 digital signal input
- provides 4 channels with optocoupler isolation relay output
- Support hand wheel interface
- Anti-jamming design, the import of industrial components assembly, high reliability
Specification-
| Model Series: | MACH3 Interfacer |
|---|---|
| Output pulse | 100K |
| Linkage control | Supports up to 4- axis |
| Compatibility | windows 7/8/10 |
| Supported | Automatic Knife |
Package Includes:
1 x USB Interface MACH3 Motion Control Card Flying Carving Card +USB
USB Interface MACH3 Motion Control Card Flying Carving Card Overview
The USB Interface MACH3 Motion Control Card (Flying Carving Card) is a dedicated controller for CNC systems running Mach3 software. It replaces the traditional parallel port interface with a USB connection, enabling Windows 7/8/10 PCs to manage up to four axes for high-precision carving, milling, and routing operations.
Key Features of USB Interface MACH3 Motion Control Card Flying Carving Card
- USB connectivity for seamless Mach3 communication—no parallel port required
- Supports up to 4-axis linkage control; fourth axis configurable as a driven axis
- 100K pulse output using a minimal-error interpolation algorithm for high precision
- Auto-zero function—driven shaft automatically returns to zero position
- Automatic knife support for tool change automation
- Emergency stop and limit switch inputs for enhanced safety and positioning
- genuine product with fast shipping from Zbotic
Applications and Use Cases
- Woodworking CNC routers for cutting, carving, and sign making
- Stone and metal engraving machines requiring multi-axis control
- PCB milling and rapid prototyping setups
- Laser engraving systems with limit switch integration
- 4th-axis rotary tables for cylindrical milling
- Educational CNC training rigs in workshops and labs
How to Use USB Interface MACH3 Motion Control Card Flying Carving Card
Connect the motion control card to your PC’s USB port using the supplied , then insert the CD to install the Mach3 plugin and drivers. Launch Mach3, select the USB controller plugin, and configure your machine’s axes, emergency stop, and limit switch inputs. Finally, set zero points and test axis movement before running your CNC program.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this card with Windows 10 64-bit?
Yes, the controller supports both 32-bit and 64-bit versions of Windows 7, 8, and 10. Simply install the driver and Mach3 plugin from the included CD.
How do I connect emergency stop and limit switches?
The card has dedicated input terminals for emergency stop and limit switches. Wire your switches to these ports and configure them in Mach3’s input settings for immediate response.
