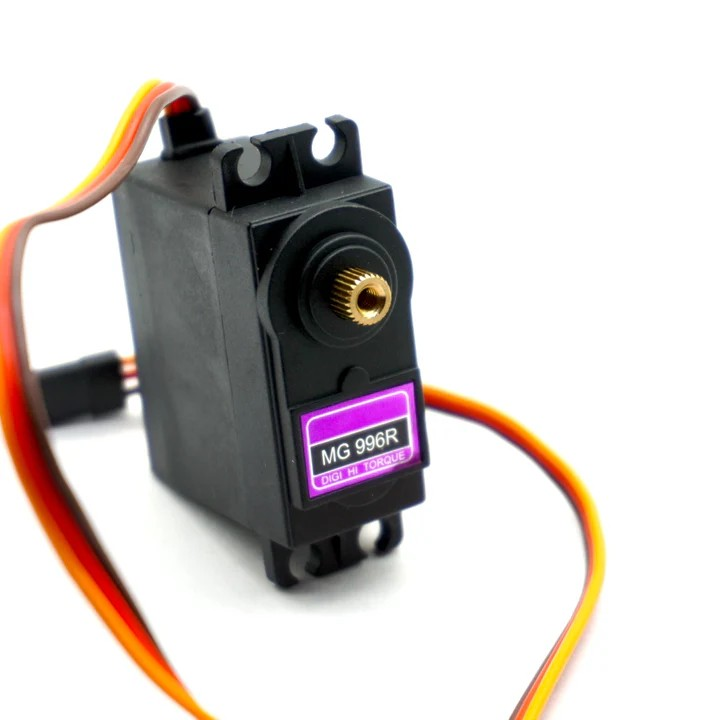

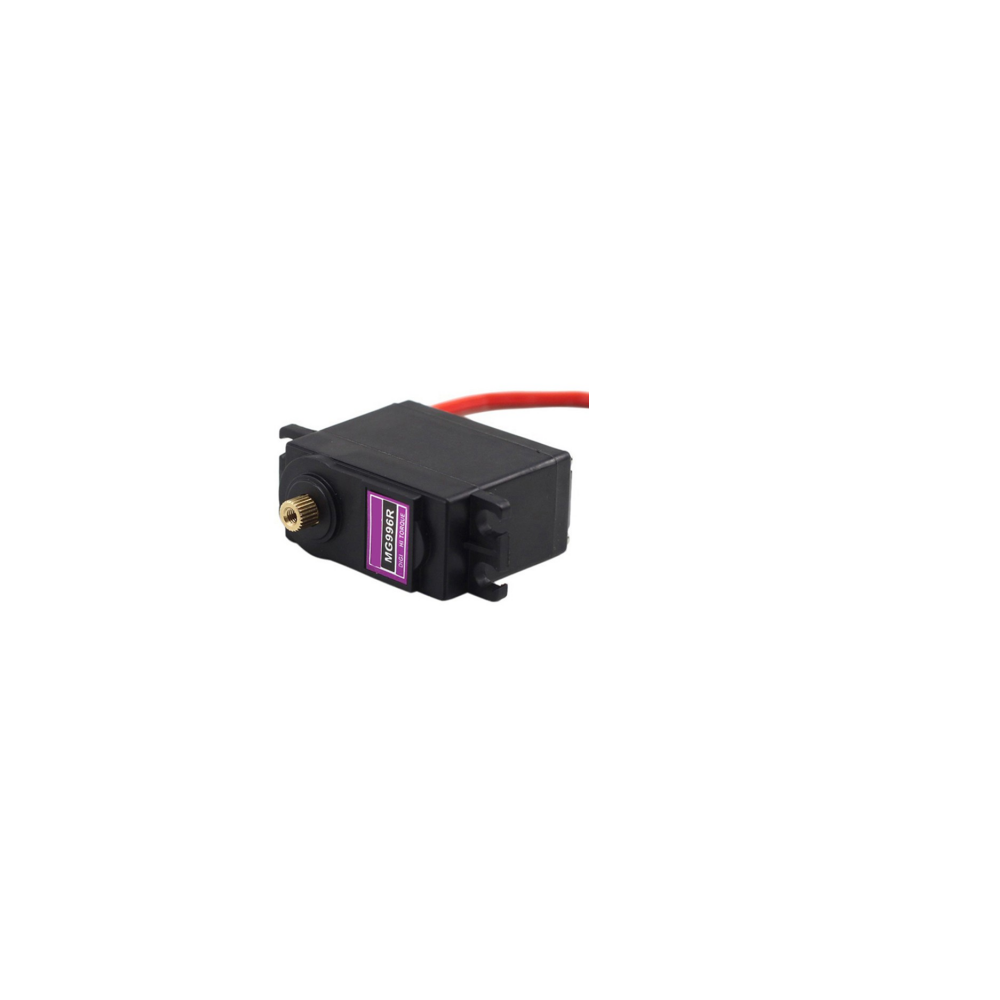

Tower Pro MG996R Digital Metal Gear High Torque Servo Motor
The Tower Pro MG996R Digital Metal Gear High Torque Servo Motor offers impressive performance with its metal gears and high 10kg stalling torque in a compact design. This updated version of the popular MG995 servo features enhanced shock resistance, a redesigned PCB, and a new IC control system, improving precision and reliability. The motor and gears have also been optimized to reduce dead band width and improve centering accuracy.
This servo comes equipped with a 30cm wire and a 3-pin ‘S’ type female header connector, making it compatible with a wide range of receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum, and Hitec. It provides an excellent solution for projects requiring precise and high-torque motion control.
Wire Configuration of Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation): –
- RED – Positive
- Brown – Negative
- Orange – Signal (PWM)
Specifications of Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation):-
Weight: 55g
Dimension: 40.7×19.7×42.9mm
Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
Operating voltage: 4.8 ~ 6.6V
Gear Type: Metal gear.
Dead band width: 1us
Wire length: 32cm

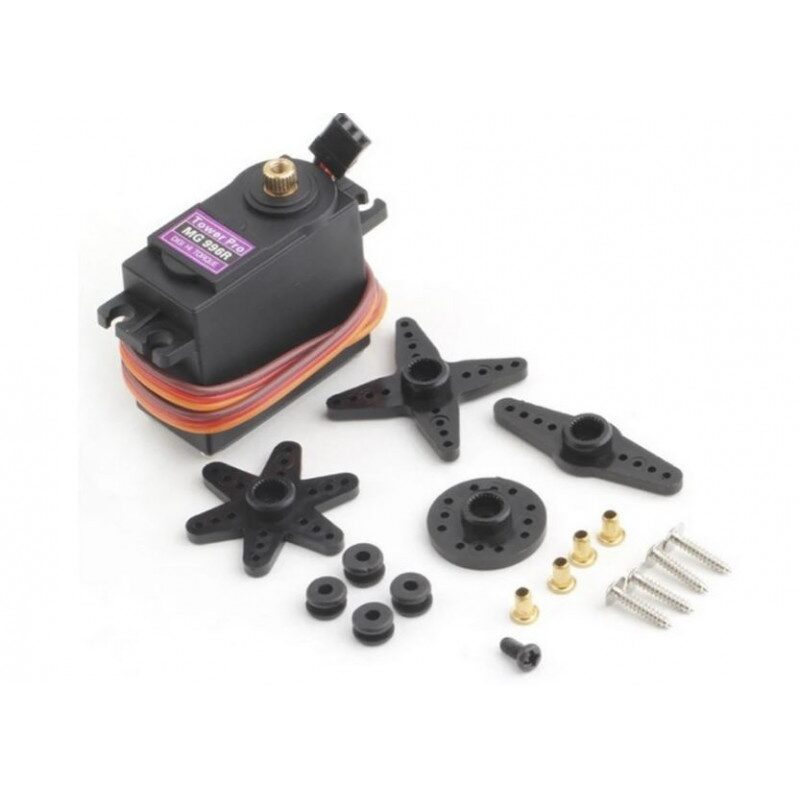

Package Includes:
1 x Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

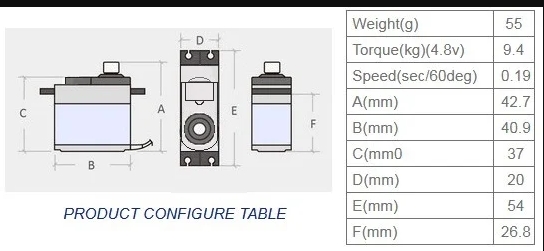

Product Config.
