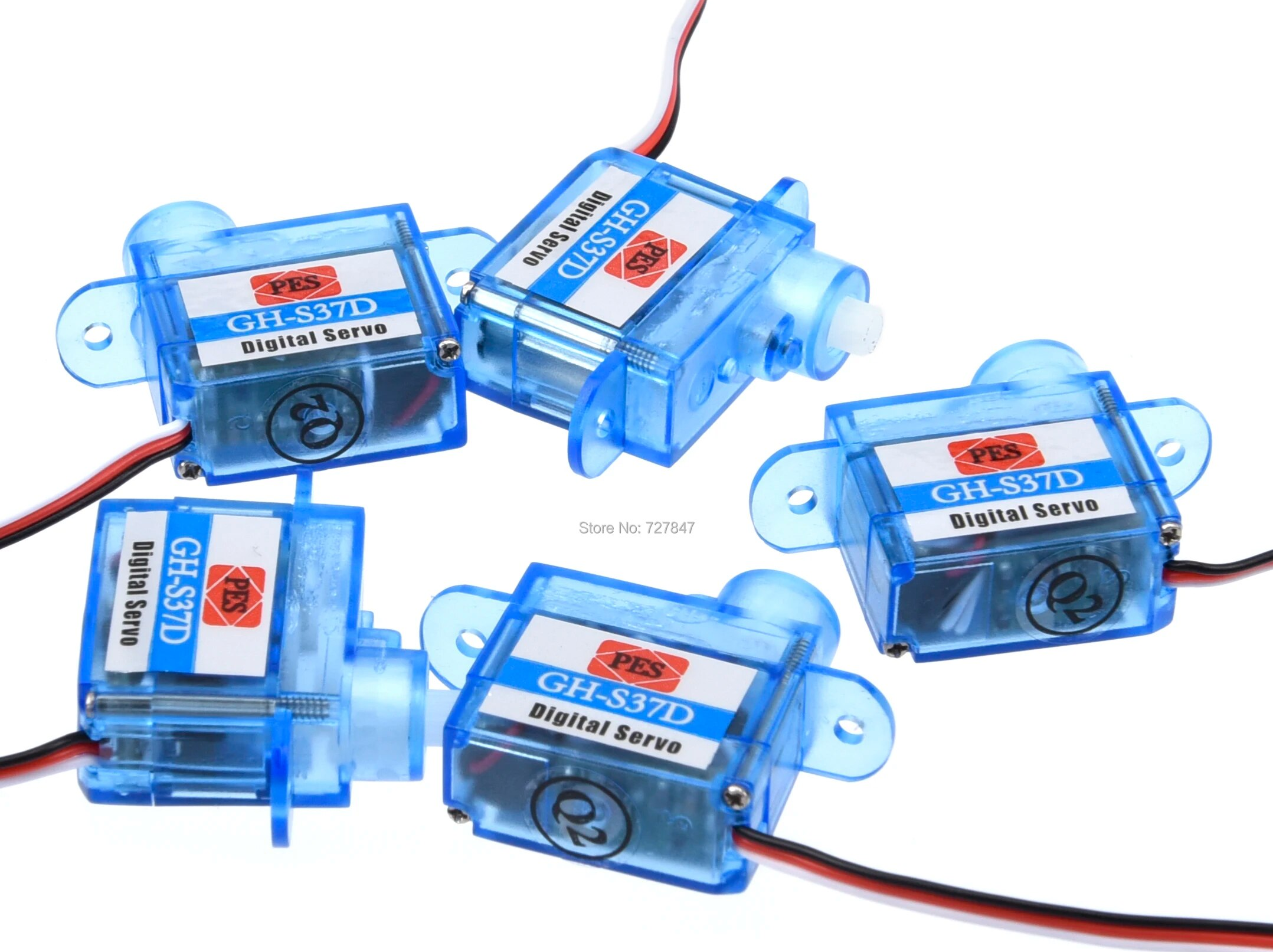

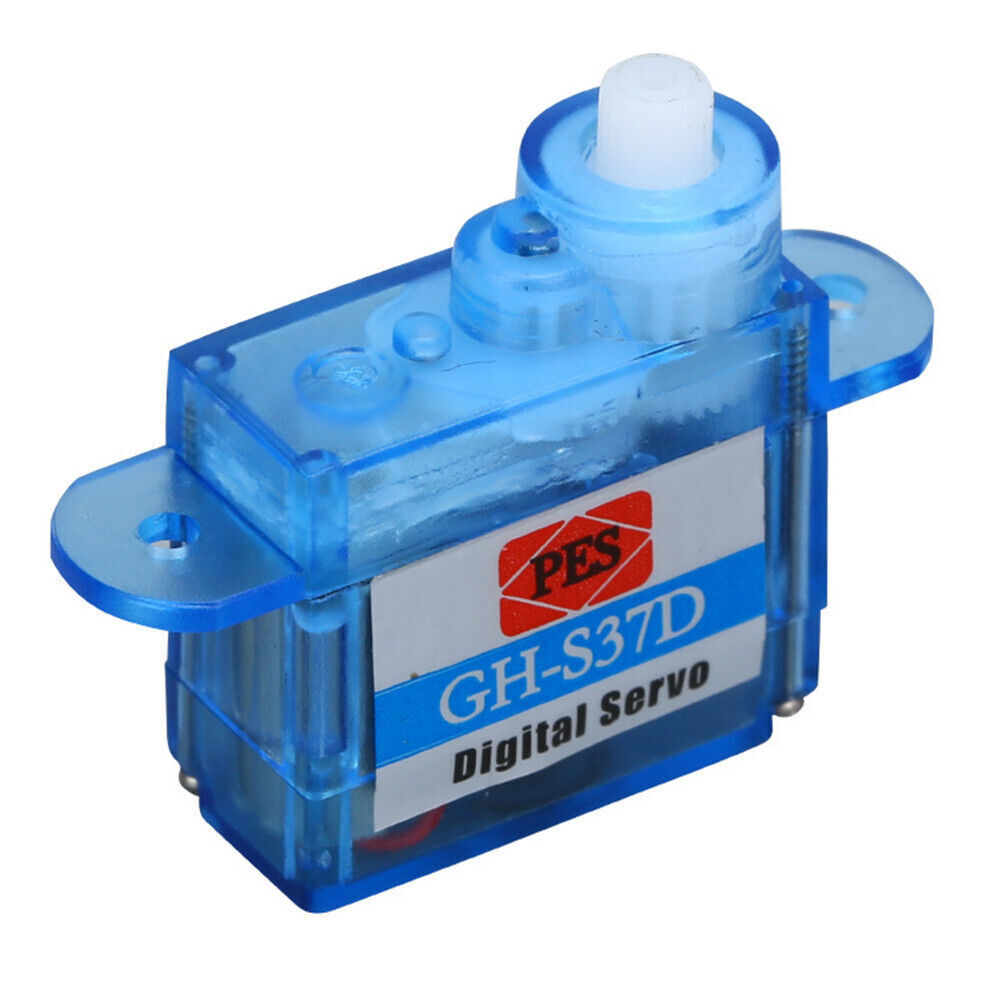

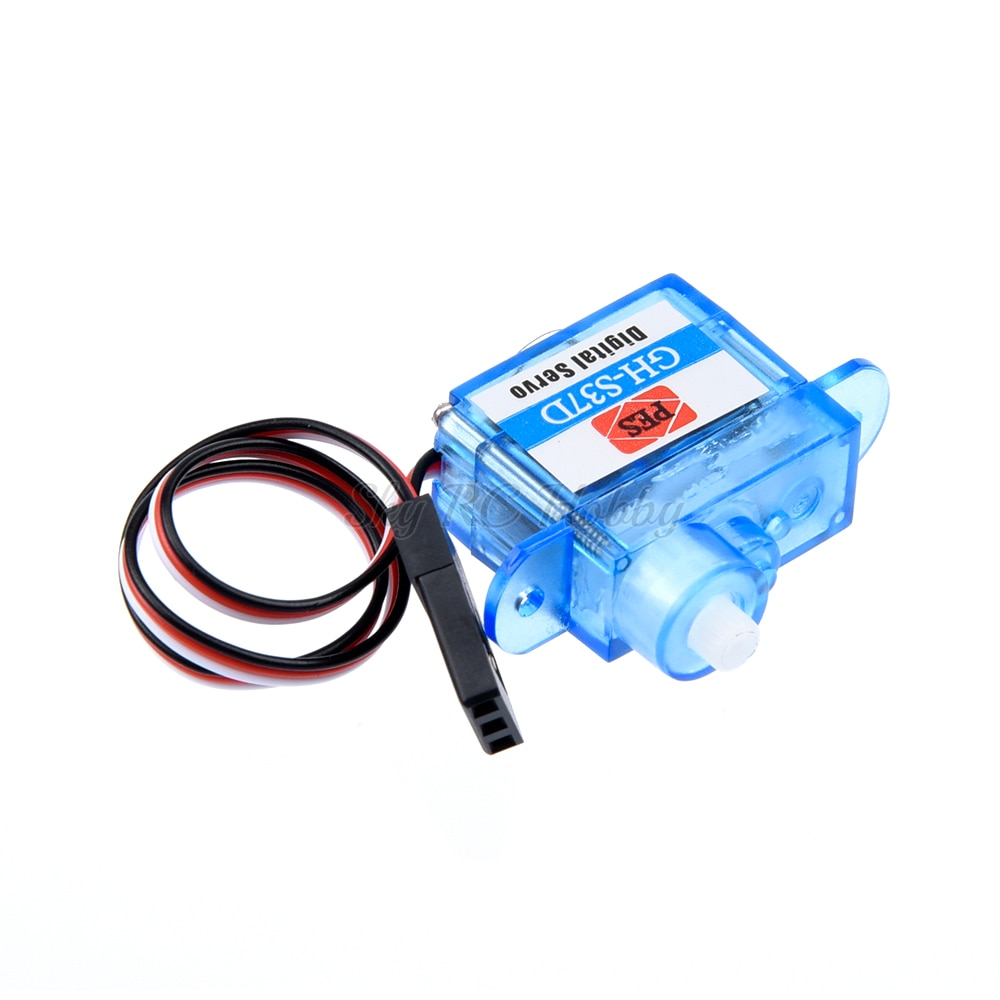

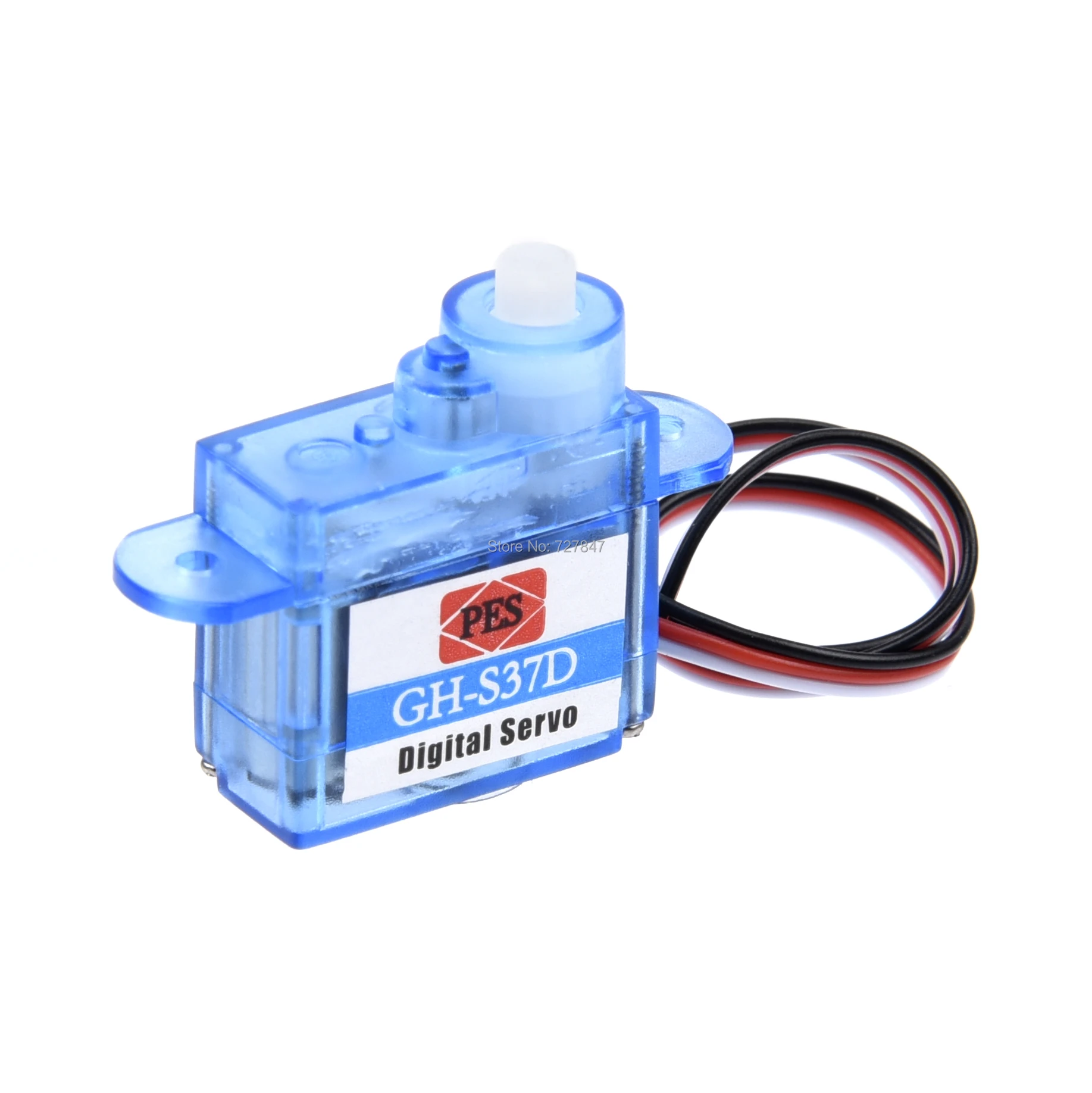

New Micro 3.7g Mini Servo for Control Aeromodelling aircraft flight direction
Features:
- Brand New High Quality
- Coreless Motor
- All Nylon Gear
- Connector Wire Length 150MM
Specification:
| Operating Voltage (VDC) | 4.8-7.2 Volts |
|---|---|
| Dimension (LxWxH) | 20x25x8mm |
| Operating Temperature Range (°C) | -30 to +60 Degree C |
| Stall Torque @ 4.8V (Kg-Cm) | (0.6 kg/cm) |
| Operating Speed @4.8V | 0.1sec/60 degrees |
| Shipping Weight | 0.006 kg |
| Shipping Dimensions | 6 × 5 × 1 cm |

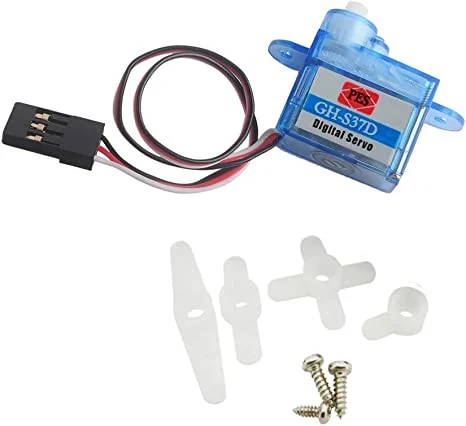

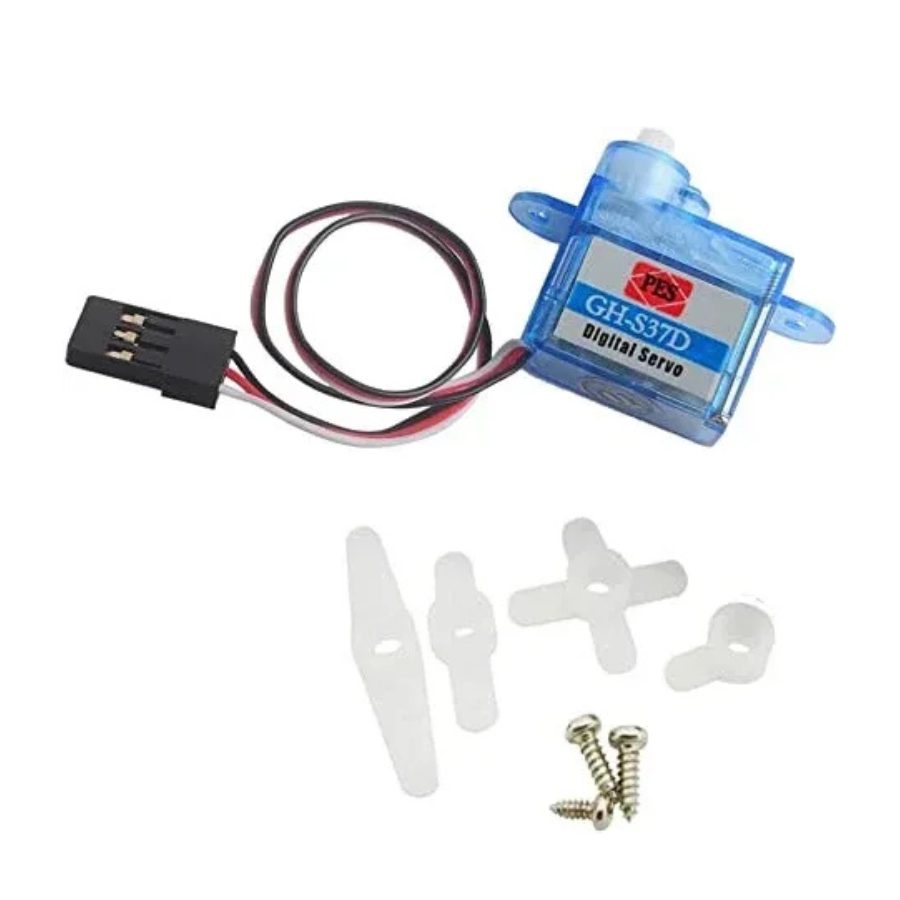

Package Includes :
1 x MiNi Micro 3.7g Servo
Micro servo 3.7G GH-S37D 90 degree Overview
The Micro servo 3.7G GH-S37D 90 degree is a lightweight, compact servo designed for precise angular control up to 90 degrees. Ideal for micromodel aircraft and small robotics projects, it delivers responsive movement with minimal power draw.
Key Features of Micro servo 3.7G GH-S37D 90 degree
- Ultra-light 3.7 g design for minimal added weight
- Coreless motor with nylon gearing for smooth, reliable operation
- 0.1 sec/60° speed at 4.8 V for fast response
- Stall torque of 0.6 kg·cm (8.32 oz·in) at 4.8 V for strong hold
- Wide operating voltage (4.8–7.2 V) and temperature range (–30 °C to +60 °C)
- 150 mm connector lead for flexible installation
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Rudder and elevator control on micro RC aircraft
- Micro pan/tilt camera mounts for small FPV rigs
- Actuation in lightweight robotics and animatronics
- Control surfaces in gliders and indoor model planes
- Custom hobby projects requiring precise 90° movement
How to Use Micro servo 3.7G GH-S37D 90 degree
Connect the three-pin servo lead (ground, V+ and control) to your controller’s PWM output, ensuring a supply voltage between 4.8 V and 7.2 V. Calibrate the 0–90° endpoints in your transmitter or microcontroller code, mount the servo securely using the supplied hardware, and test movement before final installation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What connector type does this servo use?
This servo uses a standard 3-pin JR-style connector (signal, V+ and ground) on a 150 mm cable, compatible with most RC receivers and microcontroller servo headers.
Can I power it at 7.2 V?
Yes, the GH-S37D operates safely up to 7.2 V. At higher voltage you may achieve slightly faster response and increased torque but avoid exceeding the specified range to protect the gears and motor.
Is this servo capable of continuous rotation?
No. The GH-S37D is a standard 90° positional servo and cannot rotate continuously. It offers precise angular control within its 0–90° range only.
