Tilt Switch Sensor Module For Arduino

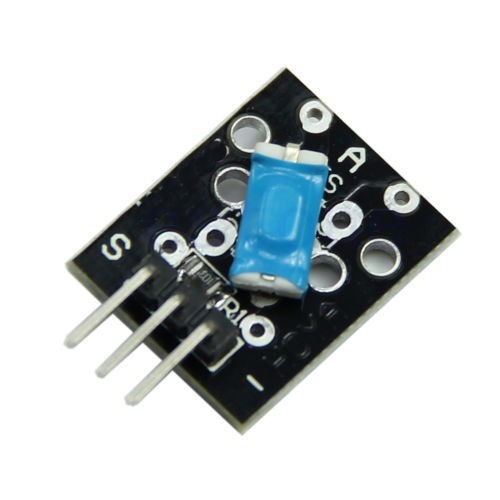

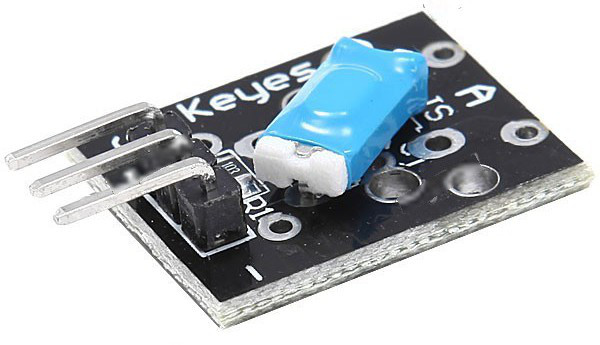

The Tilt Switch Sensor Module contains a metal ball inside a ball tilt switch, designed to detect small angle inclinations.
The module includes a digital interface and a built-in 13 LED to create a simple circuit that activates a tilt warning lamp. The 13th LED comes with a digital interface, and the tilt switch sensor connects to digital pin 3. When the tilt sensor is triggered by a specific angle, it sends a signal causing the LED to illuminate; otherwise, it remains off.
This Tilt Switch Sensor Module for Arduino is straightforward but effective. It features a metal ball resting in a tube with electrical contacts. As the robot or autonomous vehicle tilts, the ball moves onto the contacts, completing a circuit and sending a signal to the Arduino control system.
Features:
Operating Voltage: 5v DC.
This module is Small and Simple to use.
Digital switch output (0 & 1)
High sensitivity
Completes the circuit when the module is tilted
LED lights up when tilt switch is activated
Specifications:
| Material: | FR4 |
|---|---|
| Operating Voltage (VDC): | 5 |
| Length (mm): | 25 |
| Width (mm): | 15 |
| Height (mm): | 7 |
| Weight (g): | 2 |

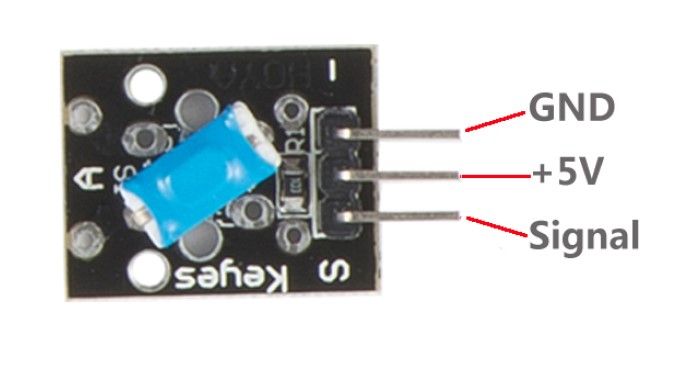

Pinout
Package Includes:
1 x Tilt Switch Sensor Module.
Tutorial:
Tilt Switch Sensor Module For Arduino Overview
The Tilt Switch Sensor Module for Arduino is a compact 5 V digital sensor that detects small angle inclinations using an internal metal ball switch. When tilted beyond a threshold, it completes a circuit and outputs a logic HIGH signal while lighting its onboard LED, making it ideal for angle detection in hobbyist and robotic projects.
Key Features of Tilt Switch Sensor Module For Arduino
- Operates at standard 5 V DC supply for Arduino compatibility
- Digital output gives a clear 0/1 signal when tilt threshold is reached
- Built-in LED indicator that illuminates on activation
- High-sensitivity metal ball switch for reliable angle detection
- Compact PCB design fits easily into tight project enclosures
- Genuine product, fast shipping from Zbotic—get it within 24 hours*
Applications and Use Cases
- Robot orientation sensing: detect when a robot tilts or tips over
- DIY drone safety: trigger a warning if the drone rolls beyond safe angles
- RC vehicle leveling: monitor chassis tilt on rough terrain
- Anti-theft alarm: detect unauthorized movement or tipping of display items
- Interactive installations: activate LEDs or sounds when a panel is tilted
- Educational projects: teach students about switch circuits and digital inputs
How to Use Tilt Switch Sensor Module For Arduino
Connect the module’s VCC pin to the Arduino’s 5 V rail, GND to ground, and the signal pin to a digital input (commonly D3). In your sketch, configure the input pin with INPUT_PULLUP or plain INPUT, then read digitalRead() to detect HIGH when tilted and LOW when flat. The onboard LED lights automatically during a tilt event, providing instant visual feedback.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I connect the Tilt Switch Sensor Module to an Arduino?
Wire VCC to 5 V, GND to Arduino ground, and the module’s digital output pin to your chosen digital input (e.g., D3). In your code, set the pinMode to INPUT or INPUT_PULLUP, then use digitalRead() to detect tilt events.
What output reading will I get when the module is tilted?
When the internal ball closes the contacts, the module outputs a digital HIGH (1) and lights its LED. In the resting position, it outputs LOW (0) with the LED off.
Can I power this module with a 3.3 V system?
This tilt switch module is designed for a 5 V supply. At 3.3 V, the internal switch may not trigger reliably and the LED might not illuminate properly. For 3.3 V projects, consider using a level shifter or a dedicated low-voltage tilt sensor.
