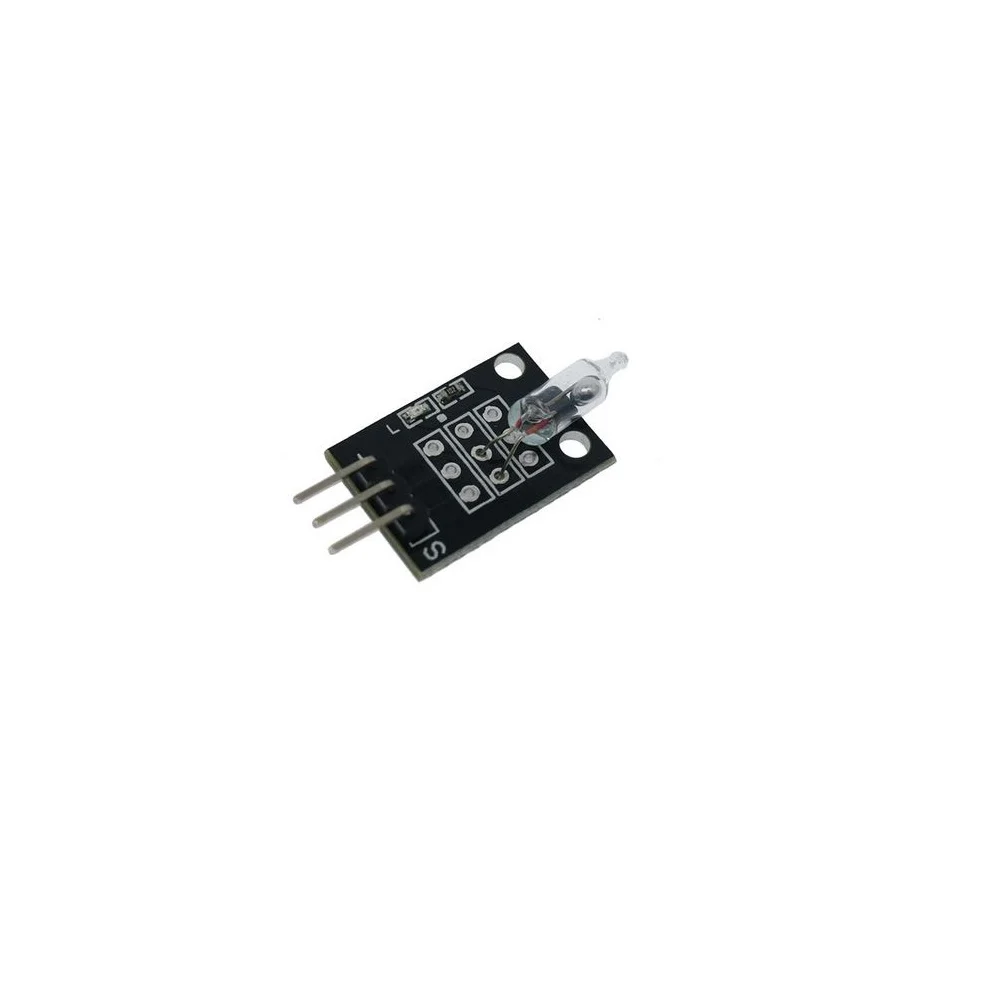

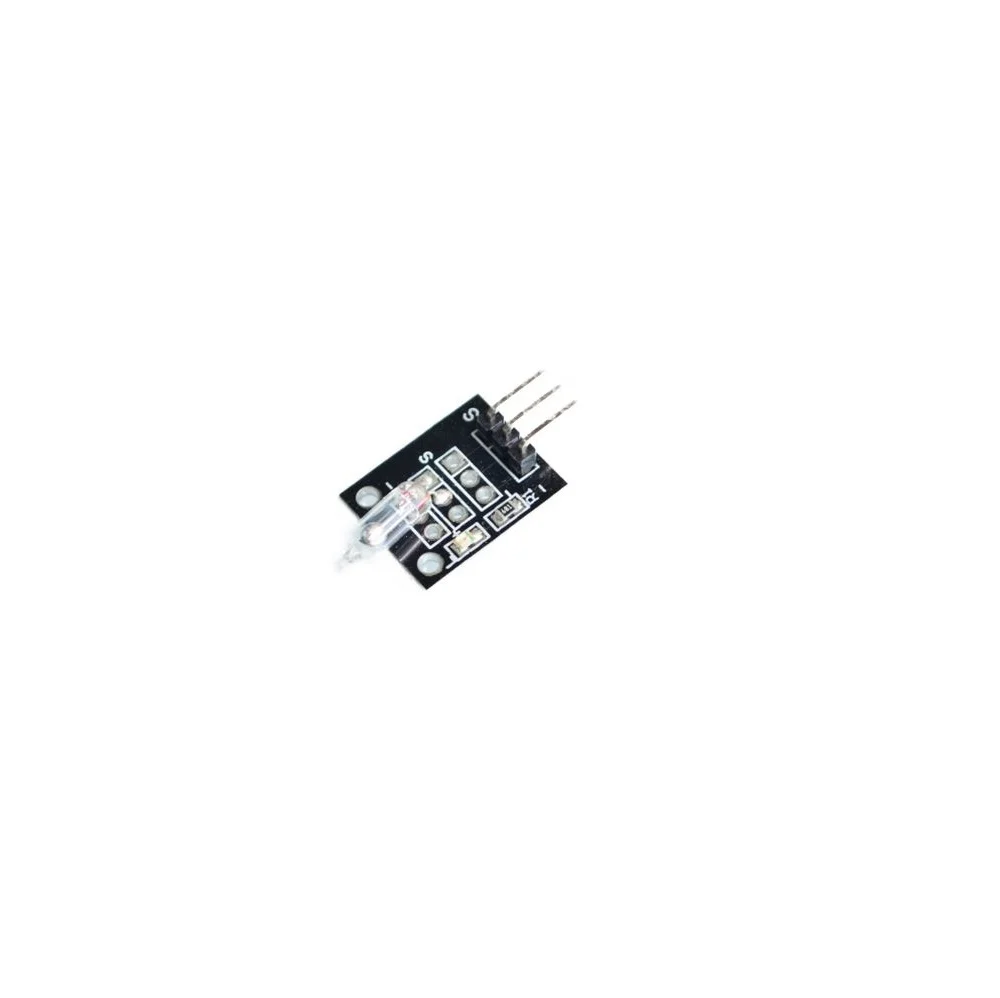

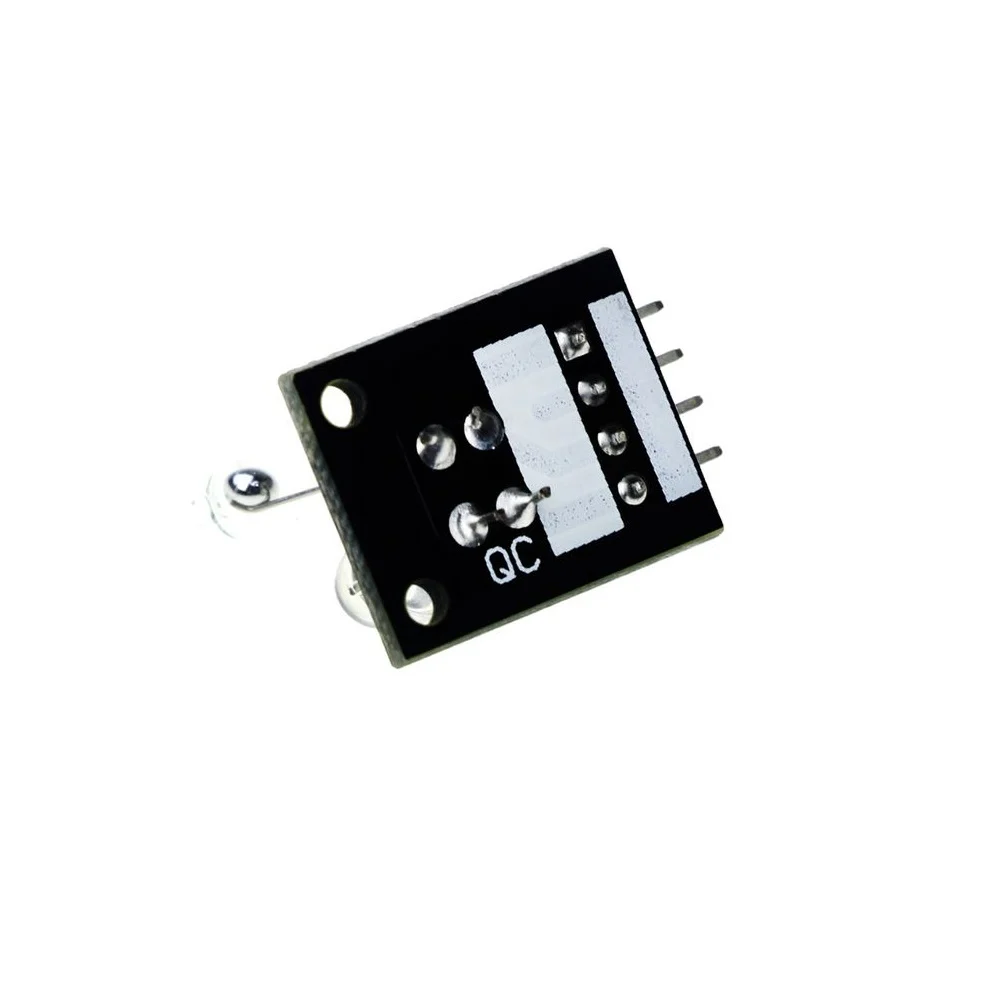

This module consists of a mercury switch, a 680Ω resistor and a LED that will light up when tilt is detected. The mercury ball will open/close the circuit when the module is rotated
The module features a mercury switch, a 680Ω resistor, and an LED that illuminates upon tilt detection. When the module is rotated, the mercury ball opens or closes the circuit, activating the LED accordingly.
This mercury switch module utilizes the digital 13 interface to connect with an LED, facilitating the creation of a straightforward circuit. Tilt lights are produced through the LED connected to the digital 13 interface. Additionally, the mercury tilt switch sensor is linked to the digital 3 interface. When the sensor detects a button signal, the LED lights up, and vice versa.

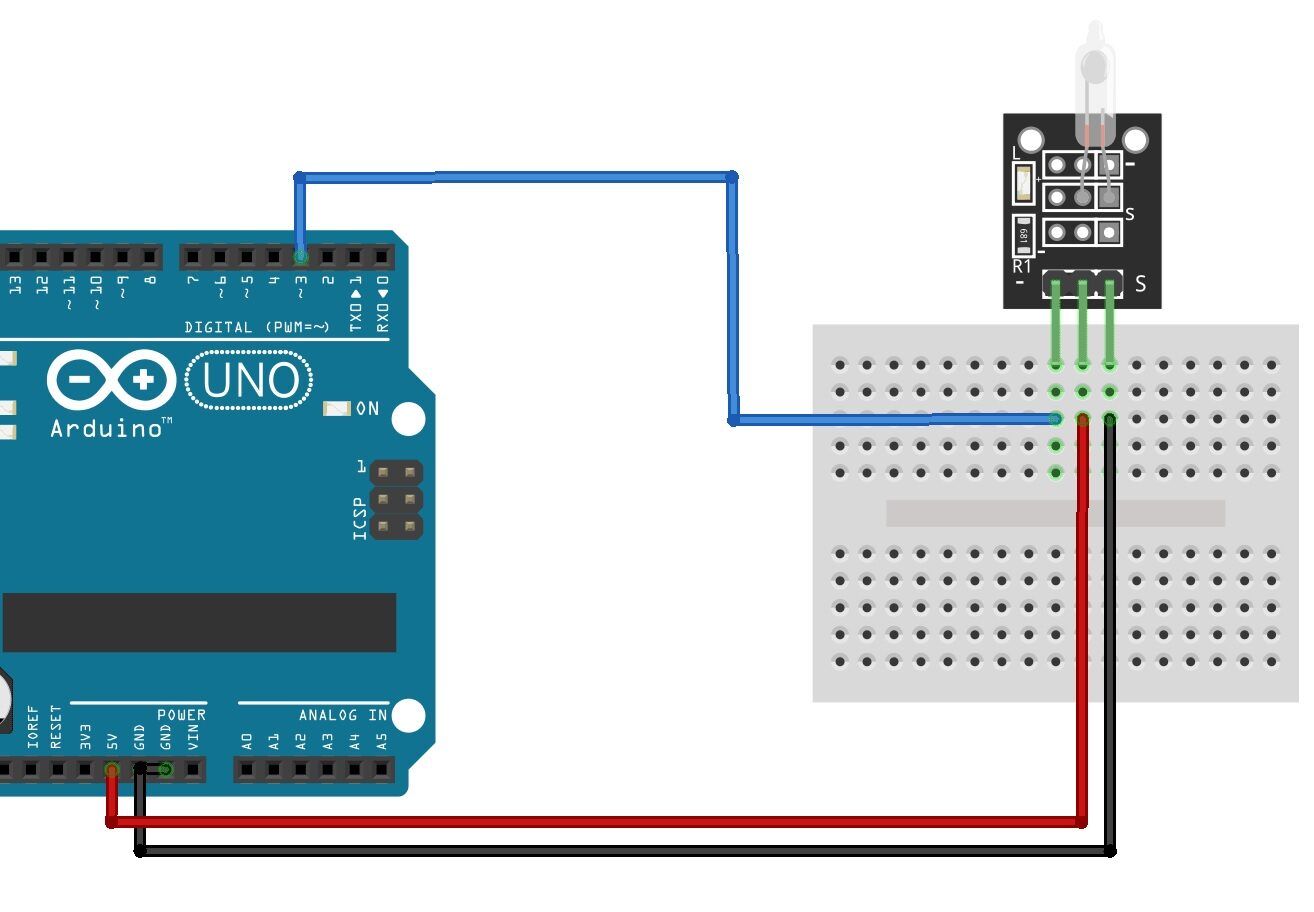

Connection Diagram:
S : Pin 3
Middle : 5V
– : GND
Specification:
Components: Mercury switch, 680Ω resistor, LED
Functionality: LED lights up when tilt is detected
Operation: Mercury ball within the switch opens/closes the circuit upon rotation
LED Control: Tilt detection triggers LED illumination
Compatibility: Can be used with Arduino Uno R3 or similar microcontroller boards
Voltage: Typically operates at standard voltages compatible with Arduino boards
Dimensions: Compact size for easy integration into projects
Application: Suitable for tilt detection and indication in various electronic projects
The Mercury Medallion Module for Uno R3 is a versatile vibration/tilt sensor and modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
