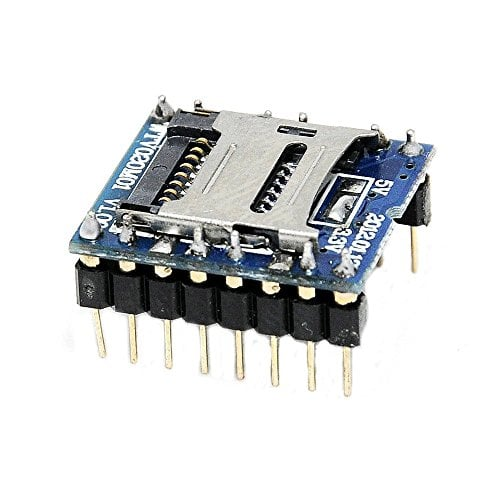

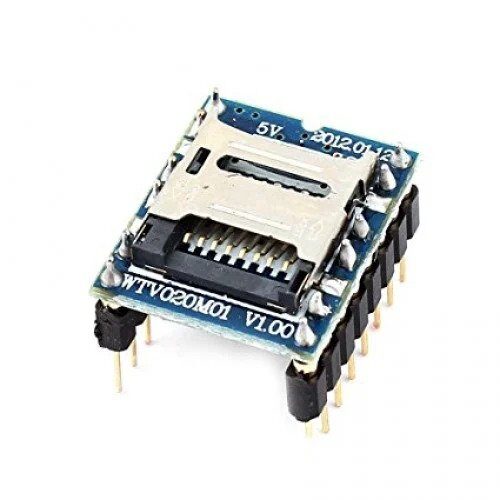

Mini SD Card MP3 Sound Module For PIC Arduino WTV020-SD
The Mini SD Card MP3 Sound Module is a versatile mass storage voice module capable of accommodating SD cards with a maximum capacity of 1GB. It supports WAV and AD4 audio formats, allowing for efficient audio loading. Powered by the WTV020SD-20SS core chip, it offers various control modes including MP3 control mode, one-to-one key control mode, power-on loop control mode, and two-line serial control mode.
Designed for compatibility with PIC, Arduino, and other platforms, the Mini SD Card MP3 Sound Module utilizes WTV020-16S and WTV020-20S package chips as its main selections. Voice updates are easily performed via an SD card reader connected to a PC. Control commands can be modified by editing TXT files stored on the SD card.
This module supports the FAT file system and enables playback of ADPCM WAV files. It offers flexibility with control modes including two-wire serial, key methods, and UART232 serial communication. Additionally, it supports automatic speech recognition and various speech sample rate formats.
Features
Supports the FAT file system SD carrier.
Supports the playing of 4Bit ADCPM format files.
Recognize the voice files automatically.
Support microprocessors and key control.
It could be called any paragraph voice playing.
Saving operation data when power off.
Loadable sampling rate:
6KHz to 32KHz, the 36KHz sampling rate of AD4 audio.
6KHz to the 16KHz sampling rate of WAV audio.
Loading voice to the SD card without the assistance of software.
Support combination playing of the file (including mute combination).
The Mini SD Card MP3 Sound Module For PIC Arduino WTV020-SD is a versatile audio amplifier module used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Weight
0.01 kg
Dimensions
2.1 × 1.78 × 1.25 cm
