Looking for Tilt Module? Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino is available at Zbotic with fast shipping across India.
Product Description

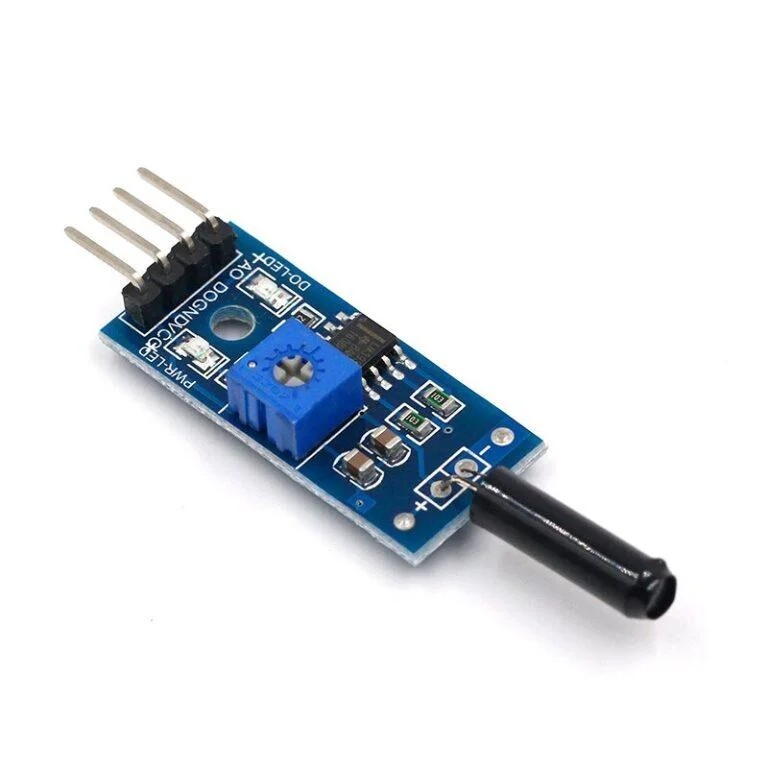

- The Tilt Sensor Vibration Alarm Module is designed for Arduino and comes with all the necessary components for immediate use. Once activated, it can be attached to any object to monitor its tilt, providing a digital output that simplifies the process of determining the object’s position.
- This module utilizes either the SW-460D or SW-520D tilt sensors, which operate on a ball-rolling mechanism rather than Mercury.
- It features an M3 mounting hole for easy attachment and a highly sensitive tilt switch, perfect for detecting orientation. Additionally, it includes power and status indicator LEDs.
- In its default state, the module emits a logic LOW signal, which switches to HIGH when a predefined tilt angle is exceeded.
- Testing shows a tilt angle detection range of 45 to 130 degrees, which may vary with angular velocity. The module can also function as a vibration sensor.
- Compatible with various microcontrollers with digital inputs, including the 8051, PIC, SK40C, SK28A, and SKds40A, as well as the Arduino series, this module enhances tilt detection capabilities. It can also be connected to a relay module to operate as a tilt switch.

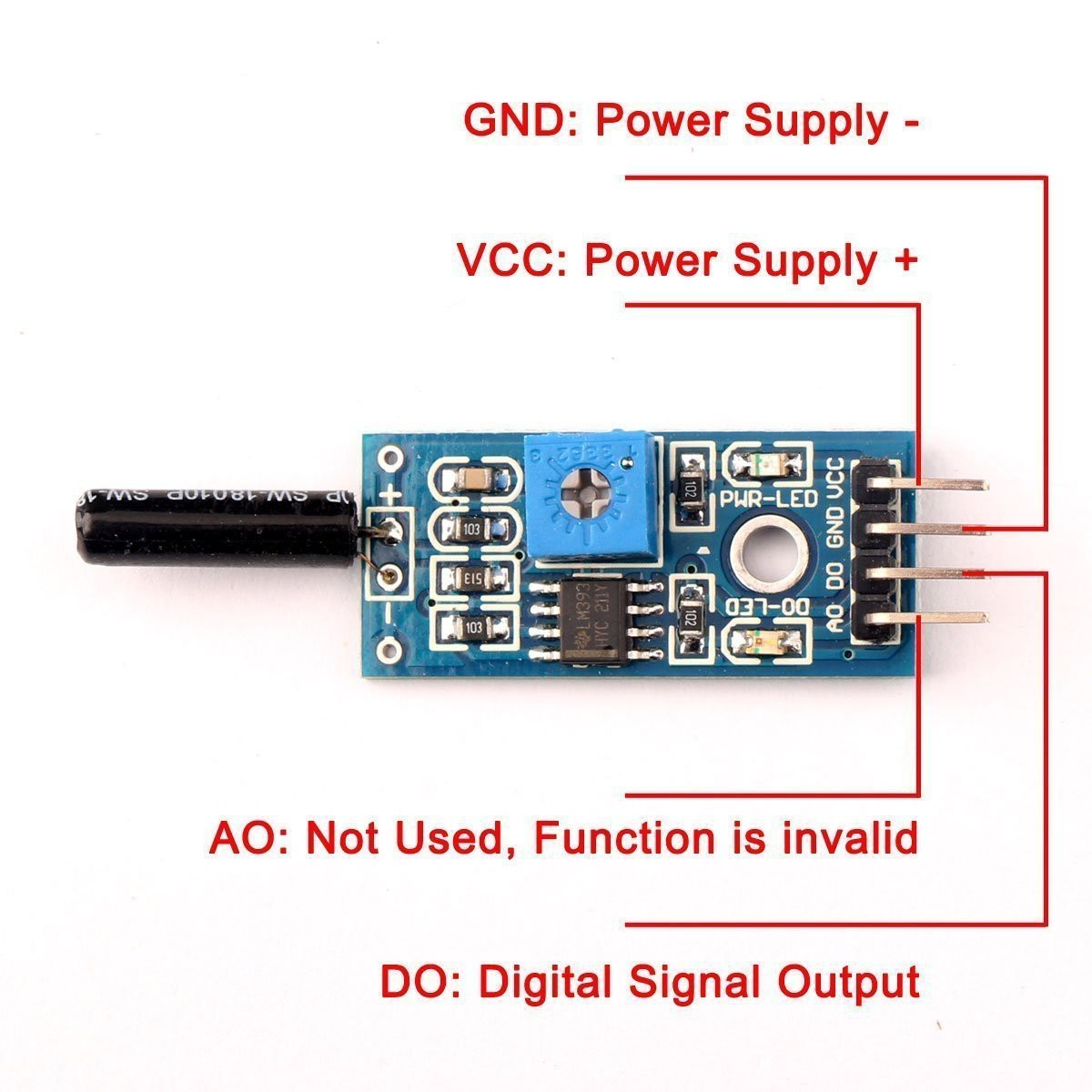

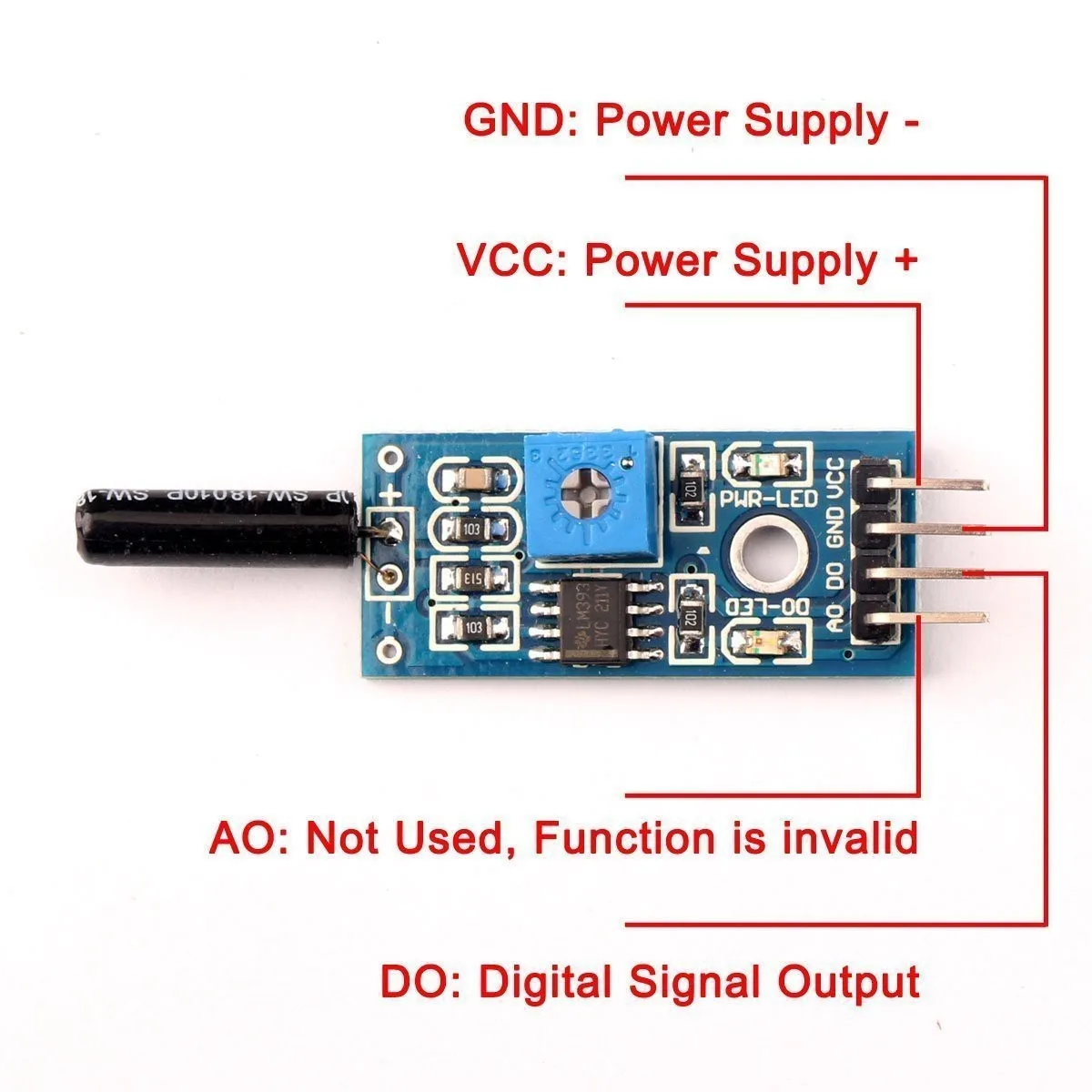

Pin Connection:
-
VCC = 5V
-
GND = 0V.
-
DO = digital output from module
Note: If the DO is not working, you might need to turn the on-board potentiometer to center.
Features
- Multiple axes measurement
- High resolution and precision
- Easy to use and mount on any object
- Low power consumption
- Cost-effective and compact size
- Digital output
Application
- Tilt sensing for remote control devices
- An automatic rotating display like in phone and tablet
- Aircraft to indicate the position of aircraft with respect to the earth
- Gaming devices
- Digital cameras and other consumer electronics
Specification:
| Specification | Details |
|---|---|
| Operating Voltage | 3.3V to 5VDC |
| Tilt Sensor Type | Ball Rolling |
| Mounting Hole | Fixed bolt hole for easy installation |
| Comparator | LM393 |
| Measurement Axes | Multiple |
| Resolution and Precision | High |
| Output | Digital |
| Power Consumption | Low |
Package Includes
- 1 x Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino
Video
Tilt Sensor Vibration Alarm Vibration Switch Module for Overview
The Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino is a compact board featuring a ball-rolling tilt sensor (SW-460D or SW-520D) and a wide-voltage LM393 comparator. It provides a clean digital output whenever the attached object tilts or experiences vibration, making position and motion monitoring straightforward.
Key Features of Tilt Sensor Vibration Alarm Vibration Switch Module for
- Operating voltage: 3.3 V to 5 V DC for compatibility with most Arduino boards
- Mercury-free ball-rolling tilt sensor (SW-460D or SW-520D) for reliable orientation detection
- On-board LM393 comparator delivers a stable, adjustable digital output
- Power and status indicator LEDs for instant module diagnostics
- M3 mounting hole simplifies secure installation on any surface
- Genuine module with fast shipping from Zbotic across India
Applications and Use Cases
- Door/window tilt detection in home and office security systems
- Orientation and vibration monitoring in robotics or automation rigs
- Inclinometer for RC cars, drones, model boats and custom vehicles
- Industrial machine vibration sensing and safety cutoff triggers
- Asset movement alerts in shipping containers and storage crates
How to Use Tilt Sensor Vibration Alarm Vibration Switch Module for
To get started, connect VCC to a 3.3–5 V supply, GND to ground, and the digital OUT pin to an Arduino digital input. Mount the board using the M3 hole, power it on, then use digitalRead() in your sketch to detect HIGH/LOW changes whenever the module tilts or vibrates beyond its threshold.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range does this module support?
This tilt sensor module operates from 3.3 V up to 5 V DC, making it compatible with most Arduino and microcontroller boards.
Which tilt sensor model does the board use?
The board is equipped with a ball-rolling SW-460D (or SW-520D) tilt sensor, offering reliable, mercury-free angle detection.
How do I mount the sensor module in my project?
The PCB includes an M3 mounting hole for easy fixing with a standard M3 screw, allowing secure installation on flat surfaces or enclosures.
