Looking for Am480 Motor? T Motors AM480 3D 5-6S 650KV Freestyle Flight Plane Motor is available at Zbotic with fast shipping across India.
Description:

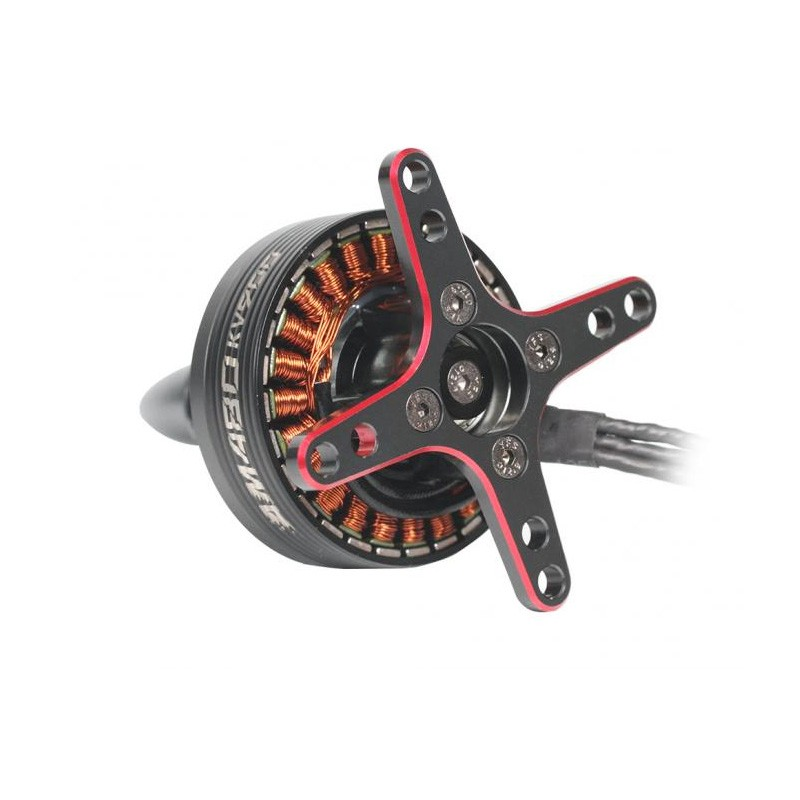

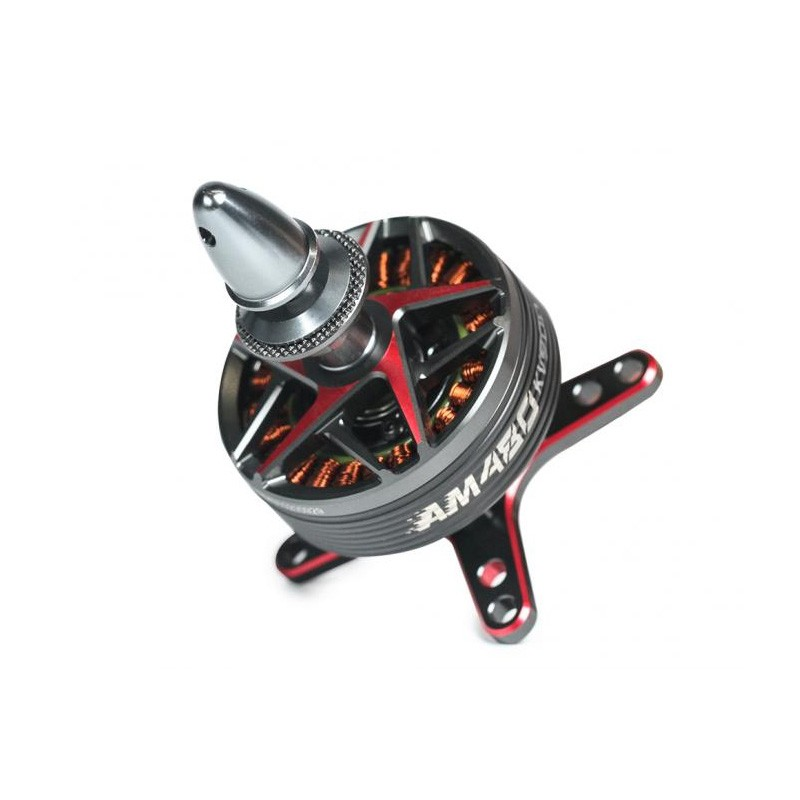

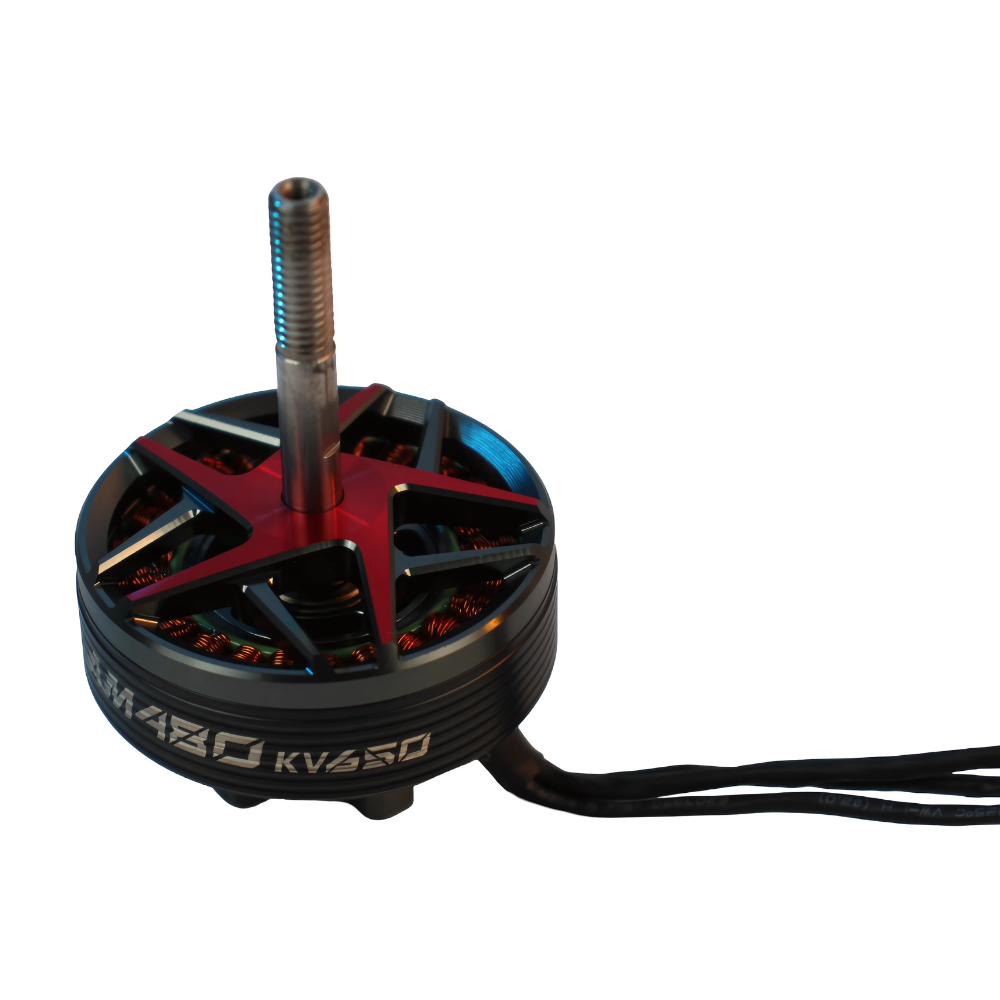

The T-Motor AM480 3D 5-6S 650KV Freestyle Flight Plane Motor is a high-performance motor designed for freestyle and 3D flight enthusiasts. Built for 5-6S setups,AM480 3D 5-6S 650KV Freestyle Flight Plane Motor provides excellent power and thrust, making it ideal for demanding maneuvers and precise control during aerobatic flight. The 650KV rating ensures efficient power delivery, offering smooth performance and longer flight times.
With its robust construction and high-quality materials, T Motors AM480 3D 5-6S 650KV Freestyle Flight Plane Motor motor is engineered for durability and reliability, making it a great choice for pilots looking to take their freestyle flying to the next level. Whether performing flips, rolls, or other dynamic movements, the AM480 ensures stability and control for an optimal flight experience.
Features:
- The T-Motor AM480 is very well made. Thanks to the ripples on the motor bell and the hollow shaft, the motor is more robust and lighter. The ratio of diameter and engine height ratio is 3:1 for higher torque and better cooling.
- Optimize structural design, lighter and more durable achieving load-free flight
- Great Power: Delivers strong and consistent power for thrilling flights.
- High Top Speed: Engineered for top speeds, providing fast and responsive control.
- Improved Explosion Resistance: Enhanced durability allows for smooth recovery during extreme maneuvers.
- Curved Magnet Design: Optimized for stronger magnetism and smoother motor operation, ensuring efficient flight dynamics.
- High-Quality Components: Made with premium materials for long-lasting and reliable performance.
Specification:
| Model Name | T Motors AM480 3D |
|---|---|
| Motor KV | 650 |
| Shaft Diameter | IN：6mm, OUT：6mm |
| Lead Wire | Enameled Wire 90mm |
| Idle Current | 1.55A |
| Peak Current (A) | 55A |
| Voltage Rating: | 5-6S |
| Configuration: | 24N28P |
| Motor Dimensions | Motor Dimensions |
| Max. Power | 1150W |
| Weight (g): | 145 |

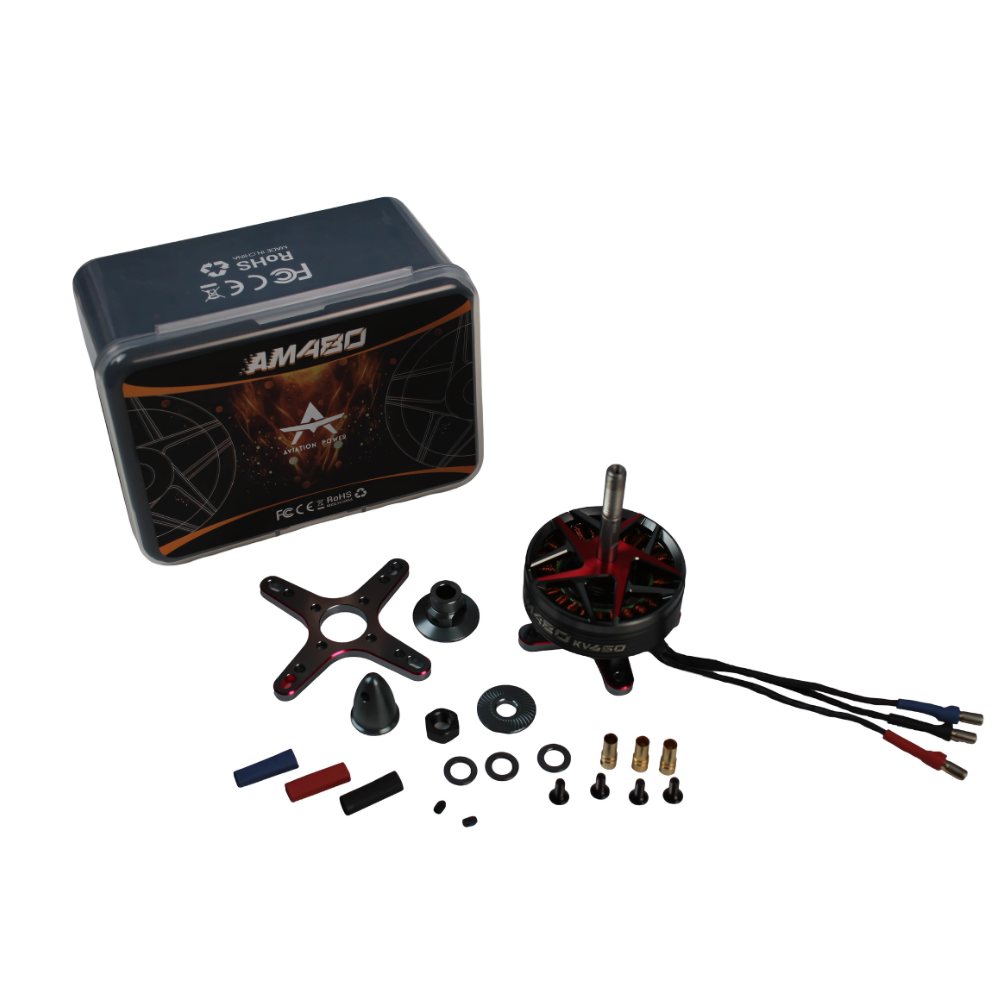

Package Includes:
- 1 x T-MOTOR AM480 Motor
- 1 x Hardware pack
T Motors AM480 3D 5-6S 650KV Freestyle Flight Plane Motor Overview
The T-Motor AM480 3D 5-6S 650KV Freestyle Flight Plane Motor is a high-performance brushless motor built specifically for aerobatic and 3D RC airplanes. Designed to run on 5-6S LiPo battery packs, it delivers the thrust and responsiveness needed for demanding freestyle maneuvers and precise flight control.
Key Features of T Motors AM480 3D 5-6S 650KV Freestyle Flight Plane Motor
- 650 KV rating optimized for efficient power delivery on 5-6S LiPo setups
- Robust construction with high-quality bearings and windings for long-term durability
- Lightweight 145 g design offering an excellent power-to-weight ratio
- Rapid throttle response and smooth RPM control for sharp aerobatic performance
- Compatible with a wide range of 3D propellers for custom tuning
- Genuine T-Motor product, fast shipping from Zbotic across India
Applications and Use Cases
- Freestyle 3D aerobatic flight with rapid rolls, harriers, and torque rolls
- Sport and competition RC airplanes requiring high thrust and responsiveness
- Upgrading mid-size electric warbirds and stunt planes for enhanced performance
- High-power park flyers and ultra-light aerobatic models on 5-6S LiPo
- Precision flying in RC airshows and advanced pilot training
How to Use T Motors AM480 3D 5-6S 650KV Freestyle Flight Plane Motor
Mount the AM480 3D motor securely to your aircraft’s firewall using the appropriate screws and a thread-locking compound. Solder or connect the motor leads to a compatible 5-6S brushless ESC, calibrate the ESC according to its manual, and install a 3D aerobatic propeller recommended for your airframe. Perform a ground test to ensure smooth rotation and proper direction before taking off.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery voltage is recommended for this motor?
The AM480 3D is designed to run on 5-6S LiPo batteries. Operating it within this voltage range delivers optimal thrust, efficiency, and motor lifespan.
How much does the T-Motor AM480 3D weigh?
This motor weighs 145 g, providing a balanced weight-to-thrust ratio ideal for freestyle and 3D aerobatic RC planes.
Can this motor handle advanced 3D maneuvers?
Yes. With its robust construction, high KV rating, and smooth RPM response, the AM480 3D is built to withstand the stresses of advanced aerobatic and 3D flight.
Tiny Whoop Build: 65mm Indoor FPV Drone Guide
Table of Contents Understanding Tiny Whoop Build Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
ExpressLRS (ELRS) Setup Guide: Low Latency Long Range RC Control
Table of ContentsIntroductionWhat Is ExpressLRS?Choosing Your ELRS HardwareFlashing ELRS FirmwareTransmitter Module SetupReceiver Setup and BindingFlight Controller ConfigurationUsing the...
Read More →
Drone Mapping Guide: How to Survey Land with ArduPilot
Drone Mapping Guide: How to Survey Land with ArduPilot in India Drone mapping is transforming how land surveys...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| Model | AM480 |
| Cell Configuration | 6S |
| KV Rating | 650KV |
| SKU | AI6809 |
| Weight | 0.325 kg |
| Availability | In Stock |
Applications & Use Cases
The T Motors AM480 3D 5-6S 650KV Freestyle Flight Plane Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
