Axisflying AZ4720 6-8S 420KV Brushless Motor
The AXISFLYING AZ4720 420KV Brushless Motor is designed for high-performance FPV drones, UAVs, and heavy-lift applications. Supporting 6–8S LiPo batteries, it delivers stable and efficient power for compatible large-propeller setups.
With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new AZ series high-load brushless motor.
The AZ4720 is professionally developed for 15‑inch long‑range, cinematic and heavy‑loading FPV drones, delivering super high torque, massive thrust and high efficiency to meet professional heavy‑load flight requirements.
Feature:
- AZ series professional heavy‑load motor, designed for 15‑inch FPV drones
- Perfect for long‑range, cinematic shooting and heavy‑loading missions
- 12N14P structure with high‑strength arc magnets for super torque
- High‑temperature enameled wire, stable under high power & long flight
- Imported high‑speed bearings, long service life & strong durability
- Large‑current wiring design for efficient power output
- High efficiency & low heat, ideal for large‑frame long‑endurance flight
Recommended Configuration
- Motor: Axisflying AZ4720 420KV
- Voltage: 6–8S LiPo
- Props: HQ15×7‑3 / HQ13×9‑3
- Application: 15‑inch long‑range, cinematic, heavy‑loading drones
Specifications:
- Model: AZ4720
- KV: 420KV
- Configuration: 12N14P
- Internal Resistance: 30mΩ
- Size: Φ54.7×69.8mm
- Shaft Diameter: 6mm
- Silicone Wire: 13AWG
- Rated Voltage: 6–8S
- Weight (with wire): 336.0g
- Max Power: 3037.38W
- Peak Current: 99.7A
- Max Thrust: 7232g
- Idle Current (10V): 1.90A
- Mount: 4×M4

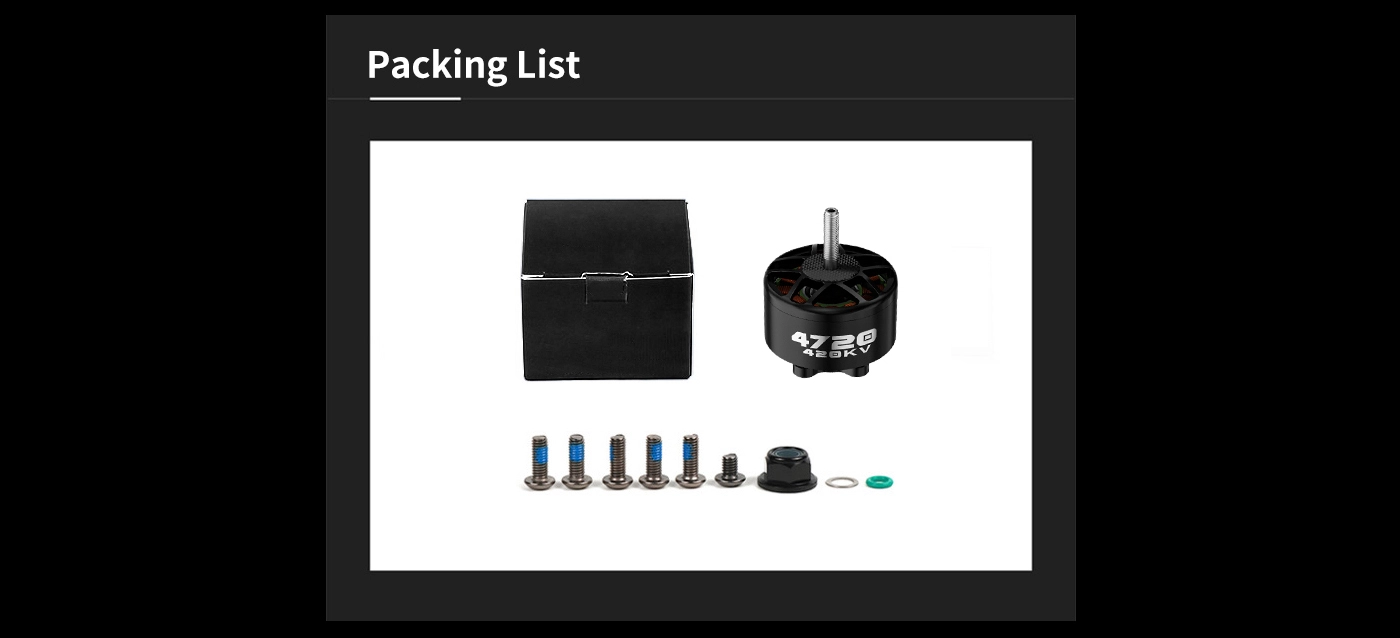

Package Include :
1x AZ4720 420KV Brushless Motor
1x Mounting screws & accessories set
Drone Telemetry Setup: SiK Radio vs FrSky vs ExpressLRS Compared
Drone telemetry is your eyes on the aircraft when it is in the air. Without it, you are...
Read More →
FPV Dive Techniques: How to Execute Safe Power Dives
FPV Dive Techniques: How to Execute Safe Power Dives Like a Pro There is no feeling quite like...
Read More →
Motor Driver Heating Up: Causes, Symptoms & Solutions
You're testing your robot or motor project and after a few minutes you notice a burning smell, the...
Read More →Technical Specifications
| Brand | Axis Flying |
|---|---|
| Model | AZ4720 |
| Cell Configuration | 8S |
| KV Rating | 420KV |
| SKU | AI4985 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Axisflying AZ4720 6-8S 420KV Brushless Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Axis Flying product sourced from authorized channels
