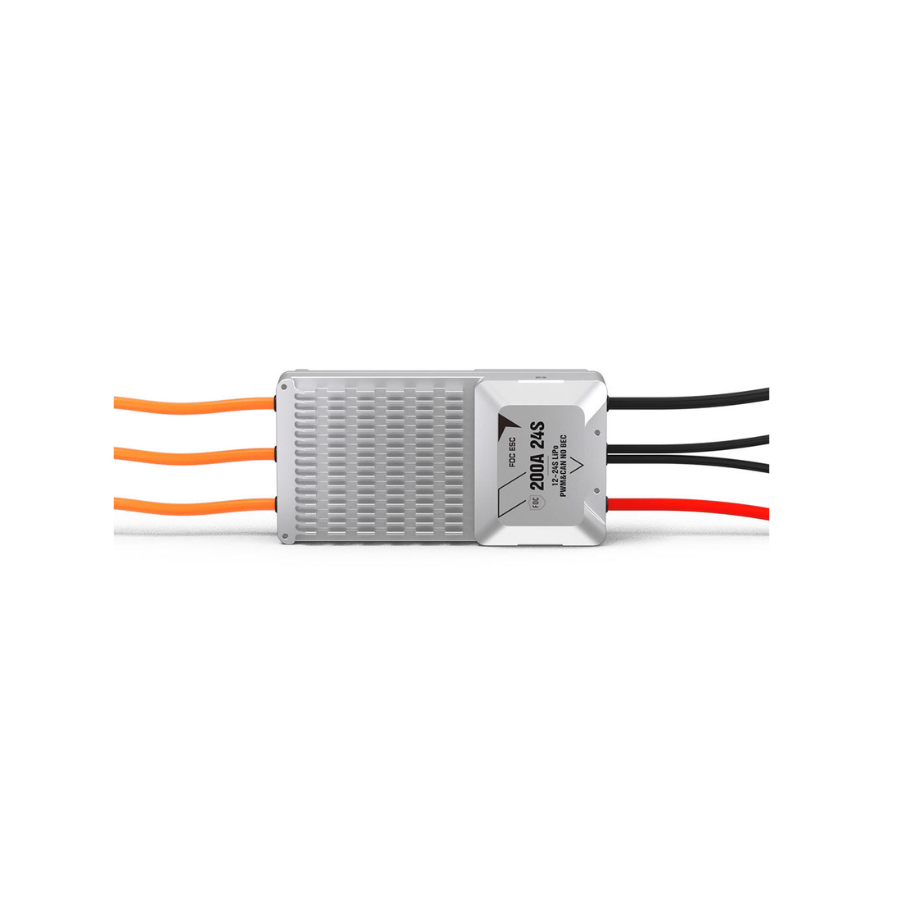

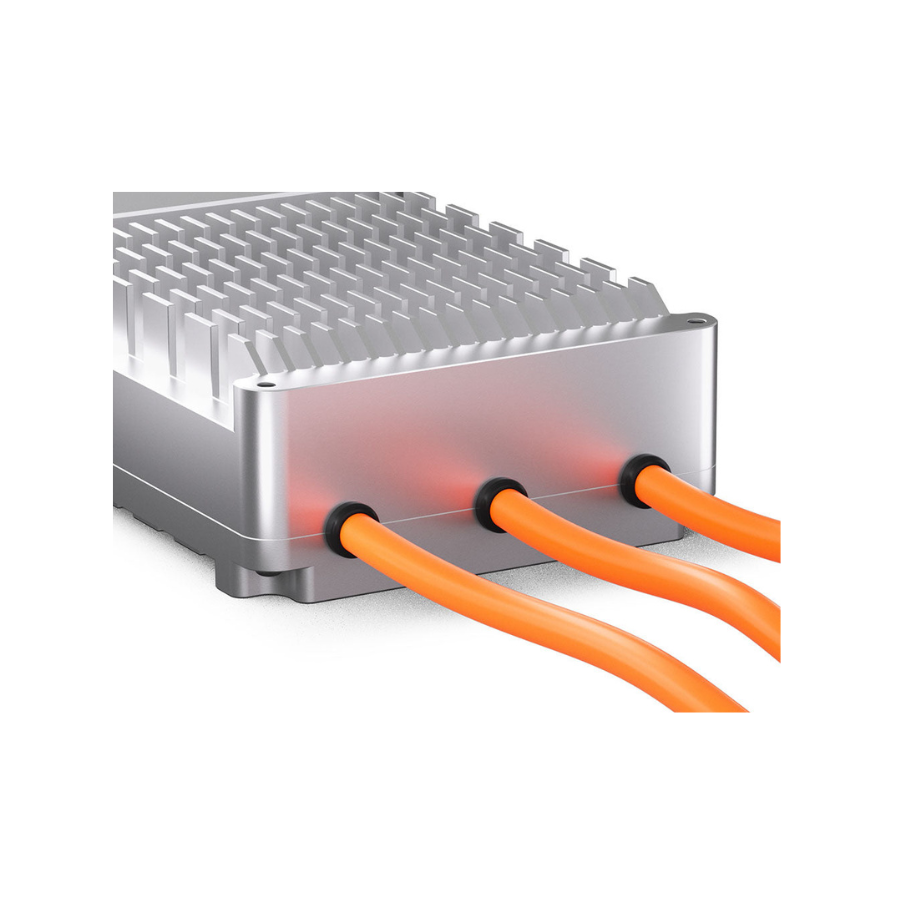

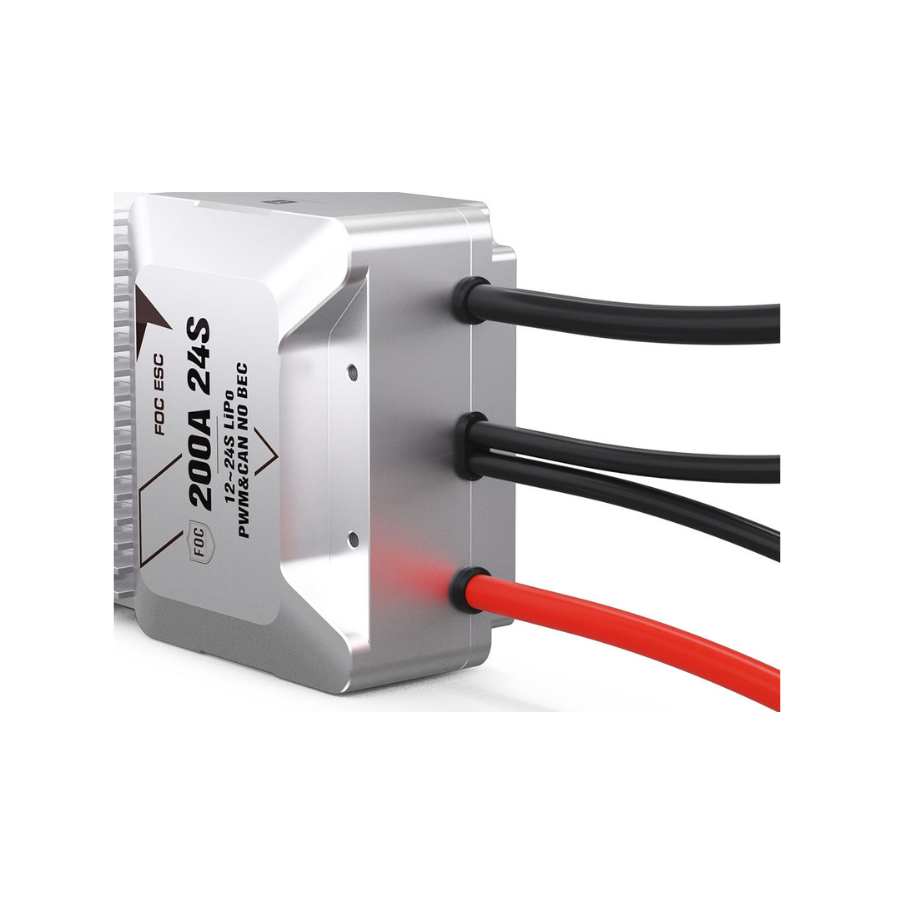

T-MOTOR V200A 24S VTOL UAV Drone ESC
Description:
T-MOTOR V200A 24S UAV ESC is a high-performance FOC (Field-Oriented Control) electronic speed controller designed for industrial UAVs, heavy-lift drones, and VTOL propulsion systems. It supports 12–24S LiPo battery systems (up to 105V) and delivers 100A continuous current with 200A peak current capability for efficient, precise, and low-noise motor control.
Key Features:
- Supports 12S–24S LiPo batteries (up to 105 V)
- Delivers 100 A continuous current
- Handles 200 A peak current
- Advanced FOC (Field-Oriented Control) technology
- Fast throttle response and precise motor control
- Low-noise operation
- Supports both PWM and CAN communication
- High efficiency and optimized energy consumption
- Industrial-grade thermal management
Specifications:
| Parameter | Specification |
|---|---|
| Model | V200A 24S |
| Application | Industrial UAV / Heavy-lift multirotor / VTOL |
| Control Technology | FOC (Field-Oriented Control) |
| Input Voltage | 12–24S LiPo (Max 105V) |
| Continuous Current | 100A |
| Peak Current | 200A (<10 seconds) |
| BEC Output | None |
| Communication | PWM / CAN |
| Throttle Range | 1040–1940 μs |
| Throttle Refresh Frequency | 50–500 Hz |
| Throttle Response Speed | 300 ms |
| Standby Power Consumption | ≤50 mA @ 100V |
| Operating Temperature | Not specified in product page |
| ESC Dimensions | 146 × 74 × 39.5 mm |
| Weight | 580 g (without cables) / 748 g (with cables) |
| Power Cable | 10 AWG silicone wire, red/black, 1200 mm |
| Motor Output Cable | 10 AWG silicone wire, orange, 250 mm |
| Signal Cable | Shielded cable, OD 4.2 mm, 500 mm |
| Encoder Cable | Shielded 24 AWG cable, M6 aviation connector, 460 mm |
Packing Includes:
- 1 × T-Motor V200A 24S UAV ESC
- 1 x Accessories pack
