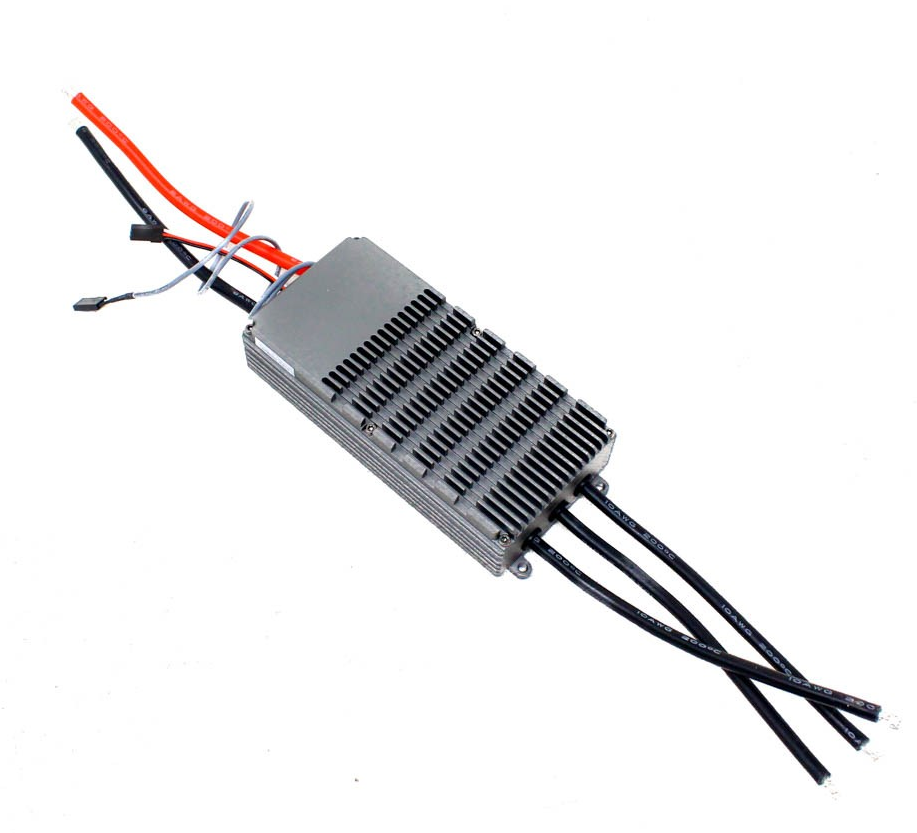

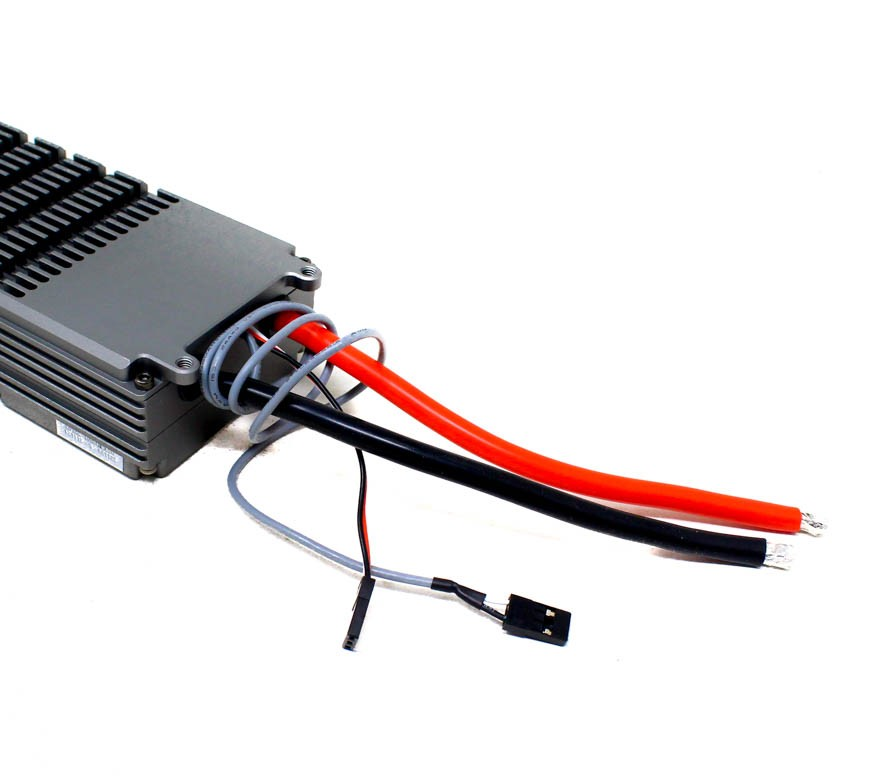

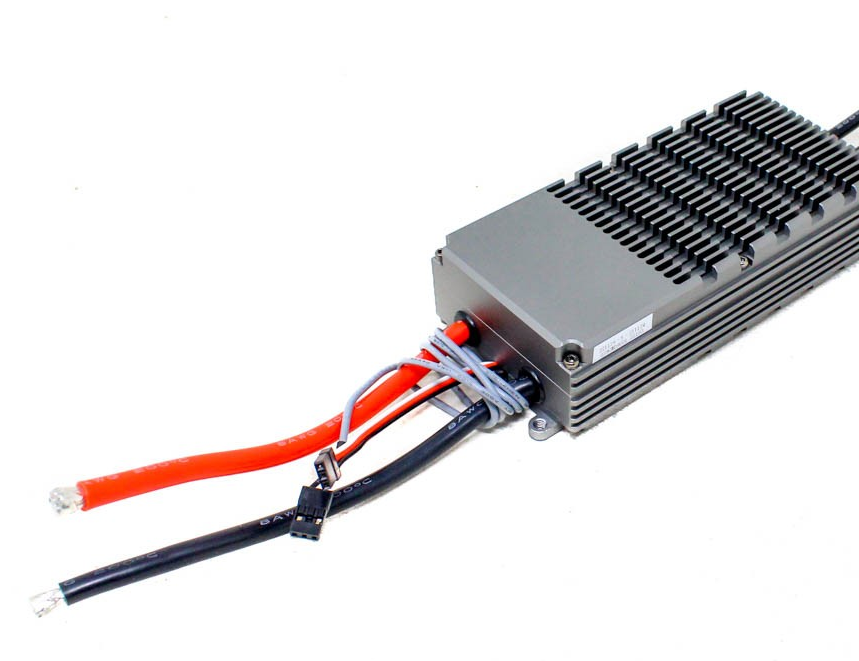

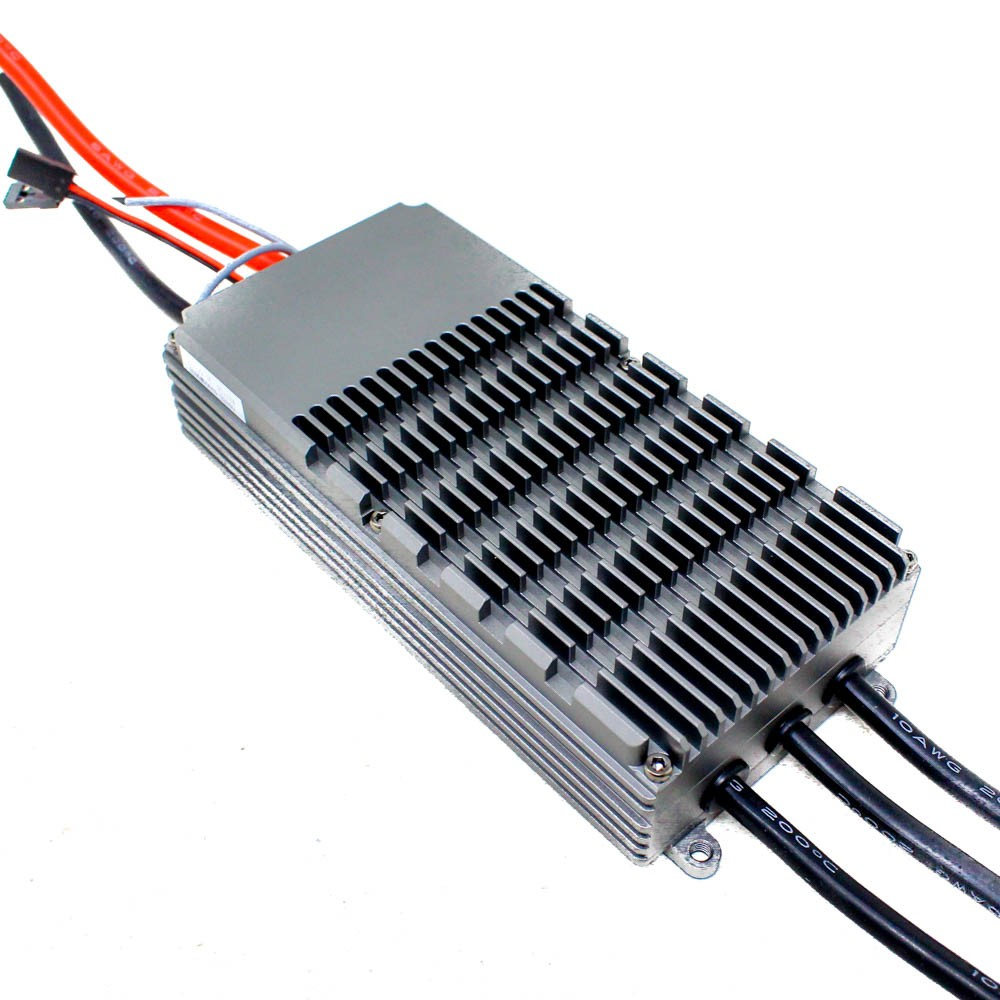

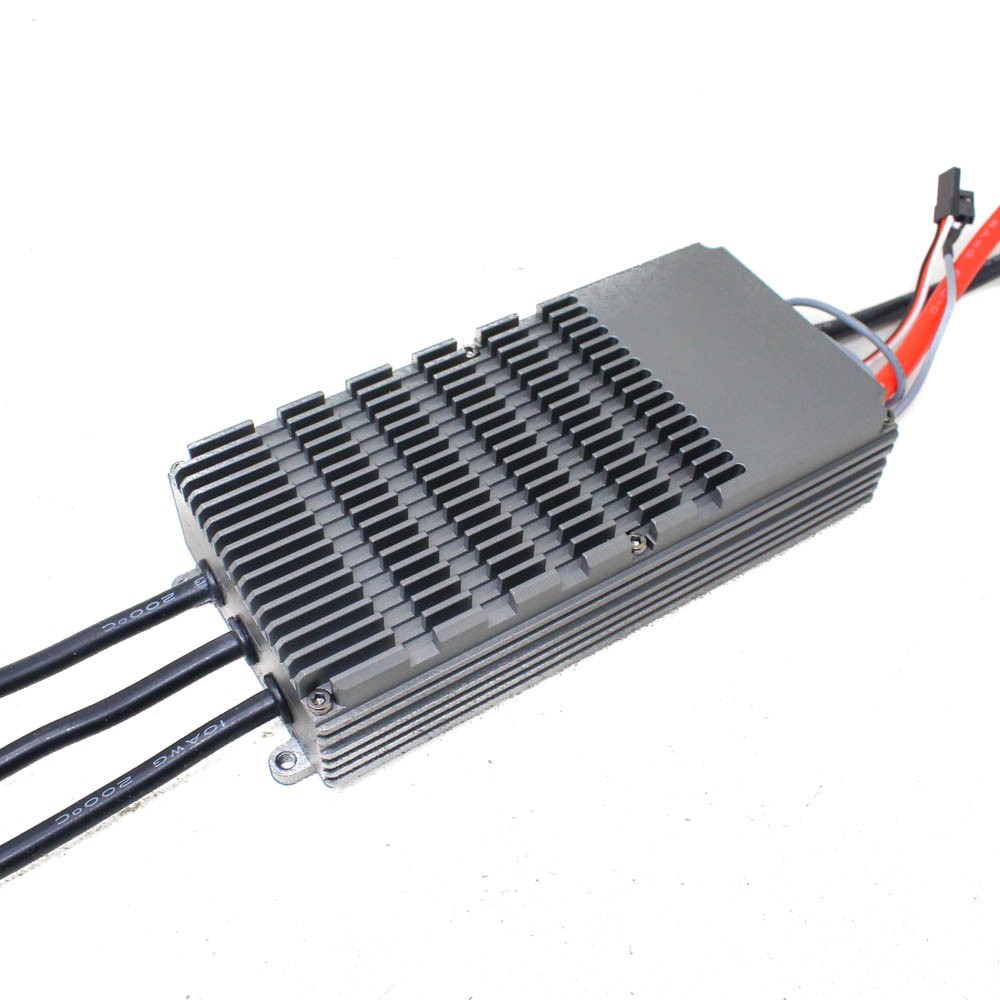

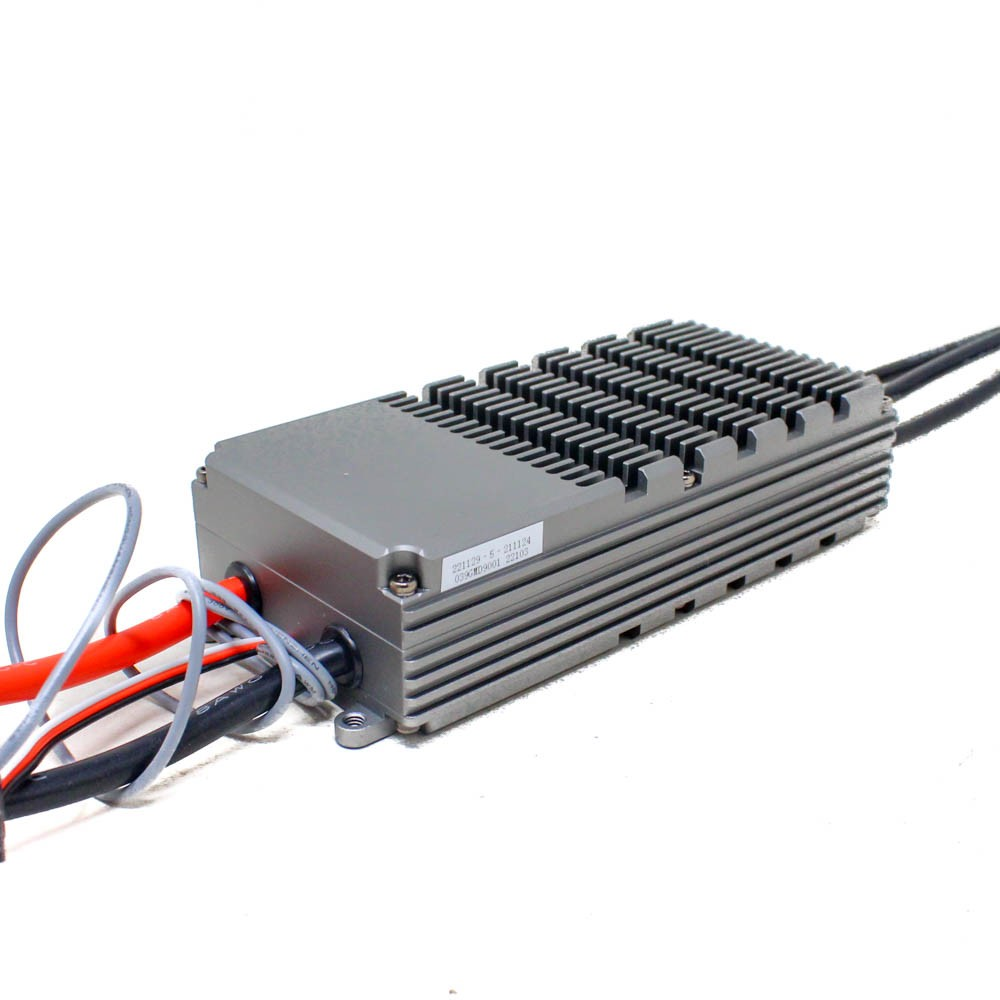

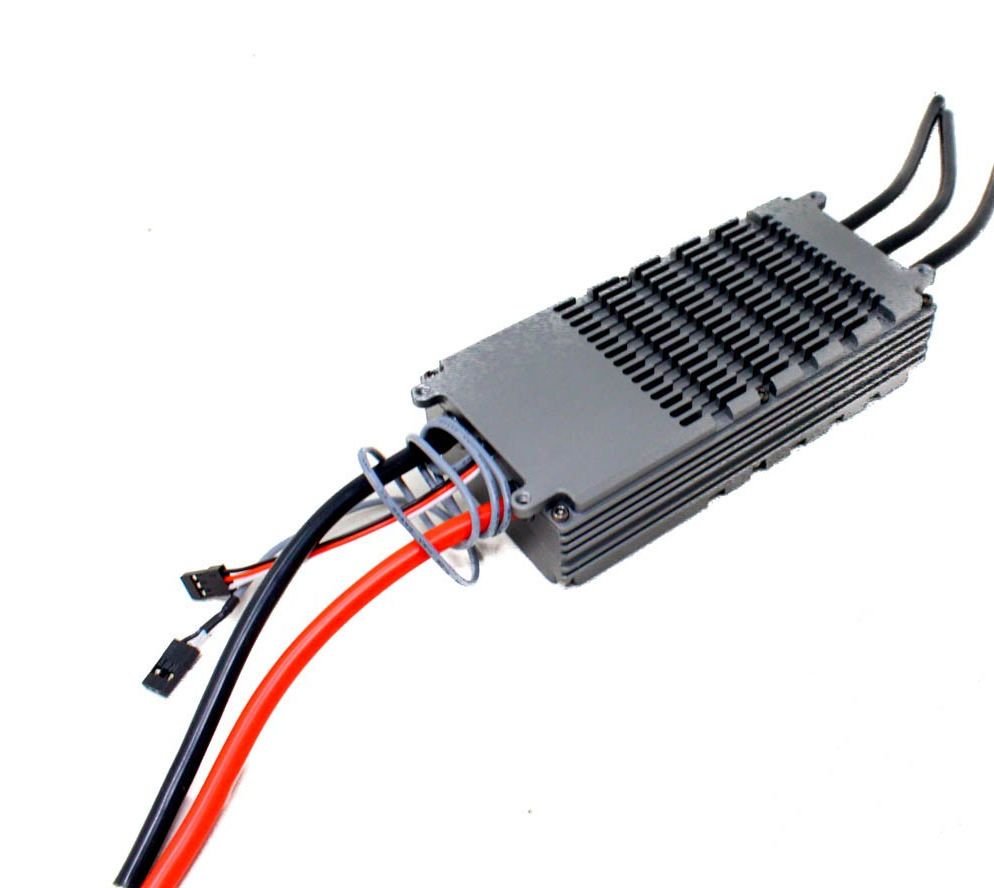

T Motor Thunder 200A 24S ESC
The Thunder 200A 24S Powerful ESC can be used for heavy-duty application motors. The ESC has full Metal body.
The T Motor Thunder 200A 24S ESC stands as a robust solution tailored for heavy-duty applications in large-scale electric-powered vehicles, particularly multirotors and drones. With a formidable 200A continuous current rating, it effortlessly manages high-power setups, while its compatibility with 24-cell lithium-ion or lithium polymer batteries ensures suitability for high-voltage demands. Leveraging advanced MOSFET technology, it optimizes power handling efficiency while minimizing heat generation. This ESC likely offers firmware customization options, allowing users to fine-tune performance parameters to their exact specifications. Moreover, it incorporates a suite of built-in protection features, including over-current, over-temperature, and low-voltage cutoff mechanisms, ensuring the safety of both the ESC and connected components. Despite its robust capabilities, its compact and lightweight design enables seamless integration into various vehicle configurations. Whether for heavy-lift drones or other high-performance applications, this ESC delivers reliability, durability, and precise control, making it a preferred choice for discerning enthusiasts and professionals alike.
Features:
- Easy to use, stable and reliable, strong anti-interference ability, good speed regulation performance.
- Muti-safety protection: low-voltage protection, high-voltage protection, overcurrent protection, over-temperature protection, startup failure protection, stall protection, and lost signal protection.
- Photoelectric isolation PWM control interface.
- Isolated serial port data post back: post back supply voltage, RPM, current, ESC temperature, and debug data.
- Extraposition temperature sensor, temperature measurement precision.
Specification:
| Model | Thunder 200A 24S |
|---|---|
| Support LIPO (S) | 18-24S |
| Continuous output current (A) | 150A |
| Instantaneous output current | 200A (Less than 10s) |
| BEC function | No |
| Operating ambient temperature(℃) | -20~+65 |
| Operating Humidity(％) | 15~85 RH |
| Waterproof Level | Moisture resistant grade |
| Maximum support speed | 100,000 RPM (electrical speed) |
| Throttle refresh frequency | 50-400HZ |
| Input signal level | 3.3V-5V |
| Length (mm) | 155 |
| Width (mm) | 65 |
| Height (mm) | 45 |
| Weight (gm) | 630 |
Package Includes:
1 x T Motor Thunder 200A 24S ESC
T Motor Thunder 200A 24S ESC Overview
The T Motor Thunder 200A 24S ESC is a heavy-duty electronic speed controller designed for large multirotor drones and electric-powered vehicles. It supports high-voltage setups from 18S to 24S LiPo battery packs and delivers consistent power for demanding aerial and industrial applications.
Key Features of T Motor Thunder 200A 24S ESC
- Supports 18S–24S LiPo battery configurations for high-voltage performance
- Continuous output current of 150A with 200A instantaneous bursts (under 10 seconds)
- Robust full metal housing for enhanced heat dissipation and mechanical protection
- Advanced high-efficiency MOSFET design to minimize heat generation and maximize power handling
- Ideal for heavy-lift multirotor and large-scale electric vehicle applications
- Genuine T Motor product, fast shipping from Zbotic across India
Applications and Use Cases
- Heavy-lift cinematography drones requiring stable high-current delivery
- Industrial survey UAVs operating with large battery banks
- Agricultural spraying platforms needing reliable ESC performance
- High-voltage prototype builds in research and development labs
- Custom electric ground vehicles and robotics projects
How to Use T Motor Thunder 200A 24S ESC
Mount the ESC on your drone or vehicle frame using the included mounting holes, ensuring proper airflow around its metal body. Connect the three motor phase wires to your brushless motor and plug in the 18S–24S LiPo battery leads. Attach the signal cable to your flight controller’s throttle output and calibrate the ESC throttle range following T Motor’s guidelines. For parameter tuning or firmware updates, use a compatible ESC programming adapter or T Motor programming card (sold separately).
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery cell count does the Thunder 200A 24S ESC support?
It supports lithium polymer (LiPo) battery packs from 18 cells up to 24 cells, making it ideal for high-voltage drone and electric vehicle setups.
What are the continuous and burst current ratings?
The ESC provides a continuous output current of 150A and can handle instantaneous bursts of up to 200A for durations under 10 seconds.
Can I configure throttle curves and braking settings?
Yes, you can adjust motor timing, braking force, voltage cutoff, and other parameters using a compatible ESC programming adapter or T Motor’s programming card (available separately).
