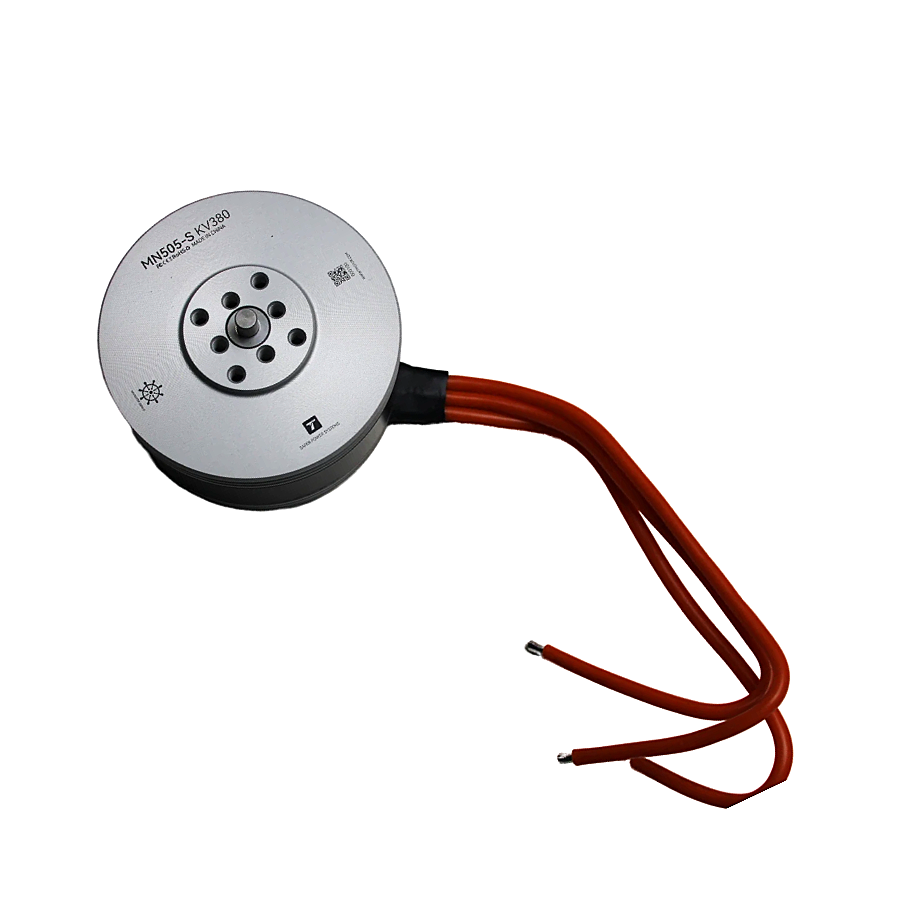

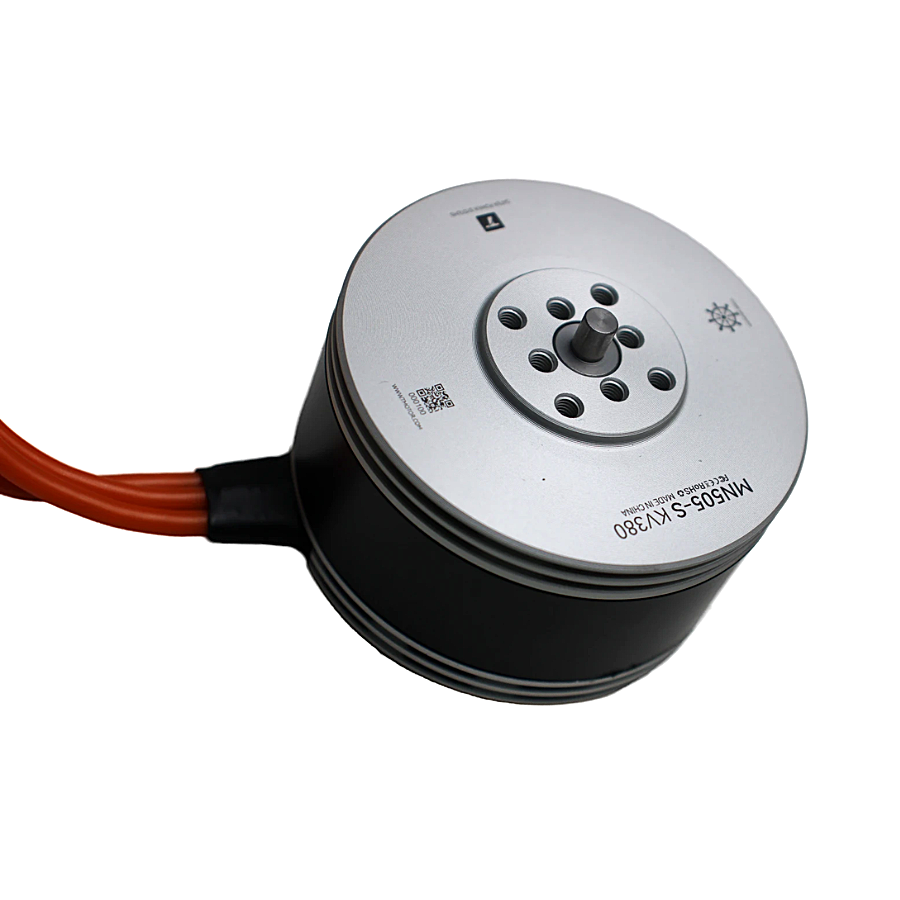

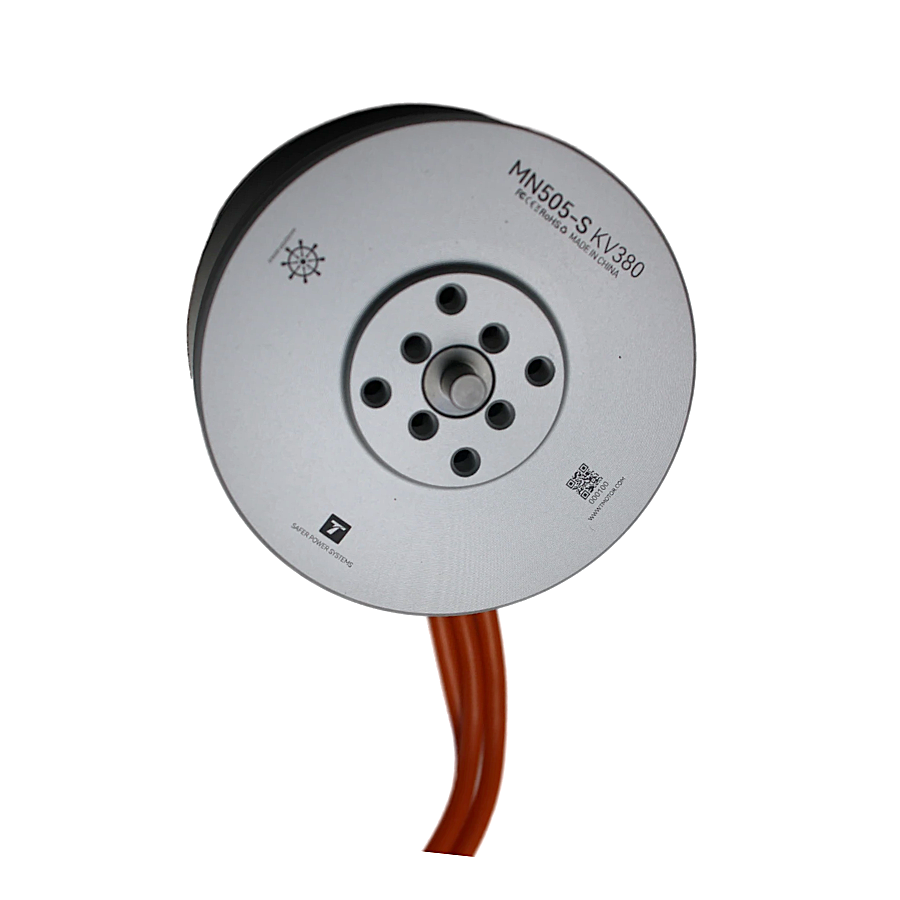

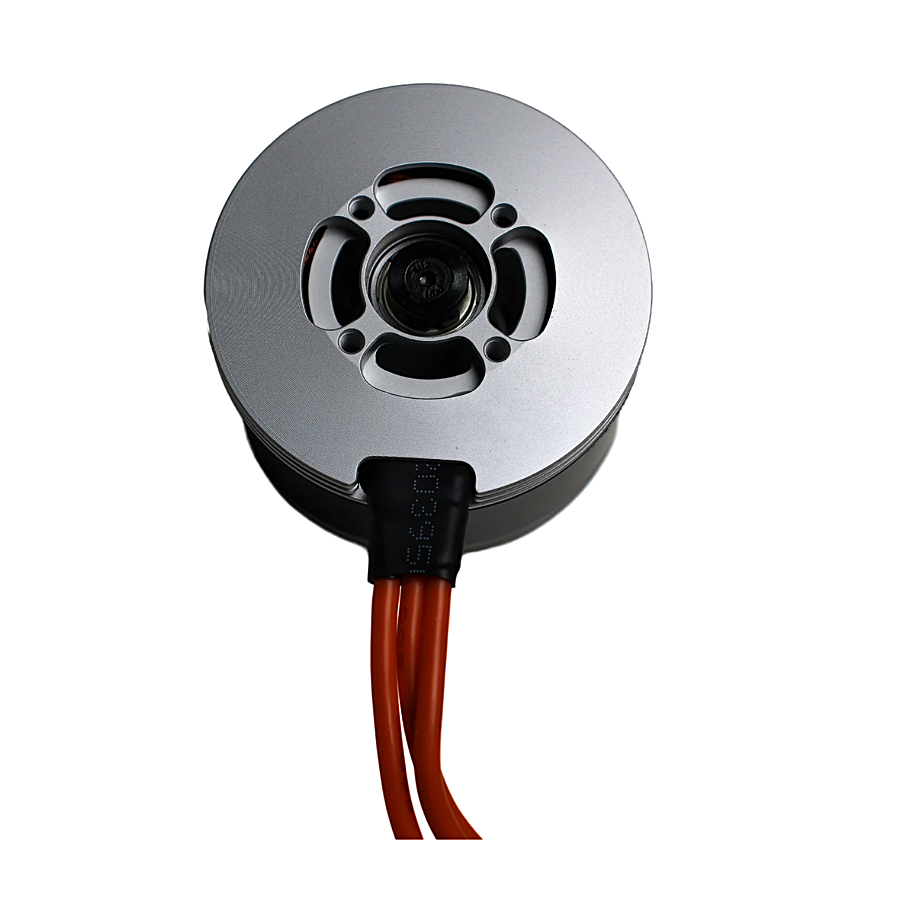

T Motor Navigator Waterproof Mn505-S 380KV
The T-Motor MN505-S series motors are a powerful new addition to the Navigator range, designed to provide up to approximately 5,000 grams of thrust, with a variety of RPM/V configurations to suit different needs. Drawing inspiration from T-Motor’s premium U-Power series and incorporating key improvements from their FPV motor lineup, the MN505-S motors deliver enhanced performance and durability.
A key upgrade is the motor’s more enclosed construction, offering superior protection against dust and water ingress. This new design includes a centrifugal fan that channels airflow through the motor, boosting heat dissipation and improving overall cooling efficiency. The motors also feature high-temperature resistant windings, ensuring better protection against potential burn-out issues caused by propeller entrapment or other accidents.
Internally, the motors are reinforced with a T-shaped shaft, securely fixed with a clip and screw for added strength and resilience. This robust design ensures the motor can handle demanding loads without risk of rotor slippage or failure.
Optimized for use in aerial photography, surveillance systems, and mapping/surveying applications, the MN505-S motors are compatible with both fixed and folding T-Motor carbon fiber propellers. Designed for professional use, these motors are built to meet the rigorous demands of commercial aerial platforms, delivering exceptional reliability and performance in various challenging environments.
Feature:
- Long Service Life
- Excellent Cooling Power
- Anti-High Temperature/Anti Overload
- Water- and Dust Resistance
- Anti Corrosion
Specification:
| Model | T MOTOR NAVIGATOR WATERPROOF MN505-S 380KV |
|---|---|
| Working Current(uA) | 4-48 |
| Rated Speed (RPM) | 6975 |
| Maximum Thrust (gm) | 5444 |
| Rated Power (W) | 1163 |
| Efficiency | 8-5 |
| Operating Temperature (°C) | -40~80°C |
| Internal Resistance(Ω) | 28 |
| Shaft Diameter (mm) | IN=6,OUT=4 |
| No. of Cells | 6 |
| Allowed Wire Size (AWG): | 16 |

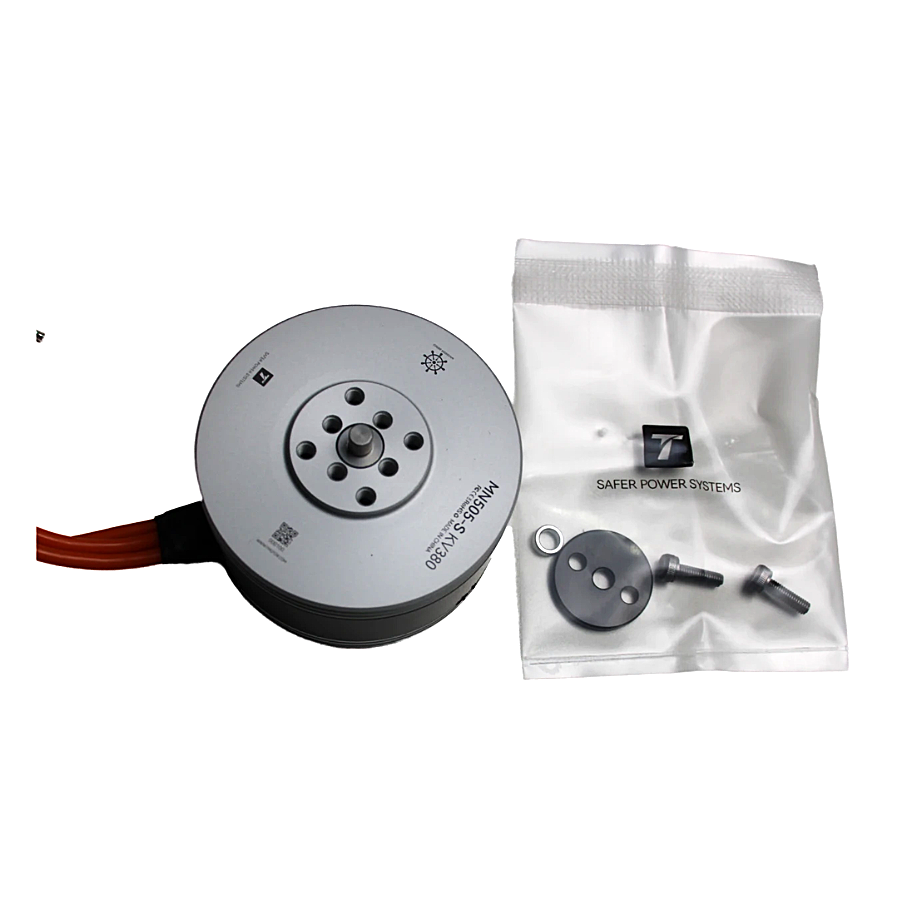

Package includes:
1 x T MOTOR NAVIGATOR WATERPROOF MN505-S 380KV
TT Gear Motor for Robot Car: Voltage, RPM & Tire Matching
The humble TT gear motor is the backbone of hobbyist robot cars in India. Walk into any electronics...
Read More →
DC Gear Motor Buying Guide: RPM, Torque & Voltage
A gear motor is a DC motor paired with a gearbox that reduces the output shaft speed while...
Read More →
Best Motor Drivers: L298N vs L293D vs L9110S vs TB6612
Every DC motor and stepper motor project that involves a microcontroller needs a motor driver — an intermediate...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| KV Rating | 380KV |
| SKU | AI5569 |
| Weight | 0.51 kg |
| Availability | In Stock |
Applications & Use Cases
The T Motor Navigator Waterproof Mn505-S 380KV is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine T -Motor product sourced from authorized channels
