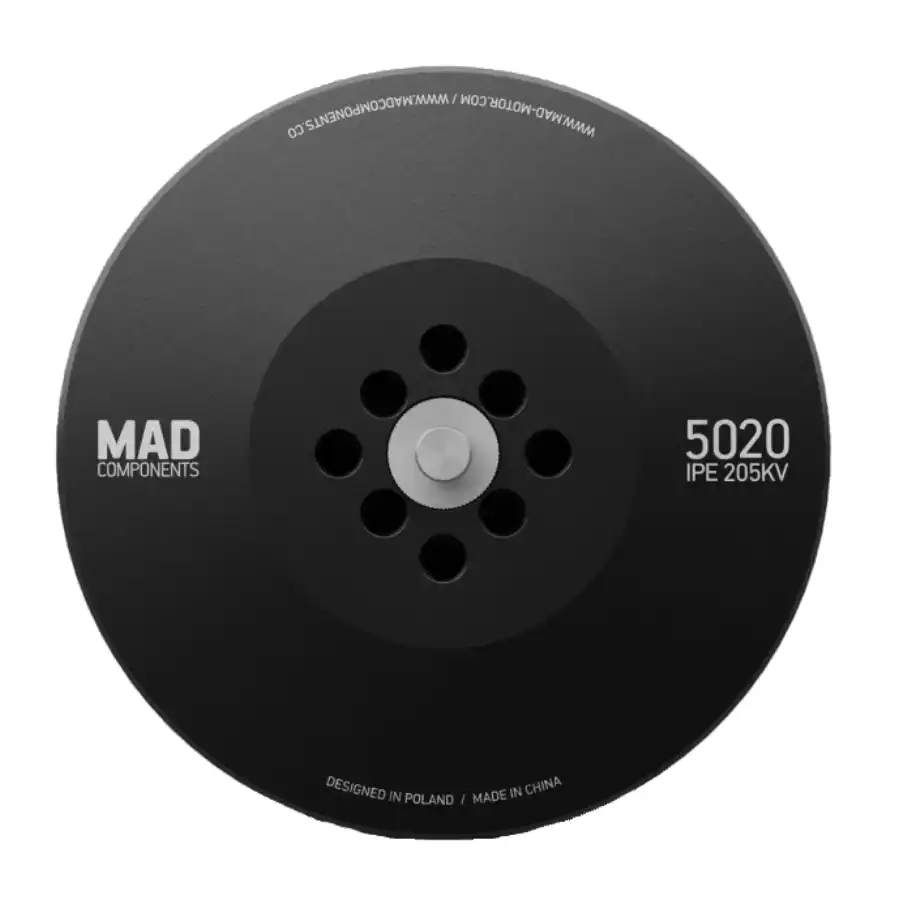

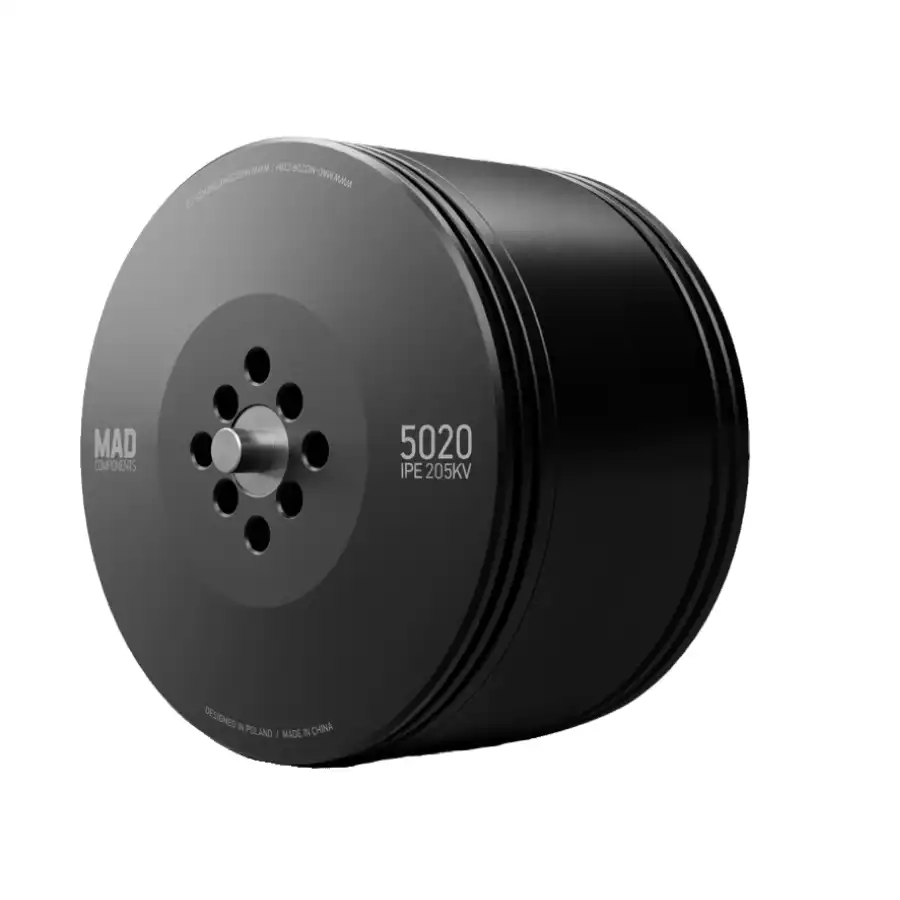

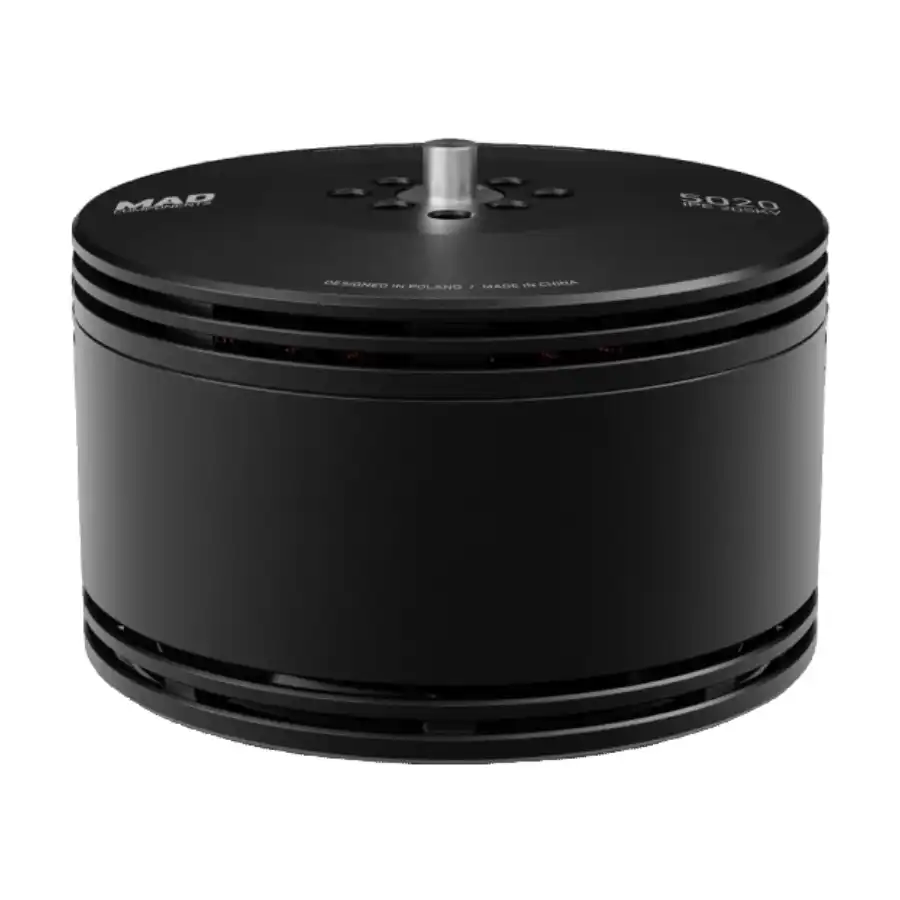

MAD 5020 IPE V3.0 EVTOL Drone Motor
Description:
The MAD 5020 IPE V3.0 EVTOL Drone Motor is a high-performance 205KV brushless motor designed for VTOL, mapping, surveying, and heavy-lift multirotor UAVs. It supports 12S LiPo batteries and delivers up to 8kg of maximum thrust while maintaining excellent efficiency, durability, and heat dissipation for demanding flight operations
Specification:
| Motor Model | MAD 5020 IPE V3.0 | Number of pole pairs | 14 | ||||||
| Stator | Anticorrosive | Varnished wire Degree | 180°C | ||||||

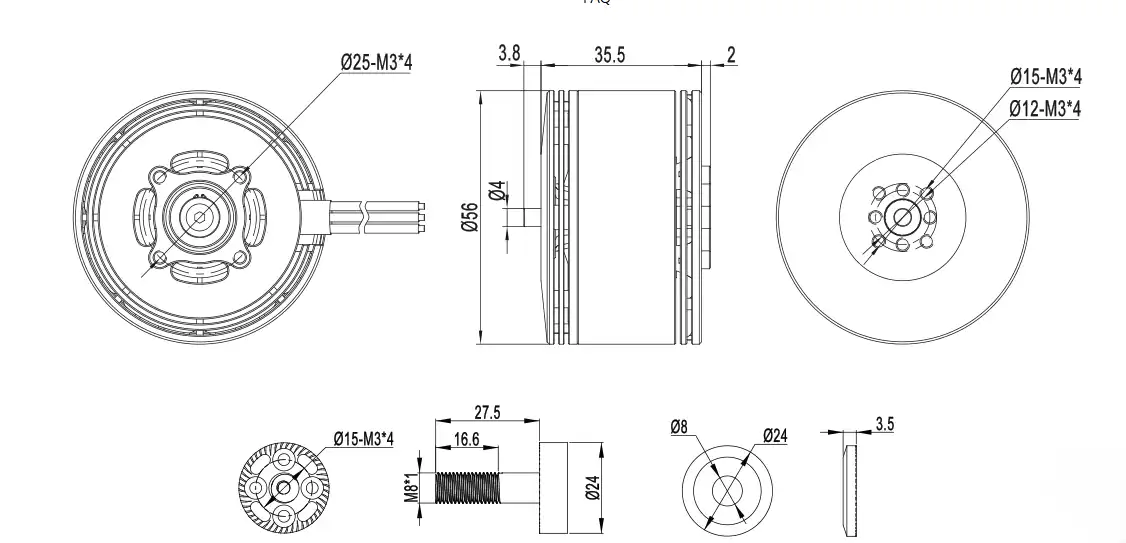

| Motor Size | D:56 × 41.3 mm | Magnet Degree | 150°C | ||||||
| Degree of Protection | IP45 | Cable Length | 150 mm 16# Awg(Black) silicone | ||||||
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg | ||||||
| Propeller Mounting Holes | D:12 M3×4, D:15 M3×4 | Motor Balance | ≤10 mg | ||||||
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4 | ||||||
| Bearing | 696ZZ*2 | Disruptive test | 500 V | ||||||
Features:
- High-efficiency 205KV brushless motor
- Supports 12S LiPo battery systems
- Delivers up to 8kg maximum thrust
- Lightweight design at 290g
- IP45-rated dust and water resistance
- Anticorrosive stator for extended durability
- Efficient centrifugal heat dissipation
- Suitable for VTOL, mapping, inspection, and surveying drones
- Precision-balanced rotor for smooth operation
- Compatible with large 16–18 inch propellers

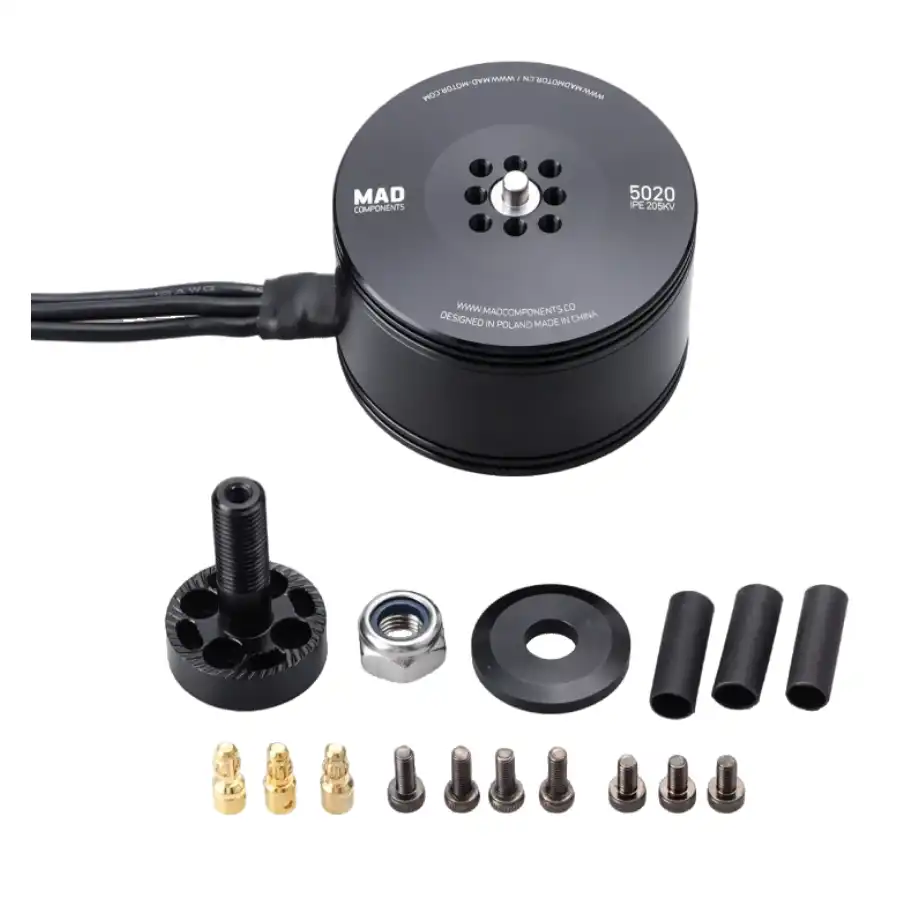

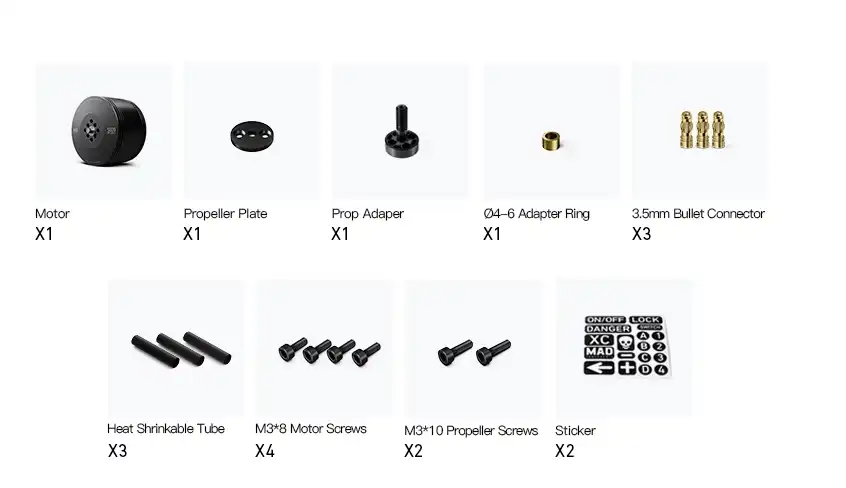

Package Include:

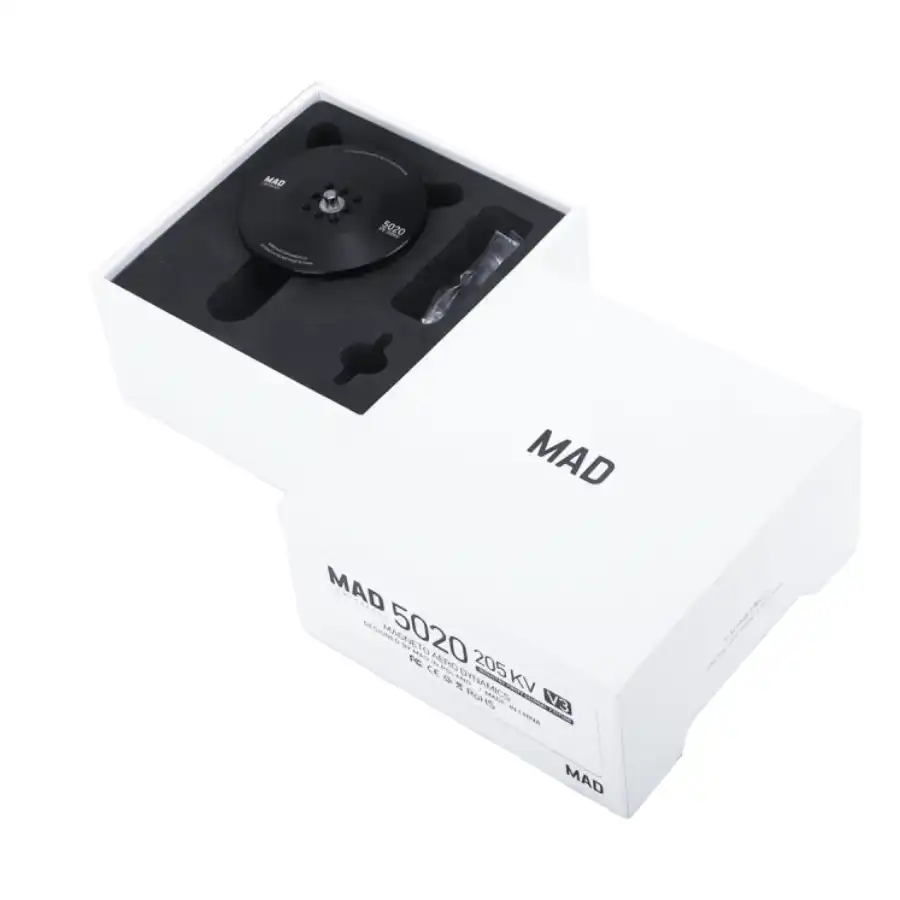

1x MAD 5020 IPE V3.0 EVTOL Drone Motor
Drone Waypoint Mission Planning: ArduPilot & Mission Planner Guide
Drone Waypoint Mission Planning: ArduPilot & Mission Planner Guide Autonomous drone flights powered by GPS waypoints are transforming...
Read More →
FPV Drone Range Extender: Booster Amplifiers for Video TX Explained
Table of ContentsUnderstanding FPV Video Range LimitationsHow Video TX Booster Amplifiers WorkTypes of Range Extension SolutionsAntenna Selection for...
Read More →
Stepper Motor Losing Steps: Causes & Fixes for Arduino Projects
Table of Contents What Is Step Loss and Why Does It Matter? Cause 1: Insufficient Motor Current Cause...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| SKU | AI8292 |
| Weight | 0.5928 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD 5020 IPE V3.0 EVTOL Drone Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
